PTFE Tape

Why Choose Our PTFE Tapes?
✅ High-Temperature Stability: Maintain performance in continuous heat without degradation.
✅ Non-Stick Surface: Prevent adhesive buildup on machinery, ensuring smooth operation.
✅ Chemical Resistance: Withstand aggressive acids, bases, and solvents.
✅ Customizable Solutions: Tailored widths, thicknesses, and adhesive options to meet your specific needs

PTFE Tape selection

A comprehensive product specification matrix precisely matches the needs of diverse industrial scenarios.

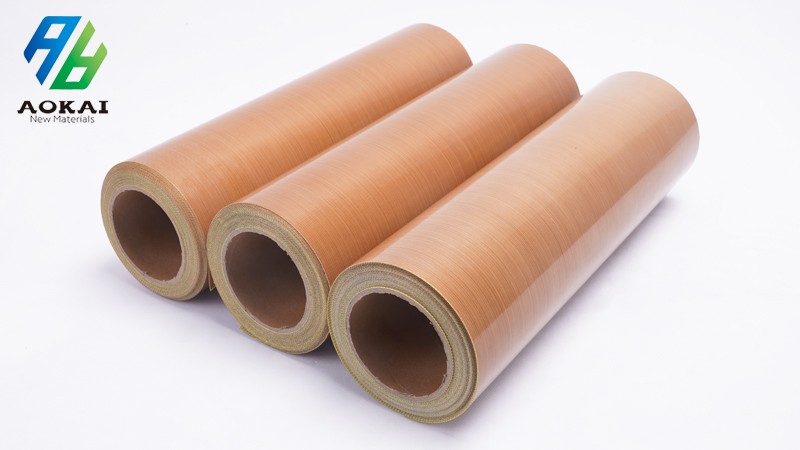

PTFE Fiberglass Tape

PTFE Fiberglass Tape

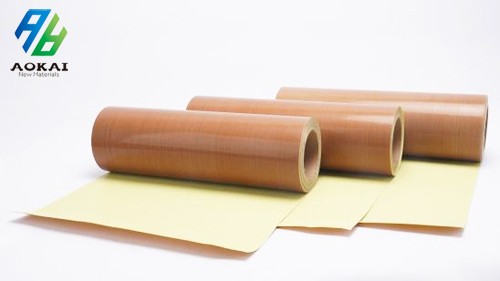

300℃ PTFE Fiberglass Tape

300℃ PTFE F iberglass Tape

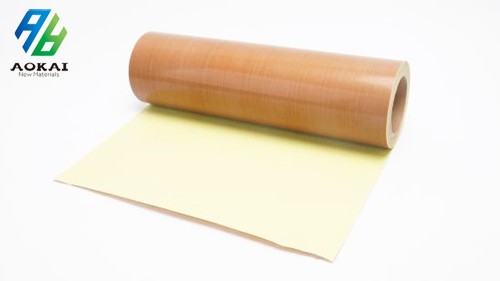

High Viscosity PTFE Fiberglass Tape

High Viscosity PTFE  Fiberglass Tape

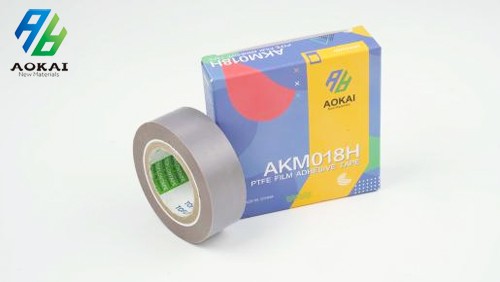

PTFE Film Tape

PTFE Film Tape

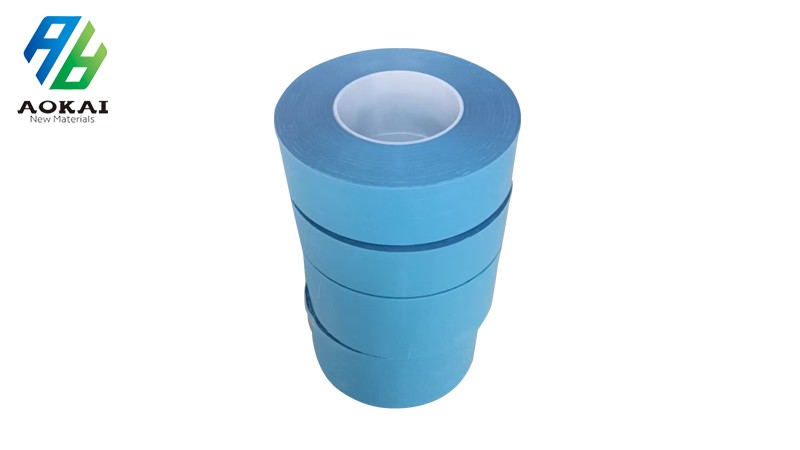

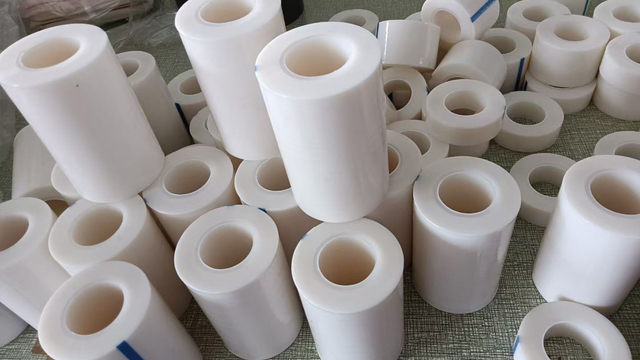

UHMWPE adhesive tape

UHMWPE Adhesive Tape

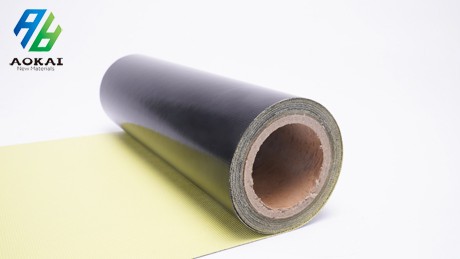

Black PTFE Tape

Black PTFE Tape


Unlocking multi-industry applications

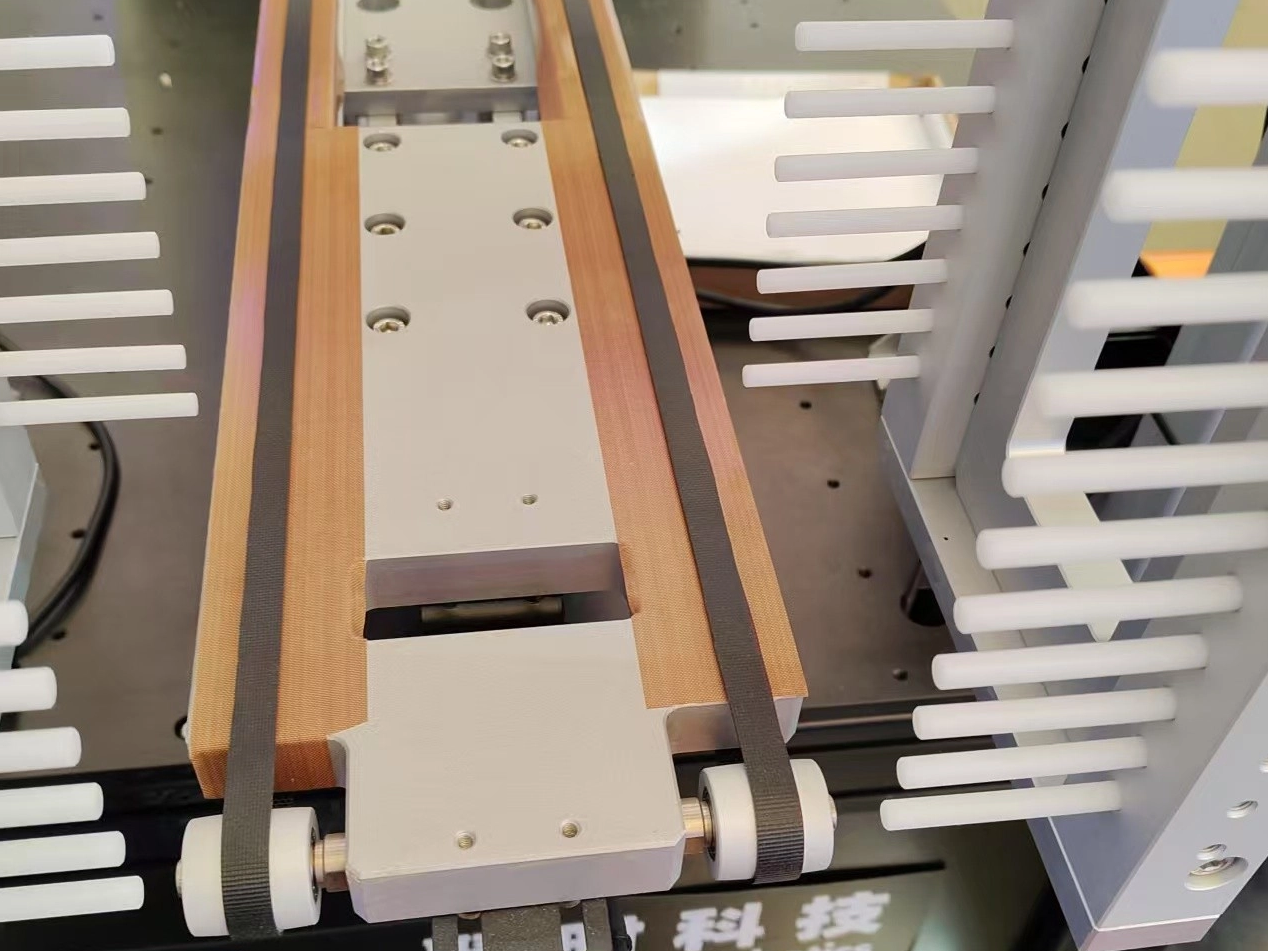

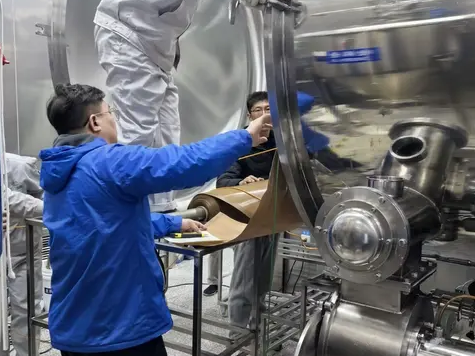

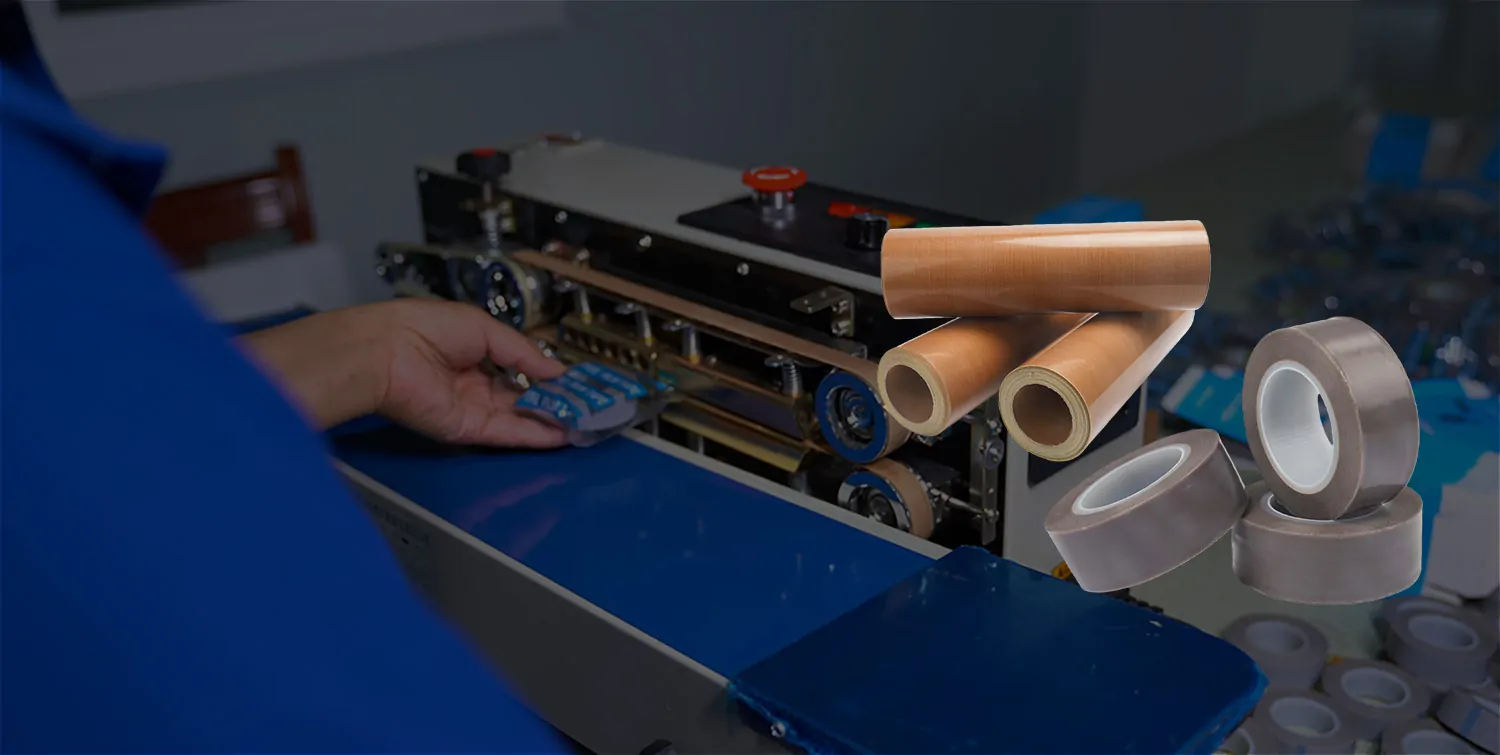

In the new energy electronics sector, our PTFE tape boosts lithium battery production and insulation protection. For food & medical industries, it ensures hassle - free baking non - stick and medical device sealing. In automotive & aviation, it safeguards new energy vehicle batteries and aircraft engines. In precision manufacturing, it facilitates wafer processing and 3C equipment anti - contamination.

Jiangsu Aokai PTFE Tape - Professional Manufacturer in China

Specializing in the research and development and production of PTFE materials, we offer over 100 types of industrial composite materials, including PTFE tapes and high-temperature fabrics. Our products are widely used in the food, electronics, and chemical industries, and are exported to over 20 countries and regions worldwide.
REACH OUT NOW

PTFE Tape Manufacturer
Jiangsu Aokai strictly controls the entire production process, from raw material brand selection and base fiber selection to equipment operation and rigorous quality inspection. Adhering to GMP and QS standards, its products meet international supermarket standards. PTFE Tapes are exported to over 20 countries, and the company provides customized high-performance material solutions for customers.
  • 2008
    Since
  • 20000
    Square meters of land area
  • 1800000
    M2 annual production capacity

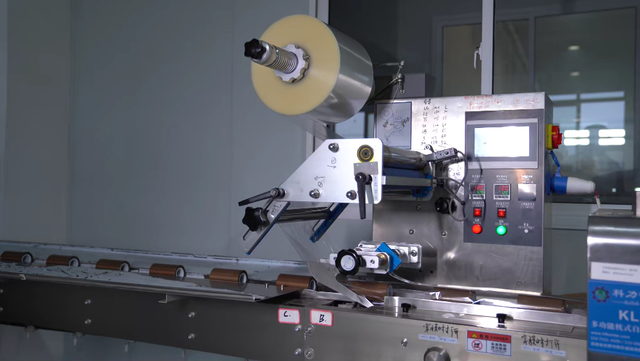

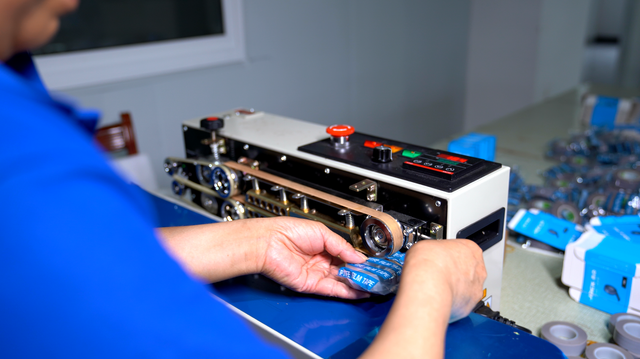

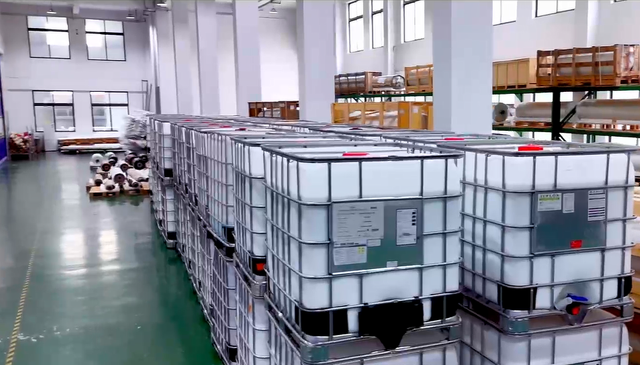

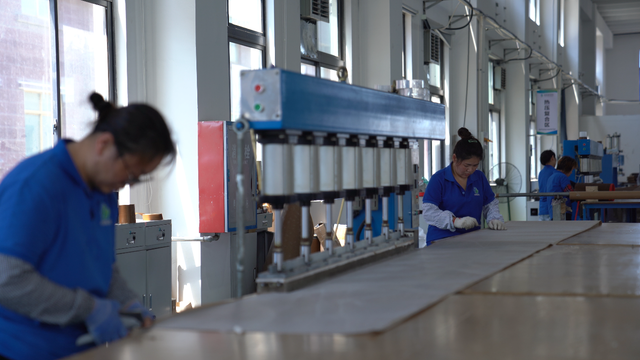

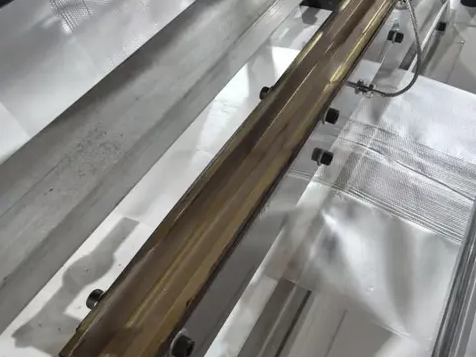

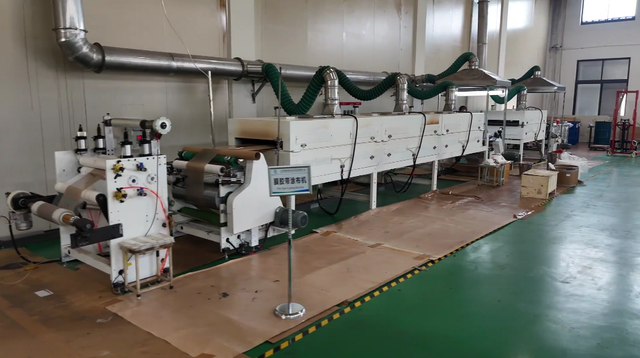

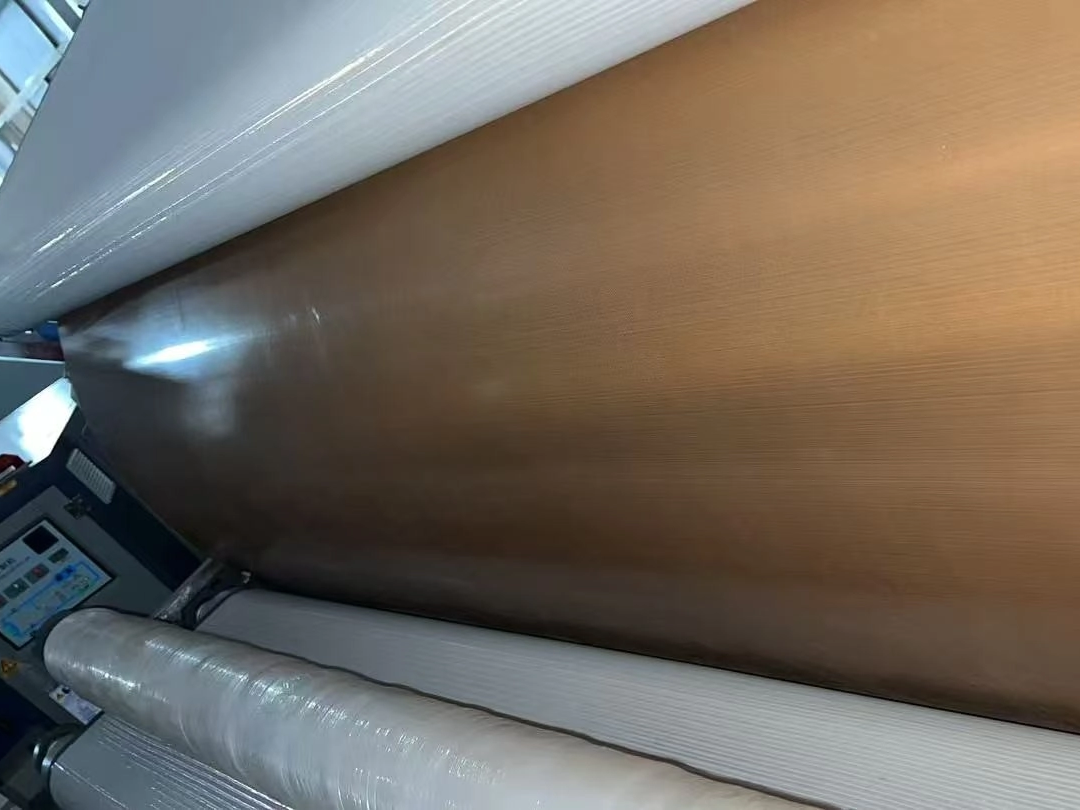

Production Process & Full Process

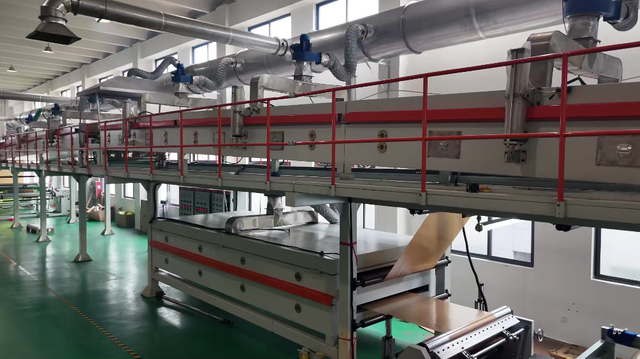

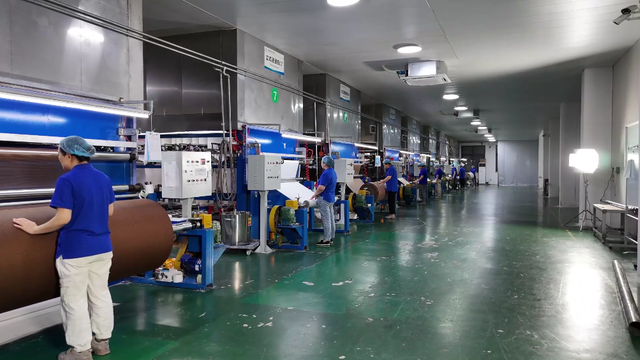

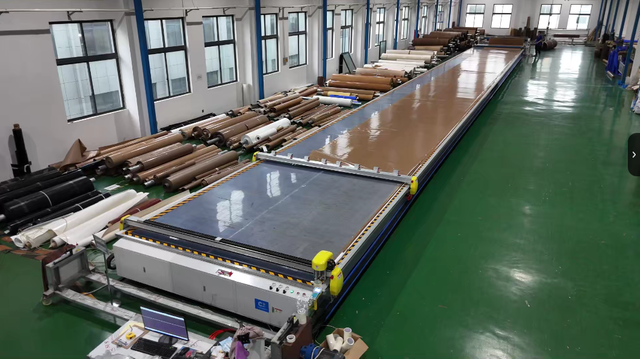

We have a professional R&D team, 11 impregnation production lines, 2 coating production lines, fully automatic slitting machines, advanced production equipment, and precision testing instruments. We specialize in the R&D, production, and sales of PTFE impregnated and silicone rubber coated products, from impregnation to coating, from drying to slitting.
International Certifications
FDA/SGS/RoHS/ISO international certifications, serving over 500 global industrial customers, with a customer repurchase rate exceeding 95% for three consecutive years.
1-640-640
2-640-640
1-640-640 (1)
2-640-640 (1)
1
2
Product Parameters
Your application scenario, material performance defined by data
PTFE Fiberglass Tape

Product code Total thickness mm Standard width mm(in) Maximum width mm Length   m
GP-C 0.13 10,13,19,25,30,38,50 600 10-100
0.16 10,13,19,25,30,38,50 600 10-100
0.18 10,13,19,25,30,38,50 600 10-100
0.2 10,13,19,25,30,38,50 600 10-100
0.23 10,13,19,25,30,38,50 600 10-100
0.25 10,13,19,25,30,38,50 600 10-100
0.28 10,13,19,25,30,38,50 600 10-100
0.3 10,13,19,25,30,38,50 600 10-100
0.35 10,13,19,25,30,38,50 600 10-100
PTFE Film Tape
Series Part Number Colour Overall Standard
width
(mm)		 Base cloth
Gram weight
(g/㎡)		 Tensile Strength
（N/25mm）
 Adhesion
180 ° peel
（N/25mm）		 Breakdown
Voltage
(Kv)		 Antistatic
Index
Thickness
（mm）
M M006H Grey 0.06 300 120 60 5 8 -
M006BK Black 0.06 300 120 60 5 - 10^7-10^5
M008H Grey 0.08 300 150 90 6 10 -
M008BK Black 0.08 300 150 90 6 - 10^7-10^5
M013H Grey 0.13 420 260 160 8 15 -
M013BK Black 0.13 420 260 160 8 - 10^7-10^5
M013W White 0.13 600 260 160 8 15 -
M018H Grey 0.18 600 350 250 9 18 -
M018BK Black 0.18 600 350 250 9 18 10^7-10^5
Partner with Aokai for a Win-Win Future
High profits are achieved through 25% cost savings and exclusive regional pricing. A comprehensive product range, spanning eight categories and over 200 SKUs, meets diverse needs and reduces inventory risk. OEM services offer flexible customization of product specifications, packaging, and functionality, enabling precise response to personalized orders. The OBM model leverages the promotional resources of the "Aokai" brand to enhance premium pricing.
72-hour rapid response and supply chain partnership

From Technical Support To Sample Testing, Every Need Is Prioritized.

  • Q Can I order custom widths or lengths?

    A
    Yes. We offer custom widths, thicknesses, and roll lengths to fit your process. Contact our sales team with your specifications and required quantity.

  • Q How should I store and handle the tape?

    A
    Store in a cool, dry place away from direct sunlight and heat sources. Avoid prolonged exposure to moisture. Keep the roll in its original packaging when not in use.

  • Q What is the typical lead time?

    A
    Standard products ship within 7 business days after order confirmation; custom options may take longer. We’ll confirm a firm lead time with you at order.

  • Q Is the adhesive silicone-based, acrylic, silicone-acetate?

    A
    The adhesive is silicone-based, however, customer can customize acrylic-based tape, which provides higher adhesion.

  • Q What is the difference between PTFE silicone adhesive tape and PTFE acrylic tape?

    A
    Temperature performance

    ● Silicone adhesive:
    Excellent high-temperature stability and remains flexible at low temperatures;   suitable for thermal cycling and gaskets/seals.

    ● Acrylic adhesive:
    Good overall temperature performance but generally not as flexible as silicone;   may become more brittle at very low temperatures or soften at high temperatures.

    Chemical resistance and environment

    ● Silicone adhesive:
    Excellent resistance to moisture, water immersion, UV exposure (for outdoor use), and many chemicals;   maintains elasticity.

    ● Acrylic adhesive:
    Good chemical and UV resistance for many environments but typically less flexible than silicone;   weathering resistance is formulation-dependent.


    Flexibility vs rigidity

    ● Silicone adhesive on PTFE:
    More flexible, able to accommodate movement, vibration, and thermal expansion without losing seal.

    ● Acrylic adhesive on PTFE:
    Typically stiffer;   strong initial hold but less forgiving with movement;   better for rigid, high-tack bonds.
Get Your Free Quote Today

Contact us now for personalized solutions and competitive pricing. Our team responds promptly to every inquiry.
