When you're using industrial ovens that are very hot, picking the right conveyor belt can make or break your line. PTFE conveyor belts work better than any other in high-temperature settings because they can withstand temperatures up to 260°C (500°F), have non-stick surfaces that make it easy to remove materials, and are highly resistant to chemicals. In demanding thermal processing uses, these advanced Teflon conveyor belts get rid of common production bottlenecks and keep product quality consistent. They also make tools last longer.

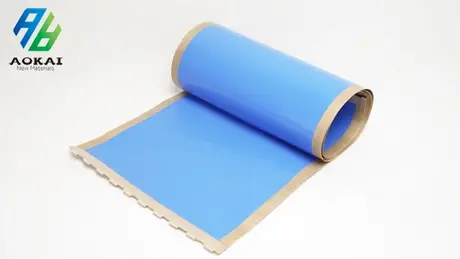

![PTFE Conveyor Belts]( "PTFE Conveyor Belts")
Understanding Key Performance Parameters of PTFE Conveyor Belts
PTFE conveyor belts work very well in high-temperature ovens because of the way they are made and the way their molecules are structured. Polytetrafluoroethylene has one of the strongest chemical bonds known in organic chemistry. The carbon-fluorine bond makes the chemical very stable even in harsh circumstances.
Important performance markers include being able to handle continuous temperatures of up to 260°C (500°F) and short-term exposures of up to 288°C. The rate of friction stays low, between 0.05 and 0.15, which means that conveyor systems use a lot less energy and wear out less quickly. Tensile strength is usually between 1000 and 2000 N/5 cm, and the material keeps its shape even when heated.
Because these belts have a dielectric strength greater than 20 kV/mm, they can be used in places where electrical protection is needed. Chemical resistance includes almost all industrial solvents, acids, and alkalis, so it will last for a long time in harsh settings. These measured factors directly lead to higher production efficiency and lower costs for upkeep.
Five Core Benefits Transforming High-Temperature Operations
Exceptional Heat Resistance for Demanding Applications
PTFE conveyor belts can be exposed to temperatures that would destroy other types of belting materials for long periods of time. The polytetrafluoroethylene coating keeps its shape and surface properties even when it is heated and cooled many times between room temperature and its highest working temperature.
This resistance to heat is very useful in bakeries, where goods need to be kept at the same temperature for hardening and drying. Facilities that process meat need reliable performance during the smoking and cooking processes. Similarly, companies that make electronics need stable conveyor movement during wave soldering operations.
Non-Stick Surface Properties Eliminate Production Issues
The non-stick nature of Teflon conveyor belts keeps sticky materials from sticking to them. This cuts down on product loss and increases the efficiency of the line. Food bits, glues, and molten materials are easy to remove from the surface of the belt, which keeps the quality of the product the same throughout production runs.
Chocolate making, cheese handling, and candy making all depend on this non-stick feature a lot. The smooth finish on the surface keeps dirt from building up and makes cleaning easier between product changes.
Superior Chemical Resistance Ensures Longevity
Conveyor belts in industrial stoves are often exposed to harsh chemicals, cleaning agents, and waste products from the process. Acids, alkalis, solvents, and other corrosive substances that are common in high-temperature processing settings don't damage PTFE conveyor belts.
This chemical inertness means that the belt will last longer and need to be replaced less often. This resistance to harsh chemical environments is especially useful in the pharmaceutical, chemical processing, and curing of car parts industries.
Low Friction Coefficient Reduces Operating Costs
The very low friction of PTFE surfaces makes it much easier to power conveyor systems with a lot less energy. This lowers friction and keeps drive parts from wearing out as quickly, which makes mechanical systems last longer and require less upkeep.
Continuous operation facilities save a lot of energy because the lower motor loads directly lead to lower power costs. Bearings, rollers, and drive systems are less stressed because the belt tracks smoothly.
Engineered Durability for Extended Service Life
Conveyor belts made of a high-strength fiberglass base and a PTFE covering are made to last for a long time in industrial settings. The base fiberglass mesh has great tensile strength and dimensional stability, and the PTFE layer keeps the material from breaking down in the environment.
With proper care, belts can last for several years of constant use, which makes them cost-effective even though they cost more to buy at first than other materials. Unplanned downtime and the production losses that come with it are cut down by the dependability.
Aokai PTFE Advantage: Superior Quality and Performance
Our PTFE conveyor belts at Aokai PTFE are made using advanced manufacturing methods that make them work better than regular products. We use multiple-layer PTFE covering methods to make surfaces that are smooth, don't have pores, and last longer.
The carefully managed sintering method we use makes sure that the fiberglass base and PTFE coating layers stick together perfectly. Compared to single-layer belts that are widely available on the market, these belts are more durable and last longer when made using this method.
Part of our quality control process is doing full thermal cycle tests, checking the tensile strength, and making sure the chemical resistance is correct. Dimensional accuracy checks are done on each belt to make sure that it tracks accurately and performs the same way across its full width.
We also offer customization options that many of our rivals can't match. You can change the belt's width, thickness, edge finishing, and splice combinations to fit your needs. Because of this, it is possible to find the best solution for each oven design and processing situation.
Maximizing Performance Through Proper Implementation
For Teflon conveyor belts to work at their best, installation and working details must be carefully considered. The tightness on the belt should be set according to the manufacturer's instructions. Usually, just enough tension is enough to keep the belt from slipping without putting too much stress on the fiberglass substrate.
If you line the tracks correctly, the edges won't wear down and the whole width of the belt will be exposed to the same amount of heat. Checking the drive wheels and support structures on a regular basis can help find problems before they damage the belt or stop production.
To keep from getting thermal shock, temperature ramping methods should be used when starting cold ovens. As the temperature rises slowly, the material of the belt can expand evenly, lowering stress points that could cause it to break too soon.
Cleaning instructions should use the right chemicals and methods to keep the PTFE surface in good shape. Don't use rough cleaning methods on the non-stick covering because they could damage it and make it less effective.
Spare belts should be stored in a way that keeps the temperature and humidity fixed and protects them from UV light and mechanical damage. When you store belts correctly, they keep their properties and work reliably when you put them.
Essential Considerations for Optimal Results
Knowing what PTFE conveyor belts can't do and how to take care of them properly can help you get the most out of them in high-temperature situations. Sharp items and too much mechanical stress can damage the PTFE coating, making it less nonstick and possibly making it more likely that contamination will happen.
To keep the strength and temperature resistance at joint sites during belt splicing, special methods and materials are needed. Professional installation makes sure that the splice is properly sealed and stops connecting points from failing too soon.
For each processing setting, it's important to make sure that the product is compatible with certain chemicals. PTFE is resistant to most industrial chemicals, but some fluorinated compounds and molten acidic metals can break it down in certain situations.
The way things expand and contract with heat must be taken into account when designing a moving system. The length of the belt changes as the temperature changes, so it needs to be properly tensioned and have enough space between the belts to avoid tangling or too much stress.
As part of routine upkeep, the coating should be looked at visually for damage, edge wear, and splice condition. If possible problems are found early on, they can be fixed before the whole belt needs to be replaced.
Conclusion
PTFE conveyor belts represent the pinnacle of high-temperature conveyor technology, offering unmatched performance in demanding oven applications. The combination of exceptional heat resistance, non-stick surface properties, chemical inertness, and durability creates solutions that optimize production efficiency while reducing operational costs. When properly selected and maintained, these advanced belting systems deliver measurable improvements in product quality, energy efficiency, and equipment reliability across diverse industrial applications.
FAQ
What is the maximum temperature PTFE conveyor belts can handle?
PTFE conveyor belts can operate continuously at temperatures up to 260°C (500°F) and withstand intermittent exposure to 288°C. This exceptional heat resistance makes them ideal for high-temperature oven applications where conventional belts would fail.
How do PTFE conveyor belts compare to silicone or rubber belts in ovens?
PTFE conveyor belts offer superior non-stick properties, higher temperature resistance, and better chemical resistance compared to silicone or rubber alternatives. While initial costs may be higher, the extended service life and reduced maintenance requirements provide better long-term value.
Can PTFE conveyor belts be repaired if damaged?
Minor surface damage to PTFE coatings can sometimes be repaired using specialized techniques and materials. However, significant damage or substrate tears typically require belt replacement to maintain performance and safety standards.
Are PTFE conveyor belts food-safe for bakery applications?
Yes, PTFE conveyor belts are FDA-compliant and food-safe when manufactured to appropriate standards. They meet stringent hygiene requirements for direct food contact in bakery, confectionery, and other food processing applications.
What maintenance is required for PTFE conveyor belts?
Regular visual inspections, proper cleaning with appropriate solvents, maintaining correct belt tension, and ensuring proper tracking alignment are essential maintenance practices. Professional splice inspection should be performed periodically to ensure joint integrity.
How long do PTFE conveyor belts typically last in continuous operation?
With proper installation and maintenance, PTFE conveyor belts can provide several years of reliable service in continuous high-temperature operations. Actual lifespan depends on operating conditions, maintenance practices, and application-specific factors.
Partner with Aokai PTFE for Superior PTFE Conveyor Belt Solutions
Aokai PTFE stands as your trusted PTFE conveyor belts manufacturer, delivering premium-quality belting solutions engineered for demanding high-temperature applications. Our comprehensive product line includes over 100 fabric composite materials designed for diverse industrial requirements. Contact our technical team at mandy@akptfe.com to discuss your specific oven conveyor needs and discover how our advanced PTFE technology can optimize your production processes.
