Yes, PTFE film tape can be effectively used for electrical insulation purposes. PTFE, also known as polytetrafluoroethylene or Teflon, possesses excellent dielectric properties, making it an ideal choice for electrical applications. PTFE film adhesive tape offers superior insulation against high voltages and frequencies, coupled with remarkable heat resistance and chemical inertness. These characteristics make it a popular choice among teflon tape manufacturers for producing high-performance electrical insulation products. Whether in consumer electronics, industrial machinery, or aerospace applications, PTFE film tape provides reliable electrical insulation while withstanding extreme temperatures and harsh environments.

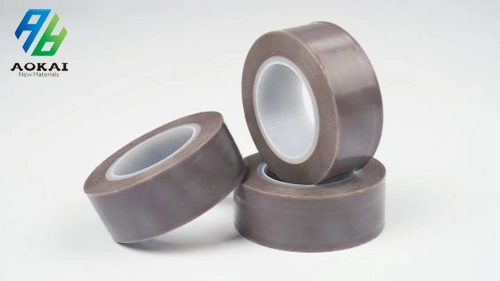

![PTFE Film Tape]( "PTFE Film Tape")
Properties of PTFE Film Tape for Electrical Insulation
Dielectric Strength and Breakdown Voltage
PTFE film tape boasts exceptional dielectric strength, a crucial property for electrical insulation materials. The dielectric strength of PTFE typically ranges from 50 to 170 kV/mm, depending on the thickness and manufacturing process. This high dielectric strength ensures that PTFE film can withstand substantial voltage differences without electrical breakdown occurring. The breakdown voltage of PTFE film tape is significantly higher than many other insulating materials, making it suitable for high-voltage applications in various industries.
Temperature Resistance and Thermal Stability
One of the standout features of PTFE film tape is its remarkable temperature resistance. PTFE maintains its electrical insulation properties across a wide temperature range, from -268°C to 260°C. This thermal stability ensures that the tape's insulation effectiveness remains consistent even in extreme temperature conditions. The material's low thermal conductivity further enhances its insulation capabilities, preventing heat transfer and protecting sensitive components in electrical systems.
Chemical Inertness and Moisture Resistance
PTFE film adhesive tape exhibits exceptional chemical inertness, resisting degradation from most solvents, acids, and bases. This property is particularly valuable in electrical applications where exposure to corrosive substances or moisture is a concern. The hydrophobic nature of PTFE also contributes to its excellent moisture resistance, preventing water absorption that could compromise its insulating properties. These characteristics ensure the longevity and reliability of PTFE film tape in diverse electrical insulation scenarios.
Applications of PTFE Film Tape in Electrical Insulation
Wire and Cable Wrapping
PTFE film tape is widely used for wrapping wires and cables in various electrical systems. Its thin profile and flexibility allow for easy application around conductors of different shapes and sizes. The tape provides a uniform insulation layer, protecting against electrical leakage and short circuits. In high-frequency applications, such as coaxial cables used in telecommunications, PTFE film tape helps maintain signal integrity by minimizing signal loss and interference. Teflon tape manufacturers often produce specialized grades of PTFE film tape optimized for wire and cable insulation, offering enhanced adhesion and durability.
Transformer and Motor Insulation
The electrical insulation properties of PTFE film tape make it an excellent choice for use in transformers and electric motors. In transformers, PTFE tape can be used to insulate windings, preventing arcing between adjacent coils and enhancing overall efficiency. For electric motors, PTFE film adhesive tape serves as an effective insulator for stator windings and rotor components. Its high dielectric strength and thermal stability ensure reliable performance even under the high temperatures and electrical stresses encountered in motor operations.
Printed Circuit Board (PCB) Protection
PTFE film tape finds application in protecting sensitive areas of printed circuit boards during manufacturing and assembly processes. Its excellent electrical insulation properties prevent short circuits and current leakage between closely spaced conductive traces. The tape's chemical resistance also protects PCB components from potential damage during cleaning or coating processes. Some teflon tape manufacturers offer specialized PTFE films with controlled thickness and surface properties tailored for PCB applications, ensuring compatibility with various manufacturing techniques and assembly requirements.
Advantages and Limitations of PTFE Film Tape for Electrical Insulation
Advantages of PTFE Film Tape
PTFE film tape offers numerous advantages for electrical insulation applications. Its exceptional dielectric strength provides superior protection against electrical breakdown, even in high-voltage environments. The material's wide operating temperature range ensures consistent performance in both cryogenic and high-temperature conditions. PTFE's chemical inertness and moisture resistance contribute to the longevity and reliability of electrical systems, reducing maintenance requirements and enhancing overall safety. The tape's low friction coefficient and non-stick properties facilitate easy installation and removal, making it ideal for temporary insulation needs or applications requiring frequent maintenance.
Limitations and Considerations
While PTFE film tape excels in many aspects of electrical insulation, it's important to consider its limitations. The material's relatively high cost compared to some traditional insulation options may impact its feasibility for large-scale or budget-sensitive projects. PTFE's low surface energy can sometimes result in adhesion challenges, particularly in applications where strong bonding is required. Some grades of PTFE film may exhibit cold flow or creep under prolonged stress, potentially affecting long-term dimensional stability in certain applications. Additionally, PTFE's excellent electrical insulation properties may not be ideal in situations where controlled conductivity or static dissipation is desired.
Comparative Analysis with Other Insulation Materials
When comparing PTFE film tape to other electrical insulation materials, several factors come into play. PTFE generally outperforms traditional materials like PVC or rubber in terms of temperature resistance and chemical inertness. However, materials like polyimide (Kapton) may offer comparable or superior performance in certain high-temperature applications. Silicone-based insulations might provide better flexibility and conformability in some scenarios, although they typically can't match PTFE's chemical resistance. Ceramic or mica-based insulations may offer higher temperature resistance but lack the ease of application and flexibility of PTFE film tape. Teflon tape manufacturers often highlight these comparative advantages to showcase the unique benefits of PTFE in electrical insulation applications.
Conclusion
PTFE film tape proves to be an excellent choice for electrical insulation across various applications. Its outstanding dielectric properties, coupled with exceptional thermal stability and chemical resistance, make it a versatile solution for diverse electrical insulation needs. From wire wrapping to PCB protection, PTFE film adhesive tape offers reliable performance in challenging environments. While considerations such as cost and specific application requirements should be taken into account, the overall benefits of PTFE film tape often outweigh its limitations, making it a preferred option for many electrical insulation scenarios.
