PTFE film tape, also known as PTFE film adhesive tape or Teflon tape, is renowned for its exceptional heat resistance. This versatile material can indeed withstand high temperatures, making it an invaluable component in various industrial applications. PTFE film tape typically maintains its structural integrity and performance at temperatures up to 260°C (500°F), with some specialized variants capable of withstanding even higher temperatures. This remarkable heat resistance is due to the unique chemical structure of PTFE, which remains stable under extreme thermal conditions. As a result, PTFE film tape has become a go-to solution for high-temperature sealing, insulation, and protection in industries ranging from aerospace to food processing.

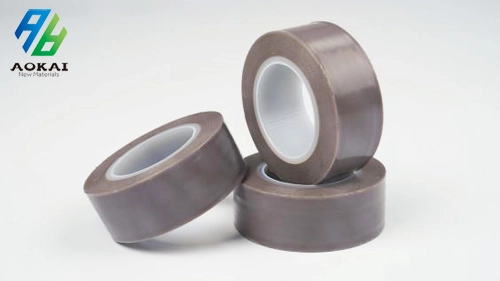

![PTFE film tape]( "PTFE film tape")
The Science Behind PTFE Film Tape's Heat Resistance
Chemical Structure of PTFE
PTFE, or polytetrafluoroethylene, is a synthetic fluoropolymer of tetrafluoroethylene. Its molecular structure consists of carbon atoms bonded to fluorine atoms in a long chain. This unique arrangement gives PTFE its exceptional thermal stability. The strong carbon-fluorine bonds require significant energy to break, allowing PTFE to maintain its properties even at elevated temperatures.
Thermal Properties of PTFE Film Tape
PTFE film adhesive tape exhibits remarkable thermal properties that contribute to its high-temperature performance. It has a low thermal conductivity, which means it doesn't readily transfer heat. This characteristic makes it an excellent thermal insulator. Additionally, PTFE has a high melting point of around 327°C (620°F), further enhancing its ability to withstand extreme temperatures without degrading or losing its functional properties.
Comparison with Other High-Temperature Materials
When compared to other high-temperature materials, PTFE film tape often outperforms alternatives in terms of temperature resistance and chemical inertness. For instance, silicone-based tapes typically have a maximum operating temperature of around 200°C (392°F), while some high-performance polyimide tapes can withstand temperatures up to 400°C (752°F). However, PTFE's combination of heat resistance, chemical inertness, and low friction makes it a superior choice for many high-temperature applications.
Applications of PTFE Film Tape in High-Temperature Environments
Industrial Sealing and Insulation
In industrial settings, PTFE film tape is extensively used for sealing and insulation purposes in high-temperature environments. It's particularly valuable in chemical processing plants, where it's used to seal pipe joints and fittings exposed to corrosive chemicals and extreme temperatures. The tape's ability to maintain a tight seal under these conditions helps prevent leaks and ensures the safety and efficiency of industrial processes.
Aerospace and Automotive Industries
The aerospace and automotive sectors rely heavily on PTFE film tape for various high-temperature applications. In aircraft engines, PTFE tape is used to wrap wires and cables, providing both electrical insulation and protection against the intense heat generated during flight. In automotive manufacturing, it's used in heat shielding applications, protecting sensitive components from engine heat. The tape's low friction properties also make it useful in reducing wear on moving parts exposed to high temperatures.
Food Processing and Packaging
The food industry benefits from PTFE film tape's heat resistance and non-stick properties. In food processing equipment, the tape is used to line conveyor belts and sealing bars in packaging machines. This application allows for smooth, non-stick operation even when dealing with hot, sticky foods. The tape's ability to withstand high temperatures without degrading or releasing harmful substances ensures food safety and quality throughout the production process.
Factors Affecting PTFE Film Tape's High-Temperature Performance
Thickness and Quality of the PTFE Layer
The thickness and quality of the PTFE layer in the tape significantly influence its high-temperature performance. Generally, thicker PTFE layers provide better insulation and heat resistance. However, the quality of the PTFE material is equally important. High-quality PTFE film tapes from reputable Teflon tape manufacturers undergo stringent production processes to ensure uniform thickness, density, and purity. These factors contribute to consistent performance under extreme temperatures.
Adhesive Type and Heat Resistance
While the PTFE film itself is highly heat-resistant, the adhesive used in PTFE film adhesive tape can be a limiting factor in high-temperature applications. Standard acrylic or rubber-based adhesives may start to degrade at lower temperatures than the PTFE film. For applications requiring extreme heat resistance, specialized silicone-based or other high-temperature adhesives are used. These adhesives can withstand temperatures comparable to the PTFE film, ensuring the tape maintains its bond strength and integrity in demanding environments.
Environmental Factors and Duration of Exposure
The performance of PTFE film tape at high temperatures can be affected by environmental factors and the duration of exposure. Prolonged exposure to temperatures near its upper limit can gradually degrade the tape's properties over time. Factors such as UV radiation, chemical exposure, and mechanical stress can also impact the tape's longevity in high-temperature settings. It's crucial to consider these factors when selecting PTFE film tape for specific applications and to follow manufacturer guidelines for optimal performance and longevity.
Conclusion
PTFE film tape's remarkable ability to withstand high temperatures makes it an indispensable material in numerous industries. Its unique chemical structure, combined with its thermal properties, allows it to maintain its integrity and functionality in extreme heat conditions. From industrial sealing to aerospace applications and food processing, PTFE film tape continues to prove its worth in high-temperature environments. However, factors such as tape quality, adhesive type, and environmental conditions play crucial roles in determining its performance. By understanding these aspects, engineers and manufacturers can leverage the full potential of PTFE film tape in their high-temperature applications.
