Choosing the right PTFE film tape for use in a heat press is a very important decision that has a direct effect on how quickly and well the products are made. Polytetrafluoroethylene film tape is better than regular sticky tapes at staying non-stick and resistant to heat when heat press machines are working at high temperatures. Knowing the exact needs of your heat press equipment, like the temperature ranges, pressure levels, and substrate materials, helps you make smart purchasing decisions that will improve operational performance and make sure that the sealing and insulation work reliably during demanding manufacturing cycles.

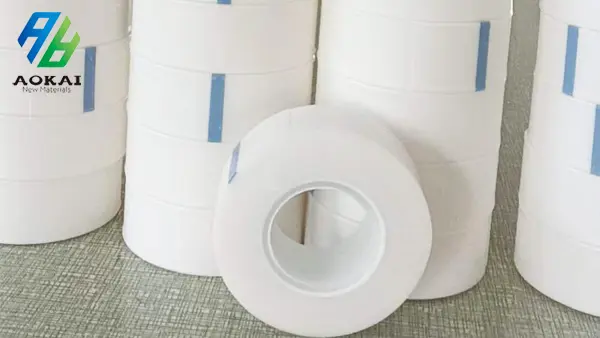

![PTFE Film Tape]( "PTFE Film Tape")
Understanding PTFE Film Tape and Its Core Properties
In the business world, polytetrafluoroethylene film tape is one of the most useful materials because it has special qualities that make it essential for heat press work. The substance uses modern adhesive technology along with the natural properties of fluoropolymer chemistry to work well in harsh circumstances.
Chemical Composition and Manufacturing Process
A thin polytetrafluoroethylene film backing and a special silicone binding method make up PTFE film tape. During the manufacturing process, methods like skiving or calendaring are used to make the thickness and surface features uniform. This precise production makes sure that the dimensions stay the same and that the binding properties stay the same across a wide range of temperatures.
PTFE is a non-stick layer because of the way its molecules are structured. Fluorine atoms make a surface with very little surface energy. Most materials can't stick to it because of this property, and it stays chemically neutral against acids, bases, and organic solvents that are common in industrial settings.
Temperature Performance and Thermal Stability
Modern PTFE sticky tapes are very good at withstanding high and low temperatures. They usually work well from -54℃ (-65℉) to 260℃ (500℉). Because they can work in a wide temperature range, they can be used for both cold and high-temperature heat pressing tasks. The temperature stability of the tape makes sure that it keeps its shape and binding strength even after being heated and cooled many times.
This temperature resistance is especially helpful for heat press operations because the tape can stay in close touch with heated platens and still release the film properly. PTFE's low thermal conductivity also helps save energy by keeping heat from moving to places it doesn't belong.
Key Criteria for Choosing PTFE Film Tape for Heat Press Machines
To choose the best polytetrafluoroethylene tape, you need to carefully look at a number of performance factors that are in line with your unique needs. Being aware of these factors helps procurement teams make smart choices that combine performance with cost concerns.
Operating Conditions Assessment
The factors for choosing a tape are based on the temperature needs. When heat press machines are used all the time at high temperatures, they need tapes that have been shown to be thermally stable and consistently adhere well. Pressure levels during pressing operations also affect the choice of tape, since higher pressures need stronger adhesives and substrates that can adjust to them.
Some application-specific factors are the type of base used, how often the press cycle happens, and the surroundings. FDA-compliant materials are needed for food packing, while dielectric strength and dimensional stability may be more important in electronics manufacture.
Adhesive Performance and Substrate Compatibility
Good Teflon film tapes use a silicone glue system that sticks securely to a variety of surfaces while still being able to be removed when needed. The type of adhesive used varies on the substrate's surface energy, structure, and chemical make-up. When it comes to adhesives, metal surfaces usually need different ones than polymer or mixed surfaces.
Important features of adhesives are:
l Initial tack strength: the ability to bond right away after application
l Peel adhesion: the ability to resist being peeled off with standard working forces
l Shear strength: The ability to handle sideways forces while in use
l Stable at different temperatures: Performs the same way at all temperatures
These features make sure that the tape works reliably for the whole time it's supposed to, and they also make it easy to remove during maintenance.
Physical Properties and Durability Factors
The mechanical qualities of tape have a big effect on how long it lasts and how reliably it works. The tape's tensile strength tells you how well it can handle stretching forces while it's being used and applied. The way something stretches affects its ability to fit to rough surfaces and how its size changes when it is heated and cooled.
Chemical resistance traits keep things from breaking down when they come in contact with cleaning chemicals, process chemicals, and environmental toxins. PTFE doesn't absorb much water, which helps keep its shape and keeps adhesives from breaking down in damp places.
Common Industry Applications and Case Studies of PTFE Film Tape in Heat Press Use
Heat-resistant tape is used in many fields where controlled temperature and pressure processes makes goods more valuable. Knowing about these applications helps you understand the selection factors and performance standards.
Food Processing and Packaging Operations
Food packaging heat press lines use PTFE-coated materials for closing tasks that need to be FDA-compliant and easy to clean. These tapes are used by companies that make bakery equipment in conveyor systems and heat sealing units. The non-stick features keep products from sticking and make cleaning easier.
A big snack food company put polytetrafluoroethylene film tape on their heat sealing equipment. This cut down on cleaning time by 40% and made the seals on the packages stronger. It was possible to use harsh cleaning agents on the tape without affecting its ability to stick to surfaces or its ability to resist chemicals.
Textile and Laminating Industries
For heat press jobs like laminating, setting, and printing on top of cloth, textile finishing processes depend on PTFE tape. The smooth finish on the surface keeps the fibers from getting caught and provides constant heat transfer properties that ensure uniform processing results.
In the laminating business, heat sealing equipment benefits from the physical stability of good Teflon film tapes, which keep things in place even when they're being used quickly. The low contact coefficient cuts down on energy use and increases the life of machine parts by reducing wear.
Electronics Manufacturing Applications
Specialized PTFE films are used to protect and insulate during heat press lamination steps in the process of making circuit boards. These materials have good dielectric strength and temperature stability, so they work well in high-voltage situations and don't react badly with chemicals like flux leftovers and cleaning solvents.
In the lamination methods that connect photovoltaic cells to protective surfaces, solar panel makers use PTFE layers. The UV protection and weatherability of the material help the panels last for a long time in outdoor applications.
Comparison Guide: PTFE Film Tape vs Other Heat-Resistant Tapes
Knowing how polytetrafluoroethylene tape stacks up against other materials helps you make smart buying choices based on your application needs and performance goals.
PTFE Film Tape vs Kapton Tape
Kapton tape is very good at keeping heat in and keeping electricity from flowing through it, but it doesn't have the non-stick qualities that make PTFE important for many heat press uses. While Kapton is better at keeping its shape at very high or very low temperatures, PTFE is better at resisting chemicals and is easier to remove.
Cost usually makes Kapton the better choice for uses where non-stick qualities aren't very important. On the other hand, PTFE's higher cost is justified by its longer service life and better process efficiency in demanding uses.
Performance Comparison with Silicone Tape
Silicone-based tapes are good at withstanding high temperatures and being flexible, but they can't compare to PTFE materials when it comes to chemical protection and not sticking. Plasticizers can move around on silicone tapes and affect sensitive processes. PTFE, on the other hand, stays chemically pure throughout its service life.
The following analysis shows the most important changes in performance:
l Temperature range: PTFE has a bigger range of temperatures that it can sustain.
l Chemical resistance: PTFE is better at withstanding harsh poisons.
l PTFE has non-stick qualities and regularly lower friction coefficients.
l Stability in terms of size: Both materials are stable, but PTFE is a little better.
Because of these performance traits, PTFE is the best choice for important uses that need to keep things clean and reliably release materials.
Polyester Tape Limitations
PTFE tapes are better at withstanding high temperatures, but polyester-backed Teflon film tapes aren't as good at withstanding chemicals. Polyester tapes might be cheaper for low-temperature uses, but they can't give the reliable performance needed for tough heat press jobs.
Polyester becomes rigid at high temperatures, which can cause tape to fail and production to stop. PTFE, on the other hand, stays flexible and conformable throughout its working range.
Procurement and Ordering Guide for PTFE Film Tape
To buy polytetrafluoroethylene tape successfully, you need to know how the market works, what your suppliers can do, and how to make sure the quality of the tape is always good.
Supplier Evaluation Criteria
Suppliers that are good at what they do show that they follow industry standards, such as ISO 9001:2015 approval for quality management systems. FDA and UL approvals give more confidence for uses in food processing and electricity systems, respectively.
When making something, the ability to customize it for specific sizes, glue types, and packing needs should be available. OEM and OBM services let you make your own labels and specifications that fit the needs of your unique purpose.
Sample Testing and Validation Procedures
By asking for samples, you can test a product in real-world settings before deciding to buy the whole thing. When evaluating samples, they should be tested for adhesion, temperature cycles, and suitability with current processes and equipment.
The testing procedures should be based on real-life working situations, such as high and low temperatures, high and low pressures, and contact with process chemicals. Recording test results gives us a starting point for comparing performance and making sure the quality of the work.
Order Quantities and Customization Options
Different sellers have different minimum order amounts. Usually, bigger orders get savings and more specific instructions. Buying in bulk can lower the cost per unit while still making sure there are enough items in stock to keep activities going.
You can customize by choosing different sizes, lengths, and glue formulas that work best for different uses. Custom orders usually have lead times that range from a few weeks to a few months, based on how complicated the specifications are and how the production schedule works.
Conclusion
It is important to carefully think about the working conditions, performance needs, and supplier skills when choosing the right PTFE film tape for heat press machines. Polytetrafluoroethylene tape is needed in tough situations where regular materials can't do the job because it is stable at high temperatures, doesn't stick to other things, and is resistant to chemicals. Understanding the specific needs of the application, checking the skills of the provider, and following the right testing methods that confirm performance in real-world settings are all important for a successful implementation. Investing in good PTFE tape solutions pays off in the long run by making processes more efficient, lowering the need for upkeep, and raising the quality of products used in many different production settings.
FAQ
What temperature range can PTFE film tape handle in continuous heat press operations?
Good polytetrafluoroethylene tape usually works well in constant uses from -54°C (-65°F) to 260°C (500°F). This temperature range covers most heat press tasks and keeps the adhesive's performance and shape stability stable during thermal cycles.
How do I determine the appropriate thickness for my heat press application?
The choice of thickness is based on the surface's roughness, the amount of pressure, and the need for conformability. Thinner tapes are better at transferring heat and conforming to smooth surfaces, while thicker tapes are better at cushioning and covering gaps on uneven surfaces.
Is PTFE film tape safe for food packaging heat press applications?
The FDA-compliant PTFE tapes are made to be used with food and meet all safety and cleanliness standards set by the government. These materials are put through a lot of tests to make sure they don't change the taste, smell, or chemicals that move into food.
What maintenance procedures extend PTFE tape service life?
Regular cleaning with the right chemicals gets rid of buildups of glues, inks, or process materials that can make the surface less non-stick. Checking for signs of wear like edge pulling, wear patterns, or glue degradation lets you replace the item quickly, before it gets damaged.
Can PTFE film tape be removed without leaving residue?
When the right steps are taken, quality silicone glue solutions used in PTFE tapes can be easily removed. Controlled peeling angles and gentle heating keep glue transfer to a minimum while saving substrate surfaces.
Partner with Aokai PTFE for Superior Heat Press Solutions
Aokai PTFE makes polytetrafluoroethylene tape options that are the best in the business. These tapes are designed to work with heat presses in the food preparation, packaging, and manufacturing industries. Our wide range of products includes silicone glue systems that work well, non-stick PTFE coatings, and temperature protection from -54℃ to 260℃ that has been tested and proven to work in tough situations. Our dedication to quality is backed by ISO 9001:2015, FDA, and UL certifications. We offer customizable options and OEM services that fit your unique business needs. You can talk to our expert team about your heat press tape needs and ask for samples by emailing mandy@akptfe.com. As a reliable PTFE film tape manufacturer, we offer great pre-sales support, on-time shipping, and full after-sales support that helps procurement workers all over the world build long relationships with us.
References
Johnson, R.M., "Advanced Fluoropolymer Materials in Industrial Heat Processing Applications," Journal of Manufacturing Technology, 2023.
Chen, L.W., "Comparative Analysis of High-Temperature Adhesive Systems for Food Processing Equipment," Food Engineering Quarterly, 2024.
Williams, K.J., "PTFE Film Properties and Performance Characteristics in Thermal Processing," Polymer Engineering Review, 2023.
Anderson, P.H., "Heat Press Equipment Design and Material Selection Criteria," Industrial Manufacturing Standards, 2024.
Thompson, M.R., "Chemical Resistance and Thermal Stability of Fluoropolymer Films," Materials Science Applications, 2023.
Davis, S.L., "Quality Assurance Procedures for Industrial Adhesive Tape Applications," Manufacturing Quality Control, 2024.
