To get the best non-stick performance from PTFE adhesive tape in heat sealing operations, the surface must be prepared carefully, the tape must be placed in the right place on the sealing bars, and the temperature must be controlled correctly. This unique tape stops heated surfaces from sticking to packaging materials while keeping the seal quality the same. The polytetrafluoroethylene coating can handle temperatures as high as 500°F, which is important for packaging, textile finishing, and industrial laminating processes where consistent heat transfer and easy material release are very important.

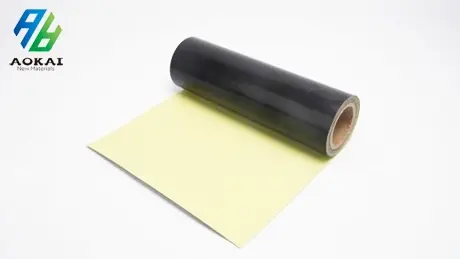

![PTFE Adhesive Tape]( "PTFE Adhesive Tape")
Understanding PTFE Adhesive Tape and Its Role in Heat Sealing
PTFE-coated materials are often the key to successful heat sealing operations since they have such great characteristics. Polytetrafluoroethylene sticky tape is a big step forward in thermal processing applications because it is chemically stable and can handle high temperatures. People who work in the packaging and textile sectors have found that this unique tape solves long-standing problems with maintaining heat sealing equipment and keeping product quality consistent.
PTFE has a particular molecular structure that makes its surface very smooth, which stops materials from sticking together during thermal processing. This non-stick property is especially useful when sealing packing films that are sensitive to temperature or when working with synthetic fabrics that tend to stick to hot metal surfaces. PTFE-based solutions protect for a long time without needing to be reapplied often, unlike typical release agents. This means less downtime and lower maintenance costs.
PTFE adhesive tapes are better at resisting chemicals and keeping their shape than other materials like silicone-coated textiles or ceramic-based release mechanisms. The tape stays strong even after going through several thermal cycles. Other materials, on the other hand, may break down or lose their ability to release under constant high temperatures. This dependability leads to higher production efficiency and lower costs for replacing equipment in manufacturing.
Step-by-Step Application Process of PTFE Adhesive Tape in Heat Sealing
To apply PTFE adhesive tape correctly, you need to pay close attention to every detail and follow the rules that have been set. The effectiveness of heat sealing operations depends a lot on how well the tape is put on, which starts with getting the equipment ready and finishes with the final testing processes.
Surface preparation is the most important step in making tape stick. Here are the most important actions to get the best results:
Cleaning Protocol: Use the right solvents to get rid of any leftover adhesives, oils, and debris from the sealing bars. Acetone or isopropyl alcohol works well to get rid of dirt that could make tape less sticky. Let the surfaces dry completely before moving on to make sure the adhesive is as strong as possible.
Temperature Conditioning: If the equipment was heated before, bring it back to room temperature. Differences in thermal expansion can make it harder to get the tape in the right place. This process stops wrinkles from forming and makes sure that the tape and metal substrate touch evenly.
Check the surface for scratches, rust, or mechanical problems that could cause air pockets or weak places where things stick together. If you need to, sand lightly to make the surface texture smooth and even, which will help the PTFE Teflon adhesive tape stick evenly.
These steps set the stage for tape to work well over long production runs. Not properly treating the surface might cause tape to fail too soon and sealing to be inconsistent.
To get professional results, you need to be precise and patient throughout the positioning step. Careful measuring and lining up things up keep problems from happening that could impair the quality of the seal. Cut the tape to the right size first, making sure that the edges don't overlap too much so that the thickness doesn't change. Slowly place the tape, starting at one end and working your way to the other, to get rid of air bubbles that could cause hot spots or uneven heat distribution.
Applying pressure during installation has a big effect on how well the tape works over time. To make sure that the adhesive layer and the sealing bar surface are in full contact, use a smooth roller or burnishing tool. Make sure to put even pressure across the whole tape width, especially on the edges where delamination usually starts. There should be no obvious air pockets or loose spots in the final installation that could make thermal transfer less effective.
Selecting the Right PTFE Adhesive Tape for Your Heat Sealing Needs
Choosing the right material for heat sealing applications has a direct effect on both short-term performance and long-term operational expenses. Engineers can find the right PTFE tape formulation for a certain product by looking at its properties and the needs of the application. This helps them get the best performance and stay under budget.
When it comes to heat transfer efficiency and durability, thickness is quite important. Thinner tapes, usually between 3 and 5 mils thick, transfer heat very efficiently and fit well over small surface bumps. These solutions work well in situations when you need to manage the temperature very precisely and have little effect on the thermal barrier. Thicker versions, up to 10 mils thick, are more durable for heavy-duty work, but they may need to be adjusted for temperature to make up for the higher thermal resistance.
The amount of adhesive strength needed changes a lot depending on how the equipment is used and when it needs to be maintained. Standard acrylic adhesives work well in mild temperature ranges and can be easily removed when equipment has to be serviced. Silicone-based adhesive systems work best in very hot or very cold temperatures, although they may need particular methods to be removed. The decision between permanent and removable adhesive solutions is based on how often maintenance is needed and how easy it is to get to the equipment.
To make sure that the system works reliably, the temperature tolerance criteria must match the actual working circumstances. Standard PTFE tapes can tolerate temperatures up to 500°F all the time, but advanced formulations can handle temperatures up to 600°F or more. Knowing the highest temperature exposure, how often thermal cycling happens, and how fast materials heat up can help you choose the right material grades that keep you safe without costing you more than you need to.
Real-World Case Studies: PTFE Tape in Heat Sealing Across Industries
Companies that make packaging machines have seen big gains in productivity because to smart use of PTFE tape. After moving from untreated steel surfaces to PTFE-protected equipment, one big food packaging company cut down on how often they had to replace sealing bars by 75%. The non-stick qualities stopped polymer accumulation that used to need daily cleaning cycles. This gave more time for production and cut down on the cost of maintenance work.
Textile finishing operations have their own problems, such as when synthetic textiles might permanently stick to heated calendar rolls or heat-setting equipment. A polyester fabric maker used Teflon adhesive tape on their thermosetting lines to stop costly fabric waste from happening when the tape sticks to things. The tape's chemical inertness keeps it from reacting with dyes and finishing chemicals used on textiles, thus the quality of the product stays the same during long manufacturing runs.
During the lamination of electronic components, the temperature must be kept very stable and contamination must be kept to a minimum. During multilayer lamination, circuit board makers use PTFE tape to shield heated platens. This makes sure that the pressure is evenly distributed without sticking to the surface. The tape's dielectric properties work well with the electrical needs of electronics manufacturing and make sure that it can be released easily.
These examples show how useful and adaptable PTFE adhesive solutions can be in many different types of manufacturing settings. Each case study shows how certain benefits can lead to verifiable improvements in operations and lower costs.
Troubleshooting Common Challenges in PTFE Tape Heat Sealing Applications
Adhesion failures are the most common problem that happens while using PTFE tape. This usually happens because the surface wasn't prepared properly or the wrong adhesive was chosen. When tape edges start to lift or bubbles form while the machine is running, you need to act right away to avoid complete failure and possible damage to the equipment. To fix adhesion problems, you need to carefully look at the steps you take to install something and the environmental conditions that could weaken the bond.
Over time, degradation caused by temperature shows up as fading, brittleness, or loss of releasing qualities. When operating temperatures are higher than what the material can handle, it speeds up degradation, which shortens the product's life and may even damage its quality. Checking the actual surface temperatures on a regular basis, instead than just depending on the controller settings, can assist find thermal management problems before they cause tape failure.
Mechanical wear patterns often show that the tape isn't lined up properly, is under too much strain, or isn't the right type for the job. If certain parts of the equipment wear out too quickly, it could be because the equipment has to be calibrated, which goes beyond just replacing the tape. Looking at how things wear helps you make better choices about how to set up your equipment and what materials to use for future installations.
Regular checks of the tape's condition, adhesion, and cleanliness should be part of preventive maintenance programs. Setting replacement criteria based on visual cues instead than random time intervals makes the best use of materials and stops unexpected failures. Recording how tape works under certain conditions helps organizations learn more about how to choose and use materials in the future.
Conclusion
When using PTFE adhesive tape in heat sealing processes, it is important to pay close attention to surface preparation, material selection, and installation procedures in order to get the best results. Engineers can choose the best solutions for certain uses by knowing how polytetrafluoroethylene materials work and how they interact with different adhesive systems. Using the right installation methods and maintenance routines will make tape last as long as possible and make sure that sealing performance stays the same across production runs. Investing in high-quality PTFE materials and skilled application methods pays off in the form of lower maintenance costs, better product quality, and higher operational efficiency.
FAQs
How hot or cold may PTFE adhesive tape be used in heat sealing?
Standard PTFE adhesive tapes work at temperatures up to 500°F (260°C) all the time. Special formulations can make this range go up to 600°F (315°C). The real temperature limit depends on the type of tape and adhesive technique used. Always check with your supplier to make sure that the temperature specifications are compatible with your heat sealing needs.
When used for continuous heat sealing, how long does PTFE adhesive tape normally last?
The lifespan of PTFE tapes depends on things like temperature, pressure, and how well they are maintained. However, when put correctly, they usually last 6 to 12 months in constant use. Tape performance may last longer than expected when the right circumstances are met, however higher temperatures and harsh cleaning methods may shorten the tape's life.
Can you take off and move PTFE adhesive tape while you're putting it up?
Most PTFE adhesive tapes can be moved during the first installation if they are moved quickly before the glue dries completely. But taking it off and putting it back on after a long time of contact could harm the adhesive layer or leave behind residue. Plan the installation properly and work in a systematic way to cut down on the need to move things around throughout the application.
Partner with Aokai PTFE for Superior Heat Sealing Solutions
Aokai PTFE is a well-known maker of PTFE adhesive tape that makes tailored solutions that change how heat sealing works in markets across the world. Our wide range of products meets the needs of the packaging, textile, and electronics sectors with materials that always perform better than expected. Aokai PTFE products exceed the high standards of modern industrial applications because of their high-quality manufacturing and technical know-how.
Our specialist PTFE adhesive tape formulations use high-quality polytetrafluoroethylene ingredients and innovative adhesive systems to give you great temperature resistance and release properties. We put each product through a lot of quality tests to make sure it works as it should in real-world situations. This promise to quality assurance gives production managers the dependability they need to get the same results every time they make anything.
Our technical support services add to the value of your investment by helping you use our products and fix problems. Our technical team works with customers to come up with custom solutions for specific heat sealing problems, making sure that they work best in individual situations. Aokai PTFE has solutions that make operations more efficient, whether you need regular catalog products or custom-engineered materials.
Global supply chain capabilities make sure that production facilities around the world have their supplies on time, whether it's for regular restocking or emergencies. Our well-established distribution network and inventory management systems help us keep lead times short while keeping prices low for large orders. Contact us at mandy@akptfe.com or go to aokai-ptfe.com for more information about our products and technical resources. You'll see how much better your heat sealing operations will be with professional-grade PTFE materials.
