Choosing the right PTFE mesh belt open area percentage has a direct effect on how well your food is processed, dried, and the quality of the finished product. Depending on the needs of your product, the open area ratio is usually between 40% and 75%. When baking, 50 to 60 percent of the area should be open for airflow, while 65 to 75 percent of the area should be open for drying. If you know these specs, you can be sure that your PTFE mesh belt will work well in a wide range of food handling situations, transferring heat efficiently and letting air flow properly.

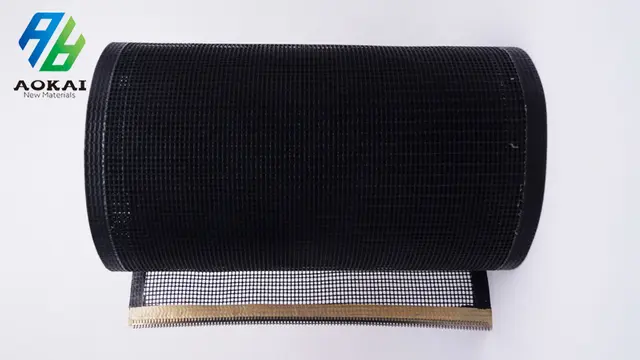

![PTFE Mesh Belt]( "PTFE Mesh Belt")
Understanding PTFE Mesh Belt Open Area Fundamentals
The open area % shows how many holes there are in your mesh belt surface compared to solid material. This important standard changes how air flows, how heat is distributed, and how well your production line can support materials.
To get the best results, different applications need different open area ratios. When baking, delicate items need to be supported in a controlled way, and there needs to be enough air flow to make sure that heat is spread evenly. When drying, applications favor maximum airflow to speed up the process of removing moisture.
It's important to think carefully about the connection between open area and belt power. Higher amounts let more air flow through, but they also weaken the structure and make it less able to hold weight. Professional engineers have to find the right balance between these different factors based on the needs of the business.
Changes in temperature in your processing surroundings affect the best choice of open area. More air flow is often helpful for higher temperatures, while more conservative ratios may be needed for precise temperature control uses to keep things stable.
Key Factors Influencing Open Area Selection
The features of the product have a big effect on the ideal open area %. Smaller holes are needed for powders, particles, and granules so that they don't get lost while being moved. Higher percentages can fit on bigger things like baked goods without losing support.
Processing speed changes the link between open area and success results. When processes happen quickly, they need more airflow, which could mean using higher percentages to keep temperature profiles stable. Moderate ratios that make it easier to control the product may help slower processes get better results.
The environment in your building affects the best choices you can make. More air flow is good for humid places because it keeps moisture from building up. For controlled atmosphere uses, certain ratios may be needed to keep conditions just right.
The type of heat source for PTFE mesh conveyor belt is a very important factor in figuring out the right specs. Higher percentages that let radiation through work well with infrared heating devices. For convection devices to work well, the ratios must be balanced so that air flows well without losing heat.
Chemical protection standards stay the same for all open area percentages. No matter what mesh configuration you use, PTFE materials keep their chemical inertness and ability to not stick, so they always work well in harsh settings.
Application-Specific Open Area Recommendations
Baking Applications
When making bread and pastries, open area amounts of 50 to 55 percent usually work best. This arrangement gives the dough enough support to rise and makes sure that heat moves around evenly so that it browns. The balanced method keeps the product from changing shape during important baking stages.
Higher numbers, around 55 to 60 percent, are good for making cookies and biscuits. More airflow helps these products create a consistent texture, and they need less structural support. The better air flow stops moisture from building up, which could lower the quality of the end product.
Businesses that make pizza and flatbread often use 60-65% setups so they can cook quickly. The better airflow helps heat move quickly while keeping the product's integrity during high-temperature processing processes.
Drying and Dehydration
For best results, vegetable dehydration methods need 65-70% open areas. This setup gets rid of moisture as quickly as possible while still supporting delicate food items well. Better ventilation speeds up the working times and makes the energy use more efficient.
Depending on the size and amount of moisture in the fruit, drying uses may need 70-75% ratios. Higher amounts help quickly get rid of moisture while keeping the product from sticking, which could lower quality standards.
For drying grains and seeds, 60-65% configurations are usually used to combine airflow with product retention. For these uses, particle size needs to be carefully thought out so that material doesn't escape through the net holes.
Industrial Processing
When chemicals are processed, corrosion protection is more important than specific open area needs. PTFE materials are very chemically inert in all configurations, so they can be chosen based only on factors for process optimization.
When making electronic parts with Teflon mesh belt, 45-50% ratios are helpful because they allow for precise temperature control without too much air movement. In these situations, steadiness is more important than maximum heat transfer rates.
Depending on the fabric's weight and treatment needs, textile finishing processes usually use configurations between 55 and 65%. The balanced method works with different kinds of materials while keeping the processing conditions the same.
Performance Optimization Through Proper Selection
Airflow calculations help determine optimal open area percentages for specific applications by providing a clear understanding of how much air must circulate through the system to maintain stable processing conditions. Engineers can model heat transfer requirements, airflow velocity, and temperature distribution, then match these factors with appropriate mesh configurations to achieve desired performance outcomes. By using data-driven analysis rather than guesswork, they can select designs that balance structural strength with sufficient ventilation, ensuring reliable and efficient operation across varying production environments.
Energy efficiency improvements result from proper selection that minimizes heating requirements while maximizing heat transfer effectiveness. When airflow is optimized, equipment reaches target temperatures faster and maintains them with less energy input, reducing both operating costs and overall environmental impact across extended production cycles. This approach supports sustainability goals while maintaining high productivity.
Product quality consistency improves when open area percentages match processing requirements precisely. Proper selection eliminates hot spots, reduces temperature variations, and ensures uniform treatment across entire product batches, which is especially important for sensitive materials that require controlled conditions. Maintenance requirements vary with different configurations, but careful selection minimizes cleaning frequency and extends belt lifespan. PTFE materials maintain their non-stick properties regardless of open area percentage, simplifying maintenance procedures. In addition, quality control systems benefit from predictable performance characteristics associated with properly selected configurations, enabling precise process control and repeatable, dependable quality outcomes.
Installation and Maintenance Considerations
Belt tensioning requirements remain consistent across different open area percentages, but proper installation becomes more critical with higher ratios. Reduced material contact areas require precise alignment to prevent premature wear or damage.
Tracking adjustments may require more frequent attention with higher open area percentages due to reduced belt contact with tracking systems. Regular monitoring prevents operational disruptions and extends equipment lifespan.
Cleaning procedures remain straightforward regardless of configuration due to PTFE non-stick properties. However, higher percentages may accumulate debris differently, requiring adjusted maintenance schedules to maintain optimal performance.
Replacement timing depends more on operating conditions than open area percentage. Proper selection that matches application requirements typically extends PTFE mesh belt lifespan and reduces replacement frequency.
Safety considerations include preventing personnel contact with moving belts and ensuring proper guarding around high-temperature applications. Open area percentage does not significantly affect safety requirements, but proper installation remains essential.
Troubleshooting Common Selection Issues
Product fallthrough problems indicate excessive open area percentages for specific applications, as overly large gaps reduce the level of support available to carry lightweight or irregularly shaped items safely through the system. When this occurs, products may tilt, slip, or drop during movement, leading to waste, contamination, or equipment downtime. Practical solutions include reducing the open area ratio or implementing additional support systems, such as finer mesh layers or auxiliary backing structures, to maintain product integrity during processing. These adjustments help stabilize items while preserving adequate airflow.
Insufficient heat transfer, on the other hand, suggests inadequate open area for processing requirements, since restricted airflow limits the circulation of heated or cooled air around the product surface. In these situations, increasing the percentage of open space or adjusting operating parameters such as temperature, airflow velocity, or dwell time can resolve performance issues without compromising product support. Proper balancing of these variables ensures consistent thermal efficiency.
Uneven temperature distribution may result from inappropriate open area selection combined with poor heat source positioning. Systematic evaluation of both structural and mechanical factors typically identifies optimal solutions and improves uniformity. Belt tracking problems occasionally relate to reduced contact areas in high open area configurations, while premature wear patterns sometimes indicate mismatched selections that create excessive stress concentrations. Professional evaluation and regular monitoring can identify appropriate alternatives that extend belt lifespan and maintain reliable long-term performance.
Partner with Aokai PTFE for Expert PTFE Mesh Belt Solutions
Aokai PTFE specializes in manufacturing high-quality PTFE mesh belt solutions tailored to your specific processing requirements. Our experienced engineering team provides comprehensive consultation to optimize open area selection for your applications. Contact mandy@akptfe.com to discuss your requirements with a trusted PTFE mesh belt supplier committed to delivering superior performance and reliability.
