PTFE film tape, also known as PTFE film adhesive tape or Teflon tape, is available in a wide range of thicknesses and widths to suit various industrial applications. Typically, PTFE film tape thicknesses range from 0.025mm to 0.25mm (1 mil to 10 mil), with common widths spanning from 6mm to 1000mm (0.25 inches to 39 inches). However, leading Teflon tape manufacturers offer customizable options to meet specific requirements. The choice of thickness and width depends on factors such as the intended use, environmental conditions, and mechanical stress the tape will endure.

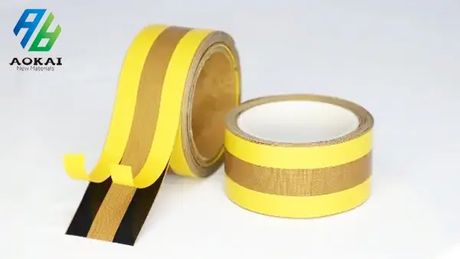

![PTFE Film Tape]( "PTFE Film Tape")
Understanding PTFE Film Tape Specifications
Thickness Variations in PTFE Film Tape
PTFE film tape thickness plays a crucial role in determining its performance characteristics. Thinner tapes, typically ranging from 0.025mm to 0.075mm, offer excellent conformability and are ideal for applications requiring a smooth, low-profile finish. These ultrathin varieties excel in electrical insulation and as release liners in composite manufacturing.
Medium-thickness tapes, usually between 0.1mm and 0.15mm, strike a balance between flexibility and durability. They're commonly used in chemical-resistant sealing applications and as anti-stick surfaces in food processing equipment.
Thicker PTFE film tapes, measuring 0.2mm to 0.25mm, provide enhanced mechanical strength and abrasion resistance. These robust variants are preferred for heavy-duty industrial applications, such as conveyor belt linings and protective coverings for high-wear areas.
Width Options for PTFE Film Adhesive Tape
The width of PTFE film tape is equally important in determining its suitability for specific applications. Narrow tapes, typically 6mm to 25mm wide, are perfect for precise applications like sealing small joints or wrapping thin wires. These narrow widths offer excellent maneuverability in tight spaces.
Medium-width tapes, ranging from 30mm to 100mm, are versatile and widely used in general-purpose sealing, lining, and insulation tasks. They provide a good balance between coverage area and ease of handling.
Wide PTFE film tapes, measuring 150mm to 1000mm or more, are designed for large-scale applications. These broader variants are ideal for covering expansive surfaces, such as lining large tanks or protecting wide conveyor belts. Some Teflon tape manufacturers offer even wider custom sizes for specialized industrial needs.
Customization Options from Teflon Tape Manufacturers
While standard sizes are readily available, many reputable PTFE film tape producers offer customization services. This flexibility allows industries to obtain tapes tailored to their specific requirements. Custom thicknesses can be produced to meet unique stress tolerances or space constraints.
Width customization is particularly valuable for applications that fall outside standard dimensions. For instance, a manufacturer might require a 237mm wide tape to perfectly cover a specific machine component. Leading Teflon tape manufacturers can accommodate such requests, ensuring optimal fit and performance.
Additionally, some providers offer die-cutting services to create PTFE film tapes in specialized shapes. This capability is particularly useful for complex sealing applications or when integrating the tape into intricate machinery designs.
Factors Influencing Thickness and Width Selection
Application-Specific Requirements
The intended use of PTFE film adhesive tape is the primary factor in determining the appropriate thickness and width. For instance, electrical insulation applications often require thin, narrow tapes for wrapping individual wires. Conversely, chemical-resistant linings for large tanks necessitate thicker, wider tapes to provide comprehensive protection.
In food processing industries, where PTFE film tape is used on conveyor belts or packaging equipment, the width must match the surface area to be covered. The thickness is chosen based on the level of wear and tear expected during operation.
Aerospace applications might demand ultra-thin, precisely cut PTFE film tapes for intricate components, while heavy industrial machinery could require robust, wide tapes for maximum durability.
Environmental and Operational Considerations
The environment in which the PTFE film tape will be used significantly impacts the choice of thickness and width. High-temperature applications often benefit from thicker tapes that provide better insulation and longevity under thermal stress.
In chemically aggressive environments, wider tapes might be preferred to minimize the number of seams, reducing potential weak points. The thickness may be increased to provide an extra barrier against corrosive substances.
For applications involving mechanical stress or abrasion, such as in manufacturing equipment, thicker PTFE film tapes are typically chosen. The width is often determined by the specific area requiring protection or the dimensions of moving parts that need a non-stick surface.
Installation and Handling Factors
The ease of installation and handling also influences the selection of PTFE film tape dimensions. Extremely wide tapes might be challenging to apply without wrinkles or air bubbles, especially on curved surfaces. In such cases, multiple strips of narrower tape might be preferable.
Thicker tapes generally offer better handling characteristics and are less prone to tearing during application. However, they may not conform as well to irregular surfaces compared to thinner varieties.
For applications requiring frequent replacement or repositioning, such as temporary masking in painting processes, thinner and narrower tapes are often chosen for their flexibility and ease of removal.
Innovations in PTFE Film Tape Technology
Advancements in Ultra-Thin PTFE Films
Recent technological breakthroughs have enabled the production of ultra-thin PTFE film tapes, some as thin as 0.01mm. These incredibly thin tapes maintain the excellent properties of PTFE while offering unprecedented conformability and reduced material usage.
Ultra-thin PTFE film adhesive tapes are revolutionizing industries like flexible electronics, where minimal thickness is crucial. They provide excellent insulation and chemical resistance without adding significant bulk to delicate components.
In medical applications, these advanced thin films are being used to create non-stick, biocompatible surfaces on various devices and implants. Their minimal thickness allows for seamless integration without compromising device functionality.
Multi-Layer PTFE Film Tape Structures
Innovative Teflon tape manufacturers are developing multi-layer PTFE film tapes that combine different thicknesses or compositions in a single product. These composite tapes offer enhanced performance characteristics tailored to specific applications.
For example, a tape might feature a thin, smooth outer layer for excellent release properties, combined with a thicker, more durable inner layer for strength and longevity. This multi-layer approach allows for optimized performance without compromising on either thickness or width.
Some advanced multi-layer tapes incorporate additional materials, such as reinforcing fabrics or specialized adhesives, to further enhance their capabilities. These hybrid structures expand the potential applications of PTFE film tape across various industries.
Precision Manufacturing Techniques
Cutting-edge manufacturing processes are enabling the production of PTFE film tapes with unprecedented precision in both thickness and width. Advanced extrusion techniques allow for incredibly tight tolerances, ensuring consistent performance across the entire length of the tape.
Laser cutting technology is being employed to create ultra-precise widths and shapes, opening up new possibilities for specialized applications. This precision is particularly valuable in industries like aerospace and microelectronics, where exact dimensions are critical.
Some Teflon tape manufacturers are implementing in-line quality control systems that continuously monitor thickness and width during production. This ensures exceptional consistency and reliability, even in large-scale manufacturing runs.
Conclusion
The availability of PTFE film tape in various thicknesses and widths offers unparalleled versatility across numerous industries. From ultra-thin films for delicate electronics to robust, wide tapes for heavy industrial applications, the range of options continues to expand. As technology advances, Teflon tape manufacturers are pushing the boundaries of what's possible, creating ever more specialized and high-performance PTFE film adhesive tapes. By understanding the factors influencing thickness and width selection and staying abreast of the latest innovations, businesses can leverage these remarkable materials to enhance their processes and products.
