PTFE film tape stands out as the premier choice for electrical insulation due to its unparalleled combination of properties. This high-performance tape offers exceptional dielectric strength, temperature resistance, and chemical inertness, making it ideal for demanding electrical applications. Its non-stick surface prevents buildup of contaminants, while its low friction coefficient allows for easy installation and removal. With a wide operating temperature range and excellent durability, PTFE film tape provides reliable, long-lasting insulation that outperforms traditional materials in challenging environments. For engineers and technicians seeking a versatile, high-quality insulation solution, PTFE film tape is the go-to option that consistently delivers superior performance and peace of mind.

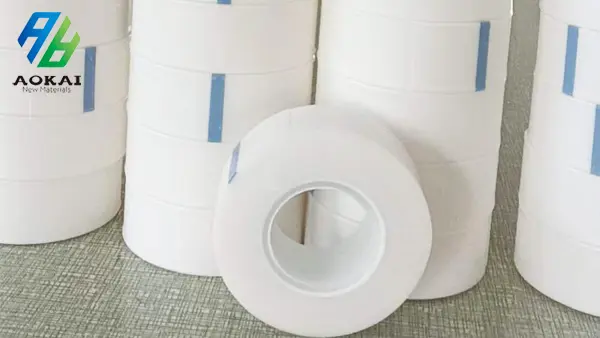

![PTFE Film Tape]( "PTFE Film Tape")
Understanding PTFE Film Tape and Its Unique Properties
Composition and Manufacturing Process
PTFE film tape is a marvel of modern materials science. At its core, it consists of a thin film of polytetrafluoroethylene (PTFE), better known by its trade name Teflon. This film is produced through a careful extrusion process that results in a uniform, high-quality material. The tape is then treated on one side with a silicone adhesive, creating a product that combines the best properties of PTFE with strong adhesive capabilities.
The manufacturing process involves several critical steps to ensure the highest quality:
- Resin preparation: High-grade PTFE resin is carefully selected and prepared.
- Extrusion: The resin is extruded into a thin, consistent film.
- Stretching: The film may be stretched to enhance its strength and reduce thickness.
- Surface treatment: One side of the film is treated to improve adhesive bonding.
- Adhesive application: A silicone adhesive is applied to the treated side.
- Curing: The adhesive is cured to ensure optimal bonding properties.
- Slitting and packaging: The tape is cut to size and packaged for distribution.
This meticulous process results in a tape that combines the non-stick, heat-resistant, and chemically inert properties of PTFE with the convenience of an adhesive backing.
Key Characteristics of PTFE Film Tape
PTFE film tape boasts an impressive array of characteristics that make it ideal for electrical insulation:
- Excellent dielectric strength: PTFE has one of the highest dielectric strengths of any plastic material, making it an exceptional electrical insulator.
- Wide temperature range: It can withstand temperatures from -54°C (-65°F) to 260°C (500°F), ensuring reliable performance in extreme conditions.
- Chemical resistance: PTFE is inert to almost all chemicals, protecting electrical components from corrosion and degradation.
- Low friction coefficient: The smooth, non-stick surface reduces wear and tear during installation and use.
- Moisture resistance: PTFE's hydrophobic nature prevents water absorption, maintaining its insulative properties even in humid environments.
- UV resistance: It resists degradation from ultraviolet light, making it suitable for outdoor applications.
- Anti-static properties: PTFE naturally resists static buildup, an important feature in sensitive electronic environments.
- Thin profile: Despite its strength, PTFE film tape is incredibly thin, allowing for space-saving applications in tight areas.
Comparing PTFE Film Tape to Other Insulation Materials
When compared to other insulation materials, PTFE film tape stands out in several key areas:
- vs. PVC tape: PTFE offers superior heat resistance and chemical inertness.
- vs. Rubber-based tapes: PTFE provides better electrical insulation and a wider temperature range.
- vs. Cloth tapes: PTFE resists moisture and chemicals more effectively.
- vs. Silicone tapes: While both offer high temperature resistance, PTFE has better dielectric properties and chemical resistance.
- vs. Polyimide tapes: PTFE typically has a lower coefficient of friction and better non-stick properties.
These comparisons highlight why PTFE film tape is often the preferred choice for critical electrical insulation applications where reliability and performance are paramount.
Applications of PTFE Film Tape in Electrical Insulation
Industrial and Manufacturing Uses
In industrial settings, PTFE film tape proves invaluable for a wide range of electrical insulation applications. Its high dielectric strength and temperature resistance make it ideal for protecting wiring and components in harsh environments. For instance, in automotive manufacturing, PTFE tape is used to insulate wiring harnesses exposed to high temperatures and corrosive fluids. In chemical processing plants, it protects electrical connections from corrosive vapors and splashes.
PTFE film tape also finds extensive use in the following industrial applications:
- Transformer manufacturing: Insulating coil windings and layer insulation.
- Motor winding: Providing slot liner insulation and phase separation.
- Switchgear assembly: Insulating busbars and other high-voltage components.
- Control panel construction: Protecting exposed terminals and connections.
- Cable management: Bundling and organizing cables in complex systems.
Aerospace and Aviation Applications
The aerospace industry relies heavily on PTFE film adhesive tape for its unique combination of properties. In aircraft construction, where weight savings and reliability are crucial, PTFE tape offers excellent insulation with minimal bulk. It's used in various critical applications:
- Avionics wiring: Insulating delicate electronic components in navigation and communication systems.
- Engine compartment wiring: Protecting cables from extreme temperatures and vibrations.
- Fuel system components: Insulating electrical connections in fuel pumps and sensors.
- Environmental control systems: Wrapping ducting and insulating electrical heating elements.
- Lightning protection: As part of composite aircraft structures to help dissipate electrical charges.
Electronics and Consumer Devices
In the world of electronics and consumer devices, PTFE film tape plays a crucial role in ensuring product reliability and safety. Its thin profile and excellent insulative properties make it ideal for miniaturized electronics. Some common applications include:
- Printed circuit board (PCB) manufacturing: Masking gold fingers during plating processes.
- Smartphone assembly: Insulating internal components and battery connections.
- Computer hardware: Wrapping cable bundles and insulating power supply components.
- Audio equipment: Insulating speaker coils and protecting sensitive connections.
- Wearable technology: Providing moisture-resistant insulation in fitness trackers and smartwatches.
The versatility of PTFE film tape in these diverse applications underscores its importance as a key material in modern electrical and electronic design.
Advantages of Using PTFE Film Tape for Electrical Insulation
Superior Dielectric Properties
PTFE film tape excels in electrical insulation due to its outstanding dielectric properties. With a dielectric strength typically ranging from 1,000 to 2,000 volts per mil (0.001 inch), it provides robust protection against electrical breakdown. This high dielectric strength means that even a thin layer of PTFE tape can effectively insulate against significant voltages, making it ideal for high-power applications and miniaturized electronics alike.
The dielectric constant of PTFE remains stable across a wide range of frequencies, from DC to microwave. This stability ensures consistent insulation performance across various operating conditions, a critical factor in sensitive electronic equipment. Additionally, PTFE's low dissipation factor minimizes energy loss in high-frequency applications, contributing to overall system efficiency.
Thermal Resistance and Stability
One of the standout features of PTFE film tape is its exceptional thermal resistance. With a continuous operating temperature range of -54°C to 260°C (-65°F to 500°F), it outperforms most other plastic insulation materials. This wide temperature range makes PTFE tape suitable for applications from cryogenic systems to high-temperature industrial processes.
PTFE's thermal stability is equally impressive. It maintains its physical and electrical properties even after prolonged exposure to high temperatures. This stability is crucial in applications where thermal cycling is common, such as in automotive or aerospace environments. Unlike some insulation materials that degrade or become brittle with heat exposure, PTFE remains flexible and effective, ensuring long-term reliability.
Chemical Inertness and Environmental Resistance
The chemical inertness of PTFE is legendary, and this property extends fully to PTFE film tape. It resists attack from nearly all chemicals, including strong acids, bases, and solvents. This resistance is vital in industrial settings where exposure to harsh chemicals is common, or in laboratory equipment where purity and non-reactivity are essential.
Beyond chemical resistance, PTFE film tape also offers excellent environmental resistance:
- Moisture resistance: PTFE's hydrophobic nature prevents water absorption, maintaining insulation integrity in humid or wet conditions.
- UV resistance: It withstands prolonged exposure to sunlight without degradation, making it suitable for outdoor applications.
- Ozone resistance: Unlike rubber-based insulations, PTFE does not degrade when exposed to ozone.
- Fungus and mold resistance: PTFE does not support microbial growth, an important factor in certain environments.
This combination of chemical and environmental resistance ensures that PTFE film tape maintains its insulative properties in a wide range of challenging conditions, contributing to its reliability and longevity in electrical applications.
Conclusion
PTFE film tape stands out as the superior choice for electrical insulation across a wide range of industries and applications. Its unique combination of excellent dielectric properties, thermal stability, and chemical resistance makes it an invaluable material in electrical engineering. From aerospace to consumer electronics, PTFE film tape provides reliable, long-lasting insulation that outperforms traditional materials in challenging environments. As technology continues to advance and demand for high-performance insulation grows, PTFE film tape will undoubtedly remain at the forefront of electrical insulation solutions, offering engineers and manufacturers a versatile, dependable option for their most critical applications.
FAQs
What is the temperature range of PTFE film tape?
PTFE film tape can withstand temperatures from -54°C (-65°F) to 260°C (500°F).
Is PTFE film tape suitable for outdoor use?
Yes, PTFE film tape is UV-resistant and moisture-resistant, making it ideal for outdoor applications.
Can PTFE film tape be used in high-voltage applications?
Absolutely. Its high dielectric strength makes it suitable for high-voltage insulation.
How does PTFE film tape compare to PVC tape for electrical insulation?
PTFE film tape offers superior heat resistance, chemical inertness, and a wider temperature range compared to PVC tape.
