Custom PTFE mesh belt manufacturing is a specialized process that combines the exceptional properties of polytetrafluoroethylene (PTFE) with the strength and versatility of mesh structures. These belts, also known as Teflon mesh belts or PTFE mesh conveyor belts, are engineered for superior performance in various industrial applications. They offer unparalleled chemical resistance, non-stick properties, and durability, making them ideal for food processing, textile production, and chemical manufacturing. Understanding the intricacies of custom PTFE mesh belt manufacturing can help you make informed decisions for your specific needs, ensuring optimal performance and longevity in your operations.

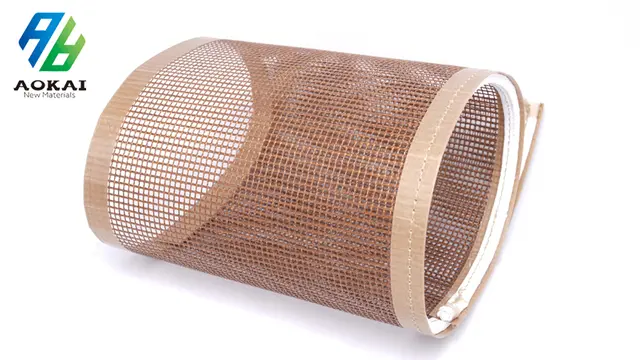

![PTFE Mesh Belt]( "PTFE Mesh Belt")
The Fundamentals of PTFE Mesh Belt Design
Material Composition and Properties
PTFE mesh belts are crafted from high-quality polytetrafluoroethylene, a synthetic fluoropolymer of tetrafluoroethylene. This material boasts exceptional chemical inertness, hydrophobicity, and thermal stability. The mesh structure is typically reinforced with fiberglass or other high-strength fibers, enhancing its tensile strength and dimensional stability. These properties make PTFE mesh belts suitable for harsh environments where conventional materials would fail.
Customization Options
Teflon mesh belt manufacturing offers a wide array of customization possibilities. Manufacturers can adjust the mesh size, belt thickness, and overall dimensions to meet specific application requirements. Additionally, the PTFE coating thickness can be tailored to enhance particular properties such as release characteristics or wear resistance. Some advanced customization options include adding conductive elements for static dissipation or incorporating special additives for improved UV resistance.
Design Considerations for Optimal Performance
When designing a custom PTFE mesh belt, several factors must be considered to ensure optimal performance. These include the operating temperature range, chemical exposure, load-bearing requirements, and desired belt speed. The mesh pattern plays a crucial role in determining airflow and product support characteristics. Engineers must also account for potential flexing and stretching of the belt during operation, especially in conveyor systems with multiple direction changes.
Manufacturing Processes and Quality Control
PTFE Coating Techniques
The manufacturing process of PTFE mesh belts involves sophisticated coating techniques. The most common method is dip coating, where the fiberglass mesh is immersed in a PTFE dispersion and then cured at high temperatures. This process can be repeated multiple times to achieve the desired coating thickness. Advanced manufacturers may employ spray coating or electrostatic coating methods for more precise control over the PTFE application. The choice of coating technique significantly influences the final product's performance characteristics.
Heat Treatment and Sintering
After coating, the PTFE mesh belt undergoes a critical heat treatment process known as sintering. This involves heating the coated mesh to temperatures above the melting point of PTFE (typically around 327°C or 621°F). Sintering causes the PTFE particles to fuse, creating a continuous, smooth surface with enhanced mechanical properties. The sintering process must be carefully controlled to prevent damage to the underlying mesh structure while ensuring complete PTFE fusion.
Quality Assurance Protocols
Rigorous quality control measures are essential in custom PTFE mesh belt manufacturing. Leading manufacturers implement comprehensive testing protocols throughout the production process. These may include visual inspections, thickness measurements, and tensile strength tests. Advanced quality assurance techniques might involve thermal imaging to detect coating inconsistencies or computerized dimensional analysis to ensure precise mesh geometry. Additionally, chemical resistance tests and simulated wear trials help verify the belt's performance under intended operating conditions.
Applications and Industry-Specific Considerations
Food Processing Industry
In the food processing sector, PTFE mesh conveyor belts are prized for their non-stick properties and compliance with food safety regulations. These belts are commonly used in baking lines, where their heat resistance and easy-release characteristics prevent dough and baked goods from sticking. Custom designs may incorporate specific mesh patterns to optimize airflow for even baking or cooling. Manufacturers must ensure that all materials used in food-grade PTFE mesh belts meet FDA and other relevant regulatory standards.
Chemical and Pharmaceutical Manufacturing
The chemical resistance of PTFE makes these mesh belts invaluable in chemical processing and pharmaceutical manufacturing. They can withstand exposure to corrosive substances and solvents that would degrade other materials. In these industries, custom PTFE mesh belts may be designed with enhanced sealing properties to prevent contamination or with specific surface textures to facilitate filtration processes. The ability to withstand high temperatures while maintaining chemical inertness is particularly crucial in reactor belts and filter press applications.
Textile and Printing Industries
PTFE mesh belts play a significant role in textile production and industrial printing processes. In textile drying and heat-setting operations, these belts offer excellent dimensional stability and uniform heat distribution. For printing applications, custom PTFE mesh belts can be engineered with precise openings to control ink or dye penetration. The non-stick surface ensures easy cleaning and prevents ink buildup, leading to consistent print quality. Manufacturers may also incorporate antistatic properties to prevent static electricity buildup, which is crucial in handling delicate fabrics or sensitive electronic components.
Conclusion
Custom PTFE mesh belt manufacturing represents a convergence of advanced materials science and precision engineering. By understanding the intricacies of design, production processes, and quality control measures, industries can harness the full potential of these versatile components. From food processing to chemical manufacturing, PTFE mesh belts offer unparalleled performance in challenging environments. As technology advances, we can expect even more innovative applications and refinements in custom PTFE mesh belt manufacturing, further expanding their utility across various industrial sectors.
