As a professional source manufacturer of PTFE adhesive tape and related products, Jiangsu Aokai New Materials Technology Co., Ltd. elaborates on relevant knowledge. For PTFE high-temperature tapes, the selection of release paper and release film substrates and release agents is the core factor that sets the lower limit of release effect and the upper limit of storage stability.
Understanding these influences helps manufacturers and users choose the right release liner for their specific application needs.
How Different Substrates Impact PTFE Tape Performance
As the carrier of the release coating, the physical and chemical properties of substrates determine the morphological stability of release materials during storage and application.

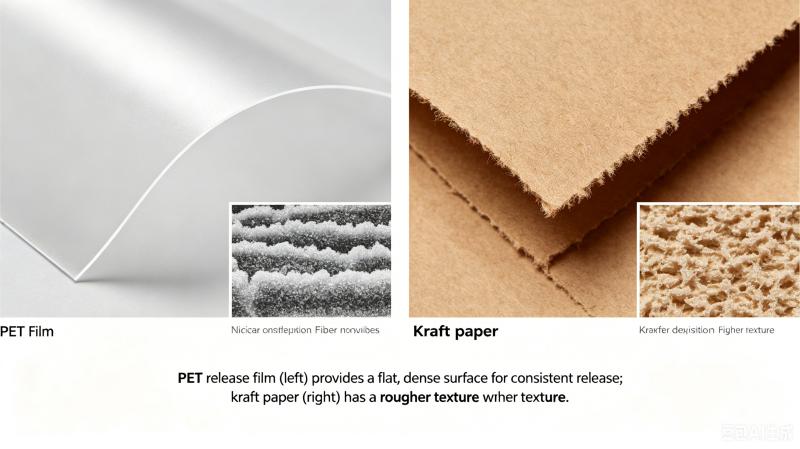

1. PET (Polyester Film) Substrate
Storage Stability: Excellent. PET maintains stable shape and dimensions across a wide temperature range. It features strong chemical inertness, no deterioration from moisture absorption or reaction with adhesives, no fiber shedding, and high cleanliness.
Release Performance: Stable and controllable. Its flat, dense surface creates ideal conditions for precise coating of release agents. However, due to its superior mechanical properties, it may produce peeling noise under high-speed or high-peeling-force conditions.
2. Kraft Paper Substrate
Storage Stability: Obvious drawbacks. Maximum temperature resistance is generally below 150°C. Prone to moisture-induced deformation and aging brittleness after long-term storage. Falling paper fibers may contaminate adhesive surfaces and reduce cleanliness.
Release Performance: Heavily dependent on coating technology. The original rough surface needs additional coating treatment (film coating, clay coating) to achieve smoothness; otherwise, uneven release force can occur.
In high-volume automated tape converting operations, the choice between PET and kraft paper significantly impacts production efficiency. PET release films offer superior dimensional stability, maintaining consistent width and length even under varying humidity – critical for rotary die-cutting and high-speed slitting where ±0.5mm tolerance is required. Kraft paper, while more economical, can expand or contract by 1-2% with humidity changes, leading to misalignment in precision applications. For PTFE tapes stored for over 12 months, PET-based release liners show less than 0.1% dimensional change, whereas kraft paper may exhibit visible curling or edge lifting after 6 months in non-climate-controlled warehouses. For applications requiring absolutely flat tape application (e.g., on heated platens or sealing bars), PET substrate is strongly recommended.
How Release Agents (Silicone vs. Fluorinated) Impact PTFE Tape Performance
Interacting with the silicone pressure-sensitive adhesive on PTFE adhesive tape, release agents are vital to peeling performance and long-term service reliability.
1. Silicone Release Agent

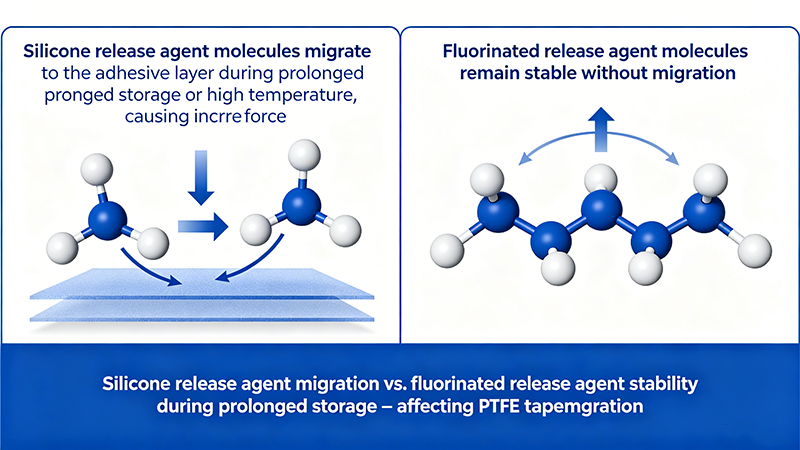

Storage Stability: Risk of silicone migration exists but can be improved via formula optimization. Molecular segments may migrate toward adhesive layers under long-term high temperature or pressure, resulting in increased release force and even adhesive residue. This risk can be greatly reduced by adopting high crosslink density and low-migration formulas.
Release Performance: Good compatibility and moderate cost. Covers a wide range of adjustable release force. However, both the release agent and PTFE tape belong to silicone-based systems, bringing the risk of similar-phase dissolution – leading to difficult peeling (heavy release).
2. Fluorinated Release Agent
Storage Stability: Higher chemical inertness and better overall stability. Low surface energy and extremely stable chemical properties – hardly migrates into adhesive layers. Maintains steady release force for a long time with outstanding resistance to high temperature and high humidity.
Release Performance: Superior and stable releasing effect. With even lower surface energy, provides lighter and more consistent release force than silicone release agents – enabling smooth, noise-free, and residue-free peeling. Shows better chemical inertness toward silicone pressure-sensitive adhesives and completely avoids heavy release issues.

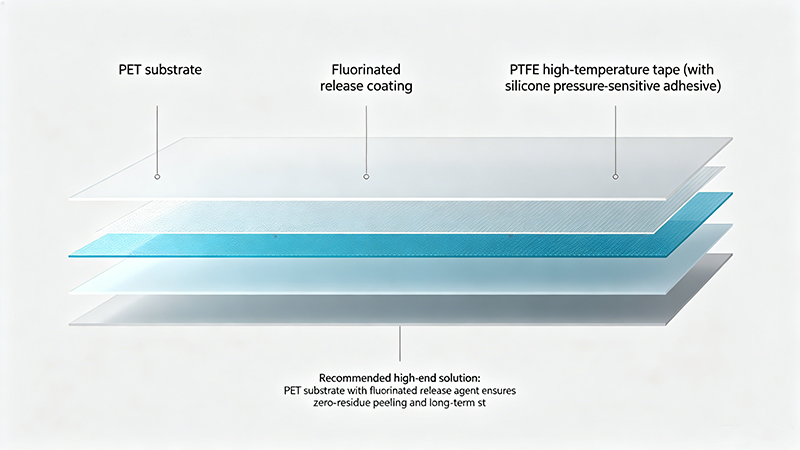

Summary – Optimal Combination for PTFE High-Temperature Tape
Overall, the combination of PET substrate + fluorinated release agent is the optimal solution available today, perfectly balancing excellent storage stability and ideal release effect.
Recommended matching scheme: PET substrate with fluorinated release agent is the high-end choice. Its outstanding temperature resistance and dimensional stability, combined with the chemical inertness advantages of fluorinated release agents, fully guarantee zero-residue peeling performance and long-term storage stability for PTFE adhesive tape.
Conclusion – Choose Your Release Liner Based on Application Needs
For manufacturers and users of PTFE high-temperature tape, understanding the trade-offs between substrate and release agent options enables informed decisions. While PET + fluorinated represents the premium solution, kraft paper + high-quality silicone remains a viable option for cost-sensitive, short-term storage applications.
