The fiberglass cloth under the PTFE coating is not just a carrier – it determines the mechanical backbone of PTFE high-temperature fabric. The weave pattern affects how the fabric handles tension, tearing, bending, and heat.
Three weave types dominate the industry: plain weave, twill weave, and satin weave. Each has distinct interlacing structures that lead to major differences in tensile strength, tear resistance, flexibility, and dimensional stability.
Aokai PTFE has produced PTFE-coated fabrics across all three weaves for decades. This guide compares their mechanical properties and provides application recommendations.
Interlace at intervals of at least two yarns; diagonal lines on surface
Fewer interlacing points than plain; diagonal pattern
Satin weave
Interlace every four yarns or more; long floating yarns
Very smooth surface; almost fully covered by warp or weft yarns

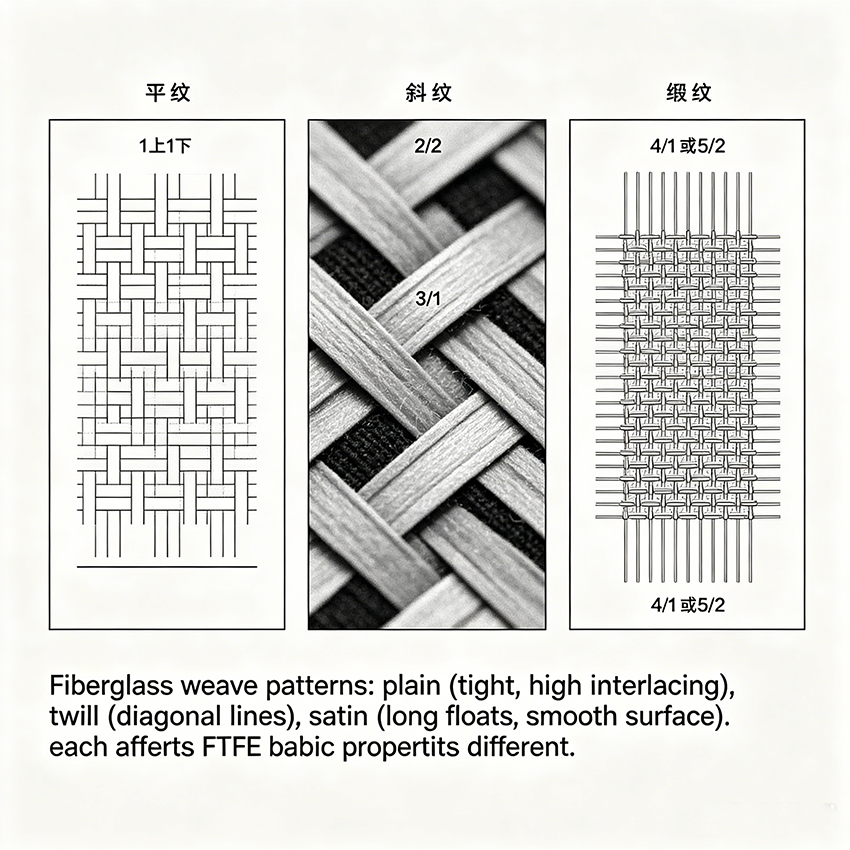

Visual difference: Plain looks like a checkerboard; twill shows diagonal ribs; satin looks very smooth and shiny.
Impact on Key Mechanical Properties
1. Tensile Strength and Modulus
Weave
Strength Utilization
Characteristics
Plain
85-90%
Yarns have high crimp; must straighten before bearing load. Well-balanced warp/weft strength.
Twill & Satin
>95%
Long floats, minimal crimp → fibers fully utilized. Satin achieves highest tensile strength under same yarn/density. Directional if warp/weft densities differ.
Practical implication: For applications requiring maximum tensile strength (e.g., wide conveyor belts under high tension), satin or twill outperforms plain.

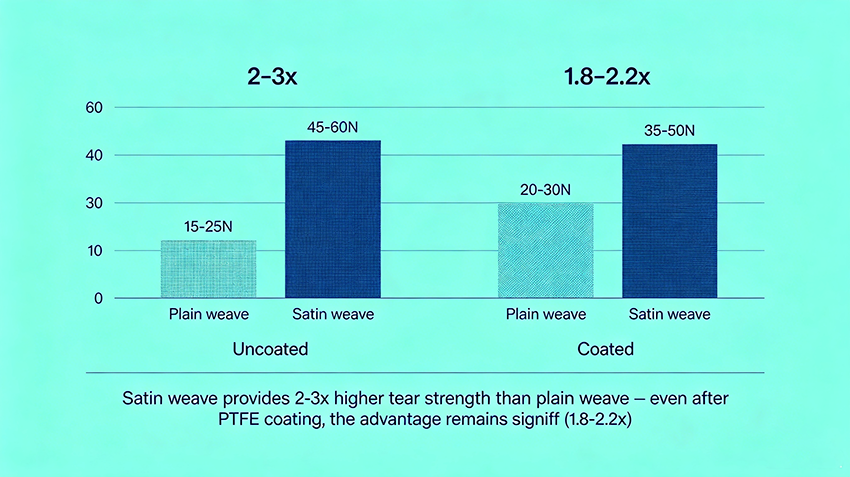

2. Tear Strength – The Biggest Difference
Weave
Tear Strength
Mechanism
Plain
Low
Dense interlacing locks yarns; cannot slide or bundle. Stress concentrates on single yarns, breaking them one by one.
Satin
Excellent (2-3x plain)
Long floats allow yarns to slide and gather, forming bundles that share stress.
Twill
Moderate (between plain and satin)
Limited yarn movement – better than plain but less than satin.
Critical note: PTFE coating and impregnation fix yarn positions and restrict sliding. However, the performance gap remains significant – satin PTFE fabric still outperforms plain greatly in tear resistance.
Aokai PTFE offers all three weave types. For customers with tear-critical applications (e.g., conveyor belts that frequently stop/start), we recommend satin weave despite its slightly higher cost. Field data shows satin belts last 2-3x longer than plain in high-stress environments.
3. Flexibility and Flex Fatigue Resistance
Weave
Flexibility
Flex Fatigue Life
Bending Behavior
Plain
Stiff, high bending resistance
Poor
Stress concentrates at dense interlacing points → brittle fracture of fiberglass, coating cracking
Satin
Soft, good drapability
Excellent
Spare interlacing withstands repeated small-radius bending – ideal for high-speed conveyors and frequent bending
Twill
Moderate
Moderate
Best overall balance
Application impact: For fabric that must bend around small rollers (e.g., <50mm diameter) or undergo frequent flexing, satin weave is strongly preferred. Plain weave may crack after thousands of cycles.
Ultra-smooth surface provides fewer physical anchoring points. Improper surface treatment leads to delamination and blistering under long-term service or high temperatures
Trade-off: Satin’s smooth surface produces more uniform coating thickness and better release properties. Plain’s rough surface yields stronger coating bond but may have slightly higher surface friction.
5. Dimensional Stability and Creep Resistance
Weave
Dimensional Stability
Creep Resistance
Plain
Outstanding
Excellent – compact structure locks yarns, prevents shift under tension and heat
Satin
Inferior
Loose structure allows yarn displacement under long-term stress or heat – risk of elongation or shrinkage
Twill
Moderate
Between plain and satin
Critical for: Heat sealing gaskets, laminating cushion pads, and any application where precise dimensions must be maintained over time and temperature.
6. Bursting Strength and Impact Resistance
Weave
Performance
Plain
Weak against concentrated impact; cracks spread rapidly from impact point
Twill & Satin
Good ductility and yarn sliding absorb impact energy → superior bursting strength

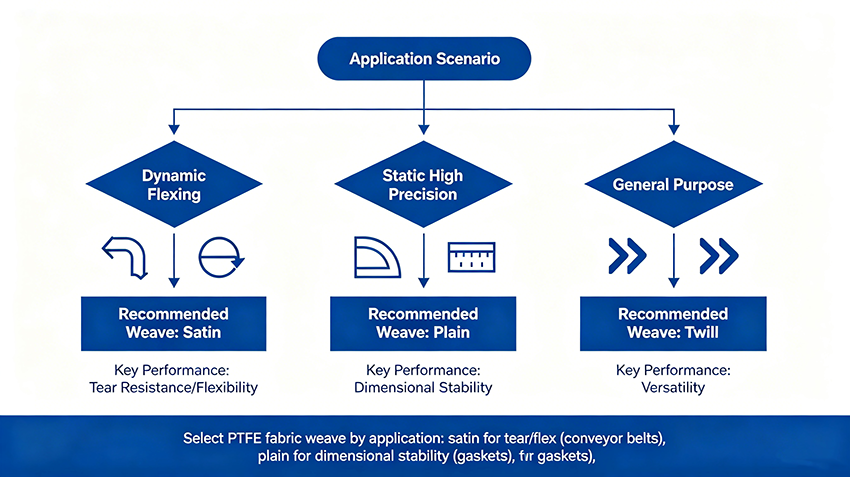

Application Recommendations – Which Weave to Choose
Balanced strength, tear resistance, and flexibility
High peel strength required (applications where coating must never delaminate)
Plain
Better mechanical anchoring
Very smooth release surface (food release, anti-stick liners)
Satin
Uniform coating, lower friction
Additional weave options: Modified weaves such as double twill and basket weave are also available to further optimize performance balance between warp and weft directions.
Summary – Weave Selection Quick Reference
Property
Plain
Twill
Satin
Tensile strength
Moderate (85-90% utilization)
High (>95%)
Highest
Tear strength
Low
Moderate
Excellent (2-3x plain)
Flexibility
Poor (stiff)
Moderate
Excellent (soft, drapable)
Flex fatigue life
Poor
Moderate
Excellent (4-5x plain)
Peel adhesion
High
Moderate
Lower (requires good surface treatment)
Dimensional stability
Excellent
Moderate
Poor (risk of creep)
Impact resistance
Poor
Good
Good
Surface smoothness
Rough
Ribbed
Very smooth
In summary, the weave pattern of fiberglass cloth fundamentally determines the mechanical properties of PTFE high-temperature fabric. No single weave is best for all applications – the choice depends on your priority: tear resistance and flexibility (satin), dimensional stability and peel adhesion (plain), or balanced performance (twill).
For dynamic applications with bending and tearing risk, satin weave delivers 2-3x longer service life. For static, high-precision applications, plain weave provides the dimensional stability you need. Twill remains the versatile workhorse for general industrial use.
Need help selecting the right PTFE fabric weave for your application? Aokai PTFE offers all three weaves with customizable thickness, width, and coating options. Contact us with your operating conditions and mechanical requirements for a recommendation.
