| Availability: | |
|---|---|
The Teflon high-temperature fabric meticulously developed by Jiangsu Aokai. is woven from high-performance PTFE fibers. It boasts exceptional properties such as outstanding high-temperature resistance, corrosion resistance, non-stickiness, and a low coefficient of friction, making it an indispensable high-performance material in the industrial sector.
Oil-resistant Teflon High-temperature cloth

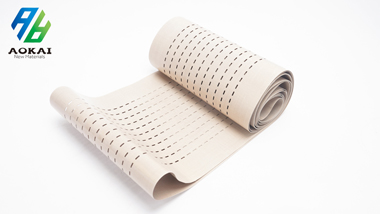

Double-layer Teflon high-temperature cloth

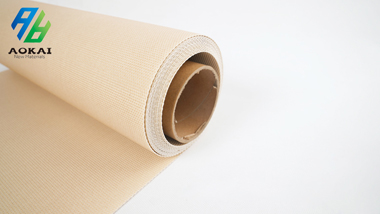

Extra-thick Teflon high-temperature cloth

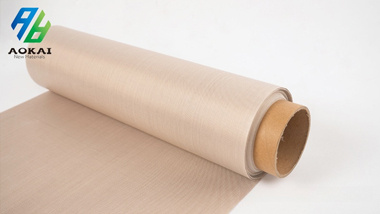

Textured Teflon high-temperature fabric

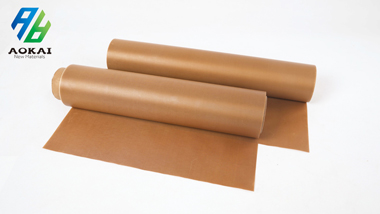

Wear-resistant Teflon high-temperature cloth

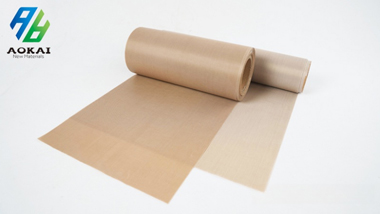

Breathable Teflon high-temperature fabric
√ Ultra-Wide Temp Range: -70℃ to +380℃ stable operation.
√ Corrosion-Resistant: Withstands chemicals, acids, alkalis.
√ Non-Stick: Smooth, easy-clean surface.
√ Durable: 100,000+ folds, 3+ year lifespan.
√ High Strength: Excellent tensile & tear resistance.
√ Safe & Eco: FDA-certified, meets global standards.
| Product Name | Product width mm | Thickness (0.01mm) | Gram weight(g/㎡) | PTFE content % | Color | Tensile strength(N/5CM) | |||
| Kib | Finished product | Kib | Finished product | Warp direction | Latitude direction | ||||
| PS050C | 2400/2300/2100 | 41 | 50 | 481 | 1020 | 53 | Coffee | 4116 | 3100 |
| PE050B | 2450 | 40 | 51 | 470 | 850 | 45 | Black | 4360 | 2850 |
| PS065W | Width < 3400 | 45 | 62 | 551 | 1200 | 54 | White | 4450 | 2950 |
| PA065C | 1200/1300/1400/1500/1600/1700/ | 55 | 65 | 639 | 950 | 33 | Coffee | 4545 | 4100 |
| 1800/2000/2100/2200/2300/2400/ | |||||||||
| 2500/2600/2800/3000/3100/3200 | |||||||||
| PS070C | 1200/1300/1400/1500/1600/1700/ | 55 | 70 | 639 | 1400 | 54 | Coffee | 5050 | 4580 |
| 1800/2000/2100/2200/2300/2400/ | |||||||||
| 2500/2600/2800/3000/3100/3200 | |||||||||
| PS080W | 2600 | 65 | 83 | 720 | 1650 | 56 | White | 4225 | 3622 |
| PSA080W | 2600 | 65 | 75 | 720 | 1450 | 50 | White | 4225 | 3622 |
| PA100C | 2450/3100/3250 | 85 | 100 | 906 | 1180 | 23 | White | / | / |
| PA110W | 2450/3100/3250 | 85 | 100 | 927 | 1300 | 29 | White | 4225 | 3622 |
| PS110W | 2450/3100/3250 | 85 | 110 | 930 | 1800 | 48 | White | 5520 | 4420 |
| PE120C | / | 90 | 120 | 970 | 1530 | 37 | White | 4225 | 3622 |
| PA100C | 2450/3100/3250 | 85 | 100 | 906 | 1180 | 23 | White | / | / |
| PA035C | 1700/1800/2050/1550/2250/2350/1550/2450/2600 | 27 | 31 | 295 | 600 | 51 | Coffee | 2820 | 2265 |
| PA055c | 2450 | 40 | 51 | 470 | 850 | 45 | Coffee | 4360 | 2850 |
| PS025L | 800/1100/1250 /1550 | 18 | 26 | 202 | 570 | 65 | Blue | 2150 | 1750 |
| PS013Gloden | 1000 1250 | 9.5 | 13 | 102 | 280 | 64 | Gloden | 750 | 650 |
| PS015rad | 1000 1250 | 11 | 15 | 135 | 320 | 58 | Gloden | 1080 | 1050 |
| PE008B | 1000 1250 | 6 | 7 | 48 | 135 | 64 | Black | 500 | 400 |
| PE011C | 1000 1250 1500 | 9.5 | 10 | 102 | 140 | 27 | Coffee | 750 | 680 |
| PE011B | 1000 1250 1500 | 9.5 | 10 | 102 | 140 | 27 | Black | 700 | 600 |
| PE013C | 1000 1250 | 9.5 | 11.5 | 102 | 235 | 57 | Coffee | 1170 | 1050 |
| PE015C | 1000 1250 | 11 | 14 | 135 | 290 | 53 | Coffee | 1080 | 1050 |
| PE025C | 1000/1250 /1500/1750/2000/2100/24500/2600 | 18 | 20 | 202 | 310 | 35 | Coffee | 1650 | 1450 |
| PE040C | 1000 | 28 | 40 | 377 | 650 | 42 | Coffee | / | / |
| PE050B | 2450 | 40 | 51 | 470 | 850 | 45 | Black | 4360 | 2850 |
Jiangsu Aokai’s PTFE high-temp fabrics drive efficiency and safety: enhance packaging, improve food processing, resist chemical corrosion, ensure electrical safety, refine textile printing, protect equipment, enable sterile medical use, and support automotive/aviation applications.

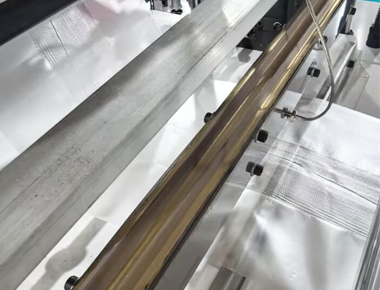

Bag cutting machine

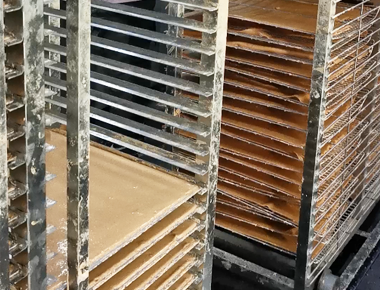

Dried meat jerky

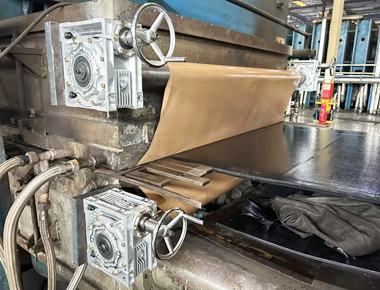

Rubber casting curing

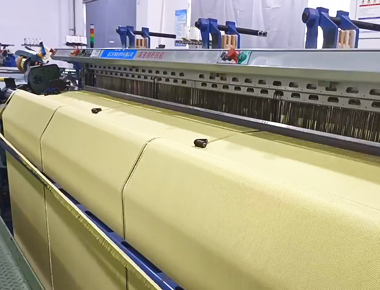

Textile machine
The latex foam solidifies and sets

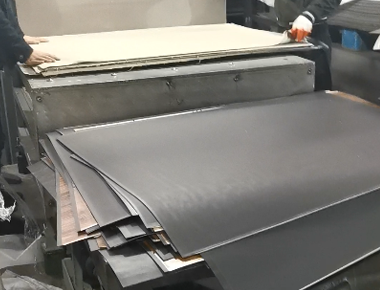

Thermoplastic setting of plastic flooring
Jiangsu Aokai, a leading domestic producer of PTFE and fluorosilicone adhesive products, is a modern tech group with a pro R&D team, advanced equipment, and precise instruments, excelling in R&D, production, and sales with superior quality.
• Site Coverage: 20,000 m²
• High-Molecular Composites: 100+
• Daily Production: 5,000 m²

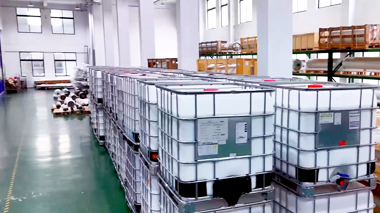

Raw material workshop

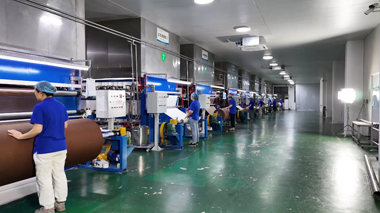

Impregnation workshop

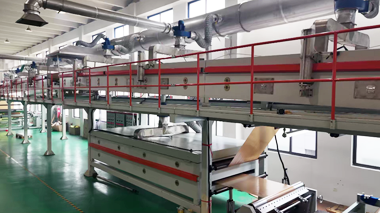

Glass fiber coating machine

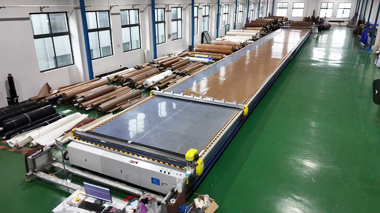

Horizontal fully automatic cutting bed

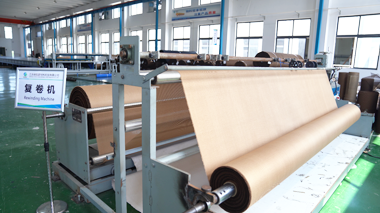

Rewinding machine

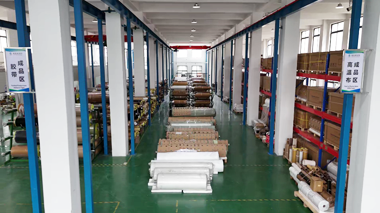

Finished product workshop
24/7 Technical Support
Customized Solutions
Fast Delivery & Logistics
FDA & EU Food Contact Compliance
ROHS & REACH Environmental Standards
ISO 9001:2015 Quality Management
Anti-Static & Fire-Resistant Certifications
Trusted by global brands like Coca-Cola & Nestlé across 30+ countries.
Case: 20% cost reduction for German automotive coating line with 3-year fault-free operation.
Fill out the form now to get professional PTFE high-temperature fabric industry solutions for free!
