Yes, PTFE adhesive tape, also known as Teflon adhesive tape, is indeed electrically insulating. This remarkable property stems from the unique chemical structure of polytetrafluoroethylene (PTFE), which boasts an exceptionally high dielectric strength. PTFE Teflon adhesive tape effectively prevents the flow of electric current, making it an excellent choice for various electrical applications. Its insulating capabilities, combined with heat resistance and chemical inertness, render it invaluable in industries ranging from electronics to aerospace. Whether you're working on intricate circuit boards or need reliable insulation for high-voltage equipment, PTFE adhesive tape offers a versatile and dependable solution for electrical insulation needs.

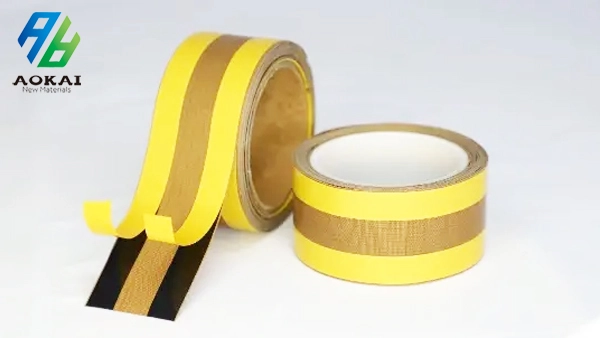

![PTFE Adhesive Tape]( "PTFE Adhesive Tape")
The Science Behind PTFE Adhesive Tape's Electrical Insulation Properties
Chemical Composition and Structure
PTFE adhesive tape's exceptional electrical insulation properties can be attributed to its unique chemical makeup. The backbone of PTFE consists of a carbon chain fully surrounded by fluorine atoms. This arrangement creates a highly stable and non-reactive structure. The strong carbon-fluorine bonds result in a material with low surface energy, contributing to its non-stick properties and electrical resistance.
The molecular structure of PTFE is characterized by long, straight chains of carbon atoms. Each carbon atom is bonded to two fluorine atoms, creating a helical configuration. This structure prevents the formation of conductive pathways, effectively blocking the flow of electrons. The absence of free electrons or ions in the material's structure is key to its insulating capabilities.
Dielectric Strength and Resistivity
Teflon adhesive tape boasts an impressive dielectric strength, typically ranging from 50 to 170 kV/mm. This high dielectric strength means that PTFE can withstand strong electric fields without breaking down or allowing current to pass through. The material's volume resistivity is equally remarkable, often exceeding 10^18 ohm-cm. These properties make PTFE an ideal choice for applications requiring robust electrical insulation.
The tape's ability to maintain its insulating properties across a wide temperature range further enhances its versatility. Even at elevated temperatures, PTFE adhesive tape retains its electrical resistance, making it suitable for use in challenging environments where other insulating materials might fail.
Comparison with Other Insulating Materials
When compared to other common insulating materials, PTFE adhesive tape often outperforms in terms of electrical insulation. For instance, while PVC tape is widely used for electrical insulation, it typically has a lower dielectric strength and may degrade more quickly under harsh conditions. Silicone rubber, another popular insulator, offers good flexibility but may not match PTFE's chemical resistance or temperature range.
PTFE's unique combination of high dielectric strength, excellent chemical resistance, and wide temperature tolerance makes it a superior choice for many specialized applications. In situations where reliability and longevity are crucial, PTFE adhesive tape provides a level of performance that many alternative materials struggle to match.
Applications of PTFE Adhesive Tape in Electrical Industries
Electronics Manufacturing
In the realm of electronics manufacturing, PTFE adhesive tape plays a crucial role. Its excellent electrical insulation properties make it ideal for protecting sensitive components on circuit boards. When applied to areas that require isolation from electrical currents, the tape effectively prevents short circuits and ensures the proper functioning of electronic devices.
PTFE tape is particularly valuable in the production of flexible printed circuits (FPCs). These thin, bendable circuit boards require reliable insulation that can withstand repeated flexing without compromising electrical integrity. The tape's flexibility and durability make it an excellent choice for this application, contributing to the development of increasingly compact and versatile electronic devices.
High-Voltage Equipment Insulation
The exceptional dielectric strength of PTFE Teflon adhesive tape makes it indispensable in high-voltage environments. In power distribution systems, transformers, and switchgear, the tape is used to insulate conductors and prevent arcing between components. Its ability to maintain insulating properties even under extreme voltage stress ensures the safe and efficient operation of critical electrical infrastructure.
PTFE tape's resistance to tracking and erosion further enhances its suitability for high-voltage applications. When exposed to electrical discharges or environmental contaminants, many insulating materials can develop conductive paths on their surface. PTFE's non-stick properties help prevent this degradation, maintaining insulation integrity over extended periods.
Aerospace and Automotive Industries
In the aerospace industry, where reliability and performance under extreme conditions are paramount, PTFE adhesive tape finds numerous applications. It's used to insulate wiring harnesses in aircraft, protecting against the high temperatures and vibrations encountered during flight. The tape's low weight and thin profile make it an attractive option for designers striving to minimize aircraft mass without compromising safety.
Automotive manufacturers also leverage the benefits of PTFE adhesive tape in various electrical systems. From insulating battery components to protecting wiring in engine compartments, the tape's combination of electrical insulation and resistance to automotive fluids and temperatures makes it an invaluable material. As vehicles become increasingly electrified, the demand for high-performance insulating materials like PTFE tape is likely to grow.
Advantages and Limitations of Using PTFE Adhesive Tape for Electrical Insulation
Unparalleled Chemical Resistance
One of the standout advantages of PTFE adhesive tape is its extraordinary chemical resistance. This property sets it apart from many other insulating materials, allowing it to maintain its electrical insulation capabilities even when exposed to harsh chemicals, solvents, and corrosive substances. In industrial environments where electrical components may come into contact with aggressive chemicals, PTFE tape provides a reliable barrier, ensuring continued insulation and protection.
The chemical inertness of PTFE also contributes to its longevity. Unlike some insulating materials that may degrade or lose effectiveness when exposed to certain chemicals, PTFE remains stable and functional. This resistance to chemical attack means that PTFE adhesive tape can provide long-lasting insulation in environments where other materials might fail prematurely.
Temperature Tolerance and Thermal Stability
PTFE adhesive tape exhibits remarkable temperature tolerance, maintaining its insulating properties across a wide range of temperatures. Typically, it can withstand temperatures from -200°C to +260°C without significant degradation of its electrical or mechanical properties. This wide operating temperature range makes PTFE tape suitable for applications in both cryogenic systems and high-temperature environments.
The thermal stability of PTFE also means that it doesn't soften or flow at elevated temperatures, unlike some thermoplastic insulators. This characteristic is crucial in applications where maintaining dimensional stability is important, such as in tightly packed electronic assemblies or high-temperature industrial processes.
Potential Drawbacks and Considerations
Despite its numerous advantages, PTFE adhesive tape does have some limitations that should be considered. One potential drawback is its relatively high cost compared to some other insulating materials. The complex manufacturing process and high-quality raw materials required for PTFE production contribute to its higher price point. However, in many applications, the superior performance and longevity of PTFE tape can offset the initial cost.
Another consideration is the tape's adhesive properties. While PTFE itself has excellent non-stick characteristics, this can sometimes make it challenging to achieve strong, permanent bonds with certain substrates. Specialized adhesive formulations are often used to overcome this limitation, but in some cases, additional surface preparation or alternative bonding methods may be necessary to ensure reliable adhesion.
Conclusion
PTFE adhesive tape stands out as an exceptional electrical insulator, offering a unique combination of high dielectric strength, chemical resistance, and thermal stability. Its versatility makes it invaluable across various industries, from electronics to aerospace. While considerations like cost and adhesion must be taken into account, the benefits of using PTFE tape for electrical insulation often outweigh these factors. As technology advances and demands for reliable, high-performance insulating materials grow, PTFE adhesive tape is likely to remain a go-to solution for engineers and manufacturers seeking top-tier electrical insulation.
