PTFE adhesive tape stands as a remarkable solution for extreme heat applications, combining polytetrafluoroethylene backing with secure silicone adhesive to deliver unmatched thermal resistance. These specialized tapes maintain structural integrity and adhesion strength at temperatures reaching up to 260°C, making them indispensable for heat sealing operations, chemical processing, and high-temperature manufacturing environments where conventional adhesive solutions fail to perform reliably.

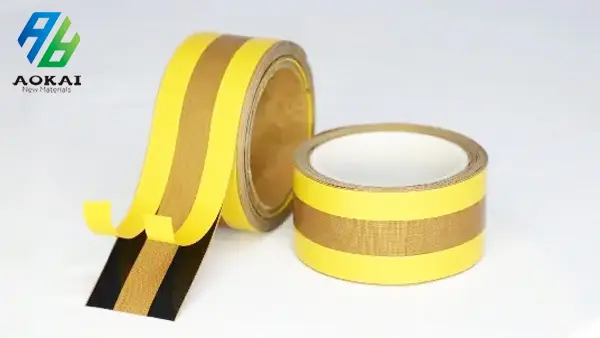

![PTFE Adhesive Tape]( "PTFE Adhesive Tape")
Understanding PTFE Adhesive Tape and Its Heat Resistance
Fundamental Composition and Properties
PTFE adhesive tape has a polytetrafluoroethylene backing and different kinds of adhesive on the front. It is very stable at high temperatures and doesn't react with chemicals easily. The polytetrafluoroethylene layer makes the surface nonstick and able to withstand very high temperatures. The silicone glue, on the other hand, makes sure that the two pieces stay together even when they are heated up.
Because of the way its molecules are structured, PTFE is very stable at temperatures ranging from -73°C to +260°C normal. Because of their wide working window, these tapes can be used in places where temperatures change quickly, where they are exposed to high temperatures all the time, and where other materials would break down or degrade.
Key Physical Properties and Specifications
The effectiveness features of PTFE adhesive tape go beyond just being resistant to heat. These materials are very good at resisting acids, solvents, and oils, which makes them useful in places where chemicals are processed. Additionally, the flame retardant and abrasion-resistant qualities make it safer and last longer in industrial settings.
Critical parameters include differences in thickness of 0.08mm to 0.25mm, based on the needs of the product. The glue mixtures use silicone-based systems that were chosen because they are stable at high temperatures and don't react with chemicals. Quality and safety standards are guaranteed by international approvals like ISO 9001:2015, FDA compliance for applications that come into direct touch with food, and UL recognition for electrical applications.
Typical Use Cases and Applications
One main use for PTFE adhesive tape that works really well is in heat sealing processes. The non-stick features keep the temperature transfer steady while keeping the product from sticking to the closing bars. These types are FDA-compliant and keep food preparation equipment clean while also being resistant to contamination.
For release surfaces on heat sealers, bags machines, and form-fill-seal machines, these tapes are used in packaging machinery. The ability to prevent chemicals is useful in pharmaceutical and cosmetic packages, where making sure that the products inside are compatible is still very important. PTFE tapes are used in manufacturing to cover heating elements, make release surfaces for molding, and in high-temperature settings to keep electricity from circulating.
Comparative Analysis: PTFE Adhesive Tape vs Alternative High-Temperature Tapes
Thermal Endurance and Performance Comparison
When choosing heat-resistant tapes, it's important to know how PTFE performs differently than other materials like silicone, polyester, or Kapton. When exposed to high temperatures over and over again, PTFE adhesive tape always does better than other options. It keeps its adhesion power and shape while other materials would soften or break down.
Silicone tapes are flexible and can be shaped to fit, but they don't have the chemical protection and non-stick qualities of PTFE solutions. While polyester tapes are good at keeping electricity away, they usually stop working when the temperature goes above 150°C. Kapton tapes are great for electrical uses, but they don't have the release qualities that are needed for many industrial processes.
PTFE adhesive tape is different from other options because of the following performance characteristics:
l Temperature Range: PTFE works well from -73°C to +260°C, which is much higher than most other materials.
l Chemical Stability: It is much more resistant to acids, bases, solvents, and oils than polyester and many silicone choices.
l Non-Stick Properties: Special release properties that regular high-temperature tapes don't have
l Electrical Insulation: For electrical uses, it has high insulating strength and temperature stability.
These improvements in performance directly lead to longer service life, less maintenance needs, and higher operating efficiency in harsh industrial settings.
Adhesive Types and Their Impact on Performance
Different types of glue have big effects on how well they work in very hot situations. If you compare silicone-based adhesives to acrylic systems, they are more stable at high temperatures, keeping the bond strong where acrylics would fail. Secure silicone glue, which is used in good PTFE tapes, makes sure that the bond stays strong even when the temperature changes.
The thermal efficiency is also affected by the width of the tape. Thicker tapes are better at insulating, while thinner tapes are better at conforming and transferring heat. This lets buying experts find the best product specs for long-lasting and reliable use in important industrial processes.
Selecting the Best PTFE Adhesive Tape for High-Heat Industrial Use
Core Selection Criteria for Procurement Teams
To pick the best PTFE tape for a job, you have to find the right balance between how well it resists heat, chemicals, and sticking power. The main factor used to choose the material is the temperature that it needs to work at. Other factors include the material's constant working temperature, its high temperature exposure, and how often it goes through thermal cycling.
Some things to think about when it comes to chemical exposure are how well it works with process chemicals, cleaning solvents, and outdoor contaminants. The secure silicone glue is very resistant to most industrial poisons and always sticks together well even when heated up.
Application-Specific Requirements
Materials that are FDA-compliant, easy to clean, and resistant to sanitizing agents are needed for food preparation. When packaging things, they need to have regular release qualities and physical stability over many thermal cycles. For safety reasons, manufacturing settings may put a high value on characteristics like abrasion resistance and flame retardancy.
Customization choices let you meet the needs of particular industries by using customized adhesive formulations, backing materials, and sizes. OEM and OBM services let equipment designers use PTFE sticky solutions and let wholesalers put their own labels on the products.
Good makers offer full technical support, which includes application advice before the sale, standard improvement during the sale, and troubleshooting help after the sale. This service method makes sure that the right product is chosen and that it works well in a wide range of workplace settings.
Case Studies and Verification of PTFE Adhesive Tape Performance Under Heat
Industrial Applications and Real-World Performance
PTFE tape's ability to work in harsh situations can be trusted more when it has been tested thoroughly and used in real life. A big company that makes equipment for processing food put PTFE Teflon adhesive tape on the heat sealing bars of their packing machinery. This cut down on repair downtime by 40% and made the seals more consistent across different types of packaging.
When powder coating masking is needed in auto factories, PTFE tapes are used. During curing processes, temperatures can hit 200°C. The tapes can be removed cleanly because they don't leave behind any sticky residue. This means that there is no need for time-consuming cleanup steps, which speeds up production.
Laboratory Testing and Verification Data
Third-party testing backs up claims of high temperature resistance. For example, ASTM D1000 thermal age tests showed that binding strength stayed the same after 1000 hours of exposure to 200°C. According to ASTM D543, testing for chemical protection makes sure that the performance is good against typical workplace cleaners and solvents.
Studies on adhesion retention show that there isn't much loss of strength even after going back and forth between room temperature and the highest working temperature many times. The test results back up what the maker said about the product's ability to withstand high temperatures, chemicals, and keep working well over time in tough situations.
Common Challenges and Solutions
Most of the time, surface pollution is what makes bonding fail in high-temperature situations. Using the right chemicals to prepare the material gets rid of oils, releasing agents, and other impurities that stop bonds from forming. Using the right amount of pressure during fitting makes sure that there is full touch and the best possible adhesion formation.
When materials and tape don't expand and contract at the same rate, it can lead to stress buildup and early failure. Choosing the right tape thickness and glue formulation allows for different levels of growth while keeping the bond strong through changes in temperature.
Best Practices for Using PTFE Adhesive Tape in High-Temperature Environments
Surface Preparation and Application Methods
Paying attention to the right way to prepare the surface, apply the tape, and follow safety rules is important for getting the most out of PTFE tape. Substrate cleaning gets rid of contaminants that make bonding harder by using the right solvents, like isopropyl alcohol or acetone, based on the type of contamination.
The steps below will make sure that there is strong binding and long-term stability in difficult thermal conditions:
l Surface Cleaning: Use clean brushes and the right chemicals to get rid of oils, dust, and residues.
l Conditioning the temperature: Let the materials and tape get to the same temperature before applying.
l Alignment and Positioning: Carefully place the tape so that it doesn't need to be moved again after touch.
l Application of Pressure: Use the right amount of pressure to make sure full touch and get rid of air pockets.
l Curing Time: Give the glue time to fully join before exposing it to heat.
These application steps greatly lower the chance of failure before its time and improve long-term performance in harsh heat conditions.
Safety Considerations and Maintenance
As part of safety concerns, handling instructions are provided to keep workers from getting contaminated and to protect them from cleaning chemicals. Solvent mist doesn't build up during surface preparation if there is enough air flow. During construction processes, workers are protected by personal protective equipment like safety glasses and gloves.
Regular inspections find early signs of wear and tear or loss of bonding before they become major problems. By looking for edge lifting, darkening, or surface damage, you can spot problems before they get too bad. Scheduled replacement based on history of heat exposure makes sure that important applications stay reliable.
Conclusion
Teflon adhesive tape works well even in very hot conditions, so it's a good choice for industrial uses that need chemical compatibility, non-stick properties, and thermal resistance. From -73°C to +260°C, polytetrafluoroethylene backing and safe silicone glue work better together than when they are used alone.
If you use the right selection criteria, application methods, and upkeep schedules, you can be sure that the product will work at its best in places like food processing, packaging, and manufacturing. Because it doesn't catch fire, react with chemicals, or go against FDA rules, it's safer and more in line with rules for tough uses.
If you know about these performance traits, you can buy things that will work better and require less maintenance, which will save money and time in high-temperature manufacturing processes.
FAQ
What is the maximum temperature tolerance of PTFE adhesive tapes?
PTFE adhesive tapes can usually handle temperatures up to 260°C (500°F) without losing their ability to stick and stay the same size. Some adhesives can handle being exposed to higher temperatures for a short time, based on how they are made and how they are used.
How does PTFE tape compare to Kapton tape for electrical insulation?
PTFE adhesive tape is better at resisting chemicals and not sticking than Kapton tape. However, Kapton tape has higher tensile strength and better conformability. When release qualities are needed, PTFE works best, while Kapton is better for flexible circuit uses that need mechanical durability.
Can PTFE adhesive tape be customized for specific industrial requirements?
Yes, customization choices include custom adhesive formulations, customizable backing thickness, custom sizes, and certificates that are specific to the product. OEM and OBM services meet the specific needs of each application while keeping quality standards and performance traits.
Contact Aokai PTFE for High-Performance PTFE Adhesive Tape Solutions
When an industrial operation needs PTFE adhesive tape to work reliably in very hot conditions, they should work with experienced makers who know what the unique needs of the application are. Advanced production skills and full technical support are what Aokai PTFE uses to create custom solutions that work better than expected.
Our ISO 9001:2015-certified factory makes PTFE adhesive tapes that are FDA-approved. These tapes have non-stick coatings, strong silicone bonds, and can withstand temperatures up to 260°C. Whether you need tools for handling food, packing, or manufacturing, our expert team can help you get the best results through pre-sales advice, design optimization, and after-sales support.
Get in touch with mandy@akptfe.com to talk to our application experts about your PTFE adhesive tape needs. As one of the biggest companies that makes PTFE adhesive tape, we can offer affordable options that are backed by full quality assurance and delivery all over the world.
