The PTFE mesh belt technology is a huge step forward in UV cure line operations, providing unmatched performance in high-temperature processing settings. These specialized conveyor solutions are made from polytetrafluoroethylene materials, which are very resistant to heat from -70°C to +260°C. This makes them an important part of current UV drying systems. The unique mix of chemical-resistance, non-stick surfaces, and open mesh design makes sure that the material moves smoothly while the quality of the product is maintained during the drying process.

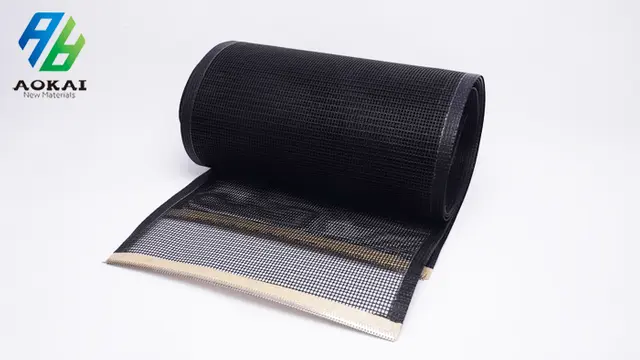

![PTFE Mesh Belt]( "PTFE Mesh Belt")
Understanding PTFE Mesh Belts and Their Role in UV Curing Lines
Because of the way they are made and the materials they are made of, PTFE mesh belts are very important in UV hardening processes and work very well. These polytetrafluoroethylene-based conveyor systems work great in places where other materials wouldn't, like high-temperature UV drying rooms where dependability and accuracy are very important.
Superior Material Properties for UV Applications
PTFE mesh conveyor belts are very good at withstanding high temperatures, which is their main benefit. These belts work well in temperatures ranging from -70°C to +260°C, and they keep their shape and structure even when they go through high temperature changes. The non-stick surface keeps materials from sticking, which makes it easy to release the product and lowers the risk of contamination during the drying process.
Another important benefit of UV treatment is that it doesn't react with chemicals. The belts don't get damaged by the inks, coats, and cleaning solvents that are often used in printing and finishing. This resistance to chemicals makes the equipment last longer and keep up performance standards in a variety of working settings.
Optimized Design for Heat Transfer and Airflow
Heat transfer and airflow control are made easier by the open mesh construction, which is important for getting even UV curing results. Open mesh designs let the most air flow through, which speeds up the cleaning process and lowers energy use. This design makes it possible to precisely control the temperature and cool things down quickly, which improves the quality and speed of production as a whole.
Mechanical longevity guarantees long-term dependability in ongoing use. The design is both flexible and strong, so it can survive high-speed conveyor moves while keeping its shape. This mix of flexibility and strength keeps belts from pulling and wearing out too quickly, which cuts down on repair needs and downtime.
Comparing PTFE Mesh Belts with Alternative Conveyor Belts in UV Curing
Knowing the pros and cons of the various types of conveyor belt materials helps buying workers choose the best UV curing line for their needs. Different types of materials have different properties that affect how well they work, how long they last, and how much they cost to run.
PTFE vs. Silicone Belt Performance
While silicone belts can handle some temperatures, they don't work as well as PTFE in a number of important ways. Silicone fabrics can handle some heat, but they aren't as resistant to chemicals and UV light as PTFE mesh belts are. Long-term UV exposure can break down silicone, which can make the surface sticky and cause contamination problems.
PTFE mesh solutions last longer than other materials when exposed to UV light all the time, keeping their surface stability and release qualities for longer periods of time. Because PTFE is chemically neutral, it doesn't react with inks, coatings, or cleaning products in the way that silicone belts usually do.
Advantages Over Fiberglass and Metal Alternatives
Fiberglass belts have great tensile strength and thermal protection, but they aren't always compatible with chemicals and have bad surface qualities. Chemicals can break down fibers and make the surface rough, which can lower the quality of the product and shorten the life of the belt. PTFE mesh belts get rid of these worries while still performing mechanically well.
While metal mesh conveyor systems are very durable, they can be hard to clean and can't conduct heat well. Hot spots and uneven burning patterns can happen on metal surfaces, which can make hardening less even. Because PTFE mesh is not conductive, the temperature is spread evenly and there are no worries about foreign contamination.
Maintenance and Longevity Tips for PTFE Mesh Belts in UV Curing Lines
When you follow the right care steps, your PTFE mesh belt will last a lot longer and work perfectly in even the toughest UV fixing jobs. Using systematic repair methods cuts down on running costs and keeps production from stopping for no reason as little as possible.
Preventive Inspection and Monitoring
Visual checks done on a regular basis help find early signs of damage or wear before they affect production. Belt edges, mesh strength, and surface state are some of the most important things to look at. Fraying or limited damage is usually a sign of alignment problems or too much stress that needs to be fixed right away.
Tracking measures for belt performance gives you useful information about when to change the belts. Predictive repair plans can be made by keeping an eye on things like the stability of the belt tracking, the state of the surface, and changes in the size of the parts. This proactive method stops failures from happening out of the blue and makes the best use of replacement times.
Cleaning and Storage Best Practices
Cleaning methods that work get rid of leftover inks, coats, and process contaminants that can build up during use. Using the right chemicals and cleaning methods keeps the surface's properties and stops buildup that could hurt the quality of the product. Do not use rough cleaning methods that could hurt the mesh structure or the finish on the outside.
When the PTFE mesh conveyor belt is not being used, it stays in good shape when it is stored properly. Keeping the right amounts of temperature and humidity stops distortion and contamination. To keep belts from getting creased, roll them up loosely and store them somewhere clean, dry, and out of direct sunshine and chemical fumes.
Tension and Alignment Optimization
Keeping the belt at the right tightness keeps it moving correctly and increases its useful life. Too much tension speeds up wear and can cause failure before its time, while too little tension causes tracking issues and odd wear patterns. Regular tension changes based on what the maker says are best for performance and durability.
Aligning the conveyor has a big effect on how long the belt lasts and how consistently it works. When rollers or support structures are out of place, they cause uneven wear and tracking problems that shorten the life of the belt. Regularly checking and adjusting the balance keeps things running at their best and keeps you from having to replace things too soon.
Procurement Guide: Sourcing the Right PTFE Mesh Belt for UV Curing Lines
To successfully buy PTFE mesh belts, you need to carefully consider the supplier's skills, the product details, and the long-term support services they offer. Making smart choices about where to get the belt guarantees its best performance and value over its entire useful life.
Supplier Evaluation and Qualification
Before you can work with a skilled provider, you need to check out their technical skills and quality certifications. Look for companies that have ISO certifications, well-documented quality processes, and a history of making PTFE mesh belts. Strong technical support and engineering knowledge make it possible to provide useful application advice and help with fixing problems.
Production planning and warehouse management are affected by how much a factory can make and how reliable its deliveries are. Check to see if possible providers can regularly meet your volume needs and shipping schedules. More security and flexibility in the supply chain are provided by long-term providers with strong production skills and inventory management systems.
Technical Specification Considerations
In UV treatment uses, the choice of mesh size has a direct effect on how air flows and how well heat moves through the mesh. Finer mesh patterns support the base better but may slow down airflow. Coarser mesh patterns speed up airflow but may not support delicate materials well. Working with technical experts can help you get the best mesh specs for your purpose.
The requirements for belt width and length must match the measurements of the conveyor system while also taking into account practical and thermal changes. Customizing sizes allows for a perfect fit and the best performance. Talk to providers about the required sizes and tolerances to make sure the parts fit and work right.
Cost Analysis and Value Assessment
A full cost study should include the price of the initial buy, the cost of shipping, the time needed for installation, and the expected length of time the product will work. Teflon mesh belts may cost more up front than other options, but their longer life and better performance often make them more valuable in the long run.
Think about the total cost of ownership, which includes things like how often you need to repair things, how much they cost to maintain, and how they affect operating efficiency. When belts cut down on downtime, improve product quality, and extend service times, they can often explain higher prices by making operations more cost-effective.
Industry Case Studies and Future Outlook
With the right PTFE mesh belt design in UV curing processes, real-world examples show how performance can be greatly improved. These case studies are very helpful for learning about optimization techniques and the results that can be predicted.
Printing Industry Performance Improvements
In their UV ink curing line, a large industrial printing center switched from standard conveyor belts to PTFE mesh solutions, which led to huge performance improvements. The installation cut the time it took to cure by 15% and improved the accuracy of the print quality by better managing heat and airflow. Longer belt life cut down on how often it needed to be replaced from every three months to once a year, which greatly reduced the cost of upkeep.
Better temperature consistency got rid of the hot spots that used to damage the material and cause the ink to overcure. The surface didn't stick, so it didn't need to be cleaned as often, and ink didn't build up like it did with older belt materials, which hurt the quality.
Electronics Manufacturing Applications
Manufacturers of circuit boards have successfully used PTFE mesh conveyor systems in UV ovens to cure solder mask and component glue. Chemical resistance keeps working areas clean, which is important for making electronics. It stops flux residues and cleaning agents from getting into the system.
Dimensional stability under heat cycle makes sure that the parts stay in place during multiple hardening steps. This stability raises yield rates and lowers the need for rework, which saves a lot of money in the production of high-value gadgets.
Future Technology Developments
Newer versions of PTFE are making it more effective and opening up new uses for it. Better UV resistance qualities make belts last longer in high-intensity curing systems, and better antistatic formulations take care of problems with static electricity in delicate uses.
Integration of automation is getting better to support production settings in Industry 4.0. Smart tracking systems can keep an eye on how well a belt is working and guess when it needs to be serviced. This lets production schedules be optimized and repair plans be made before they break.
Conclusion
In conclusion, when used in UV treatment lines, Teflon mesh belt technology provides huge performance benefits thanks to its high temperature resistance, chemical inertness, and improved heat transfer properties. Its special mix of non-stick surfaces, breathable mesh design, and mechanical durability makes it reliable to use in tough processing settings while keeping product quality and operating efficiency high. When you choose, install, and maintain something correctly, you can get the most out of these benefits. It also has great long-term value because it lasts longer and costs less to run.
FAQ
What Temperature Range Can PTFE Mesh Belts Handle?
PTFE mesh conveyor belts work well in temperatures ranging from -70°C to +260°C, which means they can be used for almost all UV hardening tasks. This wide temperature range makes sure that the material will work reliably in both areas where it is loaded at room temperature and areas where it is cured at high temperatures, without changing in size or quality.
How Do I Select the Right Mesh Size?
The choice of mesh size is based on the properties of the medium, the need for airflow, and the need for heat transfer. Thinner or more bendable materials are better supported by finer meshes, but they may make it harder for air to move. Coarser holes let more air flow through so the curing process goes faster, but they might not be strong enough to hold delicate surfaces. Talking to application engineers can help you get the best mesh specs for your needs.
Can PTFE Mesh Belts Be Customized for Specific Equipment?
Most makers let you choose from a wide range of customization choices, such as different widths, lengths, mesh patterns, and edge treatments. Different conveyor configurations and practical needs require different joining methods and reinforcement choices. Working with skilled sources guarantees that the specifications are met and the performance is at its best.
What Maintenance is Required?
The main upkeep tasks are eye checks on a regular basis, following the right cleaning procedures, and adjusting the tension. Because they are resistant to chemicals and don't stick, PTFE mesh belts usually need less upkeep than other materials. Setting up regular repair plans based on how busy the operations are makes belts last longer and work better.
How Long Do PTFE Mesh Belts Last?
Service life depends on how it is used, how often it is maintained, and what the program needs. Under normal UV drying conditions and with proper care, PTFE mesh belts should last 12 to 18 months, which is a lot longer than many other materials. Extreme temperatures or aggressive chemical environments can shorten service life, but the right conditions can make it last longer than usual.
Partner with Aokai PTFE for Superior UV Curing Solutions
One of the best PTFE mesh belt options on the market is made by Aokai PTFE to work with UV finishing systems. Our high-tech polytetrafluoroethylene mesh belts have great protection to high temperatures, chemicals, and wind, so your curing line will work better and your products will be better. We offer customized solutions that meet your exact needs and operating requirements thanks to our wide range of over 100 fabric composite materials and full expert support. Get in touch with our technical experts at mandy@akptfe.com to talk about your UV curing problems and find out how our skills as a top PTFE mesh belt maker can help you make your production processes more efficient.
