PTFE Molecular Structure and Its Excellent Properties

As a professional source manufacturer of PTFE high-temperature fabrics, Jiangsu Aokai New Materials brings you professional insights. The core component of PTFE high-temperature fabric is Polytetrafluoroethylene (PTFE), with the molecular structure of \(\mathbf{-(CF_2-CF_2)_n-}\). The carbon main chain is completely wrapped by fluorine atoms. These three superior properties correspond to the structural features of PTFE molecules at different levels:

1. Excellent Non-stick Property

Derived from ultra-low surface energy, determined by tight outer wrapping of fluorine atoms and molecular non-polarity.

· High shielding effect of fluorine atoms: Fluorine has the strongest electronegativity and a large van der Waals radius. Regularly and densely arranged in a spiral on the outer side of the carbon chain, fluorine atoms form a tight protective shell and create a fully fluorinated smooth surface.

· Weak intermolecular force: Although the C-F bond is strongly polar, the fully symmetrical arrangement renders the entire molecular chain non-polar. Only weak dispersion forces exist between molecules, resulting in an extremely low surface energy (approx. 18 mN/m). Almost no substances can spread or adhere to the PTFE surface.

2. Strong Acid & Alkali Corrosion Resistance

Derived from extremely high chemical bond inertness, determined by high C-F bond energy and steric shielding effect.

· High-strength C-F bonds: The C-F bond features an ultra-high bond energy (approx. 485 kJ/mol), far more stable than C-H and C-C bonds, and extremely difficult to break.

· Complete shielding protection: The dense fluorine atom shell fully encapsulates the carbon chain skeleton, preventing corrosive ions from contacting the chemically vulnerable carbon chain. It realizes dual physical and chemical inert protection.

3. Superior Electrical Insulation

Derived from extremely low polarizability and zero free charges, determined by molecular symmetry and strong electron binding effect.

· Integral non-polar structure: Despite the local polarity of C-F bonds, the fully symmetrical arrangement of fluorine atoms on both sides of the carbon chain results in a nearly zero total molecular dipole moment, making PTFE a typical non-polar material.

· Tightly bound electrons: The strong electronegativity of fluorine atoms pulls electron clouds firmly toward fluorine atoms. Electrons inside molecules cannot migrate or relax under an external electric field, with a lack of conductive charge carriers. Therefore, PTFE boasts ultra-low dielectric loss and high breakdown strength.

Summary

The full wrapping of carbon chains by fluorine atoms, short high-energy C-F covalent bonds, and fully symmetrical non-polar molecular arrangement jointly contribute to PTFE’s distinctive performances: non-stickiness, corrosion resistance and high electrical insulation.

The above content is provided by Jiangsu Aokai New Material Technology Co., Ltd.

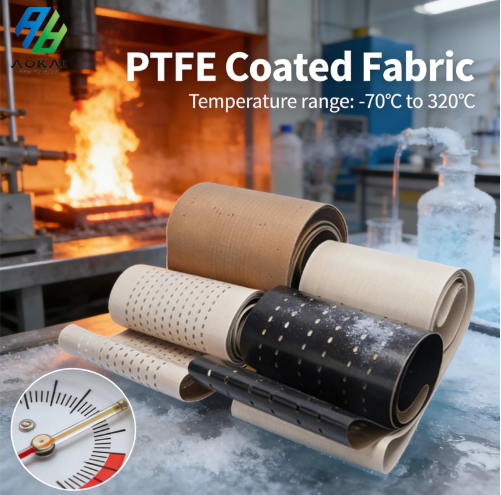

If you need in-depth information about detailed parameters, application scenarios and customized solutions for our full product range, including PTFE high-temperature fabrics, PTFE high-temperature tapes, PTFE high-temperature mesh belts, seamless fuser belts, single-sided PTFE coated fabrics, high-temperature resistant conveyor belts and high-temperature resistant glass fiber cloths, please feel free to contact us:
