In the production of PTFE high-temperature fabric, the impregnation step uses a PTFE emulsion (aqueous dispersion). But raw PTFE emulsion alone is difficult to process effectively. Thickeners are added to modify its rheological behavior and stability.

Why? PTFE resin has high density and tends to settle. Without thickeners, the emulsion would separate, penetrate too deeply into fabric, or produce uneven coatings.

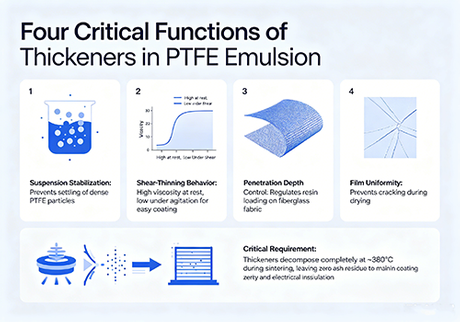

Aokai PTFE has optimized thickener selection across many impregnation formulations. This article explains the four core functions of thickeners in PTFE emulsion.

Suspension Stabilization & Anti-Settling

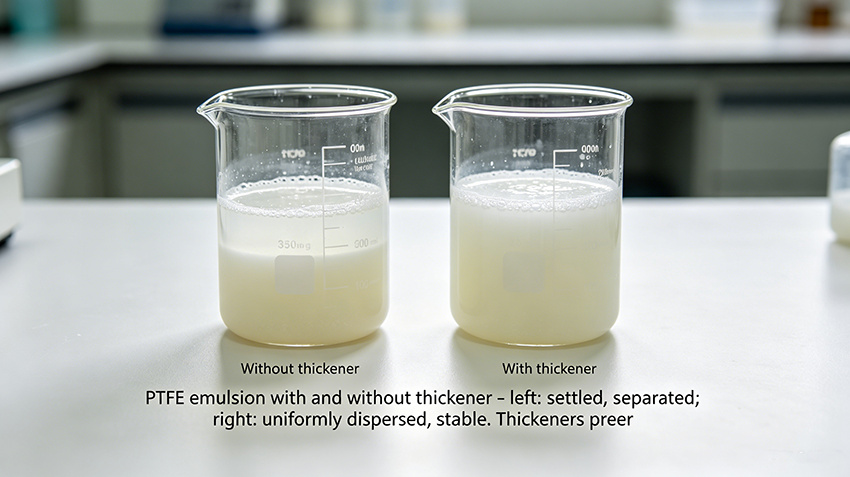

PTFE resin has high density (approximately 2.2 g/cm³) and tends to settle and harden severely in water. Without stabilization, the emulsion separates into a sediment-rich layer and a clear liquid layer – making it unusable for consistent coating.

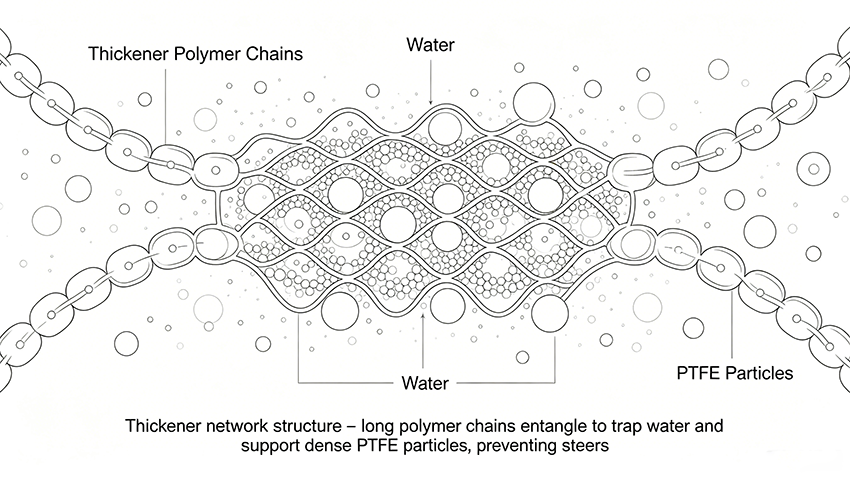

How thickeners work: Thickeners drastically raise the viscosity of the aqueous phase, forming a network structure that supports resin particles. This:

Extends the emulsion shelf life – remains usable for months rather than days
Prevents phase separation during transportation and storage
Eliminates caking – hardened sediment at the bottom of containers

Aokai PTFE note: For emulsions stored over 30 days, we recommend re-homogenization before use, even with thickeners, as long-term static storage can still cause slow settling.

Shear-Thinning Behavior for Easy Processing

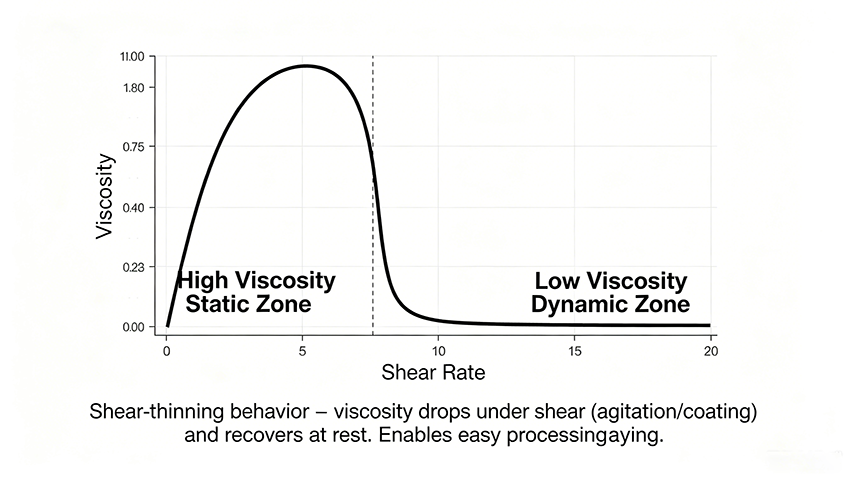

Thickeners endow the emulsion with shear-thinning (pseudoplastic) behavior: high viscosity at rest, low viscosity under agitation.

Condition	Viscosity	Benefit
At rest (standing in tank)	High	Prevents settling of PTFE particles
During agitation/mixing	Low	Easy pumping, homogeneous blending
During coating/impregnation	Low (under shear)	Smooth leveling, deep penetration into fiberglass
After coating (static)	Rapid recovery	Eliminates sagging on vertical surfaces, prevents streaks

Practical impact: During dip coating, the emulsion flows freely into the fiberglass fabric under shear, then thickens immediately after coating to maintain uniform wet film thickness without drips.

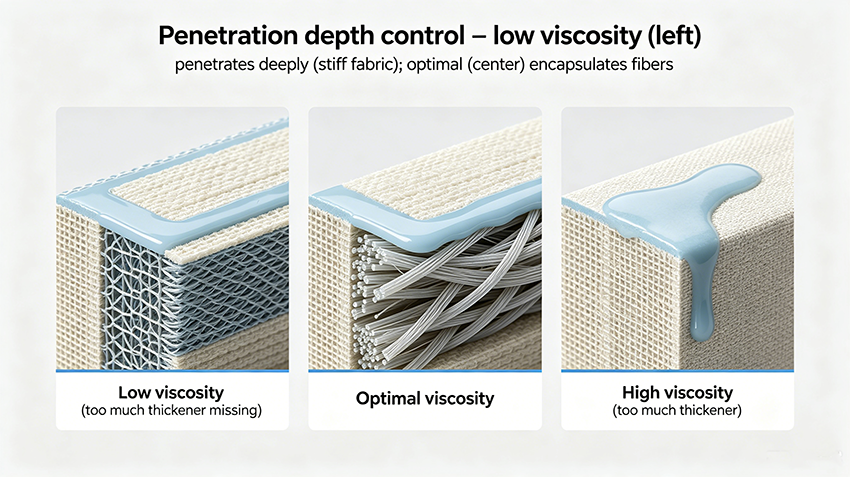

Regulating Penetration Depth & Coating Weight

When impregnating porous substrates such as fiberglass cloth, adjusting the type and dosage of thickeners allows precise control over emulsion penetration depth.

Penetration Depth	Effect
Too deep	Excess resin penetrates through fabric – high resin pick-up, stiff hand feel, waste of material
Too shallow	Insufficient resin on fabric surface – poor non-stick properties, exposed fiberglass
Optimal	Balanced – PTFE encapsulates fibers, smooth surface, good flexibility

How thickeners control this: Higher viscosity slows penetration, leaving more resin on the surface. Lower viscosity allows deeper penetration into the fiberglass bundle. This determines the final resin loading and hand feel of finished products.

Improving Film Uniformity & Ensuring Residue-Free Sintering

1. Film uniformity during drying

Sufficient viscosity from thickeners:

Suppresses cracking caused by rapid moisture migration during drying
Prevents uneven coating thickness (thick edges, thin center)
Facilitates the formation of flat, continuous primary films
Reduces the "coffee ring effect" where emulsion migrates to edges

2. The critical requirement – residue-free sintering

PTFE emulsion requires sintering at approximately 380°C to fuse PTFE particles into a continuous film. This presents a unique requirement for thickeners:

Selected thickeners must completely combust without residual ash at this temperature.

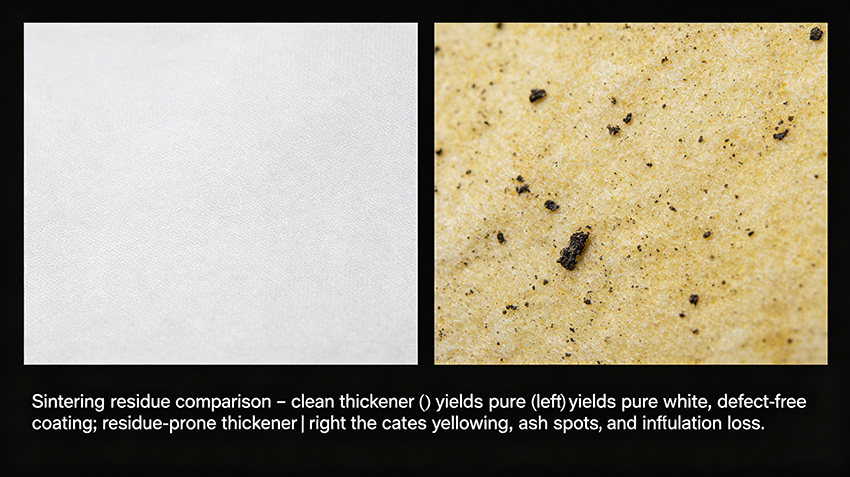

Thickener Quality	Result After Sintering
High-purity, fully combustible	Clean PTFE coating, pure white color, full electrical insulation
With inorganic residues	Ash spots, yellow discoloration, reduced dielectric strength, coating defects

Aokai PTFE uses cellulose-based thickeners (e.g., methyl cellulose) that burn off completely at 380°C, leaving no ash. We recommend avoiding thickeners containing inorganic salts or metal oxides that leave residue.

Summary – Thickener Selection Criteria for PTFE Emulsion

Function	Requirement
Suspension stabilization	Forms network structure to support high-density PTFE particles
Shear-thinning	Enables easy pumping, coating, and penetration
Penetration control	Adjusts resin pick-up and fabric hand feel
Film uniformity	Prevents cracking and uneven drying
Residue-free sintering (critical)	Must burn off completely at ~380°C – zero ash, zero color change

Aokai PTFE selects thickeners that balance all four functions while ensuring complete combustion during sintering. For custom impregnation formulations, we can adjust thickener type and dosage to match your specific coating weight and fabric penetration requirements.
