How Fiberglass Thermal Shrinkage Affects PTFE Tape Dimensional Stability

A PTFE tape that shrinks, curls, or warps during use is a common field failure. The root cause often traces back to one parameter: the thermal shrinkage rate of the fiberglass substrate.

During PTFE sintering at 360-400°C and adhesive curing at 150-200°C, the fiberglass fabric undergoes thermal expansion and, more critically, irreversible shrinkage from residual weaving stress. If this stress is not eliminated before coating, it becomes a hidden defect – causing the tape to shrink, curl, or delaminate when heated.

Aokai PTFE uses fully heat-set fiberglass substrates to eliminate this problem. This article explains the root cause of thermal shrinkage, its impacts at each processing stage, and the core solution: pre-heat-set fabric with <0.5% shrinkage at 400°C.

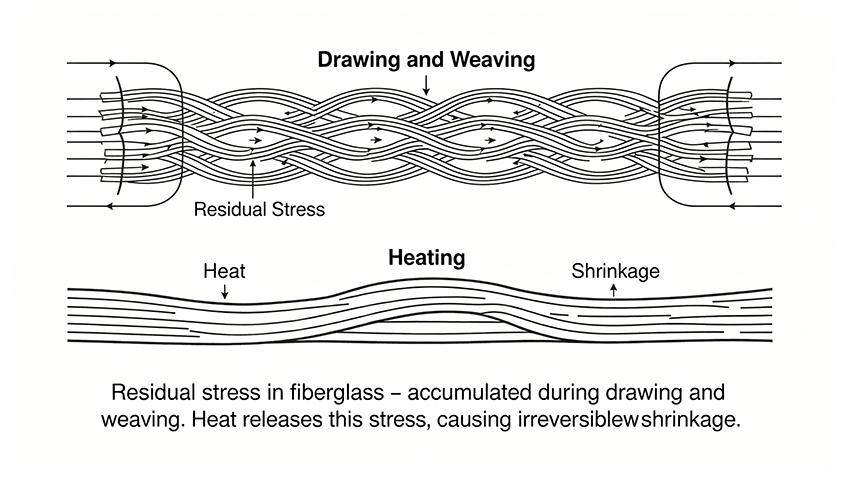

Root Cause – Residual Stress from Weaving

Thermal shrinkage fundamentally originates from internal residual stress accumulated during glass fiber drawing and fabric weaving. Fiberglass cloth without full heat setting will undergo irreversible shrinkage once heated above its stress release threshold (remarkable shrinkage starts above 300°C).

Any incompletely released or unconstrained shrinkage stress becomes the core hidden trouble causing unstable tape dimensions. This stress is "locked" into the fabric structure during weaving and only releases when heated to sufficient temperature.

Impact During PTFE Sintering – The Critical Stage

PTFE sintering temperature reaches 360-400°C, far exceeding the onset temperature of fiberglass thermal shrinkage, making this stage the decisive factor for dimensional performance.

1. Locked shrinkage stress creates latent dimensional defects

If processed under low tension, the fiberglass cloth shrinks freely and drastically, resulting in substandard length and width dimensions. If excessive tension is applied to restrain shrinkage, glass fibers are forcibly elongated. At around 380°C, molten PTFE infiltrates and wraps the stretched fibers; after cooling and shaping, the latent shrinkage tendency is permanently locked inside the substrate as massive residual tensile stress. Once the tape is reheated in later procedures, this residual stress triggers substrate shrinkage and directly ruins dimensional stability.

2. Uneven substrate flatness undermines coating uniformity

Inconsistent thermal shrinkage rates across different fabric zones (e.g., edge vs. central area) during sintering trigger deformations including wavy edges, cupped margins, and surface bulges. The uneven substrate surface leads to uneven adhesive coating thickness in subsequent processes, easily causing air bubbles or poor adhesion during lamination, and indirectly deteriorating both dimensional and functional stability of finished tapes.

Impact During Adhesive Curing – Secondary Stress Relief

Adhesive systems (silicone pressure-sensitive adhesives, acrylic adhesives, etc.) cure at 150-200°C. This temperature is lower than sintering range yet sufficient to activate residual locked stress inside the substrate, bringing multiple adverse consequences.

1. Secondary shrinkage causes surface defects and dimensional deviation

When entering the curing oven, residual shrinkage stress inside the substrate releases and causes measurable tape shrinkage. This leads to:

• Excessive width reduction

• Micro-cracks, orange peel texture, or cohesive failure on the adhesive surface (as shrinkage occurs simultaneously with curing)

• Longitudinal fluctuations in adhesive thickness and wrinkling of release liners (due to mismatch between fabric shrinkage speed and coating roller linear velocity)

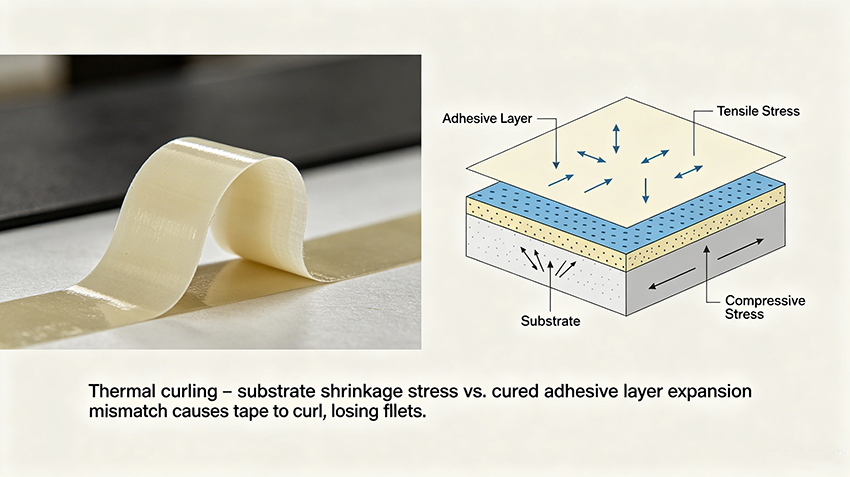

2. Thermal curling eliminates processing precision

The substrate layer actively contracts under heated residual stress, while the fully cured adhesive layer has a different coefficient of thermal expansion, creating severe stress mismatch between two layers. The tape curls immediately when peeled from release liners or exposed to heat during use – failing to lay flat and losing dimensional controllability and workability.

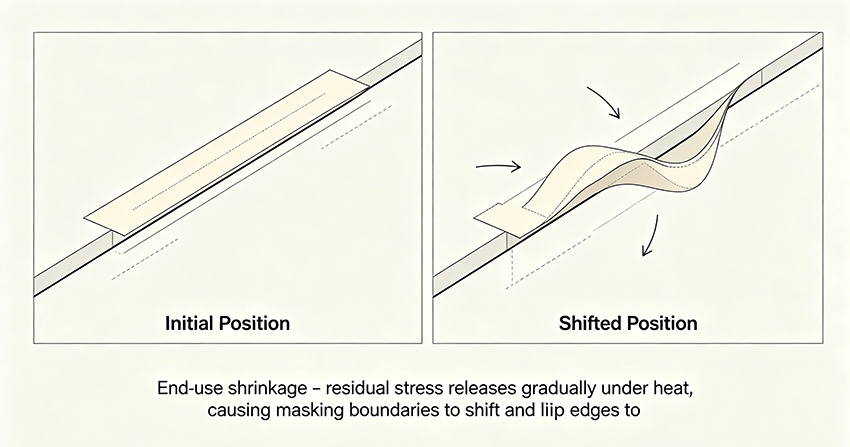

Continuous Stress Release During End-Use – Long-Term Instability

Residual shrinkage stress not fully eliminated during adhesive curing persists into finished product application. Under high-temperature masking, thermal lamination, or thermal cycling conditions (e.g., 260°C powder coating), the tape shrinks gradually and continuously.

Consequences:

• Shifted masking boundaries (seal lines move)

• Edge lifting or adhesion failure

• Complete loss of dimensional stability

This is why some tapes fail in the field even after passing initial inspection – the latent stress is released slowly over time and heat exposure.

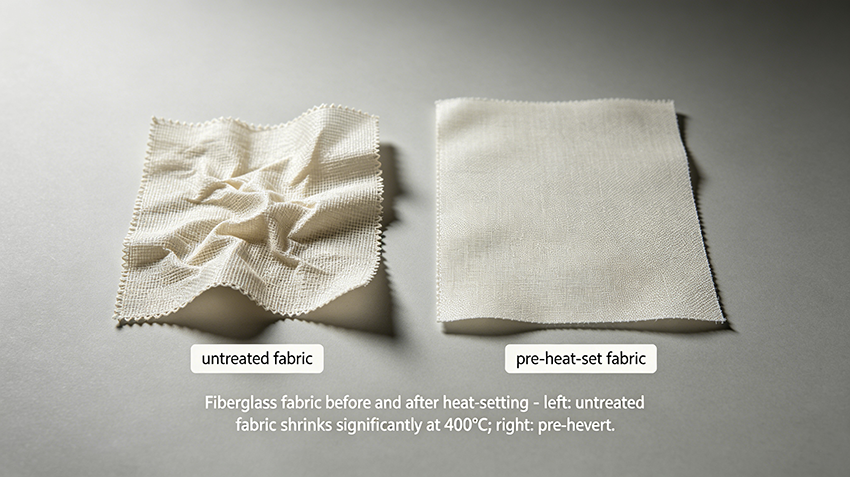

Core Solution – Eliminate Shrinkage Before Sintering

To manufacture dimensionally stable PTFE adhesive tapes, forced tension stretching during processing cannot resolve shrinkage issues fundamentally. Complete removal of fiberglass shrinkage must be achieved at the source.

1. The Aokai PTFE approach

1. Use fully heat-set (pre-shrunk) fiberglass base cloth – thermal shrinkage rate strictly controlled below 0.5% under test conditions of 400°C × 10 minutes (tighter standards available for premium grades).

2. Add a high-temperature pre-firing procedure before PTFE impregnation or coating – allowing the fiberglass cloth to complete free shrinkage and fully release all internal stress prior to entering the sintering zone.

2. The result

Once the fiberglass fabric's thermal shrinkage rate is minimized, dimensional variations during subsequent sintering and adhesive curing will only stem from thermal expansion and contraction of resin and adhesive layers – with a far smaller magnitude than residual stress-driven shrinkage. This fundamentally guarantees:

• Dimensional stability (length and width)

• Surface flatness

• Heat resistance and long-term reliability

Aokai PTFE selects only fully heat-set fiberglass substrates with documented shrinkage rates. We can provide test data per customer requirements.

Summary – The Pre-Shrinkage Principle

Aokai PTFE recommends pre-heat-set fiberglass with shrinkage <0.5% for all dimension-critical applications. For customers requiring ultra-stable dimensions, we offer premium grades with shrinkage <0.3% at 400°C.
