As a professional manufacturer of PTFE adhesive tape and related insulation products, Jiangsu Aokai New Materials Technology Co., Ltd. shares key knowledge. While PTFE high-temperature tape is valued for its excellent dielectric properties and thermal stability, harsh high-frequency and high-voltage working conditions introduce multiple potential risks.
Understanding these risks – including high-temperature aging, electrical breakdown, high-frequency loss, and environmental factors – is essential for reliable system design.
Electrical Strength Risks
High-Voltage Breakdown: PTFE tapes have limited dielectric breakdown resistance. For example, a tape with 0.11mm total thickness may have a breakdown voltage of approximately 6.1kV. Insufficient thickness or internal impurities (pinholes, contaminants) can easily cause high-voltage breakdown and insulation failure.

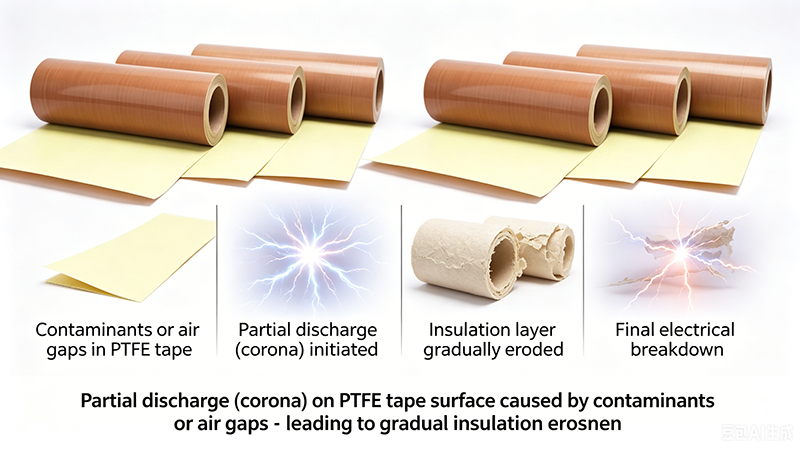

Partial Discharge (Corona Discharge): In high-voltage environments, surface contaminants (dust, oil stains) and tiny internal air gaps create electric field concentration points, triggering corona discharge. Long-term continuous discharge gradually erodes the insulating layer, leading to premature failure.
Insulation Deterioration from Environmental Factors:
Humidity: When relative humidity exceeds 85%, the surface resistivity of PTFE can drop sharply – from 10⊃1;⁷Ω to around 10⊃1;⊃2;Ω – and breakdown voltage may decrease by 30% to 50%.
Contaminants: Conductive dust or salt spray on the tape surface forms conductive bridges, creating leakage current paths.
In high-voltage electrical equipment, the dielectric strength of PTFE tapes is not a fixed value but depends heavily on application conditions. For corona-resistant grades, manufacturers often incorporate inorganic fillers such as mica or ceramic particles into the PTFE matrix. These fillers create numerous micro-interfaces that disperse charge concentration and suppress partial discharge activity. When selecting PTFE tape for high-voltage inverter motors (e.g., 6kV to 10kV class), it is recommended to use corona-resistant PTFE tape with a thickness of at least 0.18mm and verify the partial discharge inception voltage (PDIV) under actual operating temperatures, as PDIV typically decreases by 20-30% at 150°C compared to room temperature.
Thermal Stability Risks

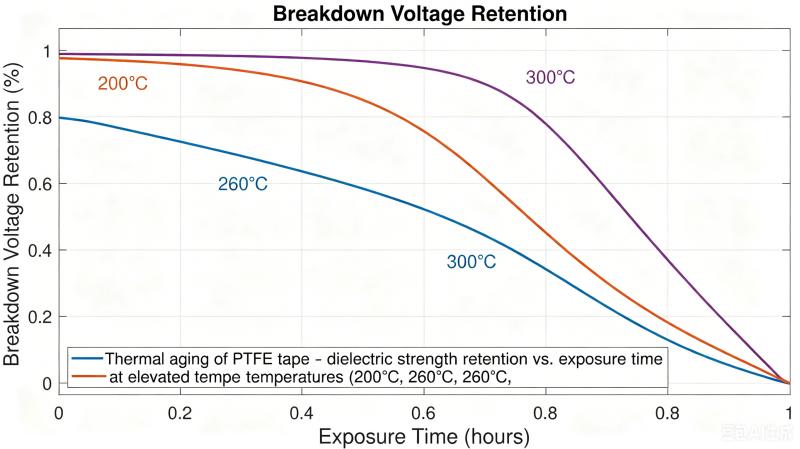

High-Temperature Aging: PTFE tapes can normally work stably at a continuous temperature of 260°C. However, once the temperature exceeds 250°C (especially near 300°C), molecular chains begin to decompose. This decomposition greatly reduces dielectric strength and creates insulation failure hazards.
Thermal-Oxygen Synergistic Effect: The combination of high temperature and oxygen accelerates material aging. Under hot and humid conditions, the damage to voltage resistance performance can increase by 30% to 50% compared to dry heat alone.
When PTFE tape is used in enclosed switchgear or transformer windings where oxygen supply is limited, thermal aging behavior differs significantly from open-air conditions. Studies show that PTFE’s thermal decomposition rate in nitrogen is approximately one-tenth of that in air at the same temperature. This means that for hermetically sealed high-voltage components, PTFE tape can achieve longer service life even at temperatures slightly above 260°C. However, once decomposition begins, by-products such as carbonyl fluoride and perfluoroisobutylene are highly toxic and corrosive to metal contacts. Therefore, it is critical to ensure that the application temperature remains well below the decomposition threshold – a safety margin of 30-50°C is recommended for critical high-voltage insulation.
High-Frequency Characteristic Risks
Signal Attenuation and Distortion: The dielectric constant (Dk) of standard PTFE ranges from 2.0 to 2.6. Products with excessive deviation in Dk can cause attenuation and distortion of high-frequency signals during transmission – a critical issue for RF and microwave applications.
Heat Generation Effect: PTFE has an extremely low dielectric loss tangent (tan δ), generally below 0.0025. However, if the loss factor is too high (due to impurities or improper processing), excessive heat will be generated under a high-frequency electric field. This self-heating effect accelerates material aging and can lead to thermal runaway.
Mechanical & Environmental Adaptability Risks
Mechanical Stress Damage: Sustained tension and friction during installation or operation may cause micro-cracks and abrasion inside the material, damaging the overall insulation performance. Sharp bends or edges should be avoided.
Chemical & Radiation Corrosion: Strong corrosive media such as molten alkali metals and chlorinated hydrocarbons, as well as excessive high-energy radiation (over 10⁴ Gy), will destroy the molecular structure of PTFE and sharply reduce its dielectric strength.
Adhesive Failure: Improper adhesive selection (e.g., acrylic-based adhesives) can soften and lose adhesion under high temperature, causing tape displacement, unwinding, or creep – especially problematic in vertical or vibrating applications.
Low-Temperature Brittleness: Most PTFE tapes lose flexibility and become brittle when the temperature drops below -70°C. While rare in electrical applications, this matters for outdoor or aerospace equipment exposed to extreme cold.
Using PTFE adhesive tape in high-voltage and high-frequency applications requires careful consideration of multiple risk factors. By understanding electrical strength limits, thermal aging behavior, high-frequency dielectric properties, and environmental sensitivities, engineers can select the right tape grade – or request customized solutions – to avoid premature failure.
As a trusted PTFE high-temperature tape manufacturer, Aokai provides tailored products for demanding electrical insulation applications across PTFE coated fabric, PTFE conveyor belt, PTFE mesh belt, PTFE film tape, and PTFE fiberglass tape.
