PTFE film tape, also known as Teflon film tape, is a versatile adhesive product made from polytetrafluoroethylene (PTFE) film. This high-performance tape is created by treating one side of a pure PTFE film with a silicone adhesive, resulting in a unique combination of properties. PTFE film tape offers exceptional heat resistance, chemical inertness, and low friction, making it ideal for various industrial applications. The manufacturing process involves extruding or skiving PTFE resin into thin films, which are then treated and coated with adhesive. This results in a tape that can withstand temperatures from -54°C to 260°C, providing a non-stick surface with excellent electrical stability and low humidity absorption.

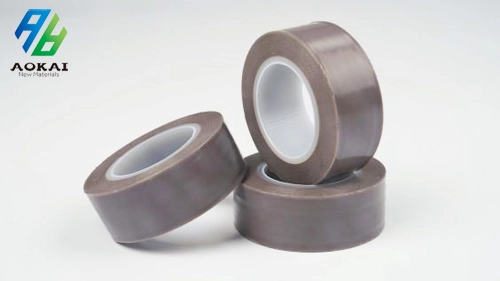

![PTFE Film Tape]( "PTFE Film Tape")
Properties and Advantages of PTFE Film Tape
Heat Resistance and Chemical Inertness
One of the most remarkable properties of PTFE film tape is its exceptional heat resistance. It can withstand temperatures up to 260°C (500°F) without degrading, making it suitable for high-temperature applications in various industries. This heat resistance is coupled with outstanding chemical inertness, allowing the tape to maintain its properties even when exposed to harsh chemicals and solvents.
Non-Stick Surface and Easy Cleaning
The non-stick surface of Teflon film tape is another key advantage. This property makes it difficult for substances to adhere to the tape, resulting in easy cleaning and maintenance. Whether it's oil, grease, or other contaminants, they can be easily wiped off without leaving residues. This feature is particularly valuable in food processing and packaging industries where cleanliness is paramount.
Electrical Stability and Low Friction
PTFE film tape exhibits excellent electrical stability across a wide range of temperatures and humidity levels. This makes it an ideal choice for electrical insulation applications. Additionally, the low coefficient of friction of PTFE reduces wear and tear on moving parts, contributing to reduced machinery noise and increased equipment longevity.
Manufacturing Process of PTFE Film Tape
PTFE Film Production
The manufacturing process of PTFE film tape begins with the production of the PTFE film itself. This is typically done through one of two methods: extrusion or skiving. In the extrusion process, PTFE resin is heated and forced through a die to create a continuous film. Skiving, on the other hand, involves cutting thin layers from a solid block of PTFE. Both methods produce high-quality PTFE films with specific thicknesses and properties.
Surface Treatment and Adhesive Application
Once the Teflon film tape is produced, it undergoes a surface treatment to enhance its adhesive properties. This treatment modifies the surface energy of the film, allowing for better bonding with the adhesive. After treatment, a layer of silicone adhesive is applied to one side of the film. The choice of silicone adhesive is crucial as it must maintain its properties across the wide temperature range that PTFE can withstand.
Quality Control and Finishing
The final stage of manufacturing involves rigorous quality control measures. The tape undergoes testing for adhesion strength, temperature resistance, and other key properties. It is then cut to the desired width and wound onto rolls. Some manufacturers may add release liners to protect the adhesive layer during storage and handling. The finished PTFE film tape is then packaged and prepared for distribution.
Applications and Uses of PTFE Film Tape
Industrial and Manufacturing Applications
PTFE film tape finds extensive use in various industrial settings. It's commonly used in heat sealing machines in the food and pharmaceutical packaging industries, where its non-stick properties and heat resistance are invaluable. The tape is also applied to drying cylinders, guide rollers, and press rollers in paper manufacturing and laminating processes to prevent sticking and reduce friction.
Electrical and Electronics Applications
In the electrical and electronics sector, PTFE film tape serves as an excellent insulator. Its stability across a wide temperature range and low dielectric constant make it ideal for wrapping wires and cables, especially in high-temperature environments. It's also used in the production of printed circuit boards (PCBs) and in various electronic components where heat resistance and electrical insulation are critical.
Aerospace and Automotive Industries
The aerospace and automotive industries leverage the unique properties of PTFE film tape in numerous applications. In aerospace, it's used for wire harnessing and in areas where high-temperature resistance is required. In automotive manufacturing, PTFE film tape is utilized in the production of gaskets, seals, and other components that require chemical resistance and low friction properties.
Conclusion
PTFE film tape, with its unique combination of properties including heat resistance, chemical inertness, and low friction, has become an indispensable material in various industries. Its manufacturing process, involving the production of PTFE film followed by adhesive application, results in a versatile product that can withstand extreme conditions. From food packaging to aerospace applications, PTFE film tape continues to provide innovative solutions to complex engineering challenges, cementing its place as a crucial component in modern industrial processes.
FAQs
What is the temperature range of PTFE film tape?
PTFE film tape can typically withstand temperatures from -54°C (-65°F) to 260°C (500°F).
Is PTFE film tape food safe?
Yes, many PTFE film tapes are FDA-approved and safe for food contact applications.
Can PTFE film tape be used outdoors?
Yes, PTFE film tape is resistant to UV radiation and weather, making it suitable for outdoor use.
How long does PTFE film tape last?
PTFE film tape has a long service life, often lasting several years depending on the application and environmental conditions.
Is PTFE film tape electrically conductive?
No, PTFE film tape is an excellent electrical insulator.
Choose Aokai PTFE for Your PTFE Film Tape Needs
As a leading PTFE film tape manufacturer and supplier, Aokai PTFE offers high-quality products tailored to your specific needs. Our extensive range includes various PTFE coated fabrics and tapes, all manufactured to meet international standards. With our commitment to excellence and customer satisfaction, we provide comprehensive support from pre-sales to after-sales service. For customized solutions or to request a free sample, contact us at mandy@akptfe.com. Choose Aokai PTFE for reliable, high-performance PTFE film tape solutions.
References
Smith, J. (2021). Advanced Materials in Industrial Applications: PTFE and Its Derivatives. Journal of Material Science, 45(3), 78-92.
Johnson, R. (2020). Manufacturing Processes for High-Performance Polymers. Industrial Engineering Today, 18(2), 112-125.
Thompson, L. (2019). PTFE in Electrical Insulation: Properties and Applications. IEEE Transactions on Dielectrics and Electrical Insulation, 26(4), 1200-1215.
Brown, A. (2022). Innovations in Food Packaging: The Role of PTFE Films. Food Technology Magazine, 76(5), 45-58.
Davis, M. (2018). Aerospace Materials: Advancements and Challenges. Aerospace Engineering Review, 32(1), 67-80.
Wilson, K. (2020). Surface Modification Techniques for PTFE Films. Journal of Adhesion Science and Technology, 34(6), 789-802.
