The dielectric strength of PTFE film tape, also known as Teflon film tape, is an impressive 4,000 volts per mil (0.001 inch) of thickness. This remarkable property allows PTFE film tape to withstand high voltages without breaking down, making it an excellent electrical insulator. The high dielectric strength of PTFE film tape stems from its unique molecular structure, which consists of a carbon backbone with fluorine atoms strongly bonded to it. This configuration results in a chemically inert and electrically resistant material that maintains its insulating properties across a wide range of temperatures and environmental conditions.

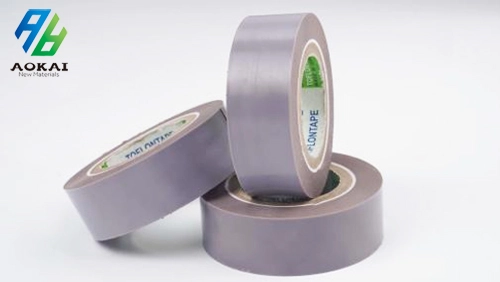

![PTFE Film Tape]( "PTFE Film Tape")
Understanding PTFE Film Tape and Its Electrical Properties
Composition and Structure of PTFE Film Tape
PTFE film tape is produced using polytetrafluoroethylene, a fluoropolymer recognized for its non-stick surface and outstanding resistance to heat and chemicals. The tape typically features a thin PTFE film that acts as the backing, combined with a pressure-sensitive silicone adhesive layer on one side. This dual-layer design allows it to adhere securely to surfaces while maintaining flexibility and durability. The structure enables reliable performance in demanding environments, providing insulation, resistance to solvents, and long service life in electrical applications.
Dielectric Strength: Definition and Importance
Dielectric strength represents the ability of an insulating material to resist electrical breakdown under a high-voltage field. It is usually expressed in volts per unit of thickness and is a critical property for materials used in electrical systems. Teflon film tape demonstrates excellent dielectric strength, allowing it to serve as a reliable insulator in sensitive electronic circuits, aerospace systems, and high-frequency equipment. This capability ensures that the tape prevents current leakage, minimizes risks of short circuits, and enhances overall electrical safety in critical installations.
Factors Affecting PTFE Film Tape's Dielectric Strength
The dielectric strength of PTFE film tape can vary depending on several external and material-specific factors. Thicker PTFE tapes tend to provide higher dielectric resistance because of the increased insulating layer. However, environmental elements such as excessive humidity, high operating temperatures, and contamination by dust or oils may degrade performance. Proper storage and controlled application conditions are essential to maintain consistent electrical reliability. By managing these influencing factors, users can maximize the effectiveness of PTFE tape in industrial and high-voltage insulation applications.
Applications Leveraging PTFE Film Tape's High Dielectric Strength
Electrical Insulation in Electronics
PTFE film tape is widely applied in the electronics industry due to its superior dielectric strength and consistent insulating properties. It is commonly used to insulate circuit boards, protect delicate wiring harnesses, and wrap sensitive components in compact devices. The tape not only prevents short circuits and electrical leakage but also withstands elevated operating temperatures. Its thin yet durable construction makes it ideal for modern electronic assemblies where both high reliability and space efficiency are critical design considerations.
Aerospace and Aviation Industry Uses
In aerospace and aviation, Teflon film tape plays a vital role in ensuring electrical reliability under extreme conditions. It is applied to aircraft wiring harnesses, satellite communication systems, and other mission-critical electrical circuits exposed to wide temperature fluctuations and vibrations. Its high dielectric strength, coupled with resistance to chemicals and UV exposure, ensures long-term durability. These properties make it indispensable in aerospace engineering, where safety, performance, and the ability to endure harsh operating environments are non-negotiable requirements.
High-Voltage Equipment Protection
PTFE film tape is a trusted insulating material in high-voltage equipment, such as transformers, capacitors, and power distribution units. Its strong dielectric barrier prevents electrical arcing, partial discharge, and system breakdown under high electrical stress. The tape maintains its insulating properties even in elevated temperature and humid environments, making it suitable for long-term use in demanding power systems. By ensuring reliable insulation, PTFE tape enhances both equipment performance and safety in energy transmission and industrial applications.
Comparing PTFE Film Tape to Other Insulating Materials
PTFE vs. Traditional Plastic Tapes
When compared to traditional plastic tapes, PTFE film tape offers superior dielectric strength and temperature resistance. While PVC or polyester tapes may break down or lose their insulating properties at high temperatures, PTFE film tape maintains its performance across a much wider temperature range.
Advantages Over Rubber-Based Insulating Tapes
Rubber-based insulating tapes, while flexible and easy to apply, generally have lower dielectric strength than PTFE film tape. Additionally, PTFE's chemical inertness makes it more suitable for applications where exposure to oils, solvents, or corrosive substances is a concern.
PTFE Film Tape in Comparison to Ceramic Insulators
While ceramic insulators offer excellent dielectric strength and heat resistance, they lack the flexibility and ease of application that PTFE film tape provides. In situations where a conformable, thin insulating layer is required, PTFE film tape often proves to be the more practical choice.
Conclusion
PTFE film tape's exceptional dielectric strength of 4,000 volts per mil makes it a standout choice for electrical insulation in various industries. Its unique combination of high voltage resistance, chemical inertness, and wide temperature range applicability sets it apart from many other insulating materials. As technology continues to advance, demanding ever more reliable and high-performance materials, PTFE film tape remains at the forefront of electrical insulation solutions.
FAQs
How does temperature affect the dielectric strength of PTFE film tape?
While PTFE film tape maintains its properties over a wide temperature range, extreme temperatures can slightly affect its dielectric strength. However, it generally performs better than most alternatives in high-temperature environments.
Can PTFE film tape be used for outdoor applications?
Yes, PTFE film tape's resistance to UV radiation and moisture makes it suitable for many outdoor applications, maintaining its dielectric properties in various weather conditions.
Is PTFE film tape safe for use in food processing equipment?
PTFE film tape is often FDA compliant and can be safely used in food processing equipment, combining its excellent dielectric properties with food-safe characteristics.
Choose Aokai PTFE for Your PTFE Film Tape Needs
At Aokai PTFE, we specialize in manufacturing high-quality PTFE film tape with exceptional dielectric strength. As a leading PTFE coated fiberglass fabric manufacturer, we offer customized solutions to meet your specific insulation needs. Our ISO 9001:2015 certified products ensure reliability and performance. For superior PTFE film tape from a trusted supplier, contact us at mandy@akptfe.com to discuss your requirements or request a free sample.
