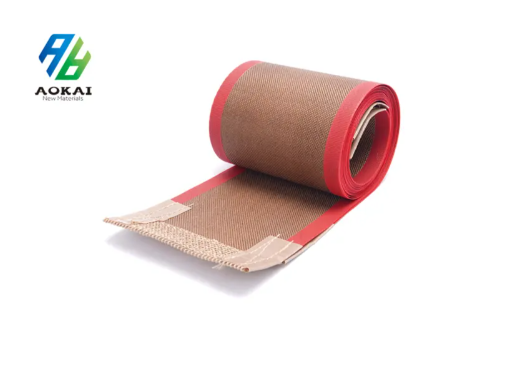

Why Is Fiberglass Almost Universally Used as the Reinforcement Base for Teflon High-Temperature Tape Instead of Carbon Fiber, Basalt Fiber and Other High-Performance Fibers?

Jiangsu Aokai New Materials – Your Source Factory for Teflon High-Temperature Cloth – explains why fiberglass has become the preferred reinforcing backbone for high-temperature Teflon tape: it achieves a "1+1>2" performance synergy with PTFE coatings, while offering unparalleled advantages in cost and process maturity.

1. Perfect Performance Matching for Extreme Working Conditions

The applications of high-temperature Teflon tape (such as sealing, packaging, demolding and wrapping) require it to withstand high-temperature tension without leaving residue. Fiberglass delivers exactly this synergistic performance.

Precise Temperature Resistance MatchingA qualified high-temperature Teflon tape uses a fiberglass base that can withstand 300–350°C for long periods, perfectly supporting the PTFE coating’s operating limit of approximately 260°C. Their temperature ranges connect seamlessly, ensuring the tape does not fail due to premature softening of the base material under hot-sealing blades. Although basalt fiber offers higher heat resistance, it represents excessive performance for high-temperature Teflon tape.

Balanced Mechanical Strength and Release PerformanceHigh-temperature Teflon tape must maintain its shape under repeated tearing and stretching. The PTFE coating provides an extremely low friction coefficient and non-stick properties, while the fiberglass base delivers thousands of Newtons of tensile strength and very low elongation. This ensures the tape does not stretch or curl when wrapped around rollers or running at high speeds.

Reliable Electrical InsulationIn many electronics manufacturing applications, high-temperature Teflon tape is used for masking and protection. As an electrical insulator, fiberglass combined with a PTFE coating creates a reliable barrier against electrostatic breakdown and current leakage.

2. Highly Mature Manufacturing Technology Ensures Coating Adhesion

Unlike ordinary tapes, high-temperature Teflon tape requires high-tack silicone adhesive to be applied to the back of nearly non-stick PTFE. Fiberglass substrates undergo special impregnation treatment, and their surface microporous structure firmly locks the PTFE coating like an anchor to prevent delamination. Meanwhile, the treated fiberglass cloth provides a smooth, high-bonding surface for the backside pressure-sensitive adhesive, ensuring the coating and adhesive do not separate during use.

3. Significant Cost Advantage – Key to Industrial Popularity

As an industrial consumable sold by the roll, cost is the decisive factor enabling high-temperature Teflon tape to replace traditional high-temperature masking materials on a large scale.

· Low cost of fiberglass: Made from widely abundant silicate minerals in the Earth’s crust, its per-ton price is only a fraction of that of carbon fiber. This allows a roll of high-temperature Teflon tape to be priced at just tens to hundreds of RMB.

· Poor cost-effectiveness of alternative materials: Using carbon fiber would drive the price of a single roll to thousands or even tens of thousands of RMB, eliminating its viability as an industrial consumable. Basalt fiber is slightly cheaper but has a small market volume and still cannot compete with fiberglass in the cost structure of high-temperature Teflon tape.

4. Limitations of Alternative Fibers – Incompatibility with High-Temperature Teflon Tape

Replacing fiberglass with carbon fiber or basalt fiber leads to critical shortcomings:

Hidden Dangers of Carbon Fiber

· Galvanic corrosion: High-temperature Teflon tape is often wrapped around metal rollers. Carbon fiber is conductive and forms galvanic cells when in contact with metal, accelerating corrosion of metal components – an unacceptable quality issue for end users.

· Brittleness and prohibitive cost: Carbon fiber is relatively brittle; when made into thin high-temperature Teflon tape, it easily breaks under repeated bending. Its extremely high cost also makes it uncompetitive in the tape market.

Process Barriers of Basalt Fiber

Although basalt fiber has performance similar to fiberglass, it is highly brittle, making it difficult to weave into flexible, foldable high-temperature Teflon tape. This often causes fuzzing and fiber shedding, impairing release performance.

High-temperature Teflon tape has become an indispensable standard component on industrial production lines precisely because fiberglass achieves an ideal balance among performance, processability and cost. Fiberglass gives high-temperature Teflon tape a structural skeleton resistant to 300°C heat, while retaining flexibility for complex surfaces, and maintaining a low industrial procurement cost.

Therefore, whether for pure Teflon high-temperature cloth or self-adhesive high-temperature Teflon tape, fiberglass remains an irreplaceable "all-rounder" substrate. For the foreseeable future, the core structure of high-temperature Teflon tape will continue to be dominated by the golden combination of fiberglass and PTFE.

The above information is provided by Jiangsu Aokai New Materials Technology Co., Ltd.
