How To Test PTFE Emulsion Quality: 6 Core Indicators & Methods

PTFE emulsion – also known as PTFE dispersion – is the raw material for coating fiberglass fabric to produce PTFE high-temperature fabric, tapes, and belts. If the emulsion quality is off, the final product will have poor non-stick performance, uneven coating, or premature failure.

But how do you know if a batch of PTFE emulsion is good? You test it.

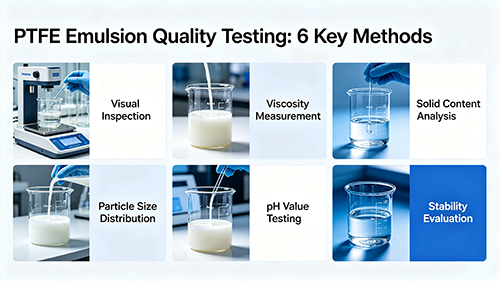

Aokai PTFE has used and tested PTFE emulsions for years. This guide covers the six core testing indicators – solid content, pH, particle size, viscosity, stability, and appearance – with standard methods and acceptance criteria.

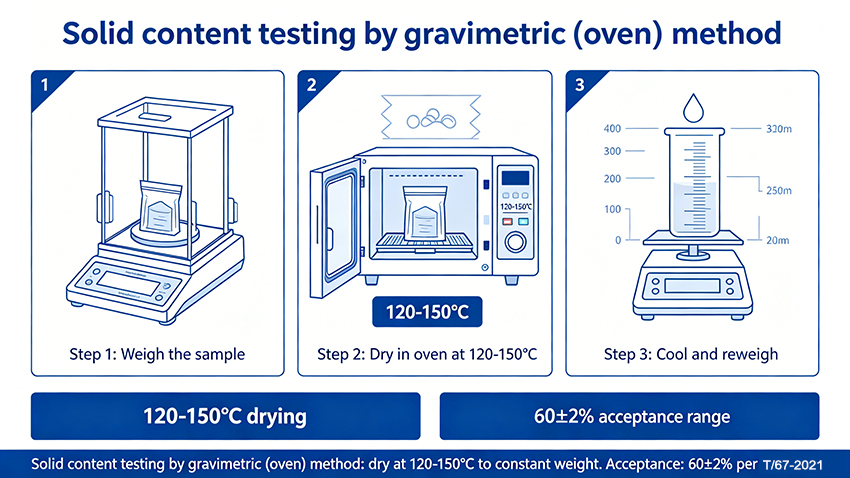

Solid Content – The Most Basic Indicator

Solid content directly affects product performance and application economy (thicker coatings require higher solids).

Common testing methods:

Acceptance criteria:

• Per standard T/FSI 067-2021: Solid content requirement for repeatedly impregnated PTFE concentrate is 60±2%

• Actual on-site control standard: 60±0.5% (tighter tolerance for consistent coating)

pH Value – Stability Indicator

pH value affects storage stability, corrosiveness, and compatibility with other materials.

Testing method: Glass Electrode Method (Direct Determination) – measure using a pH meter with glass electrode calibrated via two-point or three-point calibration. This is the most commonly used standard method.

Acceptance criteria:

• Per T/FSI 067-2021: pH range 9.0 – 11.0

• Fluctuations in pH often indicate system instability or chemical reactions have occurred (e.g., hydrolysis of surfactant)

• Long-term tracking of pH changes is important for judging the chemical stability of the emulsion

Why pH matters: PTFE emulsions are stabilized by fluorinated surfactants, which require alkaline conditions (pH > 8) to remain effective. If pH drops below 8, the emulsion may coagulate.

Aokai PTFE recommends testing pH on every incoming drum and monthly during storage. A sudden drop from 10.2 to 8.5 over two weeks indicates the emulsion is destabilizing and should be used immediately or rejected.

Particle Size & Particle Size Distribution

The size and distribution uniformity of PTFE primary particles have a decisive impact on film-forming properties, permeability, and final product performance.

Testing methods:

Key evaluation indicators:

• D50 (median diameter) – typical range for PTFE emulsion: 0.1-0.3 microns

• Particle size distribution width – narrower is better for consistent coating

• D10 and D90 – characterize the spread of the distribution

Acceptance guideline: For most coating applications, D50 should be between 0.15 and 0.25 μm with 90% of particles within ±0.1 μm of the mean.

Viscosity – Processing Applicability

Viscosity characterizes flow behavior, directly affecting coating and impregnation processes.

Common measurement methods:

Acceptance criteria:

• Per T/FSI 067-2021: Viscosity range 12.0 – 30.0 mPa·s (at 25±1°C)

• Viscosity that is too low → uneven coating, drips

• Viscosity that is too high → poor penetration into fiberglass, requires dilution

Practical note: For dip coating of fiberglass fabric, target viscosity is typically 15-20 mPa·s. If viscosity drifts, adjust with deionized water (to lower) or add thickener (to raise).

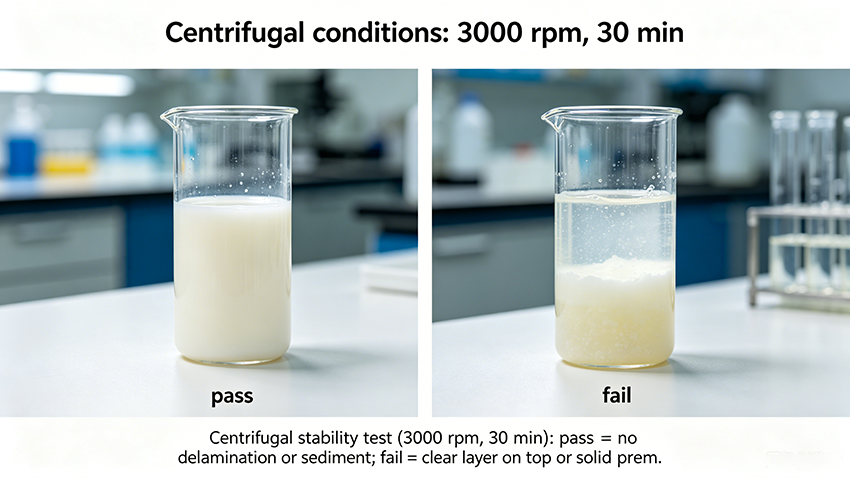

Stability Evaluation – Storage & Transport Reliability

Stability assessment ensures the emulsion remains uniform during storage and transportation. Accelerated testing methods are used to simulate long-term conditions.

Pass/fail criteria:

• No visible delamination, sedimentation, or gel formation

• Viscosity change < 10% from initial

• Particle size D50 change < 15%

Shelf life guidance: Under proper storage (10-30°C, sealed), PTFE emulsion typically maintains stability for 6-12 months. If centrifuged test shows >5% sediment, discard the batch.

Appearance Inspection – Quick Batch Consistency Check

Visually inspect the sample under natural light.

Acceptable appearance: White or light yellow emulsion, uniform, with no abnormalities such as delamination, gel lumps, skin formation, or obvious precipitation.

What to watch for:

• Darkening → possible contamination or thermal degradation

• Skin on surface → drying or partial coagulation

• Lumps or grit → coagulated polymer (bad)

• Clear liquid on top → sedimentation has occurred

Summary – Choose Test Methods Based on Application
