Have you ever wondered why some PTFE high-temperature fabrics have a mirror-like finish while others look matte or textured? The answer is calendering – a post-sintering process where heated mirror rollers apply high linear pressure to reshape the product surface.
Calendering fundamentally changes the microstructure, surface condition, and service performance of PTFE high-temperature fabric. It can reduce surface roughness by an order of magnitude, seal microscopic pinholes, and dramatically improve release properties – but at the cost of reduced tear strength and flexibility.
Aokai PTFE uses calendering selectively based on application requirements. This article explains five key effects: surface morphology, release performance, impermeability, mechanical properties, and dimensional tolerance.

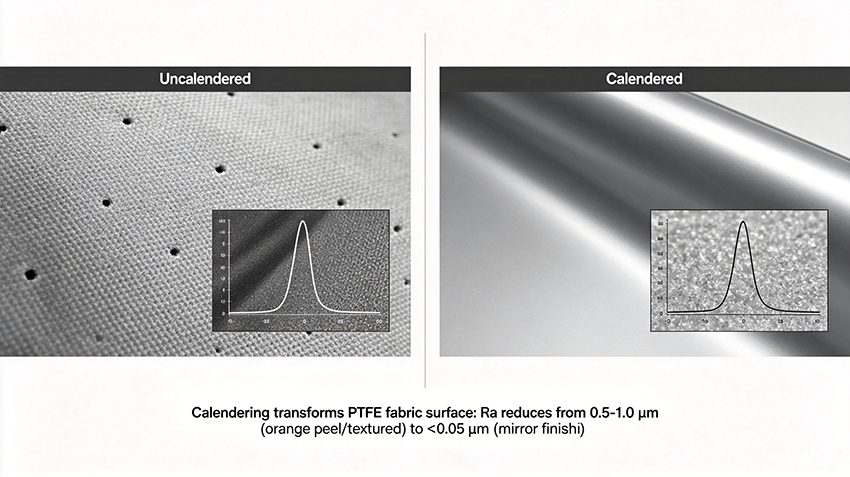

Surface Morphology – From Orange Peel to Mirror Finish
Property
Uncalendered
Calendered
Surface appearance
Semi-matte, orange-peel or woven texture, tiny pinholes
Mirror finish, high reflectivity
Surface roughness (Ra)
0.5–1.0 μm
<0.05 μm
Color uniformity
Moderate
Deeper, more even (especially for brown/black)
How it works: At temperatures near PTFE’s melting point (360–380°C), the material undergoes full plastic flow under high pressure. Raised warp/weft yarns are flattened, forming a continuous ultra-smooth layer.
Quality control benefit: Surface defects such as crystal spots and impurities become more visible on calendered fabric, enabling stricter appearance inspection.
Release and Anti-Stick Properties – Remarkable Enhancement
Effect
Uncalendered
Calendered
Release force
Higher – micro-mechanical interlocking from protruding fibers
Lower – smooth surface eliminates interlocking
Stain resistance
Moderate
Excellent – resists dust and glue adhesion
Cleaning ease
More difficult
Very easy – residue wipes off
Why release improves: Uncalendered fabric has protruding fiber bundles that create mechanical interlocking with adhesives, rubber, or dough. Calendering creates a continuous, ultra-smooth PTFE layer. Materials contact only low-surface-energy PTFE – peeling off effortlessly with nearly no residue.
Application impact: Essential for composite molding (reduces reject rates), rubber vulcanization (lowers mold cleaning frequency), food baking, and cleanroom conveying.
Aokai PTFE offers both calendered and uncalendered versions of our PTFE fabrics. For release liner applications where zero residue is critical, we strongly recommend calendered fabric. For applications requiring maximum tear strength (e.g., conveyor belts with edge damage risk), uncalendered may be preferred.
Impermeability and Protective Performance – Sealing Pinholes
Property
Uncalendered
Calendered
Pinholes/pores
Present – micro-pore channels from coating
Sealed – dense film 0.01-0.03 mm thick
Moisture/solvent penetration
Possible
Blocked
Dielectric strength
Moderate
Higher (pores sealed)
Benefits of sealed surface:
Prevents corrosion, delamination, and insulation degradation of the inner fiberglass substrate
Enables use as corrosion-resistant lining cloth, electrolytic cell diaphragms, chemical-resistant conveyor belts
Raises breakdown voltage – ideal for electrical insulation liners
Important caution: Over-calendering that excessively reduces fabric thickness may impair overall insulation performance. Balance is required.
Mechanical Properties – Dual Impacts
1. Positive Effects
Property
Improvement
Wear resistance & fuzz resistance
Greatly improved – smooth surface distributes friction stress; fiberglass fully encapsulated, no fuzz exposure after repeated bending
Dimensional and Thickness Tolerance – Precision Control
Property
Uncalendered
Calendered
Thickness consistency
±0.03 mm typical
±0.01 mm achievable
Thickness reduction
N/A
10–25% (e.g., 0.25 mm → 0.20 mm)
Practical implications:
Tighter tolerance adapts well to automatic cutting and precision assembly
Production must pre-compensate: use extra impregnation passes or thicker base fabrics to achieve final target thickness
Thickness planning example: If final product requires 0.20 mm calendered fabric, start with 0.23-0.25 mm uncalendered material, expecting 10-15% reduction.
Summary – When to Calender, When to Avoid
Application
Calendering Recommended?
Why
Release liners for composites/rubber
✅ Yes
Zero residue, easy demolding
Corrosion-resistant linings
✅ Yes
Seals pinholes, prevents wicking
Electrical insulation
✅ Yes
Higher dielectric strength
Cleanroom/food conveyor belts
✅ Yes
Easy cleaning, low wear
Conveyor belts with edge damage risk
⚠️ Consider uncalendered
Higher tear strength, damage tolerance
Dynamic bending (small rollers, sharp folds)
❌ Avoid
Reduced flexibility, risk of cracking
Thick, heavy-duty belts
⚠️ Light calendering only
Balance wear resistance vs. tear strength

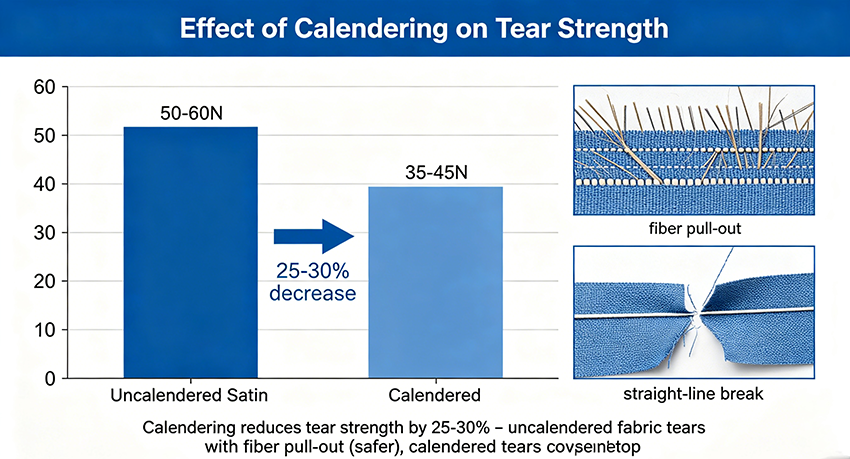

In summary, calendering is a powerful post-processing technique that fundamentally changes PTFE high-temperature fabric. It transforms the surface from textured (Ra 0.5-1.0 μm) to mirror-like (<0.05 μm), dramatically improves release and stain resistance, seals pinholes for higher impermeability and dielectric strength, and enhances wear resistance. However, these benefits come with trade-offs: reduced tear strength (25-30% loss), lower flexibility, and risk of cracking under sharp bending.
Choose calendered PTFE fabric for release liners, corrosion barriers, electrical insulation, and cleanroom applications. Choose uncalendered or lightly calendered fabric for dynamic bending, high-tear-strength conveyor belts, and applications where sharp folds are unavoidable.
