A wide-temperature-range PTFE tape must bond reliably at -70°C (or lower) and survive continuous exposure at 200-260°C – a span of over 300°C. This demands an adhesive system that remains flexible without cohesive failure or interfacial debonding at either extreme.
The adhesive layer is typically a special silicone pressure-sensitive adhesive (PSA) coated onto surface-modified PTFE films or PTFE-impregnated fiberglass fabric. The key to stable performance across such a wide temperature window lies in constructing an adaptive network – a design that balances low-temperature wetting, high-temperature creep resistance, and thermal shock tolerance.
Aokai PTFE has developed wide-temperature PTFE tapes using the principles described below. This article explains four core design elements: transition layer structure, sea-island biphasic microstructure, gradient crosslinking, and heat-stabilized composite fillers.
Transition Layer Structure Between Substrate and Adhesive Layer
1. The key challenge – PTFE surface energy
PTFE features extremely low surface energy (18-20 dynes/cm). Direct coating of adhesive tends to peel off during thermal cycling due to mismatched thermal expansion coefficients – PTFE expands 30-40x more than fiberglass.
2. Surface activation and primer anchoring
To solve this, the PTFE surface undergoes chemical etching with sodium-naphthalene complexes or plasma treatment to introduce C=C double bonds and oxygen-containing polar groups. Afterwards, an ultra-thin dedicated silicone primer (e.g., vinyl-containing silane coupling agent) is applied to form a "molecular bridge" at the interface via chemical bonding.
3. Stress-buffering interlayer
In certain formulations, a low-modulus, high-ductility elastic intermediate layer (gel-like silicone with flexible segments) is inserted between the activated layer and the main adhesive layer. This absorbs interfacial stress induced by sharp temperature fluctuations and prevents edge lifting of the adhesive.

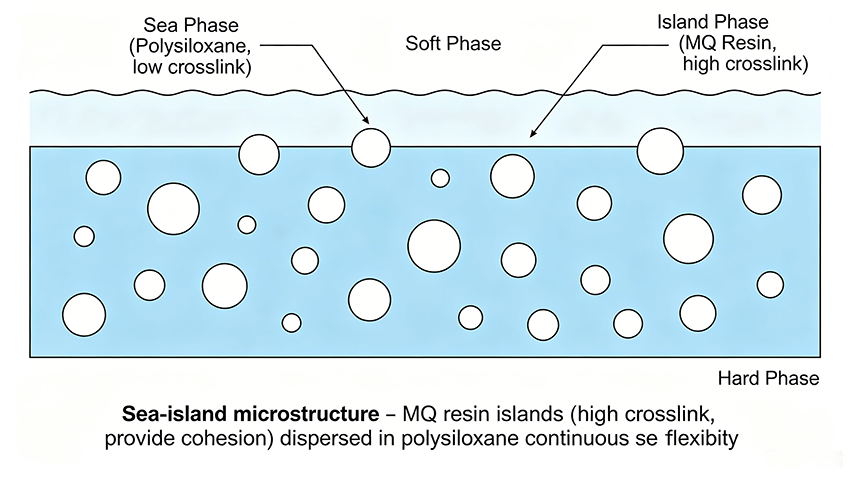

Sea-Island Biphasic Microstructure Regulation
The main adhesive matrix is a classic PSA system consisting of MQ silicone resin (dispersed island phase) and high-molecular-weight polysiloxane (continuous sea phase).
1. MQ silicone resin – hard island phase
Provides cohesion, holding power, and high-temperature creep resistance. Precise control of its M/Q molar ratio (typically 0.6-0.9) and particle size dispersion ensures uniform embedding within the continuous phase to form physical crosslinking sites.
2. Polysiloxane continuous phase – soft sea phase
Delivers quick tack, low-temperature wettability, and flexibility. High-molecular-weight methyl vinyl silicone rubber or methyl phenyl vinyl silicone rubber is commonly selected.
3. Special optimization for wide temperature range
A small amount of high-phenyl-content siloxane segments is incorporated. Phenyl groups suppress the low-temperature crystallization of polydimethylsiloxane, lowering the adhesive's brittleness temperature below -100°C. Meanwhile, phenyl groups enhance thermal-oxidative degradation resistance at high temperatures, enabling the continuous sea phase to retain high elasticity across a broad temperature window.
Multi-Layer or Gradient Crosslinking Design for Thermal Shock Resistance
A double-layer coating process is adopted to balance high-temperature creep resistance and low-temperature tackiness:
1. Inner layer (substrate side)
Relatively high crosslink density, delivering robust high-temperature holding power and cohesive strength as a shear-resistant framework.
2. Outer layer (bonding surface)
Ultra-low crosslink density with highly mobile molecular chains, ensuring rapid wetting on adherends at low temperatures and sufficient initial tack.
Alternatively, a continuous gradient of crosslink density from inner to outer side is formed within a single layer via curing processes, seamlessly integrating rigid and flexible functional zones.
Aokai PTFE uses gradient crosslinking technology to ensure that the tape remains flexible at -70°C (enabling initial tack and conformability) while maintaining cohesive strength at 260°C (preventing creep and adhesive transfer).
Heat-Stabilized Composite Fillers
Nano-scale fumed silica is finely dispersed in the adhesive matrix for reinforcement, combined with two categories of functional fillers:
1. Heat-resistant additives
Cerium oxide, iron oxide, and other radical scavengers inhibit oxidative hardening of siloxane side chains and backbone degradation under high heat. These antioxidants extend service life at 260°C.
2. Thermal conductive fillers
Micron-sized aluminum nitride, alumina, etc., rapidly dissipate heat to reduce internal heat accumulation and slow down aging. This is particularly important for applications where the tape is used as a thermal interface or where heat build-up from the substrate could accelerate adhesive degradation.
All fillers require surface passivation or silane treatment to avoid excessive modulus rise and adhesive hardening at low temperatures.
Summary – An Adaptive Network for Extreme Conditions
The adhesive layer of wide-temperature-range PTFE tapes is essentially a platinum-catalyzed addition crosslinking microphase-separated network embedded with MQ resin chemical anchoring sites and hybrid phenyl long-chain siloxanes. Via gradient crosslinking and co-crosslinking technologies, it perfectly unifies:
Rapid wetting and high flexibility at low temperatures
Strong cohesion and anti-oxidation performance at high temperatures
…within a single elastic adhesive layer, meeting stringent wide-temperature-range application requirements.
Aokai PTFE manufactures wide-temperature PTFE tapes using this adhesive system design. Custom specifications – including thickness, crosslink gradient, and filler loading – are available for specific application needs.
