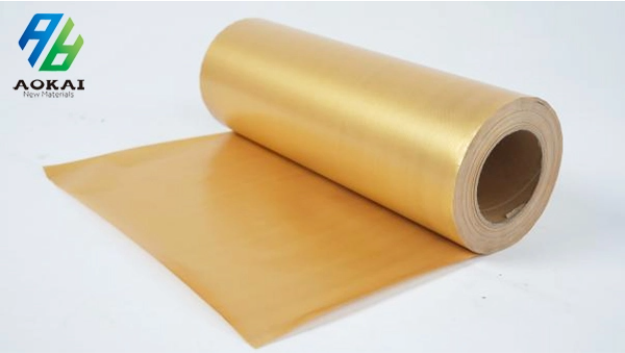

Eliminate Horizontal Stripes & Cloud Color Difference in PTFE High-Temperature Cloth

Jiangsu Aokai New Material, a leading manufacturer of PTFE high-temperature cloth, shares professional insights: Horizontal stripes and cloud pattern color difference in PTFE high-temperature cloth are essentially manifestations of uneven coating thickness and uneven stress distribution. To produce PTFE high-temperature cloth with premium appearance quality, a systematic optimization solution must be built around four core links: base fabric tension, impregnation coating, baking and sintering. Any fluctuation in process parameters will directly affect the uniformity and color consistency of PTFE high-temperature cloth.

1. Solutions to Eliminate Horizontal Stripes

Horizontal stripes are directly caused by periodic fluctuations in the coating thickness of PTFE high-temperature cloth, with focus placed on the precise control of coating mechanical systems:

· Closed-Loop Tension Control: Equip the production line with full-width closed-loop tension control, the prerequisite for eliminating horizontal stripes. Loose base fabric tension leads to uneven stress on the doctor blade, resulting in wavy stripes on the cloth surface.

· Uniform Gap Adjustment: Precisely calibrate the gap between the doctor blade and back roller to ensure consistent clearance across the entire fabric width, laying the foundation for uniform coating.

· Multiple Thin Coating: Adopt low-concentration PTFE dispersion for repeated impregnation. Avoid single heavy coating which causes flow marks and shrinkage differences, greatly improving coating flatness.

· Gradual Temperature Rise Baking: Drying must follow the principle of low temperature and slow heating. Rapid temperature rise causes violent water overflow, forming horizontal flow marks that solidify into permanent stripes.

2. Solutions to Eliminate Cloud Pattern Color Difference

Cloud pattern color difference refers to local color variation induced by uneven material composition or temperature field, which requires full-process chemical and thermal management for fundamental resolution:

· Coating Liquid Stability: Each batch of PTFE coating liquid shall be fully stirred and finely filtered. Mixing different batches is strictly prohibited, serving as the core guarantee for consistent color.

· Base Fabric Cleanliness: Oil stains and residual sizing agent on fiberglass base fabric will carbonize during high-temperature sintering, causing local yellowing and black spots. The base fabric must be thoroughly degreased and purified with consistent liquid absorption rate for the whole roll.

· Balanced Sintering Temperature Field: The temperature difference in each zone of the sintering furnace shall be controlled within ±5℃. Local overheating leads to resin aging and discoloration, while insufficient temperature results in incomplete PTFE melting, causing irregular gloss and color deviation.

· Constant Temperature & Humidity Workshop: Maintain production workshop humidity at 40%-60% RH. Excessively low humidity causes rapid surface drying of the coating and orange peel defects; excessively high humidity generates micro bubbles inside the coating, which evolve into cloud pattern color difference after sintering.

3. Comprehensive Process Control System for PTFE High-Temperature Cloth

To stably produce defect-free PTFE high-temperature cloth, establish the following closed-loop management system:

· Segmented Tension Control: Set independent closed-loop tension control for each running section of the fabric, the fundamental measure to eliminate stripes.

· Online Thickness Monitoring & Linkage: Install non-contact thickness gauges on the production line to feed real-time transverse thickness data back to the coating system for timely deviation correction.

· Batch Color Difference Control: Establish standard color swatches and adopt a spectrophotometer for batch comparison, ensuring the chromatic aberration value (ΔE*ab) is within the acceptable range.

· Process Capability Monitoring: Regularly analyze the process capability index of furnace temperature, line speed and other parameters to keep production under stable control.

· Standardized Operation Solidification: Convert verified optimal process parameters into formal SOPs, and implement skill certification for key positions including machine adjustment and color matching to reduce human-induced fluctuations.

In summary, eliminating horizontal stripes and cloud pattern color difference of PTFE high-temperature cloth is a systematic project requiring extreme process stability. Only through precise full-process control of base fabric, tension, coating, baking, sintering and coating materials can high-quality PTFE high-temperature cloth with flawless appearance be manufactured.
