How Chemically Resistant Is PTFE High-Temperature Fabric?

In chemical plants, electroplating lines, and semiconductor fabs, equipment is constantly exposed to aggressive acids, alkalis, and solvents. Choosing the right protective material directly impacts safety and equipment life.

PTFE (polytetrafluoroethylene) is often called the “plastic king” due to its extreme chemical inertness. But “inert” does not mean “invincible” – which chemicals can actually damage it? How do temperature and concentration affect its performance?

At Aokai PTFE, we have spent years testing PTFE-coated fabrics against real-world chemical environments. This article shares our findings to help you select wisely.

Chemicals That PTFE High-Temperature Fabric Resists

1. Strong Acids

PTFE fabric delivers excellent resistance to:

• Sulfuric acid (H₂SO₄)

• Nitric acid (HNO₃)

• Hydrochloric acid (HCl)

• Phosphoric acid (H₃PO₄)

• Highly oxidizing acids like aqua regia and hydrofluoric acid (HF)

2. Strong Alkalis

Resistant to sodium hydroxide (NaOH), potassium hydroxide (KOH), ammonia water (NH₃·H₂O), and other strong alkaline substances.

3. Organic Solvents

Chemically inert against most organic solvents, including alcohols (methanol, ethanol), ketones (acetone, MEK), aromatic hydrocarbons (benzene, toluene, xylene), and gasoline.

4. Other Chemicals

Maintains stable performance against oxidants (e.g., hydrogen peroxide), salts (sodium chloride, sodium sulfate), and corrosive gases (chlorine, hydrogen sulfide).

Limitations – Chemicals That Damage PTFE Fabric

Despite superior chemical resistance, PTFE high-temperature fabric has limitations under extreme high-temperature or high-concentration conditions. A few specific chemicals may cause damage as listed below:

Additionally, PTFE coated fabric is not recommended for use with:

• Chlorine trifluoride (ClF₃) – spontaneous ignition can occur

• Oxygen difluoride (OF₂) – violent reaction

• Liquid or gaseous fluorine (F₂) at elevated temperatures – attacks PTFE

Factors Affecting Chemical Resistance of PTFE Coated Fabric

Multiple factors affect the actual corrosion resistance of PTFE high-temperature fabric in real-world applications:

• Temperature: Stable chemical performance is maintained within -70°C to 260°C. Resistance declines against specific chemicals at excessively high temperatures.

• Concentration: Long-term immersion in highly concentrated corrosive media may impair material performance. On-site testing is recommended.

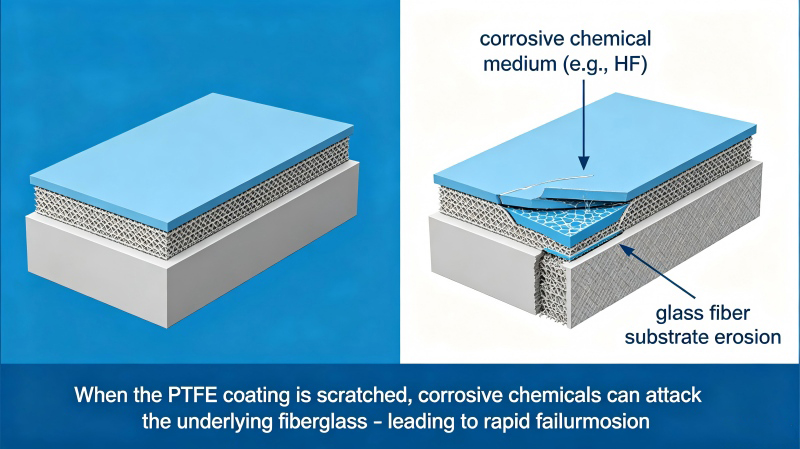

• Mechanical stress: Combined chemical corrosion and mechanical friction accelerates aging. Protecting the PTFE coating from scratches is essential – once damaged, the underlying fiberglass becomes vulnerable.

• Exposure duration: Short-term splash resistance differs from continuous immersion.

• Pressure: Elevated pressure can force chemicals into microscopic pores or coating defects.

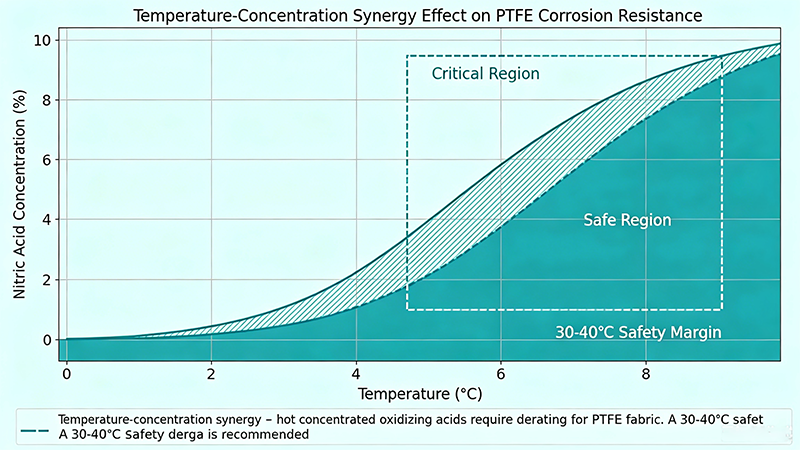

Aokai PTFE’s lab data shows that the temperature-concentration synergy is often underestimated. For example, PTFE fabric that lasts years in 50% sulfuric acid at 100°C may show surface whitening within months at 200°C with the same concentration. Always apply a safety margin.

Summary – Chemical Resistance of PTFE High-Temperature Fabric

For most industrial chemical environments, PTFE coated fabric provides reliable, long-lasting performance. However, always verify compatibility under actual operating conditions – especially temperature, concentration, and mechanical stress.

In summary, PTFE high-temperature fabric offers outstanding resistance to nearly all acids, alkalis, and organic solvents within its normal working range (-70°C to 260°C). The key exceptions are molten alkali metals and strong fluorinating agents. Hot, concentrated oxidizing acids also require extra caution.

In practice, temperature, concentration, and mechanical stress work together to affect material life. For critical conditions, we recommend on-site testing or applying a 30-40°C safety margin below the maximum rated temperature.

Need help with a specific chemical environment? Aokai PTFE’s technical team has compiled corrosion data for hundreds of media. Contact us for selection guidance or customized PTFE coated fabric solutions.
