When PTFE adhesive tape is used to seal moisture-sensitive components – such as electronic enclosures, HVAC flanges, or chemical container lids – a common assumption is that PTFE’s hydrophobicity guarantees a perfect water vapor barrier. This is not always true.
Water vapor molecules are tiny. They can diffuse through microscopic pathways that bulk water cannot. The actual water vapor transmission rate (WVTR) of PTFE tape depends less on PTFE’s chemistry and more on coating structure – defects like micropores, microcracks, and incomplete fiber encapsulation.
Aokai PTFE has analyzed WVTR across coating formulations and thicknesses. This article explains how PTFE’s chemical structure, coating defects, thickness strategies, and filler modifications combine to determine vapor barrier performance.
PTFE Chemical Structure – Both Advantage and Limitation
1. Advantages – Hydrophobicity and Crystallinity
Feature
Benefit for Water Vapor Barrier
C-F bonds, low surface energy
Water molecules hardly adsorb or dissolve on PTFE surface – primary barrier against moisture penetration
High crystallinity (>90%)
Crystalline regions are nearly impermeable to water vapor – no molecular diffusion path through crystals
2. Limitations – Amorphous Domains and Weak Intermolecular Forces
Weak intermolecular force between PTFE molecular chains
Substantial free-volume voids in amorphous domains create diffusion pathways
Pure solid PTFE film delivers only medium-level WVTR – far inferior to PVDC or EVOH
PTFE is not an inherently perfect barrier material
Key insight: Intrinsic PTFE is a moderate barrier, not an exceptional one. Practical tape performance depends heavily on coating defects.

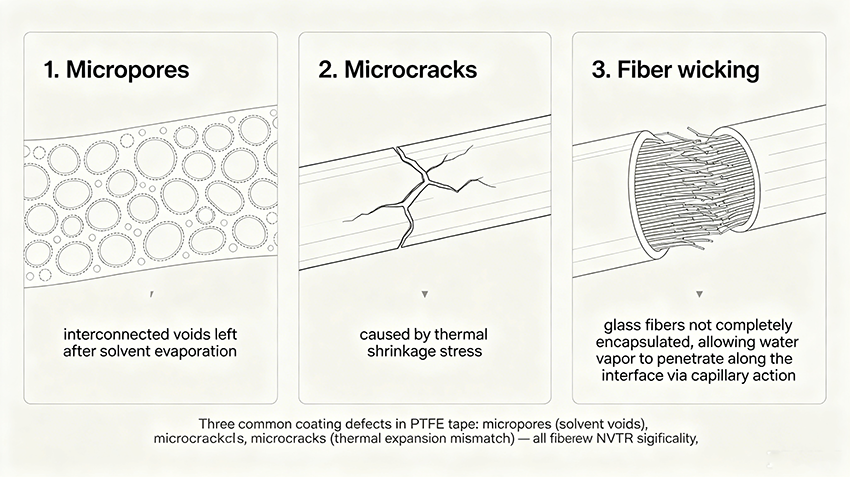

Critical Coating Defects – Micropores, Microcracks, and Fiber Wicking
This is the dominant factor governing practical barrier performance. Most PTFE adhesive tapes are manufactured via impregnation or coating of PTFE dispersion followed by sintering, during which inherent flaws are readily generated:
Defect Type
Formation Mechanism
Effect on WVTR
Micropores
Volatilized solvents and incomplete resin fusion leave interconnected voids
Creates shortcut pathways for vapor penetration
Microcracks
Thermal expansion mismatch between fiberglass substrate and PTFE triggers fine cracking after sintering/cooling
Opens direct channels through coating
Capillary wicking of fibers
Incomplete encapsulation of glass fibers allows water vapor to creep along fiber-resin interface via capillary action
Enables vapor bypass around the coating
Practical conclusion: The overall WVTR of finished PTFE tape is mainly governed by defect density, not the intrinsic property of bulk PTFE resin.
Aokai PTFE offers PTFE adhesive tapes with controlled coating density. For applications demanding low WVTR (<15 g/m²·day), we recommend our multi-layer coated grade, which uses three impregnation passes to successively cover pinholes and reduce microcrack density.
Coating Thickness and Labyrinth Effect – Strategies to Reduce WVTR
Increased coating thickness extends the vapor penetration path but barely covers existing structural defects alone. More effective improvement solutions are listed below:
Strategy
Mechanism
Effectiveness
Multi-layer coating
Repeated impregnation and sintering enable subsequent coating layers to cover pinholes and offset defect positions of underlying coats
High – most practical

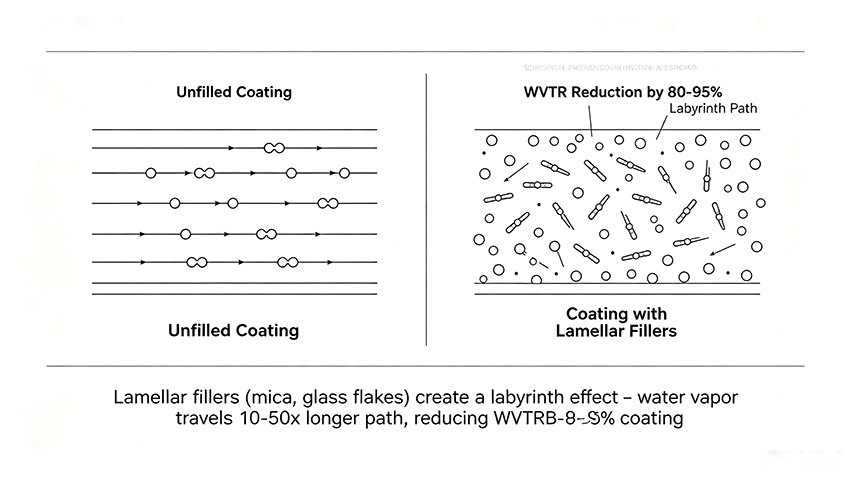

Lamellar filler modification
Inert flaky fillers (mica powder, glass flakes) are blended into PTFE coatings to force water molecules to take winding detours (labyrinth effect)
Very high – drastically cuts WVTR
Thicker single coat
Longer diffusion path but defects remain
Low – not recommended alone
Caution with fillers: Excessive filler loading will compromise flexibility and non-stick property of finished products. Balance is required.
Surface Condition – Hydrophobic but Not Decisive
The hydrophobic PTFE coating has a high water contact angle (typically 110-120°), restraining continuous water film formation on the surface and indirectly lowering vapor penetration driving force.
However: This surface advantage cannot offset poor barrier caused by inner coating defects. If micropores or cracks exist, water vapor will still diffuse through regardless of surface hydrophobicity.
Summary – Barrier Performance Depends on Defect Control
Factor
Impact on WVTR
Practical Control
Intrinsic PTFE crystallinity
Medium baseline
Fixed – not controllable in product
Micropores from incomplete sintering
High (creates shortcuts)
Optimize sintering profile – slower cooling, higher temperature
Ensure full impregnation – vacuum assist for thick fabrics
Coating thickness (single layer)
Low
Not effective alone
Multi-layer coating
High (covers defects)
Specify 2-4 impregnation passes
Lamellar fillers (mica, glass flakes)
Very high (labyrinth effect)
Add 10-20 wt%, optimize dispersion
Filled + multi-layer combination
Highest (<10 g/m²·day)
Best for critical barrier applications
Final takeaway: When PTFE adhesive tape is applied for high-humidity sealing, process-induced coating flaws (micropores, cracks, fiber wicking) remain the biggest weakness of its barrier capability. Reliable sealing is realized via densification treatment including multi-layer coating and filler modification. PTFE composite tape acts as a dependable multi-functional barrier under harsh conditions requiring high heat resistance, corrosion resistance, humidity stability, and non-stick release performance simultaneously – but not as a standalone ultra-high barrier like metal foil or PVDC.
In summary, the water vapor barrier property of PTFE adhesive tape is not determined by PTFE’s hydrophobicity alone. Intrinsic PTFE is a moderate barrier (WVTR 5-10 g/m²·day for defect-free film). However, practical tapes suffer from micropores, microcracks (from thermal expansion mismatch with fiberglass), and fiber wicking – raising WVTR to 50-200 g/m²·day.
To achieve low WVTR (<15 g/m²·day), specify multi-layer coating (3+ impregnation passes) and/or lamellar filler modification (10-20 wt% mica or glass flakes). The labyrinth effect from fillers forces water vapor to take winding paths, drastically reducing transmission. However, high filler loading may reduce flexibility and non-stick performance – balance is required.
Need a low-WVTR PTFE adhesive tape for moisture-sensitive sealing? Aokai PTFE offers multi-layer coated and filler-modified grades with documented WVTR test data. Contact us with your required WVTR, operating temperature, and flexibility needs.
Upholding the business philosophy of professionalism and integrity, we devote ourselves to providing customized one-stop solutions and thoughtful customer service.
