How Silicone Adhesive Tg Affects PTFE Tape Performance at Low Temperatures

Have you ever tried to use ordinary tape in a freezer? It turns stiff, loses stickiness, and cracks when bent. For PTFE high-temperature tape used in low-temperature environments – from cold storage to cryogenic pipelines – the adhesive’s glass transition temperature (Tg) makes all the difference.

Silicone pressure-sensitive adhesive has an extremely low Tg of approximately -120°C. This is the hidden reason why PTFE tape remains flexible and adhesive at temperatures as low as -70°C.

Aokai PTFE has studied this property extensively. This article explains the science behind Tg and how it affects tape performance in cold conditions.

What Is Glass Transition Temperature (Tg) and Why Does It Matter?

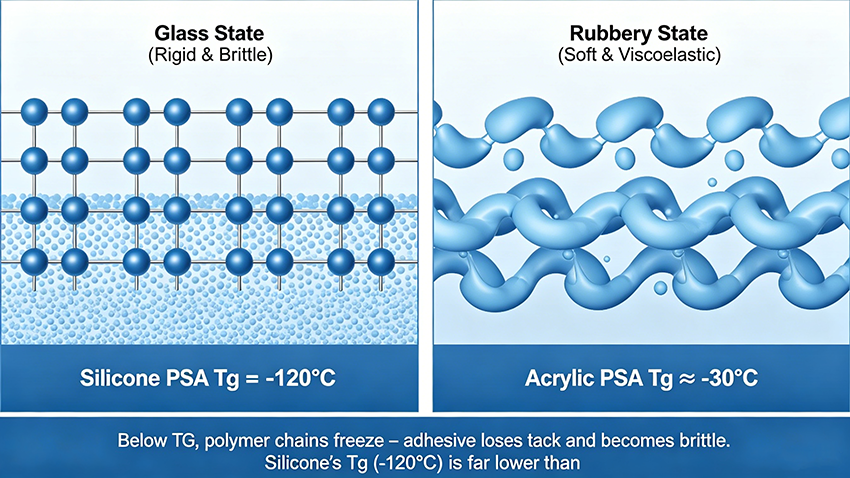

The glass transition temperature (Tg) is the point at which a polymer changes from a soft, rubbery state to a hard, brittle glassy state. When temperature drops below Tg, polymer molecular chains freeze, losing fluidity and adhesive ability.

For pressure-sensitive adhesives:

• Above Tg: Chains move freely → adhesive stays soft, sticky, and can wet surfaces

• Below Tg: Chains are frozen → adhesive hardens, loses tack, and becomes brittle

Why silicone PSA is special: Its Tg of -120°C is extremely low compared to acrylic adhesives (Tg around -20°C to -30°C). This means silicone remains elastic and sticky across a much wider temperature range – from -70°C up to 260°C.

The relationship between Tg and adhesive performance is not a simple on/off switch. Even 30°C above Tg, molecular mobility is still limited; the adhesive may be ‘leathery’ rather than fully rubbery. For PTFE tape applications below -50°C, the adhesive must maintain a ‘rubbery plateau’ modulus between 10⁴ and 10⁶ Pa. Silicone PSA achieves this down to about -80°C due to its flexible siloxane backbone (–Si–O–Si–). Acrylic adhesives, with stiffer carbon-carbon backbones, typically lose tack below -30°C. This explains why only silicone-based PTFE tapes are recommended for freezer applications (-30°C to 0°C) or cryogenic environments.

Microscopic Influence Mechanism of Tg on PTFE Tape

The overall low-temperature performance of PTFE high-temperature tape is jointly determined by both the adhesive layer and the PTFE substrate. PTFE itself also has a Tg of approximately -120°C – remarkably similar to silicone PSA.

Key insight: As long as the service temperature stays far above Tg (e.g., -70°C, which is 50°C above -120°C), both the adhesive and the substrate remain in a highly elastic state, guaranteeing excellent low-temperature flexibility and stable adhesion.

Aokai PTFE’s thermal analysis lab has confirmed that silicone PSA maintains over 80% of its room-temperature peel strength at -70°C, while acrylic PSA loses more than 90% below -30°C. This data aligns with the Tg difference.

In actual cryogenic use (e.g., mask tape for low-temperature plasma spraying or temporary fixation in liquid nitrogen dewars), users often mistakenly blame the PTFE film for cracking when the real culprit is the adhesive. When the adhesive freezes below its Tg, it loses compliance and cannot absorb bending stress. The strain then transfers to the PTFE substrate, which may still be flexible, but the adhesive’s stiff layer acts as a stress concentrator, initiating cracks at the adhesive-substrate interface. The solution is not to use a thicker PTFE film, but to ensure the adhesive remains above its Tg. For extreme cryogenic conditions below -150°C, even silicone PSA becomes marginal. In such cases, mechanical fastening (clamps, screws) or adhesive-free PTFE tapes are recommended, as no PSA can function below -180°C.

Impact on Low-Temperature Adhesion and Flexibility

1. Adhesion at Different Temperatures

2. Low-Temperature Flexibility

The ultra-low Tg (-120°C) enables the adhesive to retain elasticity and softness even at -70°C, effectively preventing brittle cracking. The tape can be bent, wrapped, and wound freely without brittle fracture – unlike ordinary adhesive tapes that crack in cold environments.

Summary & Application Guidelines

The low glass transition temperature of silicone PSA enables PTFE high-temperature tape to maintain stable viscosity and flexibility under low-temperature conditions.

Selection guide by temperature range:

Storage & Usage Notes:

• Store tape hermetically in cool, dry places per technical specifications

• For low-temperature application (e.g., applying tape in cold environment), preheat both the tape and the bonding surface to improve initial adhesion

• Avoid applying tape below 0°C without warming – even silicone PSA needs initial contact above Tg for proper wetting

In summary, the ultra-low glass transition temperature (-120°C) of silicone pressure-sensitive adhesive is what makes PTFE high-temperature tape uniquely suited for cold and cryogenic environments. While acrylic tapes fail below -30°C, silicone-based PTFE tape remains flexible and sticky down to -70°C – and can survive much lower temperatures with reduced adhesion.

For most industrial cold applications (freezers, cold chain equipment, outdoor installations in winter), standard PTFE tape with silicone PSA works reliably. For deep cryogenic work, consult a specialist – and consider mechanical fixation below -150°C.

Need a PTFE tape for low-temperature use? Aokai PTFE offers standard and modified grades for various cold environments. Contact our technical team with your temperature range and duty cycle.
