How To Prevent PTFE Tape Cracking Under Repeated Bending And Opening

In packaging lines, heat sealing machines, and food processing equipment, PTFE high-temperature tape is constantly bent, opened, and pressed – cycle after cycle. Over time, even this durable material can develop cracks or fractures.

Why does this happen? The answer lies in three factors: the substrate, the adhesive, and how the tape is installed.

At Aokai PTFE, we have analyzed hundreds of field failures. This article shares practical tips to extend tape life and avoid premature breakage.

Reinforce the Structure – Substrate and Thickness

The substrate acts as the framework, fundamentally determining bending resistance and tear strength.

Pure PTFE film features good flexibility but insufficient mechanical strength – prone to tearing under repeated stress. Glass fiber reinforced PTFE greatly improves tensile strength, tear resistance, and creep resistance, making it the preferred option for dynamic bending scenarios.

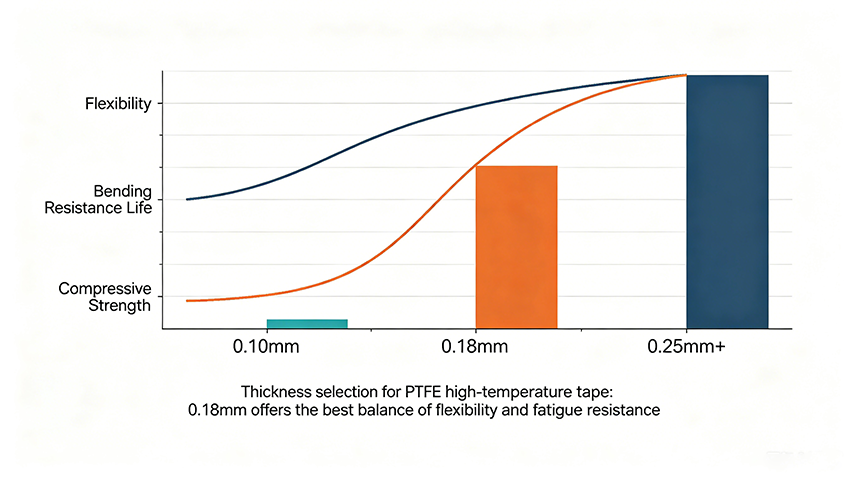

Thickness is also critical. 0.13mm serves as a dividing line. Tapes thinner than 0.13mm are flexible yet low in strength, easy to develop microcracks under repeated compression and stretching.

Recommendation: For most dynamic equipment, 0.18mm thickness with glass fiber reinforcement is the standard choice.

In high-cycle applications such as continuous band sealers (operating at 30-60 cycles per minute), the bending radius of the tape around the heating element is a critical design parameter. A bending radius smaller than 5mm increases local stress by over 300% compared to a 15mm radius, dramatically accelerating crack initiation. For such tight-radius applications, using a glass fiber reinforced PTFE tape with a woven construction (rather than a film-based tape) can increase flex life by 5-10 times. Additionally, tapes with a smoother backside finish generate less internal friction during bending, further reducing fatigue. Field data shows that switching from a 0.10mm pure PTFE film tape to a 0.18mm glass fiber reinforced tape extends service life from 2 weeks to over 6 months in high-frequency sealing equipment.

Select the Right Adhesive

The adhesive connects the tape to the equipment – a key factor affecting dynamic service life. Silicone pressure-sensitive adhesive is the optimal choice for dynamic high-temperature environments.

Why silicone wins for bending applications:

• Withstands repeated bending and vibration without cracking

• Adapts to alternating hot and cold cycles

• Maintains adhesion even after thousands of flex cycles

Aokai PTFE’s in-house testing shows that silicone adhesive tapes retain over 90% of their initial peel strength after 10,000 bending cycles, while acrylic-based tapes lose up to 50% within 5,000 cycles. For equipment running 16 hours daily, this difference translates to months of extra service life.

For PTFE tapes used on reciprocating sealing bars (e.g., vertical form fill seal machines), the adhesive must also resist ‘cold flow’ – gradual deformation under pressure. Poor-quality silicone adhesives may squeeze out from under the tape edge after extended use, causing adhesive residue on the product or sealing bar. High crosslink-density silicone adhesives with a thermosetting structure maintain dimensional stability even at 250°C. When selecting a PTFE tape for high-frequency bending applications, request data on ‘shear adhesion failure temperature’ (SAFT) and ‘holding power’ – values above 260°C and over 24 hours at 200°C indicate a robust adhesive system.

Correct Installation and Maintenance for Longer Life

Premium products deliver optimal performance only with proper use and maintenance.

Surface Treatment Before Application
Thoroughly clean and dry equipment surfaces with anhydrous ethanol or isopropanol. Oil stains, dust, and moisture weaken adhesion and cause early peeling. Use 800-1000 grit fine sandpaper to lightly polish smooth metal surfaces – this enhances mechanical interlocking and improves sticking effect.

Tension-Free Installation and Edge Reinforcement
Lay the tape naturally without stretching. Tensile stress leads to shrinkage and warping during thermal cycling. Press evenly from the center to both sides with a scraper to eliminate air bubbles. Strengthen and compact edges – or apply high-temperature resistant silicone sealant – to prevent edge lifting.

Working Condition Adjustment

• Keep operating temperature below 260°C – the long-term limit of silicone adhesive

• Avoid local overheating (hot spots)

• Prevent excessive mechanical pressure that could crush the tape

• Maintain clean surroundings to reduce abrasion from dust and metal particles

Regular Inspection and Timely Replacement
PTFE tape is a consumable part in dynamic operation. Replace it promptly when any of these appear:

• Edge warping or lifting

• Carbonization, yellowing, or scorch marks

• Adhesive failure, overflow, or displacement

• Visible abrasion, microcracks, or pinholes

Summary – Key Takeaways for Preventing Tape Cracking

In summary, preventing cracking and fracture of PTFE high-temperature tape under repeated bending comes down to three choices: glass fiber reinforced substrate, 0.18mm thickness (or appropriate for your load), and silicone adhesive. Correct installation – clean surface, no tension, edge reinforcement – doubles the effective life.

For high-cycle applications (sealers, presses, conveyors with tight radii), consider a woven glass fiber reinforced grade and inspect monthly for microcracks.
