PTFE high-temperature fabric does not have a fixed coefficient of thermal expansion (CTE). Unlike metal or solid plastic, its expansion behavior is jointly affected by the fiberglass base fabric, PTFE loading content, weaving structure, and operating temperature range.

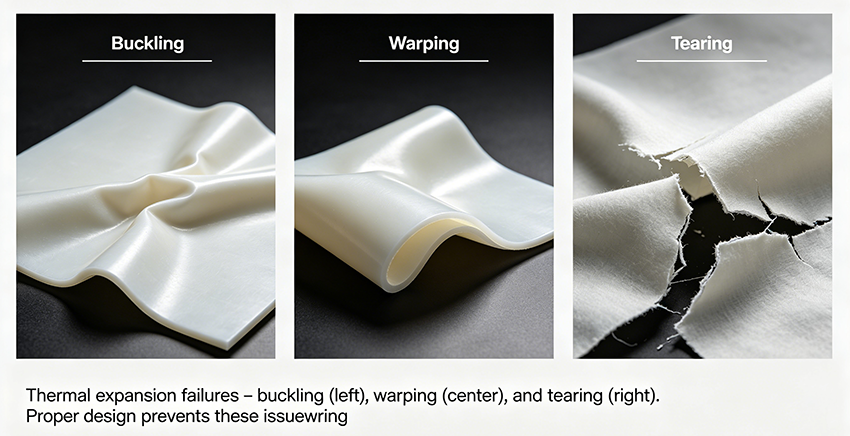

This complexity often leads to unexpected problems: buckled conveyor belts, torn gaskets, delaminated layers, or warped release liners. Understanding and designing for thermal expansion is essential for reliable long-term performance.
Aokai PTFE has analyzed thermal expansion behavior across many applications. This guide explains typical CTE values and provides six practical solutions to avoid expansion-related failures.
Typical Coefficients of Thermal Expansion – Know Your Numbers

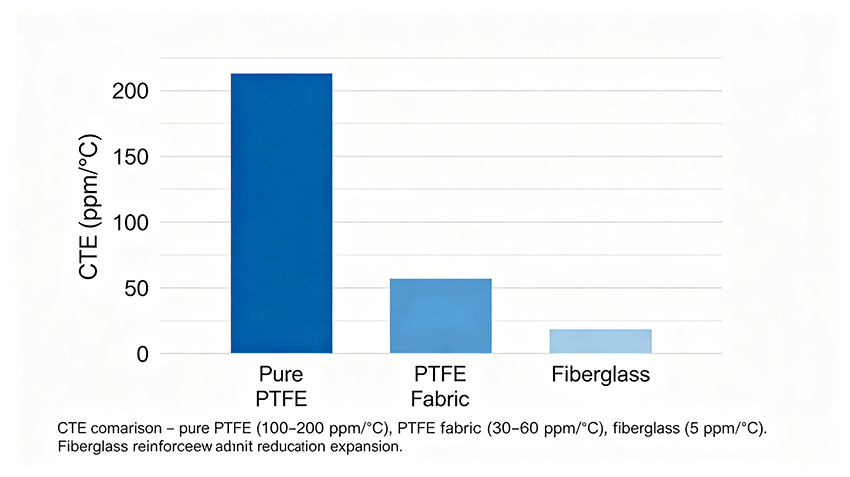

1. Pure PTFE reference CTE
Pure PTFE has a high linear coefficient of thermal expansion: roughly 10×10⁻⁵ – 20×10⁻⁵/°C (100–200 ppm/°C) at room temperature, with non-linear variations as temperature shifts.
Critical note: PTFE undergoes crystalline phase transitions at around 19°C and 30°C, leading to an abrupt volume change of 1%–2%. This characteristic requires special attention for precision applications. A 1-meter long pure PTFE film can grow by 1-2 cm simply by passing through room temperature.
2. PTFE high-temperature fabric (fiberglass substrate) – typical CTE range
Fiberglass itself has an ultra-low CTE of approx. 5×10⁻⁶/°C (5 ppm/°C) , serving as a rigid framework to restrict PTFE expansion and drastically reduce the in-plane thermal expansion of finished fabric. However, the woven structure still results in higher expansion than plain fiberglass cloth.
Direction
Typical CTE
Value
Warp (lengthwise)
3×10⁻⁵ – 5×10⁻⁵/°C
30–50 ppm/°C
Weft (crosswise)
4×10⁻⁵ – 6×10⁻⁵/°C
40–60 ppm/°C
Expansion along the thickness direction is more significant due to the higher proportion of PTFE resin. For engineering purposes, only in-plane dimensional changes are generally prioritized.
Design Structural Clearances for Thermal Elongation
1. Free expansion edges
When used as gaskets, thermal insulation mats, or sliding surfaces, avoid full fixation on all four sides. Reserve at least one or two free edges to allow unrestricted thermal stretching and contraction.
2. Elongated mounting holes
If bolt fastening is required, widen holes or adopt slotted long holes. Do not fully tighten bolts; add gaskets to reserve minor sliding allowance. This allows the material to expand and contract without stress concentration at the bolt points.
3. Segmented laying
For large-area installation, split the fabric into separate panels with 3–5 mm expansion joints between pieces, especially along the lengthwise direction. This prevents buckling from cumulative expansion across long spans.
Avoid Rapid Thermal Cycling Across Phase Transition Critical Temperatures
PTFE suffers dramatic volume fluctuation near room temperature – especially at 19°C and 30°C phase transition points. If equipment frequently alternates between cold storage and ambient temperature, do not tension the PTFE fabric too tightly.
When installed at low temperature yet operated under high heat, the fabric will elongate (e.g., a 1-meter cloth stretches several millimeters when heated from 25°C to 200°C).
Equip tensioning assemblies with automatic compensation (spring-loaded or counterweight systems) instead of rigid locking.
Critical rule: Never tension PTFE fabric tightly at room temperature and then heat it – expansion will create ripples. Never tension it tightly at high temperature and then cool it – shrinkage will tear or overstress the material.
Anti-Buckling Design for Overlaps and Joints
Overlap along the expansion direction, and ensure the overlapping width exceeds the maximum predicted elongation.
For sewn seams, leave loose allowance on stitching threads. If bonded with high-temperature adhesive, select elastic glue to prevent tearing caused by mismatched expansion coefficients.
For multi-layer stacking, avoid full-surface bonding. Adopt spot bonding or partition fixing with press strips to permit interlayer sliding – eliminating blistering and delamination.
Tension Control for Operational Scenarios
1. Conveyor belt applications
Install counterweight or spring-loaded automatic tensioners to absorb fabric relaxation at high temperatures and shrinkage at low temperatures. Never over-tighten the belt under high heat – this will cause overload during cold contraction. The belt tension should be set at the lowest expected operating temperature.
2. Release liners and isolation sheets
Lay flat without pre-tension. Secure lightly by self-weight or narrow press strips in one single direction to prevent permanent creases induced by thermal expansion.

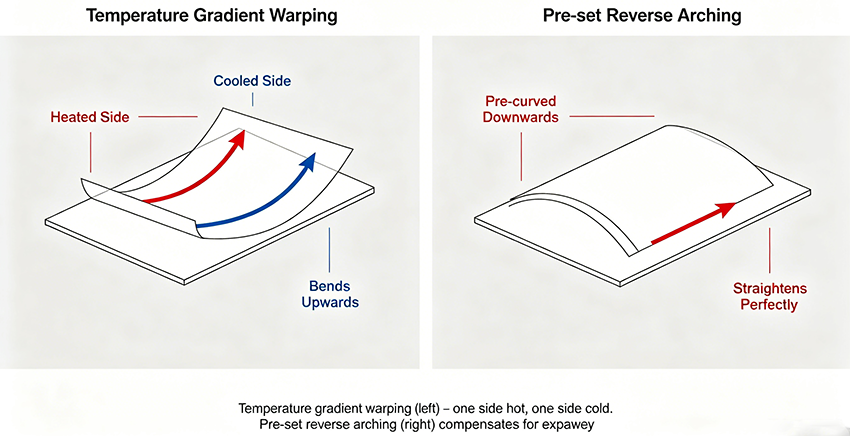

Mitigate Distortion from Severe Temperature Gradients
Uneven expansion occurs when one side of the fabric is exposed to high heat while the other remains cool, triggering warping.
Remedial measures:
Intermittent clamping with frames instead of continuous full-edge compression
Select thicker, higher-density fiberglass base cloth to minimize warpage
Pre-set reverse arching on the low-temperature side if necessary (pre-curve the fabric so it flattens at operating temperature)
Periodic Inspection and Maintenance
After long-term thermal cycling, PTFE will experience cold flow deformation, resulting in permanent dimensional elongation or localized slackness.
Regularly inspect and readjust tension levels – belts may require re-tensioning after the first few thermal cycles.
Repair bulges and delamination promptly to avoid stress concentration and tearing.
Document expansion behavior – if a belt consistently stretches beyond adjustment range, it may need replacement or a different CTE-matching substrate.
Aokai PTFE recommendation: For applications with extreme thermal cycling (e.g., oven conveyors cycling from ambient to 250°C multiple times per day), we recommend a fabric with higher fiberglass content (lower CTE) and automatic tension monitoring.
Summary – Thermal Expansion Design Checklist
Problem
Root Cause
Solution
Buckling (ripples)
Fabric expansion with no room to grow
Free edges, expansion joints, segmented laying
Tearing at fasteners
Constrained expansion stress
Slotted holes, not fully tightened bolts
Delamination/blistering
Mismatched expansion between layers
Spot bonding, avoid full-surface adhesion
Conveyor belt slack/tight
Temperature-dependent length change
Automatic tensioner (spring/counterweight)
Warping from gradient
Uneven expansion across fabric
Intermittent clamping, pre-set reverse arching
Cold flow elongation
Long-term creep under tension
Regular inspection and re-tensioning
Aokai PTFE offers PTFE high-temperature fabric with documented CTE values and can recommend specific grades for your application temperature range. Contact us for technical data sheets and application design support.
