How Well Does PTFE High-Temperature Fabric Handle Thermal Shock?

In many industrial applications, PTFE fabric is not exposed to steady heat. It experiences rapid temperature changes – from a freezer to an oven, from a hot press to ambient air, or from a heat sealer to a cool-down zone. This is called thermal shock.

The question is: can PTFE high-temperature fabric survive repeated, rapid temperature swings without cracking, delaminating, or losing performance?

The answer depends on the temperature range. Within its normal operating limits, PTFE fabric performs very well. But push it too high, and the coating will fail.

Aokai PTFE has tested thermal shock resistance across our product range. This guide explains what temperature differences are safe, how the material works, and what to avoid.

Tolerable Temperature Difference Range – What Is Safe?

1. Normal working range (-70°C to 260°C)

Rapid temperature cycling within this range will not cause obvious damage to the fabric. A typical application scenario involves frequent switching between cold storage at -50°C and hot pressing equipment at 260°C. The material expands and contracts, but the PTFE coating remains intact and the fiberglass substrate does not crack.

Example application: Freeze-drying equipment where the belt alternates between deep freeze (-40°C) and drying oven (150°C). PTFE fabric handles this daily.

2. Extreme temperature difference (around 250°C delta)

Premium PTFE fabrics can withstand severe thermal shock – for instance, being instantly immersed in 10°C cold water after exposure to 260°C (a 250°C drop). The coating will not crack or peel off after repeated cycles. This has been validated by Aokai PTFE testing.

3. The danger zone – above 300°C

The risk of damage rises sharply if the temperature difference further increases, such as rapid cooling from temperatures above 300°C. Once the fabric exceeds 300°C (close to PTFE’s melting point of 327°C), the coating becomes semi-molten and mechanically weak. Sudden cooling then causes massive shrinkage and cracking.

Working Principle – Substrate vs. Coating

The thermal shock performance is determined by the complementary properties of the fiberglass substrate and the PTFE coating.

1. Fiberglass substrate – the stable backbone

• Softening point above 800°C

• Extremely low coefficient of thermal expansion (approx. 5 × 10⁻⁶/°C)

• Poor thermal conductivity

These properties mean that the glass fibers do not expand or contract much with temperature. They maintain stable dimensions under thermal shock and resist stress cracking effectively. The substrate is not the weak link.

2. PTFE coating – the limiting factor

• Coefficient of thermal expansion is approximately 30 to 40 times that of fiberglass (100-150 × 10⁻⁶/°C)

• During rapid heating and cooling, the coating expands and contracts far more drastically than the substrate

• This generates tremendous stress at the bonding interface

Why it still works: The PTFE coating is thin (typically 10-30 μm) and flexible. The impregnation process bonds it tightly to the fiberglass. Within the normal temperature range, the coating can stretch and recover without cracking. At extreme temperatures or with poor manufacturing, the stress exceeds the coating’s strength.

Aokai PTFE note: Our premium-grade fabric uses multiple impregnation passes, allowing PTFE to penetrate deep into the fiberglass weave. This creates a mechanical “anchor” that resists delamination during thermal cycling – a key difference from low-quality coatings that sit only on the surface.

Key Factors That Affect Thermal Shock Resistance

Not all PTFE fabrics are equal. Three factors determine how well a specific product withstands thermal cycling.

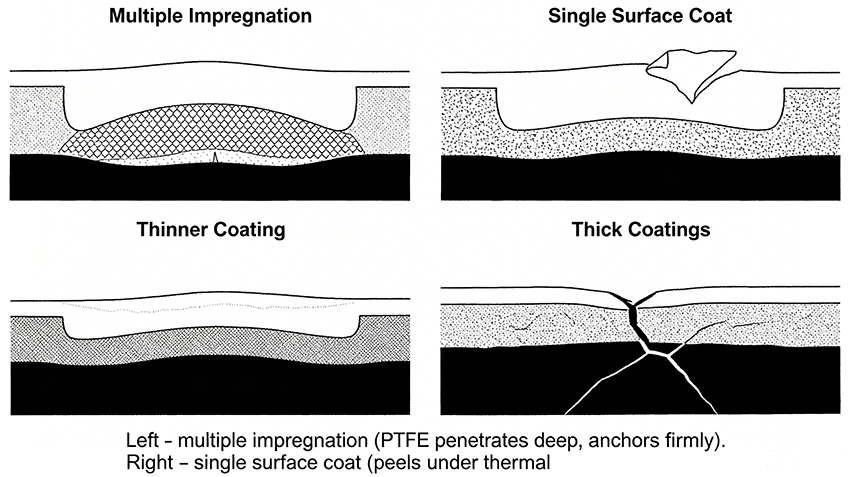

1. Production technology – impregnation quality matters

High-quality fabrics undergo multiple impregnation and sintering processes. PTFE penetrates deep into fiber gaps, forming a firm anchoring structure. This “locked-in” bond resists delamination during thermal shock.

Inferior products use single-pass coating. The PTFE sits only on the surface. Under rapid temperature change, the coating peels off like a loose sticker.

2. Coating thickness – thinner is better

Thinner coatings adapt better to the deformation of the substrate. A 5-10 μm coating will flex with the glass fibers. A thick 30-50 μm coating is stiffer and more likely to crack.

3. Substrate grade – dense weave, high-strength filaments

Densely woven, high-strength filament fiberglass fabrics have fewer voids and better dimensional stability. They also provide more surface area for PTFE anchoring. Low-quality, open-weave fabrics are more prone to edge fray and coating loss under thermal cycling.

Durability in Practical Applications – What to Expect

In equipment requiring repeated heating and cooling, such as:

• Heat sealers (cycle every few seconds)

• Hot-pressing isolation pads

• Welding protection materials

• Freeze-thaw cycling equipment

Premium PTFE high-temperature fabrics can endure tens of thousands of thermal cycles without failure.

1. How failure occurs – gradual fatigue

Failure is not sudden. It happens step by step:

1. Micro-cracks develop in the PTFE coating (invisible to the naked eye)

2. Coating begins to lose non-stick property in stressed areas

3. Edge peeling appears at creases or cut edges

4. Coating delaminates, exposing fiberglass

5. Fiberglass frays and fabric tears

Regular inspection (every few thousand cycles) can detect early cracking before catastrophic failure.

Usage Notes & Common Pitfalls – What to Avoid

Even the best PTFE fabric can be destroyed by improper operation.

1. Never rapidly cool from extreme temperatures (>300°C)

If the fabric is heated above 300°C (close to the melting point of 327°C) and then cooled abruptly (e.g., quenching in water or even just exposing to room temperature air), the PTFE coating will shrink drastically and may even start to decompose. This results in immediate cracking, peeling, and permanent damage. This operation must be strictly prohibited.

Safety margin: For long life, keep the fabric temperature below 260°C. Brief excursions to 280-300°C are tolerable for some grades, but never shock-cool from those temperatures.

H3: Keep away from sharp objects and excessive bending

Thermal shock combined with mechanical damage – such as creases, scratches, or sharp folds – greatly accelerates deterioration. A scratched coating is already weakened; thermal cycling then propagates cracks from the scratch.

Good practice: Inspect the fabric regularly. Replace if you see visible scratches, crease marks, or edge lifting before thermal cycling continues.

Summary – Thermal Shock Guidelines for PTFE Fabric

Aokai PTFE manufactures premium PTFE high-temperature fabric with multiple impregnation passes and thin, flexible coatings optimized for thermal shock resistance. For applications with extreme temperature cycling (e.g., rapid cooling from 260°C), contact us for specific test data and grade recommendations.
