The polarity, steric hindrance of organic groups and aggregation structure of molecular chains in MQ silicone resin are the core factors to regulate the performance balance of silicone pressure-sensitive adhesives (PSA).In short: increasing phenyl content optimizes initial tack, holding power and peel strength simultaneously; while molecular weight and molecular weight distribution follow a typical seesaw rule — higher molecular weight improves holding power but sacrifices initial tack; broad molecular weight distribution is an effective way to balance the three key adhesive properties.

1. Methyl / Phenyl Ratio: Intrinsic Performance Adjustment via Chemical Structure

Replacing part of methyl groups (-CH3) with phenyl groups (-C6H5) is an effective molecular-level modification method:

· Enhanced intermolecular force: The benzene ring produces strong π-π intermolecular interaction, greatly raising the cohesive energy of the adhesive, which fundamentally improves holding power and peel strength.

· Increased molecular chain rigidity: Phenyl groups have large steric hindrance, restricting the rotation of silicone main chains and reducing chain flexibility. This benefits holding power but tends to weaken initial tack.

· Improved wettability: Phenyl modification enhances the affinity of silicone PSA to substrate surfaces, promotes interfacial bonding, and improves both initial tack and peel strength.

2. Molecular Weight & Distribution: Performance Regulation via Physical Entanglement & Aggregation State

Functional groups dominate chemical regulation, while molecular weight and molecular weight distribution (Polydispersity Index, PDI) dominate physical regulation:

Molecular Weight (Mw)

Cohesive strength mainly comes from physical entanglement of polymer chains.

· Higher Mw forms a denser entanglement network and significantly improves holding power.

· Excessively high Mw makes molecular chains rigid and less flexible, resulting in reduced initial tack and peel strength.

Molecular Weight Distribution (MWD)

· Narrow distribution: Uniform performance, easy targeted optimization for single property such as high initial tack.

· Broad distribution: Complementary performance matching. High-molecular-weight fractions form a rigid network skeleton to guarantee cohesive strength and holding power; low-molecular-weight fractions act as internal lubricants and wetting accelerators, improving chain mobility and rapid surface wetting to ensure good initial tack, achieving overall balanced performance.

3. Synergistic Optimization of M/Q Ratio, Resin Dosage and Silicone Rubber Viscosity

Methyl/phenyl ratio and molecular weight determine the inherent properties of MQ resin; while M/Q ratio, resin to silicone rubber ratio and silicone rubber viscosity are direct adjusting parameters in formula engineering, which must be matched synergistically.

M/Q Ratio

M/Q ratio directly determines the molecular weight, hydroxyl content and compatibility with silicone rubber.The optimal M/Q molar ratio for silicone PSA is generally 0.6 ~ 1.2.For example, medical-grade PSA adopts an optimal M/Q value of about 0.78; resin with M/Q 0.6–0.9 compounded with silicone rubber (viscosity 100×10⁻⁴ m²/s) at a mass ratio of 2:3 obtains excellent comprehensive adhesive performance.

Resin / Silicone Rubber Blending Ratio

This ratio is the key lever to balance the three core properties (initial tack, holding power, peel strength).

· Higher resin content improves cohesion, holding power and peel strength but reduces initial tack.

· Higher rubber content shows the opposite trend.

For instance, raising the mass ratio of MQ resin to 107 silicone rubber from 1.2 to 2.5 will increase holding power and 180° peel strength while decreasing initial tack.In practical formulations, the mass ratio of silicone resin to silicone rubber is usually 45:55 ~ 75:25.

Silicone Rubber Viscosity

The molecular weight reflected by viscosity determines the basic rheological properties of the adhesive system and needs good compatibility with MQ resin.Low-viscosity silicone rubber has better compatibility with MQ resin, favorable for initial tack and peel strength, but may compromise holding power.

4. Formula Design Principle for Performance Balance

In silicone PSA formulation design, the three key indexes — initial tack, holding power, 180° peel strength — can be precisely regulated by two core means:

· Phenyl modification — multiplicative optimization: Proper phenyl doping improves all three properties simultaneously, breaking the traditional seesaw restriction.

· Molecular weight & distribution adjustment — additive trade-off: Precise control of molecular weight and distribution realizes customized balance between initial tack and holding power for different application scenarios.

In industrial production, the common formula strategy is broad molecular weight distribution base resin plus moderate phenyl modification to balance processability and comprehensive adhesion performance.For ultra-high temperature resistance and harsh chemical environments, high-phenyl-content MQ resin is the preferred solution.

The above technical content is provided by Jiangsu Aokai New Materials Technology Co., Ltd.

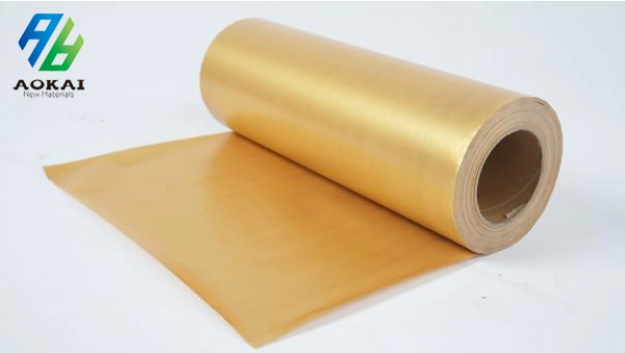

If you want to know detailed parameters, application scenarios and customized solutions for our full product line: PTFE high-temperature fabric, PTFE high-temperature tape, PTFE high-temperature mesh belt, seamless fusing machine belt, single-sided PTFE fabric, high-temperature resistant conveyor belt and high-temperature resistant fiberglass fabric, please contact us:
