Cement kilns, waste incinerators, coal-fired boilers, and chemical plants generate hot, corrosive, dust-laden gases that quickly destroy standard filter bags. Liquid filtration involving strong acids or high-temperature oils demands media that won’t degrade, swell, or shed fibers.
PTFE high-temperature fabric – PTFE-coated fiberglass – has become the go-to solution for these harsh filtration environments. Its combination of 260°C heat resistance, chemical inertness, non-stick surface, and dimensional stability makes it indispensable for baghouse dust collectors, liquid filter cloths, and high-efficiency air filters.
Aokai PTFE supplies PTFE fabric for filtration applications worldwide. This article covers five major segments: high-temperature flue gas dust removal, corrosive liquid filtration, food/pharmaceutical sterile filtration, cleanroom air filtration, and specialized melt filtration.
High-Temperature Flue Gas Dust Removal & Filtration (Core Application)
This is the largest consumption field, where PTFE high-temperature fabric is fabricated into filter bags or used as base material for baghouse dust collectors.
Industry
Application
Key Requirement
Cement industry
Kiln head, kiln tail, coal mill flue gas treatment
Continuous 260°C operation, resistant to alkaline dust
Waste incineration
Flue gas purification – acidic gases (HCl, SOₓ), dioxins
Thermal power plant and industrial boiler tail gas
Replaces PPS media for higher temperature and corrosive environments
Iron & steel metallurgy
Blast furnace gas, sintering plant dust, ferroalloy electric furnace
High-temperature, abrasive dust
Carbon black & chemical
Carbon black production main bag filters
Non-stick prevents caking and blockage of fine carbon particles
Product forms: Fiberglass fabric impregnated with PTFE emulsion, or laminated with expanded PTFE microporous membrane (membrane-coated filter material). The membrane laminate achieves surface filtration, drastically improving efficiency and enabling ultra-low emission compliance (<5 mg/Nm³).
Aokai PTFE supplies PTFE-coated fiberglass fabric for baghouse filters. We offer both standard impregnated fabric and membrane-laminated grades. Our fabric has been validated in cement kilns and waste incinerators with continuous 260°C operation and emission compliance.
Heat-conducting oil, high-temperature hydraulic oil, frying oil at ~200°C
No fiber shedding, stable
Water treatment
Industrial wastewater – extreme pH, high temperature plate-and-frame filter presses
Resists both acid and alkaline attack
Product form: High-tenacity fiberglass fabric with customized warp/weft density and gram weight after PTFE coating, tailor-cut for filter presses and leaf filters.

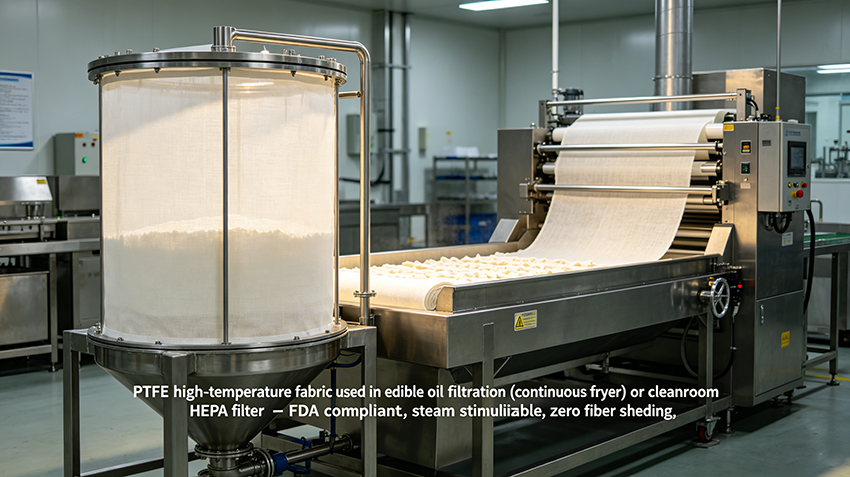

Specialized Filtration for Food & Pharmaceutical Industries
Application
Why PTFE Works
Compliance
High-temperature edible oil filtration
Functions as both conveying belt and filter medium for frying oil filters. Non-stick, easy cleaning, no odor cross-contamination
FDA compliant – safe for direct food contact
Beverage & brewing
Filtration of syrup and fruit juice under high-temperature steam sterilization. Non-stick prevents sugar carbonization and filter clogging
Resists repeated steam sterilization
Pharmaceutical production
Support spacer or direct filter medium for HEPA filter cartridges in sterile workshops
Resists repeated steam sterilization; zero fiber shedding
Product form: Food-grade PTFE fabric with FDA documentation, available in various mesh openings for different particle retention.
Cleanroom & High-Temperature Air Filtration
Application
Description
Key Feature
High-temperature high-efficiency filters
Bag-type or pleated filter cartridges for clean ovens and tunnel ovens in semiconductor and biopharma sectors
Continuous 260°C operation; zero fiber shedding
Coating industry
Circulating air filtration inside high-temperature drying tunnels to trap overspray resin powder
Prevents adhesive blockage; easy cleaning
Why PTFE for cleanrooms: Unlike glass fiber HEPA media that can shed fibers, PTFE-coated fabric is highly resistant to fiber release – critical for semiconductor and sterile pharmaceutical environments.
Specialized Filtration – Melt Filtration & Membrane Support
Application
How PTFE Fabric Is Used
Melt filtration
Filter screen and supporting substrate for molten polymer in chemical fiber spinning and plastic extrusion. Non-stick reduces residual polymer degradation for easy disassembly and cleaning
Support substrate for gas-solid separation membrane
Backing base cloth for expanded PTFE microporous membranes to boost mechanical strength, forming high-performance membrane filter material for ultra-low emission projects
Product form: Heavy-duty PTFE-coated fabric with high tensile strength to withstand melt pressure; also open-mesh grades for minimal flow resistance.
Summary – When to Choose PTFE High-Temperature Fabric for Filtration
Filtration Application
Recommend PTFE Fabric?
Primary Reason
High-temperature baghouse (>200°C)
✅ Yes
Only practical option for 260°C continuous
Corrosive flue gas (acidic)
✅ Yes
Resists HCl, SOₓ, dioxin-laden ash
Sticky dust (carbon black, cement)
✅ Yes
Non-stick release; easy cleaning
Strong acid/alkali liquid filtration
✅ Yes (except HF)
Chemical inertness unmatched
Food/pharmaceutical sterile filtration
✅ Yes
FDA, steam sterilizable, no fiber shed
Low-temperature (<100°C) non-corrosive air
⚠️ Consider polyester/PPS
PTFE is overkill and more expensive
Hydrofluoric acid liquid service
❌ Avoid
HF attacks fiberglass substrate through coating pinholes
In summary, PTFE high-temperature fabric is a premium solution for extreme filtration working conditions. It stands as the preferred or indispensable filter material for scenarios involving high temperature (up to 260°C continuous), strong acid-alkali corrosion, and sticky dust. It is especially irreplaceable in high-temperature baghouse dust removal (cement, waste incineration, coal boilers) and corrosive solid-liquid separation.
For less demanding conditions, lower-cost media like polyester, PPS, or aramid may suffice. But when the environment pushes limits – 260°C, acid dew point, or sticky particulates – PTFE-coated fiberglass fabric delivers reliable, long-lasting performance.
Need PTFE high-temperature fabric for your filtration application? Aokai PTFE supplies both impregnated and membrane-laminated grades with full documentation (FDA, tensile, air permeability). Contact us with your gas/liquid composition, temperature, and emission target for a recommendation.
