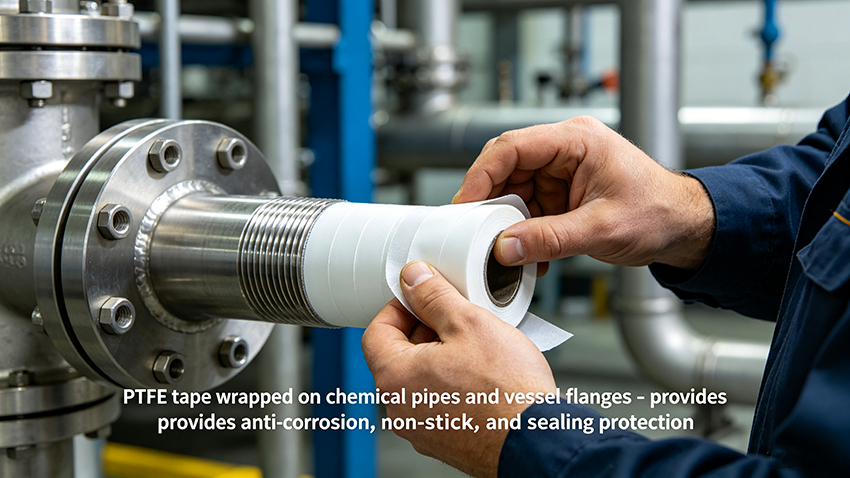

In chemical plants, pipes and vessels face constant attack from aggressive media – strong acids, hot alkalis, organic solvents, and steam. PTFE tape is a common solution for anti-corrosion, non-stick, and sealing protection. But selecting the right tape is not as simple as choosing the highest temperature rating.
Aokai PTFE has supplied PTFE tape for chemical applications for decades. This guide explains the three-layer structure of PTFE tape, core selection criteria (temperature, chemical media, mechanical requirements), and critical construction guidelines.

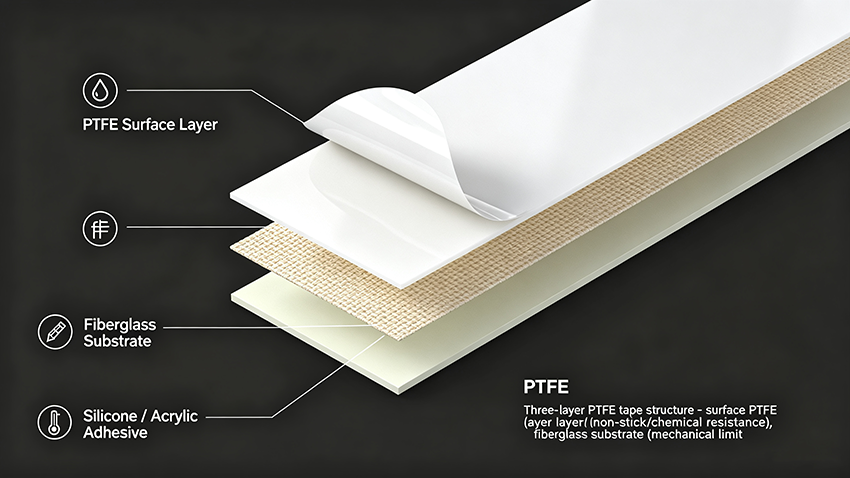

The Three-Layer Structure of PTFE High-Temperature Tape
The overall performance of commercial PTFE tape is determined by three structural layers:
Structural Layer
Common Materials
Impact on Product Selection
Surface functional layer
Pure PTFE film / PTFE-impregnated fiberglass fabric
Governs non-stick property, chemical resistance, and maximum temperature resistance
Determines mechanical strength, tensile resistance, and puncture resistance
Adhesive layer
Silicone PSA, Acrylic PSA, Rubber-based PSA
Sets the upper temperature limit and chemical resistance of the whole tape; usually the weakest performance link
Critical insight: Though PTFE itself can operate stably from -190°C to 260°C long-term, the adhesive is the performance bottleneck. Choose the adhesive based on the actual service environment, not just the PTFE surface.
Core Selection Criteria and Matching Principles
1. Operating temperature – adhesive selection is the top priority
Temperature Range
Recommended Adhesive
Why
200°C – 260°C (long-term)
Silicone PSA (required)
The only adhesive system that retains stable tackiness at this range; minimal residue after peeling
120°C – 180°C with superior solvent & oil resistance
High-temperature acrylic PSA
Stronger bonding than silicone, but fails rapidly at 260°C
Below 100°C
Conventional acrylic or rubber-based
Acceptable, but rare in chemical environments
Aokai PTFE note: For applications at 200°C+, acrylic PSA is not acceptable – it will degrade, soften, and cause tape peeling. Silicone is the only viable choice.
2. Chemical media – compatibility between adhesive and substrate
The PTFE functional layer features nearly universal corrosion resistance (except molten alkali metals and high-temperature high-pressure fluorine gas). However, chemical media penetrate from tape edges and directly erode the adhesive layer.

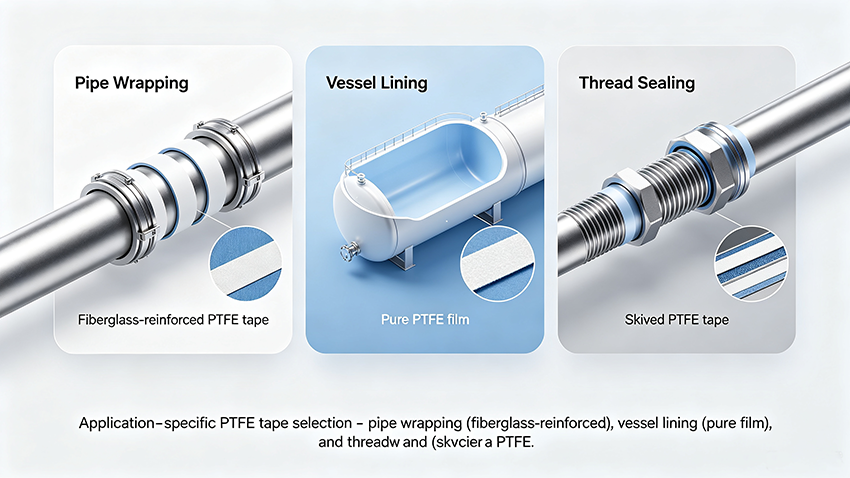

Ultra-smooth non-stick surface, no fiber wicking risk; ideal for flat and large curved surfaces
Mixing shaft & roller wrapping
PTFE fiberglass fabric with high-tack silicone adhesive
Supports tension winding; fiberglass substrate delivers high tensile strength, avoids deformation during rotation
Thread sealing and gasket replacement
Machined pure PTFE film tape
Utilizes PTFE cold flow property to fill gaps; fiberglass-free tape is required
Manholes & sight glasses of strong acid storage tanks
Pure PTFE film / fiberglass fabric with chemical-resistant acrylic adhesive
Pure film isolates corrosive media; fiberglass fabric improves toughness; lap joints require multi-layer reinforcement
Critical Construction and Safety Guidelines
1. Surface pretreatment – the foundation of bonding
Complete degreasing, rust removal, and drying are required. Wipe surfaces with acetone or alcohol followed by quick flame baking to multiply bonding strength. This removes contaminants and activates the metal surface for maximum adhesion.

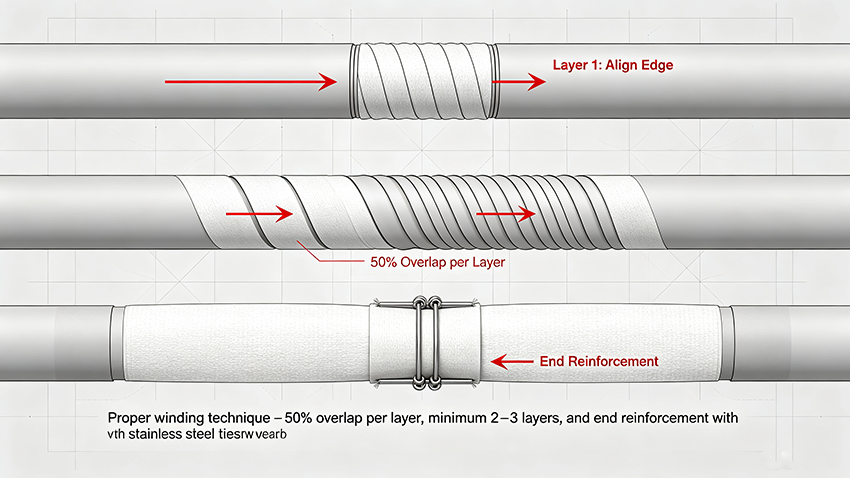

2. Overlap and winding layers
A minimum of 2-3 winding layers is required for chemical protection with 50% overlap per circle. Tape ends must be reinforced with matching PTFE tape or stainless steel cable ties to prevent full peeling after adhesive penetration by media.
3. Safety threshold – when to avoid PTFE tape altogether
For the following extreme media, all tapes with organic adhesives are unsafe:
Hydrogen fluoride (HF)
Boiling high-concentration strong alkali (>80%)
Chlorine trifluoride (ClF₃)
Alternative: Switch to full PTFE lining or welded fixed cladding (no adhesive).
4. Anti-static and explosion-proof measures
If the pipeline conveys flammable materials and static accumulation may occur, select anti-static PTFE tape (usually dark black with carbon filler, surface resistivity 10⁶-10⁹ Ω) to dissipate static charge safely.
Summary – PTFE Tape Selection Quick Guide for Chemical Applications
If your environment is...
Choose...
Avoid...
200-260°C, acids/alkalis/steam
Silicone PSA + fiberglass substrate
Acrylic PSA (will degrade)
120-150°C, organic solvents
Acrylic PSA (solvent-resistant)
Silicone PSA (swells in solvents)
>150°C, organic solvents
Pure PTFE film + mechanical fixing
Any adhesive tape
HF, boiling >80% alkali, ClF₃
PTFE-only lining (no adhesive)
Any tape with organic adhesive
Flammable materials, static risk
Anti-static (carbon-filled) PTFE tape
Non-conductive standard tape
Thread sealing, gap filling
Skived pure PTFE film tape
Fiberglass-reinforced tape
Aokai PTFE offers a full range of PTFE tapes for chemical applications – silicone PSA for high-temp acid/alkali service, acrylic PSA for solvent resistance, and anti-static grades. Contact us with your chemical media, temperature range, and mechanical requirements for a tailored selection.
