You unroll a fresh roll of PTFE high-temperature tape – but the layers are stuck together. When you peel them apart, adhesive transfers to the non-stick back side, ruining the tape. This is called interlayer adhesion or blocking.
It happens during long-term storage, especially in warm conditions or when rolls are stacked. The cause is a combination of material properties (PTFE’s elastic memory, silicone PSA creep) and external factors (heat, pressure).
Aokai PTFE has solved this through gradient winding tension design – a production technique that applies progressively looser tension from the outer to inner layers. This guide explains why blocking happens and how to prevent it.
Why Do PTFE Tape Layers Stick Together? Root Causes
To prevent interlayer adhesion, you must understand two major causes: material properties and external storage conditions.
1. Material properties that work against you
PTFE film elastic memory: During production, PTFE molecular chains are stretched. When kept in rolled form under pressure for a long time, internal stress is released. The film tries to return to its original shape, causing the tape to warp or the adhesive to detach.
Silicone PSA creep: Silicone pressure-sensitive adhesive is semi-fluid. Under sustained heat and pressure, it flows slowly (creeps), penetrating into the non-stick back side and causing layers to bond.

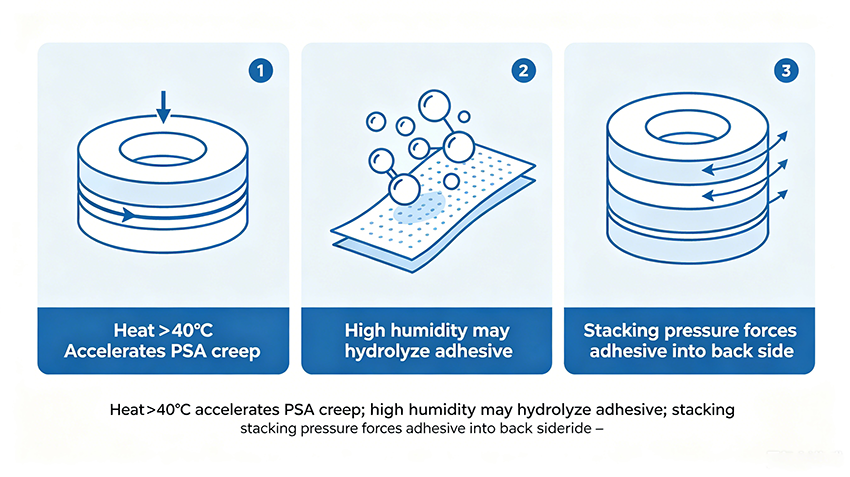

2. External storage factors that accelerate blocking
Humidity: High humidity may cause adhesive hydrolysis, making the surface tacky.
Mechanical pressure: Stacking heavy rolls on top of each other squeezes the adhesive layer against the back side, forcing permanent physical adhesion.
The Solution – Gradient Winding Tension Design

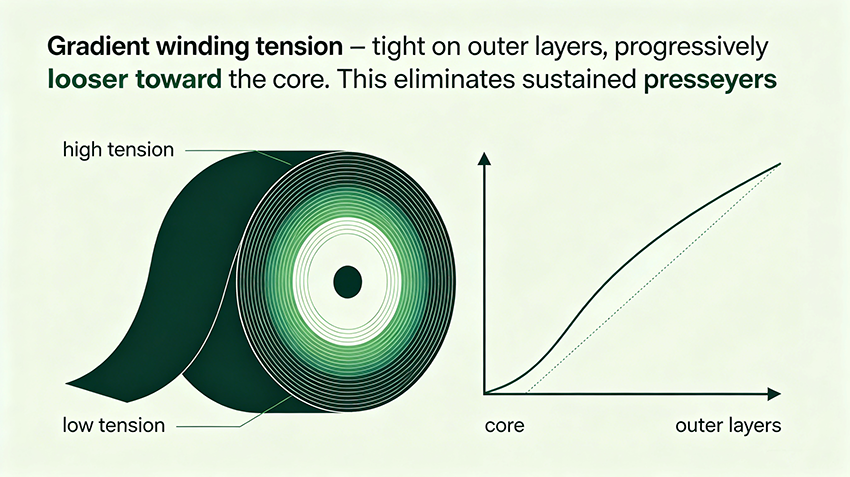

The core of prevention is winding tension control during manufacturing. The principle is simple: tight on the outer layers, loose on the inner layers.
H3: Why gradient tension works
If the entire roll is wound with constant high tension, the inner layers near the core experience sustained compressive force for months or years. That pressure pushes the adhesive into the PTFE back side, causing blocking.
With gradient tension:
Outer layers are wound tightly – they need tension to stay compact.
Inner layers (near the core) are wound loosely – they experience minimal residual pressure.
Result: The core is never subjected to enough pressure to cause adhesion, even after long storage.
1. How it is implemented – closed-loop tension control
Aokai PTFE uses a closed-loop tension control system with three components:
Component
Function
Sensors
Real-time monitoring of the current roll diameter
Controller
Calculates required tension based on roll diameter via proprietary formulas
Actuators
Variable frequency or torque motors to dynamically adjust winding tension
The tension decreases gradually from the inner ring to the outer ring. This also prevents tight-set rolls (where the inner layers become compressed and difficult to unwind).
Keep original packaging intact – if damaged, re-seal immediately with plastic film.
Summary – How to Maximize Storage Life of PTFE Tape
Factor
What to Do
Winding
Gradient tension (tight outer, loose inner) with closed-loop control
Adhesive
Use high-cohesion silicone PSA, low creep
Back side treatment
Apply release coating to reduce adhesion to PSA
Temperature
Keep 15-40°C, avoid >40°C
Humidity
30-70% RH
Stacking
Horizontal on racks, no heavy pressure on bottom rolls
Rotation
Turn rolls quarterly to change stress points
Inspection
Check for signs of blocking before use; test if uncertain
Aokai PTFE manufactures PTFE high-temperature tapes with gradient winding tension as standard. For long-term storage (over 6 months), we recommend additionally sealing rolls in foil bags with desiccant and storing in climate-controlled conditions.
If you experience blocking with existing rolls, try warming the roll to 30-40°C for a few hours before unwinding – the adhesive may soften enough to release without transferring. But prevention is always better than cure.
