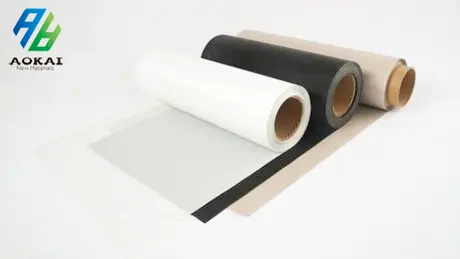

PTFE coated fiberglass fabric offers exceptional thermal insulation benefits, making it a versatile material for various industrial applications. This innovative composite combines the strength and durability of fiberglass with the unique properties of PTFE (Polytetrafluoroethylene). The result is a fabric that excels in heat resistance, low thermal conductivity, and temperature stability. PTFE coated fiberglass fabric can withstand extreme temperatures ranging from -270°C to 260°C (-454°F to 500°F) while maintaining its structural integrity. This remarkable thermal performance, coupled with its non-stick and chemical-resistant properties, makes it an ideal choice for insulation in industries such as aerospace, food processing, and chemical manufacturing.
![1]()
Understanding PTFE Coated Fiberglass Fabric
Composition and Manufacturing Process
PTFE coated fiberglass fabric is a high-performance composite material that combines the strengths of two remarkable components: fiberglass and PTFE. The manufacturing process involves carefully weaving fiberglass threads into a fabric and then applying a PTFE coating. This coating is typically done through a specialized process called sintering, where PTFE particles are heated and fused onto the fiberglass substrate.
The fiberglass core provides excellent tensile strength and dimensional stability, while the PTFE coating adds chemical resistance, non-stick properties, and enhanced thermal insulation. This unique combination results in a fabric that can withstand extreme temperatures and harsh environments while maintaining its structural integrity.
Key Properties of PTFE Coated Fiberglass Fabric
PTFE coated fiberglass fabric boasts an impressive array of properties that make it suitable for various applications:
- High temperature resistance (up to 260°C or 500°F)
- Low thermal conductivity
- Excellent chemical resistance
- Non-stick surface
- Low friction coefficient
- UV resistance
- Flame retardancy
- Durability and long service life
These properties contribute to the fabric's exceptional thermal insulation capabilities and its ability to perform in challenging industrial environments.
Applications Across Industries
The versatility of PTFE coated fiberglass fabric has led to its adoption in numerous industries:
- Aerospace: Thermal barriers in aircraft engines and insulation for spacecraft
- Food Processing: Conveyor belts and non-stick cooking surfaces
- Chemical Manufacturing: Protective linings for tanks and pipes
- Architecture: Tensile structures and roof membranes
- Electrical: Insulation for wires and cables
- Packaging: Heat-sealing applications
In each of these applications, the thermal insulation benefits of PTFE coated fiberglass fabric play a crucial role in enhancing performance and safety.
Thermal Insulation Properties of PTFE Coated Fiberglass Fabric
Low Thermal Conductivity
One of the primary reasons for the excellent thermal insulation properties of PTFE coated fiberglass fabric is its low thermal conductivity. Thermal conductivity is a measure of a material's ability to conduct heat. PTFE has an inherently low thermal conductivity, typically ranging from 0.25 to 0.35 W/mK (watts per meter-Kelvin). When combined with fiberglass, which also has low thermal conductivity, the resulting fabric becomes an effective barrier against heat transfer.
This low thermal conductivity means that heat does not easily pass through the material, making it an excellent insulator in various applications. For instance, in aerospace, PTFE coated fiberglass fabric is used to create thermal barriers that protect sensitive components from the extreme temperatures experienced during flight.
Temperature Stability and Range
PTFE coated fiberglass fabric exhibits remarkable temperature stability across a wide range. It can maintain its properties and performance from cryogenic temperatures as low as -270°C (-454°F) up to elevated temperatures of 260°C (500°F). This wide temperature range makes it suitable for diverse applications, from cold storage facilities to high-temperature industrial processes.
The fabric's ability to maintain its structural integrity and insulation properties across such a broad temperature spectrum is due to the unique characteristics of both PTFE and fiberglass. PTFE remains stable and does not degrade or off-gas at high temperatures, while fiberglass retains its strength and dimensional stability.
Reflective Properties
Another factor contributing to the thermal insulation benefits of PTFE coated fiberglass fabric is its reflective properties. The smooth, white surface of PTFE has a high reflectivity for both heat and light radiation. This reflectivity helps to reduce heat absorption, further enhancing the material's insulation capabilities.
In applications such as architectural membranes or protective coverings, the reflective nature of PTFE coated fiberglass fabric can help reduce heat gain in buildings or equipment, leading to improved energy efficiency and temperature control.
Advantages of PTFE Coated Fiberglass Fabric for Thermal Insulation
Energy Efficiency
The superior thermal insulation properties of PTFE coated fiberglass fabric contribute significantly to energy efficiency in various applications. By effectively reducing heat transfer, this material helps maintain desired temperatures with less energy input. For example, in industrial ovens or refrigeration units, using PTFE coated fiberglass fabric as insulation can lead to reduced energy consumption and lower operating costs.
In building applications, such as tensile structures or roof membranes, the fabric's insulation properties can help regulate indoor temperatures, reducing the need for heating or cooling and thereby improving overall energy efficiency.
Durability and Longevity
PTFE coated fiberglass fabric is known for its exceptional durability and long service life. The combination of strong fiberglass substrate and chemically inert PTFE coating results in a material that resists wear, tear, and degradation over time. This durability ensures that the thermal insulation properties of the fabric remain effective for extended periods, even in harsh environments.
The material's resistance to UV radiation, chemicals, and moisture further enhances its longevity, making it a cost-effective choice for long-term insulation solutions in various industries.
Versatility in Application
The unique combination of properties offered by PTFE coated fiberglass fabric makes it incredibly versatile for thermal insulation applications. Its flexibility allows it to be used in various forms, including:
- Flat sheets for lining and insulation
- Tubular forms for pipe insulation
- Custom-shaped components for specific equipment
- Woven or braided structures for specialized applications
This versatility, coupled with its excellent thermal insulation properties, allows PTFE coated fiberglass fabric to be tailored to meet the specific needs of diverse industries and applications, from aerospace to food processing.
Conclusion
PTFE coated fiberglass fabric stands out as a superior thermal insulation material, offering a unique combination of low thermal conductivity, wide temperature stability, and reflective properties. Its ability to maintain performance across extreme temperature ranges while providing excellent durability and chemical resistance makes it an invaluable asset in various industrial applications. As industries continue to seek energy-efficient and high-performance materials, PTFE coated fiberglass fabric remains at the forefront of thermal insulation solutions, providing reliable protection and improved operational efficiency across diverse sectors.
FAQs
What is the maximum temperature PTFE coated fiberglass fabric can withstand?
PTFE coated fiberglass fabric can typically withstand temperatures up to 260°C (500°F) continuously.
Is PTFE coated fiberglass fabric environmentally friendly?
While PTFE is not biodegradable, it is chemically inert and does not release harmful substances. The fabric's durability also contributes to reduced waste over time.
Can PTFE coated fiberglass fabric be used in food processing applications?
Yes, it is FDA-approved for food contact and is commonly used in food processing for its non-stick and thermal properties.
How does the thermal insulation of PTFE coated fiberglass fabric compare to other materials?
PTFE coated fiberglass fabric offers superior thermal insulation compared to many traditional materials, especially when considering its wide temperature range and additional beneficial properties.
