PTFE coated fiberglass fabric achieves exceptional longevity through its unique composite structure that combines the mechanical strength of woven fiberglass with the chemical inertness of polytetrafluoroethylene coating. This engineered material achieves its durability by better resisting thermal cycles, chemical breakdown, and external stresses compared to regular industrial fabrics. The exact heat curing process makes a strong link between the parts, so they won't break at the places where other materials often do in harsh industrial settings.

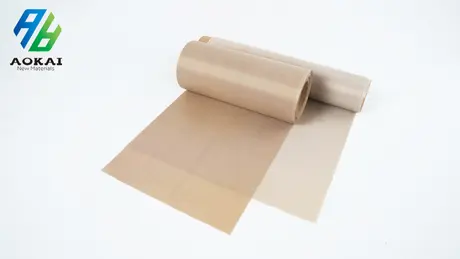

![PTFE Coated Fabric]( "PTFE Coated Fabric")
Understanding PTFE Coated Fiberglass Fabric
Composition and Manufacturing Process
A complex composite material with exact production processes is PTFE coated fiberglass fabric. The base material is either plain weave or smooth weave fiberglass cloth, which has very high tensile strength and steadiness in its shape. This base is filled with a special PTFE dispersion, and then it goes through controlled heat curing processes that make the coating spread out evenly over the whole fabric surface.
There are several steps in the making process that make sure the fiberglass base and PTFE coating stick together perfectly. When you sinter at a high temperature, the PTFE molecules become active. This makes a chemically linked interface that keeps the layers from coming apart under practical stress. Quality control methods keep an eye on the thickness of the coating, the smoothness of the surface, and the mechanical properties to make sure that all production batches work the same way.
Temperature Performance Range
From -200°C to +260°C (-328°F to +500°F), this composite material works effectively across a wide range of temperatures. Its structure stays intact. This kind of temperature stability makes it possible to use these materials in harsh conditions where other materials break down quickly. The fiberglass base keeps its shape at high temperatures, and the PTFE layer keeps its chemical protection and ability to not stick throughout the entire operating range.
Temperature cycling tests show that the material's properties don't change much after thousands of heating and cooling cycles. This shows that it can be used in situations where it will be exposed to repeated thermal stress. This thermal performance is much better than that of silicone films, which usually break down at temperatures above 200°C, and much better than that of PVC materials, which crack at temperatures below 0°C.
Core Reasons Why PTFE Coated Fiberglass Fabric Lasts Longer
Superior Chemical and UV Resistance
The main reasons why PTFE coated fiberglass fabric lasts so long is that it is very resistant to chemicals and UV light. PTFE layer is resistant to a wide range of industrial chemicals, such as strong alkalis, powerful acids, organic solvents, and oxidizing agents. This chemical protection stops the breakdown processes that quickly damage other materials in the same conditions.
In outdoor uses, UV protection is very important because normal materials' polymer chains break down when exposed to UV light. Independent tests have shown that PTFE keeps its molecular structure even after being exposed to UV light for a long time, which is the same as using it outside for decades. The fluorocarbon backbone of PTFE has very strong bonds, and it takes a lot more energy than what is available in earth UV light to break down chemicals.
Comparing chemical resistance in the lab shows that PTFE-coated fiberglass keeps its shape and surface integrity across the full range of chemicals that are compatible with it. PVC fabrics dissolve in many organic solvents and silicone materials swell a lot when exposed to hydrocarbons.
High Thermal Stability Under Extreme Conditions
Another important benefit that contributes to longer service life is thermal stability. PTFE's crystalline structure stays solid at temperatures where other plastics start to break down. Because it is stable, it can be used continuously in high-temperature situations without breaking down like other materials do over time.
Fiberglass reinforcement is very important because it keeps the shape and stops heat expansion and contracting from putting stress in one place. The composite material's coefficient of thermal expansion stays very low across its working temperature range. This means that it doesn't have the fatigue problems that happen with materials whose dimensions change a lot when they are heated and cooled.
Heat aging tests done at high temperatures show that properties don't change much after being exposed to heat for a period of time equal to years of high-temperature work. This thermal stability immediately means longer periods of time between replacements and lower costs for industrial processes.
Mechanical Strength and Abrasion Tolerance
The knitted fiberglass base gives the material great tensile strength and tear resistance, which lets it handle mechanical stress in tough situations. Good fiberglass yarns make a cloth structure that spreads loads out evenly, stopping stress buildsups that could lead to failure modes.
Tests of abrasion resistance show that the PTFE covering keeps the low-friction properties of the fiberglass underneath from wearing away. When you put these two things together, you get a material that doesn't break easily or lose its surface, even when it's being used in situations where it's moving against something or being bent over and over again.
Comparative tests show that bare fiberglass breaks into fibers when it comes in contact with rough surfaces, and polymer films tear when they are put under mechanical stress. But PTFE covered fiberglass stays structurally sound for longer periods of time.
Comparing PTFE Coated Fiberglass Fabric with Other Materials
Performance Against Silicone Coated Alternatives
When looking at different types of materials for tough jobs, PTFE-coated fiberglass always offers better performance than silicone-based choices. Silicone surfaces are flexible and don't melt at high temperatures, but they aren't resistant to chemicals or break down over time, which are important for many industry uses.
Silicone materials start to break down at temperatures above 200°C, which makes them less useful in high-temperature situations. Not only that, but silicone surfaces can be damaged by ozone and can stick to certain chemicals, which makes them less useful in chemical processing settings.
The mechanical qualities of materials covered with silicone are also not as good as those made with PTFE. Silicone stretches more when it's under stress and tears less easily, so it can't be used in places where size stability and technical dependability are needed. A study of prices shows that silicone materials may have lower starting costs, but their shorter useful life makes their total cost of ownership higher for most industrial uses.
Advantages Over PVC and Ceramic Options
Different materials that are often used are PVC-coated fabrics, but they don't work as well in harsh conditions. Over time, plasticizers move out of PVC materials, making them rigid and less flexible. Although PVC can be used in moderate temperatures, it can't be used in very cold or very hot settings because it gets too soft at those temps.
Although ceramic fabrics are very good at withstanding high temperatures, they are not very flexible or resistant to chemicals, which are two qualities that are needed for many uses. Ceramics can also have fibers break easily and need to be handled carefully to keep them from getting damaged. For uses where PTFE-coated fiberglass works just fine, the price of ceramic fabrics is often too high to be useful.
PTFE coated fiberglass fabric materials are also better for the environment because they don't give off dangerous plasticizers or toxic waste when they break down. Because they don't react badly with other things, they can be used in food processing and other sensitive areas where material cleanliness is important.
Practical Uses and Industry Applications That Demand Longevity
Food Processing and Packaging Applications
The food preparation business needs materials that meet high standards for cleanliness and dependability in harsh working conditions. Conveyor belts, mesh belts, and release liners are made of PTFE coated fiberglass fabric, which must stay non-stick and withstand harsh cleaning agents and temperature changes.
In bakeries, these materials are used in stoves that are hotter than 250°C. The non-stick surface keeps food from sticking and makes cleaning easier. FDA-approved PTFE makes sure that food safety rules are followed, and the material's resistance to cleaning agents keeps the surface in good shape through many cleaning processes.
The material is resistant to fats, oils, and cleaning chemicals, which is good for places that process meat. Its smooth surface also keeps germs from building up. Because the fiberglass base is so strong, it can be used in conveyor belt uses that are loaded and stressed all the time.
Solar and Electronics Industry Requirements
When making solar panels, you need materials that don't change size and don't lose their insulating qualities when they're laminated at high temperatures. Release films and insulation layers made of PTFE coated fiberglass fabric must be able to withstand temperatures of up to 200°C while still having the right electrical properties.
These materials are used in the production of electronics because they have a high insulating strength and don't react with chemicals like flux and cleaning agents. The dimensional stability keeps the material from warping during heat processing, which keeps the quality of the result uniform in precision settings.
This material is great for wrapping cables and separating parts when both electrical isolation and physical safety are needed because it is strong and doesn't conduct electricity.
Architectural and Construction Membrane Applications
For architectural uses, you need materials that are both strong and resistant to weather over time. For tensile structures, canopies, and roofing systems that must endure wind loads, temperature cycling, and UV exposure for decades, PTFE coated fiberglass fabric is the main membrane material.
Because the material is resistant to external stresses, it doesn't break down like other architectural fabrics do. Chemical resistance guards against air pollutants and cleaning chemicals, and UV stability stops color loss and loss of mechanical properties that happen to other materials.
Tensile strength lets structures have long spans without needing too much support, and the light weight lowers structural loads compared to other building materials. All of these traits work together to make building solutions that look good and work well for a long time.
How to Procure PTFE Coated Fiberglass Fabric for Your Business?
Supplier Selection Criteria and Quality Assurance
Finding sources that show they know how to make things and consistently deliver high quality is the first step to successful buying. A company's ISO certification, output capability, technical help, and track record with similar applications are some of the most important things that are looked at when judging it. To make sure that the quality of the products is always the same, supplier checks should look at how the products are made, how they are tested, and how quality control is done.
Quality approvals, like FDA compliance for applications that come into touch with food or UL recognition for electrical applications, give you even more confidence that the material is right for the job. Traceability systems help with quality assurance and legal compliance by letting you identify lots and keep records of their quality.
Before making big purchases, procurement teams can check the success features of sample evaluation programs. The mechanical qualities, chemical protection, and thermal efficiency that are important for the product should be tested.
Pricing Dynamics and Total Cost Analysis
To do good procurement, you need to know how the beginning prices of materials affect their long-term value. Although PTFE coated fiberglass fabric may cost more than other options, it usually has a lower total cost of ownership because it lasts longer and needs less upkeep.
It can save you a lot of money to buy things in bulk, especially for uses that need a steady supply of materials for a long time. Long-term supply deals keep prices stable and make sure that materials are available so that production plans can be made.
The material prices, installation costs, upkeep needs, and replacement times should all be part of a life cycle cost study. This all-around method shows the real financial advantages of spending money on high-performance products that last longer and cause less downtime.
Conclusion
For a long time, PTFE coated fiberglass fabric is very durable because it is resistant to chemicals, stable at high temperatures, and strong. Because the material can handle high temperatures, harsh chemicals, and environmental stresses without losing its performance, it is a great choice for tough industry uses. If procurement workers know about these benefits, they can make decisions that improve both daily performance and long-term cost management. This way, their companies can get materials that work reliably for long periods of time.
FAQ
What temperature range can PTFE coated fiberglass fabric withstand?
PTFE coated fiberglass fabric functions effectively from -200°C to +260°C (-328°F to +500°F), making it ideal for uses at high temperatures where other materials would fail. This temperature stability lets it work continuously in high-temperature ovens, low-temperature storage areas, and places where the temperature changes quickly without breaking down.
How does chemical resistance contribute to longevity?
The PTFE layer is very resistant to acids, alkalis, solvents, and other strong chemicals that break down normal materials very quickly. This chemical resistance stops the molecular breakdown that leads to material failure. This means that the product can last longer in chemical processing areas, cleaning tasks, and other places where it will be exposed to industrial chemicals.
What maintenance requirements extend service life?
For proper care, clean gently with mild detergents, stay away from sharp items that could damage the surface, and check for wear patterns every so often. The non-stick surface makes cleaning easier, and the chemical protection lets you use the right cleaners without damaging the material, which extends the life of the product.
Partner with Aokai PTFE for Superior PTFE Coated Fiberglass Fabric Solutions
Aokai PTFE stands as a leading PTFE coated fiberglass fabric manufacturer, delivering exceptional quality and reliability to customers worldwide. Our comprehensive product line includes PTFE coated fabrics, conveyor belts, mesh belts, sticky tapes, and membranes designed to meet the most demanding industrial requirements. With over 100 choices for composite material options and extensive customization capabilities, we provide solutions that optimize performance and reduce total cost of ownership.
Our commitment to quality extends beyond manufacturing excellence to include comprehensive technical support, reliable delivery schedules, and responsive customer service. Contact mandy@akptfe.com to discuss your specific requirements and discover how our expertise can enhance your operations through superior material performance.
