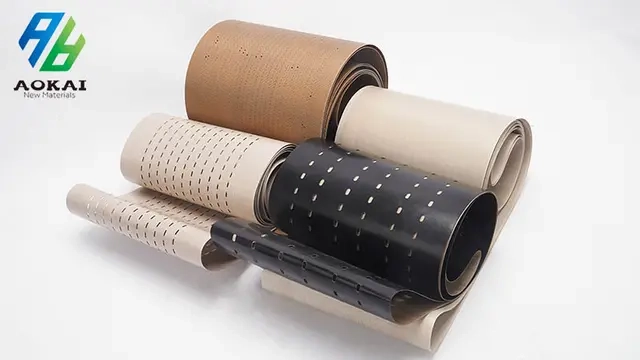

Impacts of Excessively High or Low Sintering Temperatures on PTFE High-Temperature Cloth

Jiangsu Aokai New Materials, a professional manufacturer of PTFE high-temperature cloth, elaborates on how off-standard sintering temperatures damage the comprehensive performance of PTFE high-temperature cloth.

I. Coating Compactness and Microstructure

· Low sintering temperature: PTFE particles fail to fully melt and diffuse, leaving intact inter-particle boundaries and massive micro-pores inside the coating. Severe under-sintering even creates visible cracks, resulting in poor overall compactness.

· Excessively high sintering temperature: PTFE undergoes thermal degradation with fractured molecular backbones. Escaping decomposed small molecules generate pinholes, bubbles and orange-peel rough surfaces, destroying coating integrity and potentially damaging the fiberglass substrate.

II. Adhesion Between Coating and Substrate

· Low sintering temperature: No effective molten mechanical anchoring forms between PTFE resin and fiberglass fabric, leading to extremely weak bonding. The coating easily blisters, delaminates or peels off in large sheets during service.

· Excessively high sintering temperature: Overheated degraded PTFE turns brittle with drastically reduced adhesion strength, also triggering delamination and flaking. The sizing agent on fiberglass filaments is destroyed, further aggravating coating shedding.

III. Surface Condition and Non-Stick Performance

· Low sintering temperature: The coating features microscopically uneven rough surfaces with a high friction coefficient. Non-stick performance drops sharply, and workpieces readily adhere to the surface, losing PTFE’s core functional advantage.

· Excessively high sintering temperature: Outgassing from thermal decomposition creates surface defects including pinholes, bubbles and orange peel texture, severely ruining surface flatness and release properties.

IV. Mechanical Properties and Flexibility

· Low sintering temperature: The coating cannot form a continuous tough film, resulting in poor tensile strength, tear resistance and flex endurance. The fabric feels soft, and the coating crumbles and flakes off under slight rubbing.

· Excessively high sintering temperature: Degraded PTFE coating loses flexibility and becomes brittle, prone to cracking and rupturing upon folding or stretching. Damaged brittle fiberglass substrate causes a sharp plunge in overall mechanical strength.

V. Protective and Insulating Properties

· Low sintering temperature: Porous incomplete coating greatly weakens chemical penetration resistance, dielectric strength and barrier performance.

· Excessively high sintering temperature: Degradation destroys coating compactness and protective capacity. Meanwhile, released toxic fumes indicate complete material failure.

VI. Appearance, Color and Gloss

· Low sintering temperature: The coating appears opaque milky white with zero gloss, without the semi-transparent texture of fully sintered products.

· Excessively high sintering temperature: The coating first turns yellow, then brown, and eventually charred black, losing its standard luster and transparency.

VII. Dimensional Stability

· Low sintering temperature: Incomplete melting prevents full PTFE shrinkage, resulting in oversized products and unstable dimensions without severe deformation.

· Excessively high sintering temperature: Both PTFE and fiberglass fabric suffer excessive irreversible thermal shrinkage, causing dimensional distortion that fails precision application requirements.

VIII. Optimal Sintering Window & Visual Quick Inspection Criteria

· Recommended temperature range: 370°C ~ 400°C with matched holding time, enabling full fusion of PTFE particles without thermal degradation.

· Visual judgment standard: Fully sintered coating is semi-transparent with a smooth surface in natural light tan or original color; under-sintered cloth is matte and white; over-sintered cloth turns yellow and brittle, with darker color representing more severe degradation.

The above technical content is provided by Jiangsu Aokai New Materials Technology Co., Ltd.

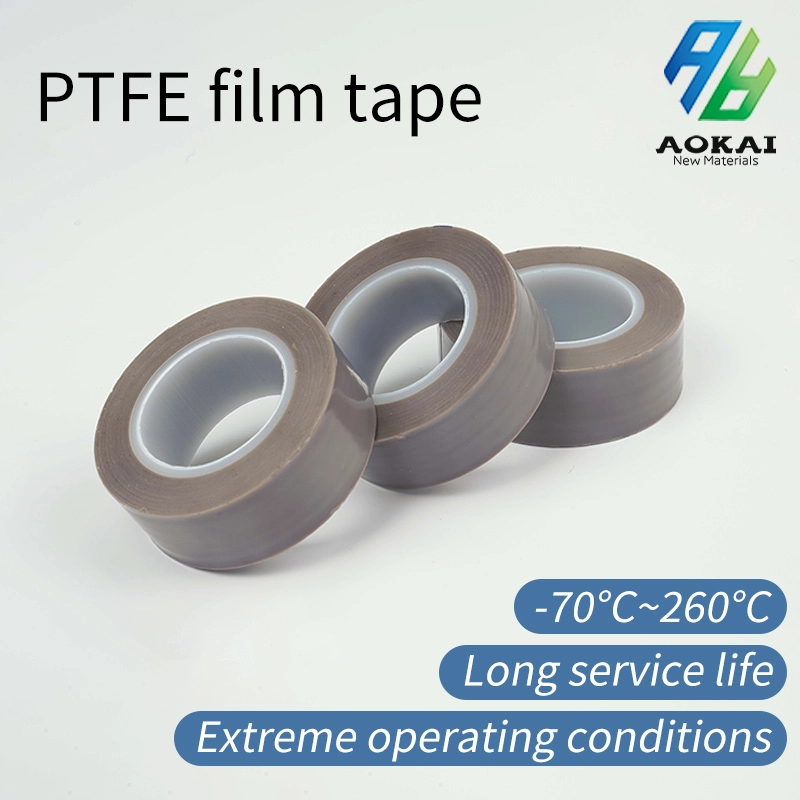

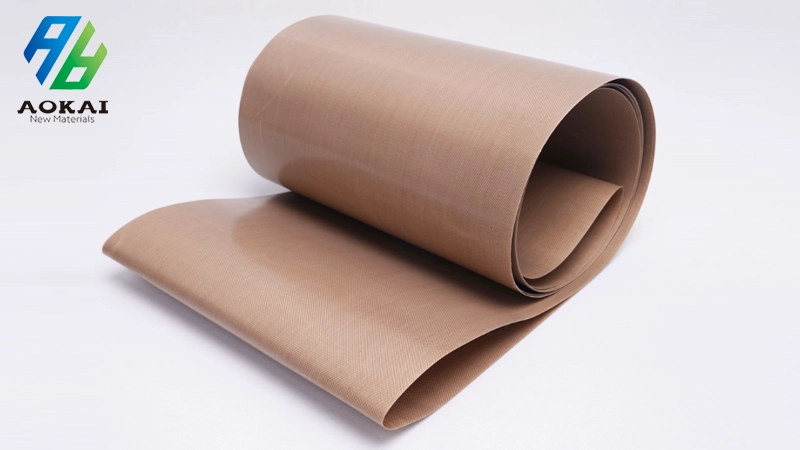

If you want to acquire detailed specifications, application scenarios and customized solutions for our full product line including PTFE high-temperature cloth, PTFE high-temperature adhesive tape, PTFE high-temperature mesh belt, seamless heat press belt, single-sided PTFE fabric, high-temperature resistant conveyor belt and heat-resistant fiberglass cloth, please contact us via the following channels:
