When PTFE high-temperature adhesive tape is used in applications that involve sustained tension, clamping force, or constant load – such as holding insulation in place on a hot pipe, or acting as a structural bond under steady stress – a hidden problem can emerge: creep.
Creep is the slow, permanent deformation of a material under constant load over time. At room temperature, PTFE tape may seem stable. But at 200°C or even 260°C – its typical operating range – the adhesive layer can soften and flow, and the PTFE substrate can undergo “cold flow” (creep below its melting point).
Aokai PTFE has tested creep behavior across thousands of hours. This article explains how creep is evaluated, how the adhesive layer and substrate each contribute, and which tape constructions resist creep best.
What Is Creep in PTFE Tape – Two Dimensions
Creep essentially refers to the viscoelastic response of materials. The adhesive layer and substrate function via different mechanisms, yet both drastically affect overall deformation resistance.
Working condition challenge: PTFE tapes often face constant loads at 200-260°C, far beyond the limit of conventional pressure-sensitive adhesives. Extended high-temperature testing is required.
Adhesive Layer Properties – Silicone PSA
Most PTFE adhesive tapes adopt silicone-based pressure-sensitive adhesives, whose high-temperature creep resistance depends on the following factors:
Factor
Effect on Creep Resistance
Optimal Direction
Crosslink density
Higher crosslinking forms complete elastic network → lower permanent deformation
Increase (but not so high that initial tack is lost)
Molecular weight & structure
High molecular weight + vinyl/phenyl modification → improved cohesive strength
Key takeaway: Under-crosslinked silicone adhesive suffers rapid creep failure at elevated temperatures. Premium anti-creep tapes use high-crosslink-density silicone with reinforcing fillers and controlled thin coating.

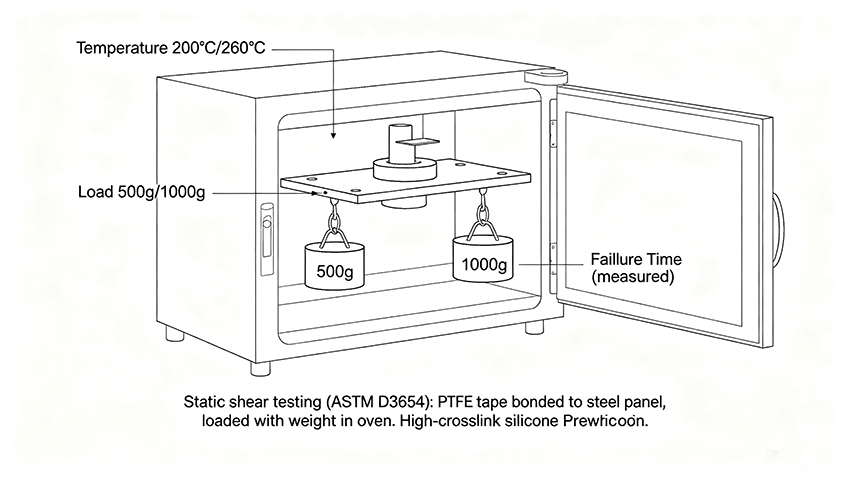

Aokai PTFE high-temperature tape uses a high-crosslink-density silicone PSA with fumed silica reinforcement. Independent static shear testing at 260°C (1000g load, 12.5×25 mm overlap) shows >150 hours to failure – suitable for demanding high-temperature constant-load applications.
Substrate Properties – PTFE Coated Fiberglass vs. Pure PTFE Film
Two mainstream substrates are used for PTFE tapes, with drastically different creep performance:
Substrate Type
Creep Resistance
Mechanism
Pure PTFE film
Poor – prone to well-known cold flow (cold creep). Even under mild constant loads far below melting point (327°C), irreversible large deformation occurs due to molecular chain sliding.
Unreinforced polymer → chains slide past each other under sustained stress
Fiberglass fabric impregnated with PTFE (dominant for high-temperature tape)
For fiberglass-reinforced substrate, creep resistance is determined by:
Factor
Effect
Weave density and thickness
High-density, heavy-weight fabrics → high tensile modulus → low creep
Modified filled PTFE
Additives (fiberglass powder, graphite, carbon fiber) restrict PTFE molecular movement → boost substrate rigidity and creep resistance
Fabric treatment & full impregnation
Fully sintered PTFE completely encapsulating fiberglass forms integrated composite to avoid interlayer shear slip. Insufficient impregnation → residual PTFE inside fabric meshes creeps under load
Substrate thickness & flatness
Thick, uniformly flat substrates → high flexural rigidity → even stress distribution → prevents localized premature creep from stress concentration
Key takeaway: For constant-load high-temperature applications, never use pure PTEF film tape – it will creep irreversibly. Always choose fiberglass-reinforced PTFE tape.
Summary – How to Ensure Creep Resistance in PTFE Tape
Factor
What to Look For
What to Avoid
Adhesive type
High-crosslink-density silicone PSA with fumed silica filler
Under-crosslinked silicone, acrylic PSA (creeps at lower temp)
No primer → adhesive peeling instead of bulk creep
Practical recommendation: For constant-load high-temperature applications (e.g., pipe insulation wrap under tension, holding components on heated platens), request static shear data at your specific temperature and load. Specify fiberglass-reinforced PTFE tape, not film tape. Verify that the adhesive is high-crosslink-density silicone with filler.
In summary, the creep resistance of PTFE high-temperature adhesive tape under long-term constant load depends on two components. The silicone PSA layer must have high crosslink density, reinforcing fillers (fumed silica), and thin uniform coating to resist viscous flow. The substrate must be fiberglass-reinforced PTFE – pure PTFE film will undergo irreversible cold creep at high temperatures. The fiberglass skeleton carries the load and keeps the composite dimensionally stable.
When selecting PTFE tape for constant-load high-temperature applications, never settle for pure PTFE film tape. Always ask for static shear data at your operating temperature. And remember: the bond between adhesive and substrate matters too – primer-treated interfaces prevent interfacial slip.
