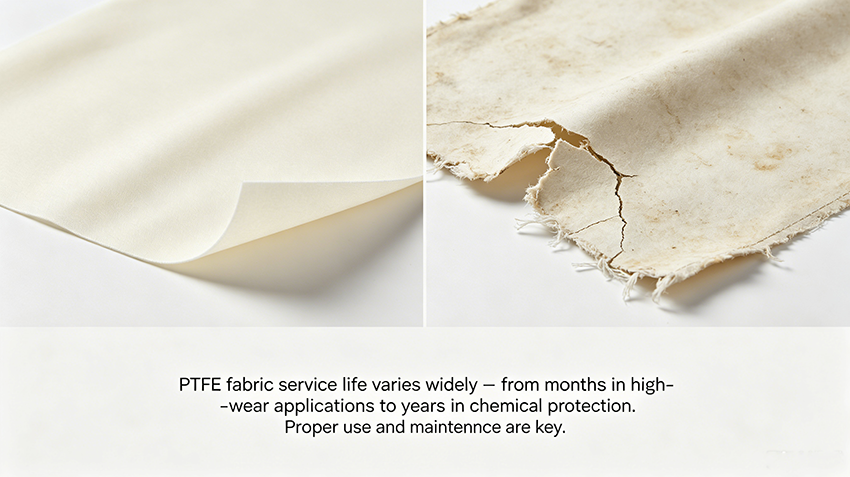

PTFE high-temperature fabric (PTFE-coated fiberglass) is known for its heat resistance, non-stick properties, and chemical inertness. But how long does it actually last? The answer is not simple – it varies from a few months to several years, depending entirely on the working conditions and how well it is maintained.
Aokai PTFE has supplied PTFE fabric for countless applications. Below we explain the general factors that affect life in any scenario, then provide realistic life expectations for six common applications – from food baking to chemical anti-corrosion.
General Factors That Affect Service Life – Apply to All Scenarios
Before looking at specific applications, understand the universal factors that shorten or extend the life of PTFE fabric.
1. Temperature control is critical
The long-term operating temperature range is -70°C to 260°C. Brief excursions to 350°C are possible, but prolonged overheating damages the material structure and drastically shortens life.
Test data: The material maintains intact performance after continuous exposure at 250°C for 200 days.
Rule of thumb: For every 10°C above 260°C, degradation rate roughly doubles. Keep within limits.
2. Avoid physical damage – sharp creases are the enemy
Prevent sharp creases during installation and operation. Creases form stress concentration points and may easily cause tearing – especially when used as conveyor belts. Once a crease line forms, the fiberglass substrate fractures underneath, and the coating cracks.
3. Chemical exposure and contamination
PTFE resists strong acids and alkalis extremely well. However, long-term contact with oil stains, hot melt adhesives, or pigments at high temperatures can accelerate coating aging. Even though PTFE is inert, residual substances can carbonize on the surface and degrade release properties.
4. Mechanical wear resistance
Continuous friction and tension wear down the surface coating. Keep the fabric away from sharp objects. For sliding applications, consider filled PTFE grades or regular lubrication.
5. Regular inspection and replacement
Conduct routine maintenance and inspection every three months for stable performance. For key production lines, prepare a spare set for alternating use. Early detection of wear prevents catastrophic failure.
Service Life Comparison for Six Typical Application Scenarios
The following table summarizes expected service life based on real-world field data from Aokai PTFE customers.
Application Scenario
Working Conditions & Stress
Expected Service Life
Food Baking
Temperature ≤260°C; grease exposure; excellent non-stick, easy to clean
Long – Static applications (baking trays) last several months with nearly no degradation
Industrial Conveyor Belts
200-260°C; continuous material friction and mechanical tension
Moderate – Failure mainly from wear and cracking; typical 6-18 months depending on duty
Heat Sealing & Welding
Intermittent heating 200-300°C; frequent contact with sealing heads
Relatively long – Remains like new after 7 cycles at 190°C short-term hot pressing. Coating peeling is main risk
Chemical Anti-corrosion
Strong acids, alkalis, organic solvents; some underwater or high humidity

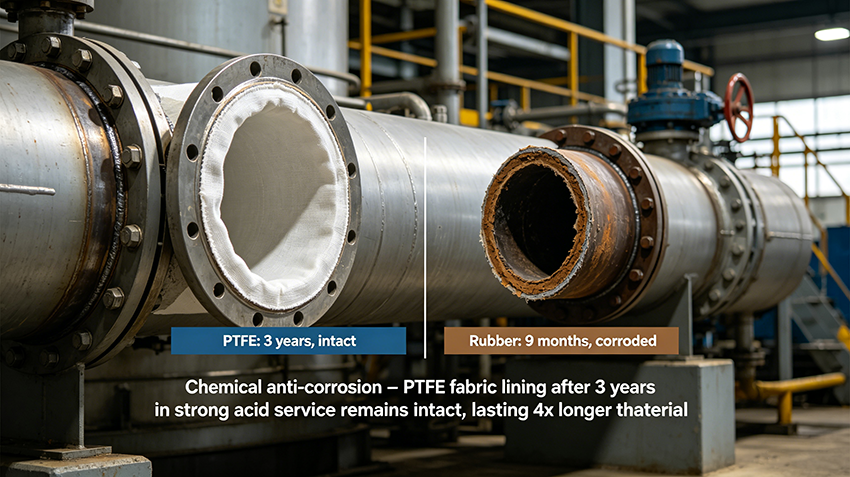

Extremely long – Practical case: pipeline cladding worked for 3 years under 320°C steam; desulfurization tower lining in strong acid remained intact for 3 years – 4x longer than rubber materials
PV Lamination
~150°C under high pressure; frequent contact with molten EVA encapsulant
Moderate – Residual adhesive and repeated hot pressing are main failure causes; typically 6-12 months
Heavy-duty Friction Applications
Direct contact with abrasives (e.g., substrate for abrasive cutting discs)
Short – Severe abrasion greatly shortens life; varies with abrasive hardness and speed; may last weeks or months
How to Maximize Service Life – Practical Tips
1. Proper product selection
Choose the right thickness, weave, and coating for your specific application. For high-wear applications, select a filled PTFE grade or thicker fabric. For chemical exposure, ensure full impregnation and no pinholes.
2. Standardized installation
Avoid over-tensioning when installing conveyor belts.
Use the largest possible roller diameter to reduce bending stress.
Seal edges with silicone sealant for moisture-prone environments.
3. Regular maintenance
Clean the fabric regularly to prevent residue buildup.
Keep the fabric flat and free of wrinkles during operation.
For high-fat food applications, reduce temperature by 10-20°C.

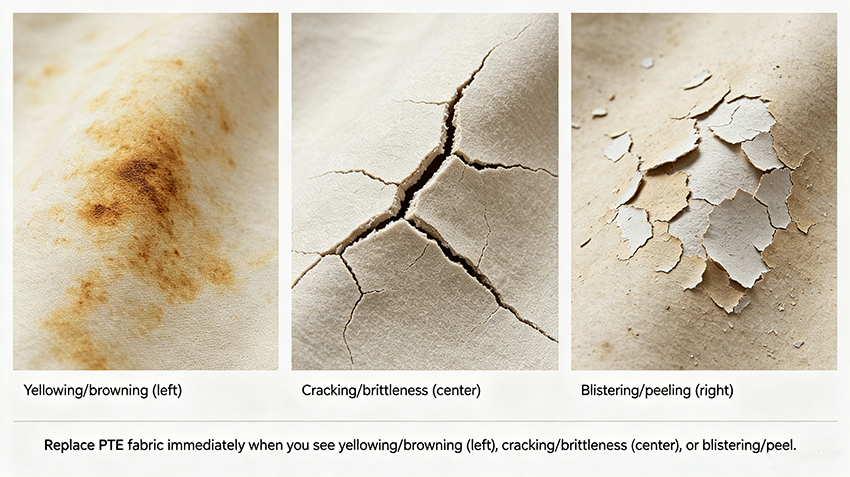

4. Timely replacement – know the warning signs
Replace the fabric immediately if you observe:
Severe discoloration (yellowing, browning, blackening)
Brittleness (fabric cracks when bent)
Coating blistering or large-area peeling
Visible edge fraying or holes
Do not wait for the scheduled replacement cycle if these signs appear. Damaged fabric can contaminate products or cause equipment damage.
Summary – Life Expectancy at a Glance
Application
Expected Life
Primary Failure Mode
Food baking
Months (static)
Grease carbonization
Industrial conveyor
6-18 months
Wear and edge cracking
Heat sealing
Long (with care)
Coating peeling
Chemical anti-corrosion
3+ years (4x rubber)
Chemical attack (rare)
PV lamination
6-12 months
EVA residue, heat cycling
Heavy friction
Weeks to months
Abrasion wear-through
Final takeaway: PTFE high-temperature fabric is a high-performance material, but its actual service life depends heavily on how it is used. Strict temperature control (stay ≤260°C), avoid sharp creases, clean regularly, and replace at the first sign of blistering or yellowing. For demanding applications like chemical anti-corrosion, PTFE fabric can outlast traditional materials by years.
Aokai PTFE provides technical support to help you select the right fabric and maximize its life. Contact us with your application details.
