PTFE high-temperature cloth is prized for its non-stick, heat-resistant, and anti-corrosion properties. But the same ultra-smooth, low-surface-energy, chemically inert surface that makes it ideal for release applications also makes it nearly impossible to bond, print, or laminate.
The solution is surface treatment – engineering both the microstructure and chemical composition of the PTFE surface to convert it from non-bondable to bondable.
Aokai PTFE offers PTFE cloth with various surface treatment options. This guide explains four common methods – chemical etching, plasma treatment, corona treatment, and laser treatment – and how each modifies the surface physically and chemically.
Chemical Etching (Sodium-Naphthalene Solution Treatment)
This wet-treatment method delivers the most long-lasting effect and sees the widest application for PTFE bonding.
1. Physical structure modification
The sodium-naphthalene complex solution etches the PTFE surface by stripping off fluorine atoms from the top-surface layer. The originally mirror-smooth surface is etched with countless micron- to nanoscale honeycomb- or coral-shaped pits and cavities. This roughening drastically enlarges the specific surface area and forms mechanical-interlocking anchor points for adhesives.
2. Chemical structure modification
This is the fundamental transformation. Strongly reductive sodium extracts fluorine atoms from the PTFE carbon backbone, leaving unsaturated carbon chains and free radicals. These active sites further react with moisture and oxygen in ambient air or solution, introducing polar functional groups including carbonyl (C=O), hydroxyl (-OH), and carboxyl (-COOH). Meanwhile, surface carbon content rises and the treated layer turns dark-brown or brown-black.
3. Result
A quasi-carbonized active layer is formed. Surface energy rises from under 20 dyn/cm for untreated pure PTFE to above 40-50 dyn/cm, which even enables direct bonding with water-based adhesives. This structural modification is permanent. However, the treated layer is only several microns thin and requires careful protection.
Plasma Treatment
Commonly used for partial or in-line processing, plasma treatment is classified into vacuum plasma and atmospheric-pressure plasma.
1. Physical structure modification

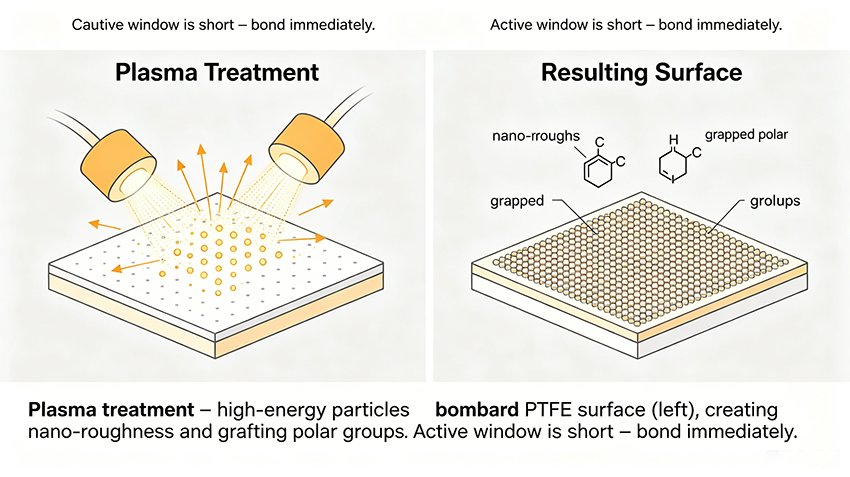

High-energy particles (electrons, ions, free radicals) continuously bombard the PTFE surface and trigger sputter-etching effects. An ultra-fine nanoscale roughened texture is sculpted on the surface; the weak boundary layer is removed without damaging the underlying fiberglass substrate. Microscopically, the crystalline bulk-structured surface transforms into an amorphous micro-roughened state.
2. Chemical structure modification
Process gas determines the final functional groups:
Inert gas treatment (e.g., argon): Breaks C-F bonds to generate surface free radicals for subsequent grafting of polar groups
Reactive gases (oxygen, ammonia): Directly graft hydroxyl, carbonyl, and amino groups onto the molecular chains
3. Result
A clean, highly wettable nano-roughened surface is obtained. The bonding-enhancing effect degrades over time, so lamination should be carried out right after plasma treatment. Its major merit is the ultra-shallow modified layer, which barely alters overall material thickness and original color.
Corona Treatment
A high-voltage discharge technique that works rapidly on thin-film materials yet suffers from fast performance regression.
1. Physical structure modification
High-voltage corona discharge generates micro-arc flashes. Impact from high-energy electrons fractures PTFE molecular chains, creates active sites, and etches a shallow, subtle rough texture. Owing to lower energy and shorter reaction duration compared with plasma treatment, corona only produces limited pit-like surface roughening.
2. Chemical structure modification
Ozone and reactive oxygen species are produced in discharge zones. Oxidation introduces hydroxyl groups, peroxides, and carbonyl groups to elevate surface energy significantly.
3. Result
The treatment only affects an extremely thin surface layer with unstable structural modification, whose adhesive-boosting effect fades quickly. It is primarily deployed as a temporary in-line adhesion-promoting process. For thicker, filled materials such as PTFE high-temperature cloth, corona treatment generally yields inferior results compared with plasma treatment and chemical etching.
Laser Treatment
Precision surface modification using excimer-laser or femtosecond-laser technology.
1. Physical structure modification

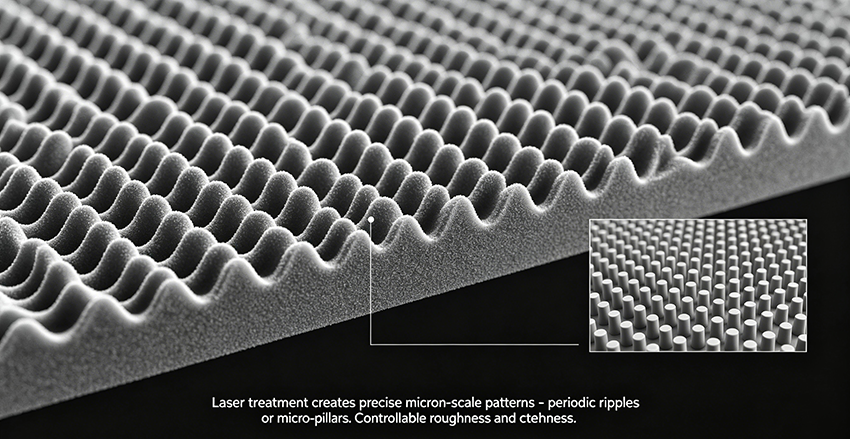

Photothermal and photochemical effects precisely fabricate regular micron-scale array patterns such as periodic ripples, grooves, or micro-pillars. These artificially engineered textures can be accurately custom-tuned to form optimal geometries for mechanical interlocking with adhesives.
2. Chemical structure modification
High-energy laser photons break high-strength C-F bonds, triggering local defluorination and carbonization. Treated areas develop diamond-like carbon or graphitic carbon layers with elevated oxygen content. Ultraviolet excimer lasers can graft active monomers via direct photochemical reactions without carbonization.
3. Result
Synchronous, targeted, and patterned modification of physical texture and chemical polarity is achieved. The inert polymer surface is converted into a carbon-oxygen-rich layer with controllable roughness and high surface energy, delivering high-strength and long-lasting bonding performance.

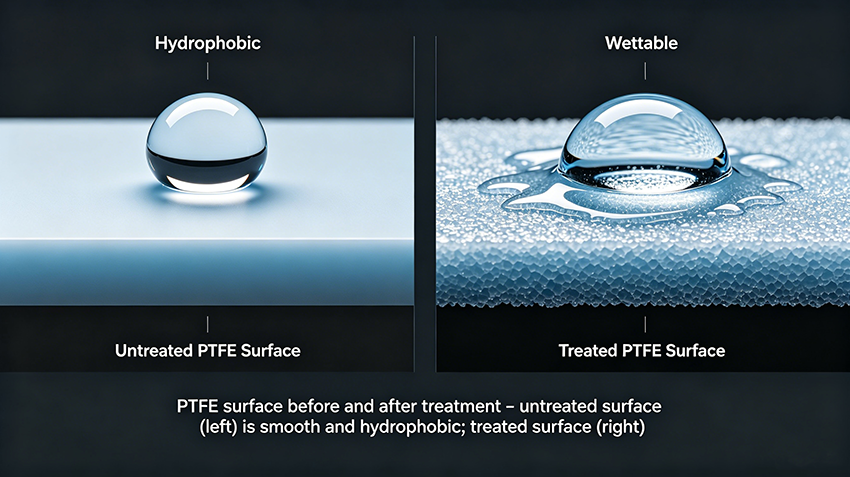

Summary – Physical and Chemical Transformation
All four treatment methods achieve two fundamental changes:
1. Physical transformation
The molecular-level smooth inert surface is transformed into a roughened topography covered with micro-nano-scale cavities, grooves, and coral-style protrusions, providing abundant mechanical-interlocking anchor points for adhesive bonding.
Method
Roughness Scale
Pattern Type
Chemical etching
Micro-nano
Honeycomb, coral-like (random)
Plasma treatment
Nano
Fine, uniform (amorphous)
Corona treatment
Nano (shallow)
Limited pit-like
Laser treatment
Micro
Regular arrays (ripples, pillars, grooves)
2. Chemical transformation
The low-energy surface built from perfluorocarbon chains (-CF₂-CF₂-) is converted into a high-energy surface abundant with oxygen- and nitrogen-containing polar functional groups. The modified surface can be wetted by regular glue and form hydrogen bonds or even chemical bonds with adhesive molecules.
Method
Surface Energy Achieved
Permanence
Chemical etching
40-50 dyn/cm
Permanent
Plasma treatment
40-60 dyn/cm
Short window (hours to days)
Corona treatment
38-45 dyn/cm
Very short (hours)
Laser treatment
Customizable
Permanent
Aokai PTFE offers PTFE cloth with chemical etching (permanent, dark surface) and plasma treatment (clean, color-preserving, short activation window) as standard options. Laser treatment is available for specialized applications requiring precision patterns. Contact us to discuss your bonding requirements.
