PTFE high-temperature tape is often used in applications where it must be removed and reapplied multiple times – on heat sealers during changeovers, on 3D printer beds, or as temporary masking in electronics assembly. However, after a few cycles, many tapes lose tack, leave residue, or fail to bond.
The good news: reusability can be significantly improved through coordinated upgrades across four dimensions: adhesive formulation, substrate treatment, backside coating design, and proper operation & maintenance.
Aokai PTFE has developed reusable PTFE tapes using these principles. This guide explains each dimension in detail.
Adhesive Formulation Optimization – The Core Factor
The adhesive itself is the primary determinant of reusability. Four formulation strategies improve repeated adhesion performance.
1. Improve cohesive strength and crosslink density
Adopt high-polymerization-degree silicone gum and increase crosslinking sites to turn the adhesive layer into an elastic solid. This prevents tearing or adhesive transfer during repeated peeling and minimizes self-loss of the glue layer. A well-crosslinked adhesive peels cleanly rather than splitting internally.
2. Low silicone migration formula
Use a platinum-catalyzed addition curing system and thoroughly remove low-molecular-weight substances. This inhibits the exudation of small-molecule silicone oil that contaminates the adhesive surface and avoids continuous viscosity attenuation. Low-migration adhesives maintain their original tack over many cycles.
3. Microphase structure for repositionable adhesion
Add MQ silicone resin or form an interpenetrating polymer network to create hard segment–soft segment microphase separation:
Hard segments – provide cohesion to resist residual glue transfer
Soft segments – provide tackiness
Part of the viscosity can be recovered after wiping dust off the surface. This "repositionable" characteristic is ideal for applications requiring multiple adjustments during assembly.
4. Water-wash recoverable modified adhesive
After the adhesive surface gets stained with dust, this modified silicone adhesive can be rinsed with clean water or mild solvent, regaining over 90% of its original tack after drying. This is particularly valuable for cleanroom or electronics applications where contamination is inevitable.
Strengthen Anchoring Force Between PTFE Substrate and Adhesive Layer
PTFE features ultra-low surface energy (18-20 dynes/cm), which easily causes full adhesive transfer – the entire adhesive layer lifts off the backing – without dedicated treatment.
1. Substrate surface activation
Conduct chemical etching with sodium-naphthalene complex or plasma treatment on PTFE fiberglass fabric to introduce polar groups such as C=O and -OH, enabling chemical bonding or strong mechanical interlocking between adhesive and substrate. This prevents the adhesive from peeling off the backing during removal.

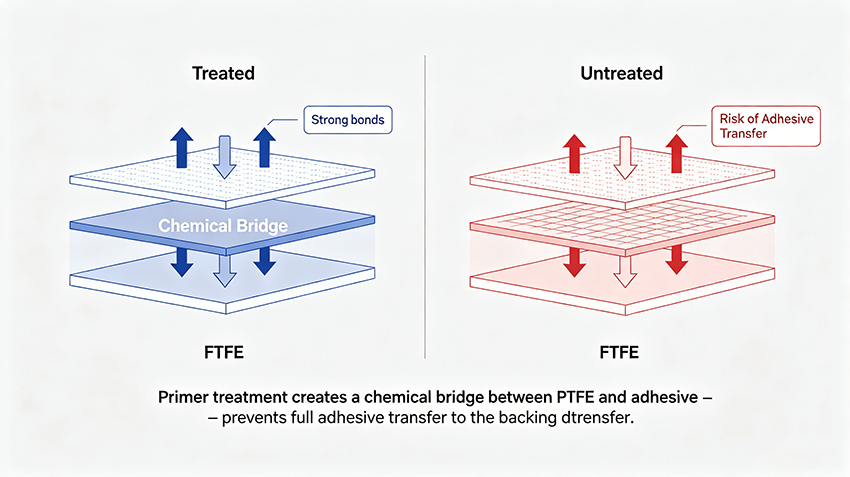

2. Specialized primer coating
Apply a reactive primer before adhesive coating to build a chemical bridge between PTFE and silicone adhesive, eliminating anchoring failure completely. The primer acts as a molecular link, bonding to both the activated PTFE surface and the silicone PSA.
Aokai PTFE uses a proprietary primer system that ensures zero adhesive transfer to the backing even after 10+ removal cycles.
Backside (Release Surface) Treatment Optimization
The PTFE backside naturally delivers release performance, yet repeated winding and unwinding still damages the adhesive surface through friction and micro-tearing.
1. Enhanced release performance back coating
Apply an extra high-crosslink-density fluorosilicone or silicone release layer on the PTFE back. It maintains stable unwinding force under high temperature and long-term compression, preventing surface fiber pulling and damage to the adhesive layer before reuse.

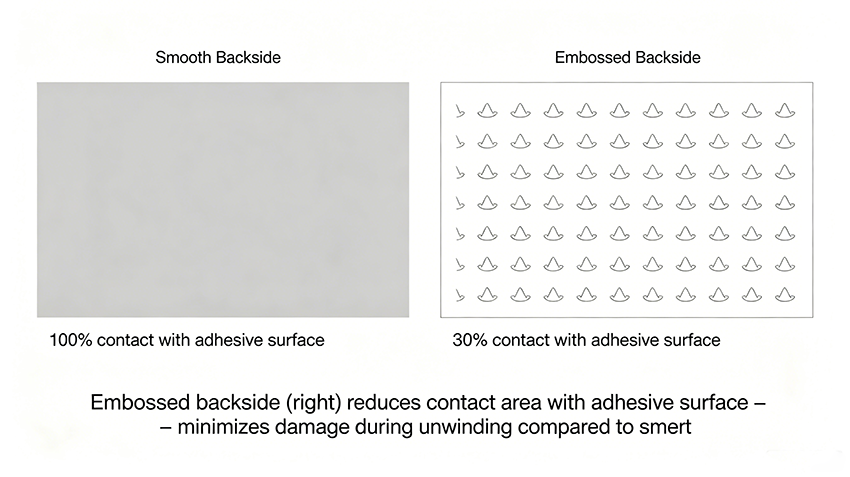

2. Embossed or micro-structured backside
Reduce the actual contact area between the back layer and adhesive surface, lowering instantaneous destructive force on glue during peeling. This micro-textured surface minimizes the "stick-slip" effect that can tear the adhesive.
Operation and Maintenance Guidelines
Even the best-engineered tape will fail early if handled poorly. Proper practices extend reusability significantly.
1. Active cleaning of adhesive surface
Viscosity decline is mostly caused by surface dust contamination. Wipe the surface gently in one direction with a dust-free cloth dipped in clean water or anhydrous alcohol, then air-dry naturally or with cold wind – tackiness will recover remarkably. Regular cleaning between uses is the single most effective maintenance action.
2. Avoid damage under extreme working conditions

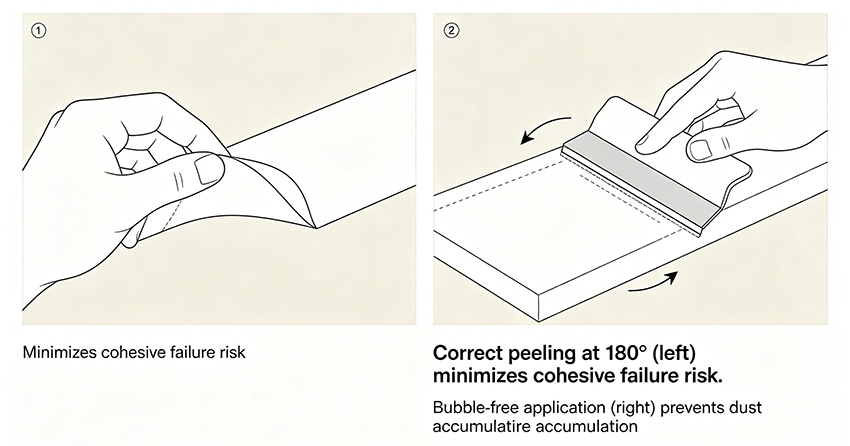

Peel slowly at a small peeling angle (close to 180°) to lower risks of cohesive failure.
Do not use above rated temperature – the adhesive will age and harden, losing reusability.
Clean the adherend surface beforehand – oil stains rapidly contaminate the adhesive layer and cannot be fully removed.
3. Eliminate air bubbles during lamination
Dust tends to accumulate around bubble edges and trigger local stress concentration, accelerating adhesive aging. Proper bubble-free application (using a squeegee or roller) extends the tape's reusable life.
Summary – Four Dimensions of Reusability Improvement
Dimension
Key Action
Benefit
Adhesive formulation
High crosslink density, low migration, water-washable
Clean release, tack recovery
Substrate anchoring
Surface activation + primer
No adhesive transfer to backing
Backside coating
Release layer + micro-embossing
Protects adhesive during unwinding
Operation & maintenance
Clean surface, proper peel, bubble-free
Extends practical reuse cycles
Aokai PTFE manufactures PTFE tapes optimized for repeated adhesion. Our water-washable grades can recover >90% tack after cleaning, and our primer system ensures zero adhesive transfer. Contact us for product recommendations and cycle test data.
If you wish to learn detailed specifications, application scenarios and customized solutions for our full product lineup, including PTFE high-temperature fabrics, PTFE high-temperature adhesive tapes, PTFE mesh conveyor belts, seamless fusing machine belts, single-sided PTFE coated cloth, heat-resistant conveyor belts and high-temperature fiberglass fabrics, please contact us via the channels below:
We adhere to the service philosophy of professionalism and integrity, dedicated to offering you one-stop integrated solutions and thoughtful customer service!
