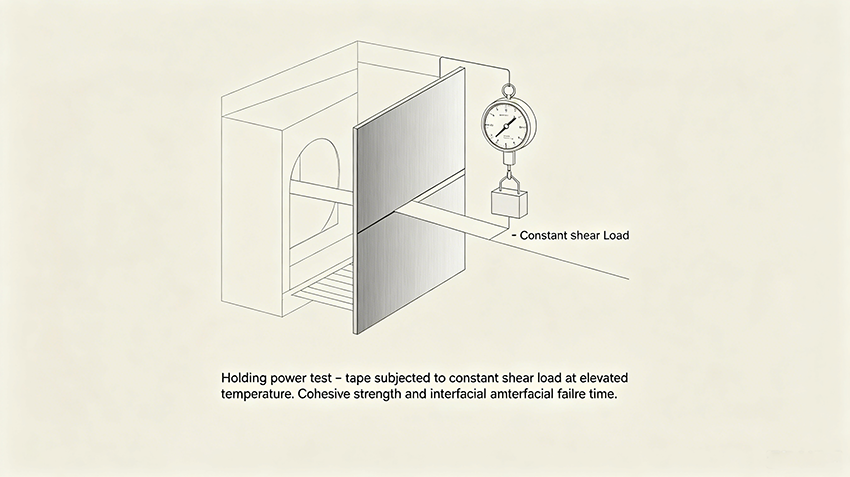

Holding power – the ability of an adhesive tape to resist shear stress and stay in place under constant load, especially at elevated temperatures – is one of the most critical performance metrics for PTFE high-temperature adhesive tape. Poor holding power leads to tape slippage, adhesive residue, and equipment contamination.
The core principle for improving holding power is twofold: enhance the cohesive strength of the adhesive layer and strengthen the interfacial anchoring force between the adhesive and the PTFE substrate.
Aokai PTFE has optimized both coating and curing processes to achieve superior holding performance. This guide covers systematic solutions across these two key manufacturing stages.
Coating Process Optimization – Building the Foundation
The coating procedure directly determines the structure, thickness uniformity, and bonding force with the substrate – the foundation of excellent holding power.

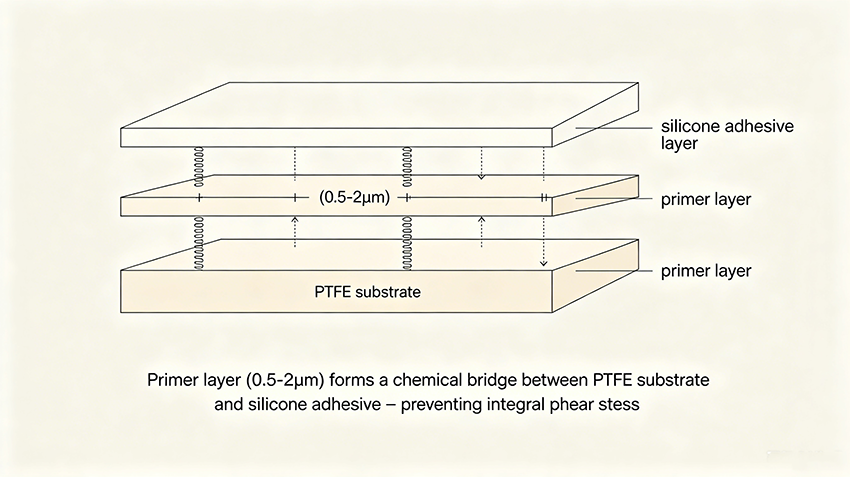

1. Primer coating – the core solution for PTFE's poor adhesion
PTFE features extremely low surface energy (18-20 dynes/cm), making the adhesive layer prone to integral peeling under high-temperature shear stress. A primer coating process must be implemented before top adhesive coating.
Primer selection: Silane coupling agents or special silicone primers (solutions blended with tackifying resin and reactive silane) are widely adopted. For addition-cure silicone PSA, vinyl or epoxy functional silane-based primers are preferred.
Key process control points:
Ultra-thin primer film: Control dry film thickness within 0.5–2 μm – excessive primer forms a weak boundary layer that reduces holding power.
Sufficient pre-drying: Fully evaporate solvent and complete preliminary condensation/crosslinking before top coating, preventing primer solvent migration into the top adhesive.
In-line surface treatment + primer coating: Conduct online plasma or corona treatment on the PTFE substrate immediately before primer application to avoid attenuation of surface activation.
2. Precise control of adhesive thickness and uniformity

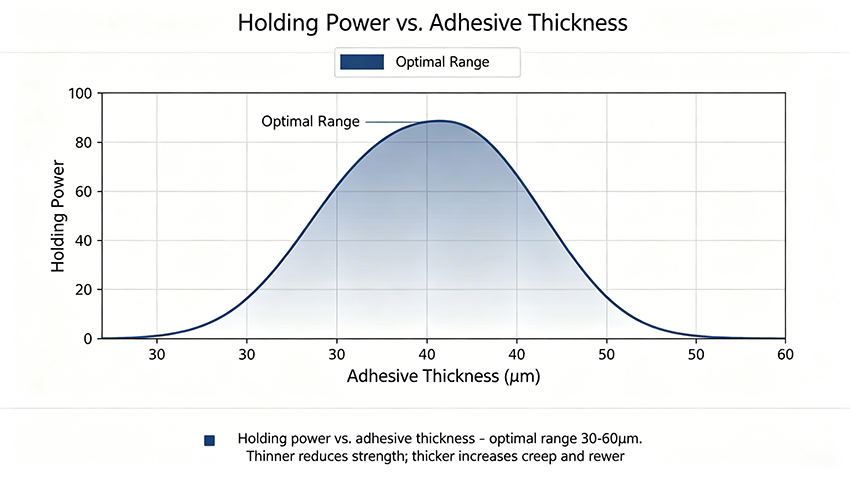

Holding power generally rises with adhesive thickness, yet overly thick coating aggravates adhesive creep under high temperature and reversely weakens holding performance.
Optimal dry adhesive thickness: Silicone PSA achieves optimal holding power at dry thickness of 30–60 μm.
High-precision coating methods: Adopt comma coating, slot die coating, or high-precision micro gravure coating to keep longitudinal and transverse thickness tolerance within ±2 μm. Uneven thickness triggers stress concentration, leading to fracture starting from the thinnest area during holding power testing.
3. Adhesive liquid pretreatment and feeding system
Vacuum defoaming: Degas adhesive liquid under vacuum after mixing or before coating to avoid expanded voids during curing, which act as crack initiation points under constant load.
In-line mixing and maturation: For two-component silicone adhesive, deploy a static mixer for direct feeding and control liquid residence time to ensure uniform preliminary reaction and eliminate local weak cohesive zones.
Cleanliness management: Equip coating heads with dust-proof enclosures and filter adhesive liquid via 5–10 μm filter cartridges to prevent particulate impurities that induce stress concentration.
Curing Process Optimization – Locking in Performance
Curing determines the final crosslink density, internal stress level, and residual small molecule content – which directly govern cohesive strength and high-temperature creep resistance.
Form preliminary crosslink network, provide initial mechanical strength, further eliminate residual solvent
High-temperature deep crosslinking
150–220°C (adjustable by adhesive type)
Complete thorough crosslinking; precise temperature control is critical
Key insight: Stepwise heating facilitates formation of a uniform, dense three-dimensional network inside the adhesive, delivering far superior holding performance compared with single-stage high-temperature baking. Insufficient temperature results in inadequate crosslinking and a soft cohesive layer; overheating may trigger adhesive aging or massive internal stress from mismatched thermal shrinkage.
2. Post-curing and maturation treatment
In-line post-curing: Set an extended oven section before winding with temperature slightly lower than peak crosslinking temperature to prolong thermal history and accomplish full crosslinking reaction.
Roll maturation curing: Place wound tape rolls in a constant-temperature oven (40–60°C for 24–48 hours) for static storage. This procedure:
Completes residual crosslinking reaction slowly
Relaxes internal stress generated by mismatched thermal expansion between substrate and adhesive
Greatly improves long-term load-bearing performance under high temperature
Staged tension annealing: Apply slight cyclic tension to rolled tape during maturation to assist stress release.
3. Curing atmosphere and environmental control
Low-humidity environment management: For condensation-cure silicone adhesive, moderate ambient moisture participates in crosslinking, while excessive humidity causes rapid surface skinning and hinders deep curing. Addition-cure silicone adhesive requires strict isolation of sulfur and nitrogen-containing compounds to prevent catalyst poisoning.

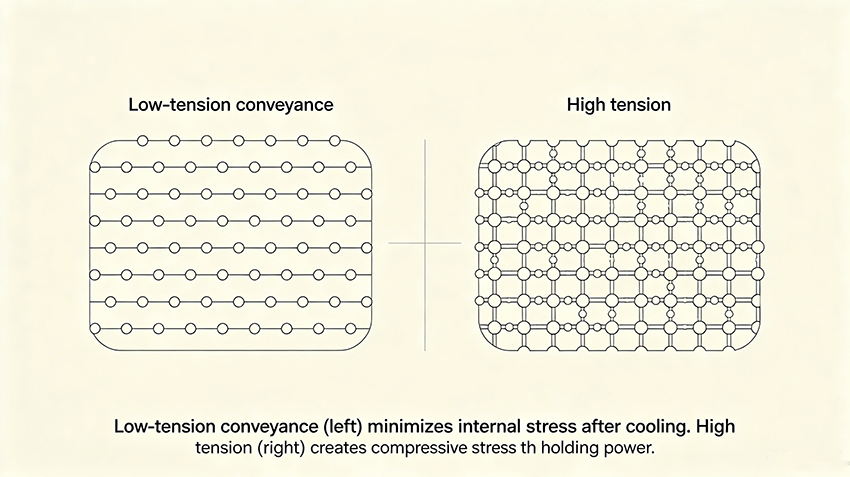

4. Tension and shrinkage stress regulation
PTFE film is prone to elongation and thermal shrinkage under high temperature.
Low-tension conveyance: Maintain constant and minimal substrate tension inside the oven to avoid curing under stretched adhesive state. After cooling, substrate shrinkage subjects adhesive to persistent compressive/shear internal stress – drastically reducing holding power.
Substrate preheating: Preheat the PTFE substrate to slightly higher than the adhesive liquid temperature before coating to enhance coating wettability and mitigate severe thermal shock shrinkage at the oven inlet.
Summary – Coating and Curing Optimization Checklist
Process Area
Key Parameter
Target/Optimization
Primer coating
Dry film thickness
0.5–2 μm (avoid weak boundary layer)
Primer coating
Pre-drying
Complete solvent removal before top coating
Primer coating
Surface activation
Plasma/corona in-line before primer
Adhesive coating
Dry thickness
30–60 μm (optimal range)
Adhesive coating
Thickness tolerance
±2 μm (prevent stress concentration)
Adhesive coating
Cleanliness
5–10 μm filtration, dust-proof enclosure
Curing profile
Stepwise heating
80-100°C → 120-140°C → 150-220°C
Post-curing
Maturation
40-60°C for 24-48 hours (stress relaxation)
Curing atmosphere
Humidity control
Moderate for condensation-cure; avoid catalyst poisons for addition-cure
Tension control
In-oven tension
Minimal, constant (avoid stretching during cure)
Substrate preheating
Before coating
Slightly above adhesive temperature
Aokai PTFE applies these optimized coating and curing processes to produce PTFE adhesive tape with superior holding power. For customers requiring specific holding performance at elevated temperatures, we can adjust primer formulations, adhesive thickness, and curing profiles to meet your requirements.
