Offshore platforms, ships, coastal wind turbines, and marine engineering equipment face a relentless enemy: salt spray. It corrodes metals, degrades adhesives, and shortens equipment life. Can PTFE high-temperature tape survive these harsh conditions?
The short answer: the PTFE substrate itself is virtually indestructible in salt spray. But the tape’s overall performance depends heavily on the adhesive type and installation quality.
Aokai PTFE has supplied PTFE tapes for marine applications for years. This article explains salt spray resistance, adhesive selection, surface preparation, edge sealing, and maintenance – so you can achieve long-term reliability in coastal and offshore environments.
Salt Spray Resistance – PTFE Substrate vs. Adhesive
1. PTFE Substrate – Completely Resistant
PTFE exhibits outstanding chemical inertness. It is virtually non-reactive with seawater and salt spray, with a water absorption rate below 0.01%. It also delivers excellent UV and weather resistance. The PTFE substrate itself is completely resistant to salt spray – no corrosion, degradation, or loss of physical properties.
Key data: PTFE shows no measurable weight change or surface degradation after thousands of hours in salt spray chambers.
2. Adhesive – The Weak Link
The overall salt spray resistance of the tape depends mainly on the adhesive type:
Poor – hydrolysis, plasticizer migration, significant adhesion loss under high heat/humidity/salt spray
❌ Not recommended
Why silicone wins: The cross-linked silicone system is inherently hydrophobic, UV-resistant, and stable across -70°C to 260°C. It maintains adhesion and flexibility even after prolonged salt spray exposure.
Why acrylic fails: Conventional acrylic adhesives undergo hydrolysis in high-humidity environments. The salt spray accelerates breakdown of ester bonds, leading to adhesive softening, migration, and eventual bond failure.
Aokai PTFE uses only high-performance silicone PSA for our marine-grade PTFE tapes. We have validated our tapes through independent 1000-hour neutral salt spray testing with >80% peel strength retention – documentation available upon request.
Application Requirements for Marine & High Salt Spray Environments
For reliable service on offshore platforms, vessels, coastal wind power facilities, and marine engineering equipment, full-process control covering material selection, construction, design, and maintenance is required.
1. Material Selection
Requirement
Specification
Adhesive
Silicone-based, temperature resistance ≥260°C, long-term resistant to high humidity, salt spray, and UV
Substrate
Pure PTFE film or high-quality PTFE-impregnated fiberglass fabric – high mechanical strength, low permeability, superior weatherability
Electrical insulation applications
Select tape thickness according to voltage level; account for creepage distance to prevent surface creepage under salt spray and damp conditions
2. Surface Treatment
Thoroughly remove oil, salt, and rust from the bonding surface. Ensure surface is completely dry.
Wipe repeatedly with anhydrous ethanol or acetone until no contaminants remain.
For metal surfaces: Recommended to roughen by sandblasting or sanding (80-120 grit) to enhance mechanical anchoring force.
For extreme conditions: Apply silicone primer additionally – greatly improves initial adhesion and long-term salt spray resistance on metal surfaces.
Why this matters: The tape-substrate interface is the weakest point in salt spray environments. Inadequate surface treatment allows salt spray to infiltrate along the interface, causing corrosion of metal substrates or delamination of the adhesive layer.
3. Construction Process
Step
Requirement
Why
Environmental conditions
Ambient temperature ≥10°C, relative humidity ≤75%. Do not apply on dewy or wet surfaces
Prevents condensation under tape
Air bubble elimination
Roll or smooth tape fully after application to expel all air bubbles
Ensures 100% tight contact, no voids for salt spray to accumulate
Lap width
≥10–15 mm. Apply extra pressure on overlapping areas. Optionally soften adhesive with low-temperature hot air before pressing
Enhances sealing at overlaps

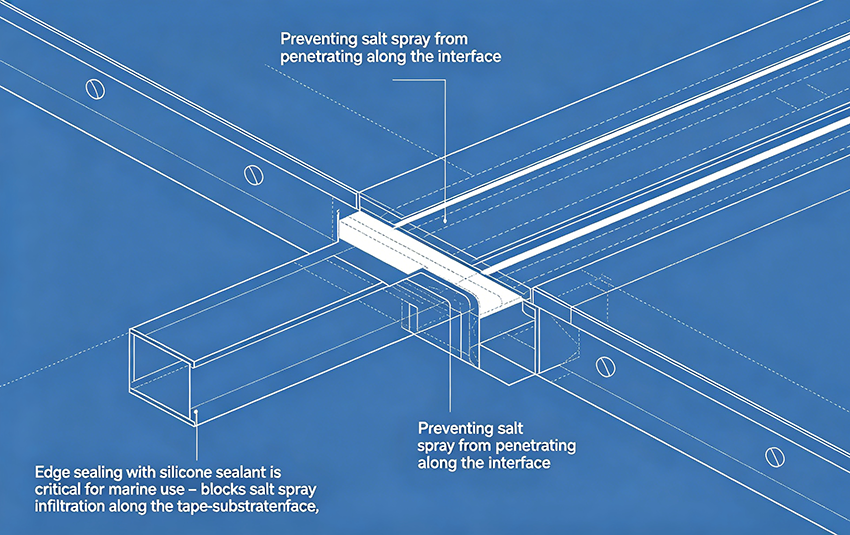

Edge sealing (critical for marine)
Coat all exposed edges with weather-resistant silicone sealant
Blocks salt spray infiltration along interfaces – the most important step for long-term reliability
4. Design & Selection Principles
Tape width – Shall be larger than the protected area, reserving a complete sealing margin of at least 5–10 mm on each side.
Thermal expansion – Given drastic temperature changes between sunlit/shaded areas and day/night, choose tapes with good flexibility and conformability to avoid debonding from thermal cycling.
Electrochemical corrosion – When applied to cathodic protection systems or joints of dissimilar metals, verify that the tape has sufficiently high insulation resistance to avoid galvanic corrosion.
5. Operation & Maintenance
Task
Frequency
Action
Regular inspection
Every 3-6 months
Check for warping, damage, cracking, edge sealant integrity
Salt deposit removal
As needed (after salt spray events)
Rinse with fresh water; let dry naturally. Avoid long-term salt retention (forms concentrated solution, attacks interface)
Local damage repair
Immediately
Clean damaged area, apply new tape per standard procedure, re-seal edges
Scheduled replacement
Based on field experience + accelerated test results
Replace even if no visible defects – once service life reached
Summary – Key Success Factors for Marine PTFE Tape Application
Success Factor
Critical Action
Adhesive selection
Use silicone PSA only – acrylic will fail
Surface preparation
Clean + roughen (sandblasting/sanding) + primer for extreme conditions
Bubble-free application
Roll/squeegee to eliminate air voids
Edge sealing
Apply weather-resistant silicone sealant to all exposed edges – non-negotiable for marine
Regular maintenance
Inspect every 3-6 months; rinse salt deposits; repair damage immediately
Scheduled replacement
Based on field experience – don’t wait for visible failure
In summary, PTFE high-temperature tape is inherently excellent for marine and high salt spray environments – the PTFE substrate resists salt, UV, and moisture perfectly. However, the tape’s long-term reliability depends on the adhesive. Silicone PSA is the only choice for offshore and coastal applications, with proven 500-1000+ hour salt spray test performance (>80% peel retention). Acrylic PSA will fail within months.
Beyond adhesive selection, success requires thorough surface cleaning and roughening, bubble-free application, and – most critically – edge sealing with silicone sealant to block salt spray infiltration. Regular inspections and scheduled replacement complete the reliability strategy.
Need PTFE tape for a marine or offshore application? Aokai PTFE supplies silicone PSA PTFE tapes validated for salt spray resistance. Contact us with your environmental conditions, substrate material, and expected service life for a tailored recommendation.
If you wish to learn more about detailed parameters, application scenarios, and customized solutions for our full product range, including PTFE high-temperature fabrics, PTFE high-temperature tapes, PTFE mesh belts, seamless fusing machine belts, single-sided PTFE fabrics, high-temperature resistant conveyor belts and high-temperature resistant fiberglass fabrics, please contact us:
We adhere to the service tenet of professionalism and integrity, and are dedicated to delivering one-stop solutions and considerate services for all customers.
