PTFE high-temperature tape is often used in applications where it must be repositioned, removed and reapplied multiple times – for example, on heat sealers during changeovers, on 3D printer beds for different prints, or as temporary masking in electronics assembly. However, after a few cycles, the tape may lose stickiness, leave residue, or fail to bond.
The good news is that reusability can be improved – through better product design, careful handling, and proper maintenance.
Aokai PTFE manufactures PTFE tape with enhanced repeated adhesion performance. This guide explains why adhesion degrades and how to extend the useful life of your tape through multiple applications.
Why Does Repeated Adhesion Degrade? Root Causes
Before solving the problem, understand the three main mechanisms that cause adhesion loss over repeated use.
1. Surface contamination – dust, fibers, and silicone oil
Every time the tape is exposed, airborne dust, fiber debris, and (from the tape itself) precipitated silicone oil can accumulate on the adhesive surface. Even microscopic particles reduce contact area, lowering peel strength.
Silicone oil migration: Some low-quality silicone PSAs contain free, uncrosslinked silicone oil. Under heat or pressure, this oil migrates to the adhesive surface, acting as a release agent – dramatically reducing tack.
2. Cohesive failure – adhesive residue left behind
When the adhesive layer splits internally (cohesive failure) rather than releasing from the substrate, some adhesive remains on the mating surface. This residue:
Reduces the tape’s remaining adhesive thickness
Contaminates the surface for the next application
Leads to uneven bonding
3. Poor bonding between adhesive and PTFE substrate
If the silicone PSA does not adhere strongly to the PTFE-coated fiberglass backing, repeated peeling will cause the adhesive layer to lift off the substrate. The tape becomes “bald” in patches, with adhesive left on the mating surface and exposed PTFE backing with no stick.
4. Adhesive deformation – loss of wettability
After multiple compressions, the adhesive layer may become flattened, hardened, or contaminated to the point where it can no longer flow into micro-gaps on the bonding surface. This reduces initial tack and ultimate peel strength.
Product Design Improvements – Making the Tape Better
The most effective solutions are built into the tape during manufacturing.
1. Select high-performance silicone PSA – the core measure
Increase crosslink density: Use two-component addition-cure silicone adhesive with sufficient curing. A dense crosslinked network resists cohesive failure and adhesive transfer. Under-cured PSA leaves residue.
Low-precipitation formula: Choose premium clean-type silicone adhesive with low volatile content and extremely low free silicone oil. This prevents silicone oil from migrating onto bonded surfaces – a key factor distinguishing reusable PTFE tapes from disposable ones.
Balance initial tack and holding power: Add MQ silicone resin for tack enhancement, but control the proportion carefully. Excess resin causes adhesive residue; insufficient resin leads to weak initial tack and rapid decline of wettability after repeated use.

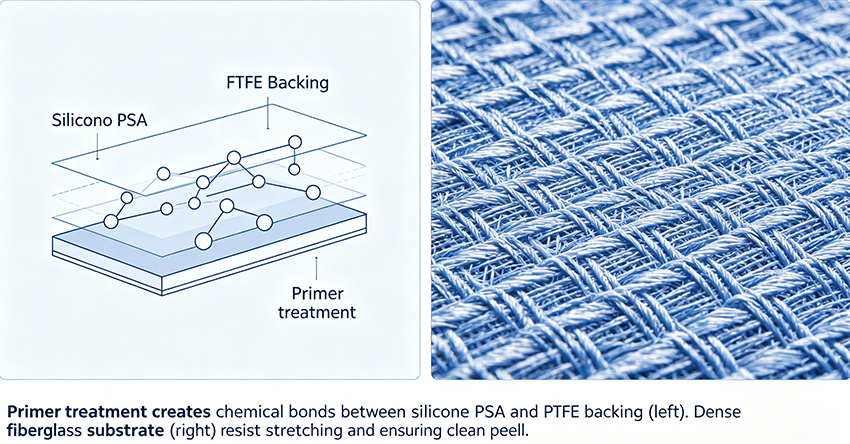

2. Enhance interfacial bonding – primer treatment
PTFE has extremely low surface energy. Silicone PSA does not naturally bond well to it.
Primer treatment: Apply a dedicated silicone primer (silane coupling agent system) to the PTFE fiberglass substrate. This creates chemical bonds or strong physical anchoring between the silicone adhesive and the low-surface-energy PTFE, preventing the adhesive from peeling off the substrate during repeated stripping.
Substrate surface activation: Conduct mild chemical etching or plasma treatment on the adhesive side of PTFE (one side only) to increase adhesion sites without damaging the non-stick property on the reverse side.
3. Optimize tape structure – dense backing and release design
Improve substrate stiffness: Use densely woven, high-density fiberglass cloth fully impregnated with PTFE. A stiff substrate resists stretching and deformation during repeated peeling, ensuring the adhesive is stripped at a steady angle and minimizing damage.
Backside release design: Guarantee stable release performance of the PTFE layer (or additional release coating) on the tape back. Poor release causes excessive interlayer adhesion in roll stock – peeling the roll damages the adhesive layer or leaves micro-scratches, greatly reducing reusability.
Practical Operation & Maintenance – How to Handle the Tape
Even the best-designed tape will fail early if handled poorly.
1. Keep bonding surfaces clean
Before each application, wipe the contact surface with a lint-free cloth dipped in anhydrous ethanol or isopropanol. This removes residual silicone oil, dust, and grease. Do not use acetone or strong solvents that may swell the adhesive.
2. Avoid peeling at high temperatures
Wait until the tape cools down to room temperature before removal. Silicone adhesive loses cohesive strength under heat – it becomes soft and stretchy. Peeling while hot often leads to cohesive fracture and residue. Room-temperature peeling gives clean release.

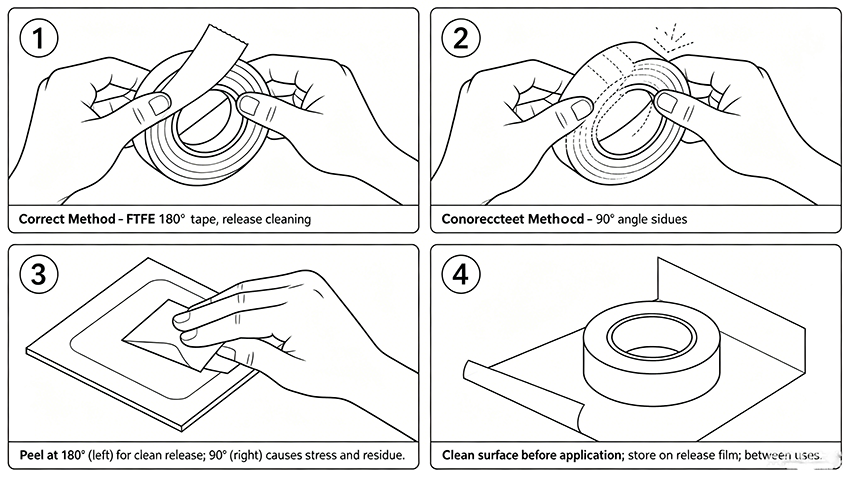

3. Standardize peeling method
Peel slowly and evenly at an angle close to 180° (flat against the surface).
Avoid violent tearing or pulling at sharp angles (e.g., 90°), which concentrates stress and can lift adhesive from the backing.
Do not rub the adhesive surface – this embeds dirt and reduces tack.
4. Temporary protection during idle periods
If the tape is removed but will be reused later (e.g., during equipment changeover), attach it to a dedicated PET release film instead of leaving it exposed. This prevents dust adsorption and keeps the adhesive clean.
5. Reasonable model selection – thicker adhesive layer helps
If working conditions permit, choose tape with a thicker adhesive layer (e.g., 0.05-0.08 mm vs. 0.02-0.03 mm). A thicker silicone layer provides:
Cushioning effect
Self-repairing wettability (can fill micro-gaps)
Slower adhesion attenuation after multiple uses
Quantitative Testing – Measuring Reusability
The best way to evaluate repeated adhesion performance is through standardized testing.
1. Test method
Apply tape to a clean stainless steel panel (per ASTM D3330).
Aokai PTFE offers PTFE high-temperature tape specifically formulated for repeated adhesion applications. Our low-precipitation, high-crosslink silicone PSA, combined with primer-treated backing, delivers consistent performance over multiple cycles. Contact us for product recommendations and test data.
If you wish to learn more about detailed specifications, application scenarios and customized solutions for our full product range, including PTFE high-temperature fabrics, PTFE high-temperature tapes, PTFE mesh belts, seamless bonding machine belts, single-sided PTFE cloth, high-temperature resistant conveyor belts and high-temperature resistant fiberglass fabrics, please contact us:
