PTFE high-temperature cloth is a composite of PTFE coating and fiberglass substrate. When exposed to increasing temperatures, this material does not simply "melt" at one point – it undergoes a series of progressive physical and chemical changes across four distinct temperature ranges.
From micro-cracking at 260°C to complete decomposition at 500°C+, the structural changes affect the PTFE coating first, then the fiberglass substrate. Understanding these stages is essential for safe and reliable operation.
Aokai PTFE has analyzed the thermal behavior of PTFE-coated fabrics across all temperature ranges. This guide explains the four key structural change stages and provides practical temperature limits.
Long-Term Service Temperature Range – Below Approximately 260°C
The overall structure stays relatively stable while slow, microscopic alterations gradually take place.
1. Relaxation of PTFE molecular chains and crystallinity adjustment
Long-term thermal exposure triggers gradual movement of polymer molecular chains and marginally raises crystallinity. The coating thus turns slightly brittle with increased surface hardness. This is a slow process – measurable after hundreds or thousands of hours.
2. Accumulation of interfacial thermal stress
PTFE features a thermal-expansion coefficient of roughly 10×10⁻⁵/°C, which is far higher than fiberglass at about 5×10⁻⁶/°C. Repeated thermal-cold cycling generates internal stress at the coating-substrate boundary, eventually forming micro-cracks over time. This is the primary aging mechanism within the safe operating range.
3. Volatilization of residual additives
Remaining surfactants and wetting agents left over from production decompose little by little, leading to faint darkening on the fabric surface. This is typically harmless but indicates the material is aging.
Temperature Approaching and Exceeding the Melting Point – Around 327°C
Once PTFE reaches its melting-point temperature, dramatic physical-structural transformation occurs.
1. Crystalline-region melting

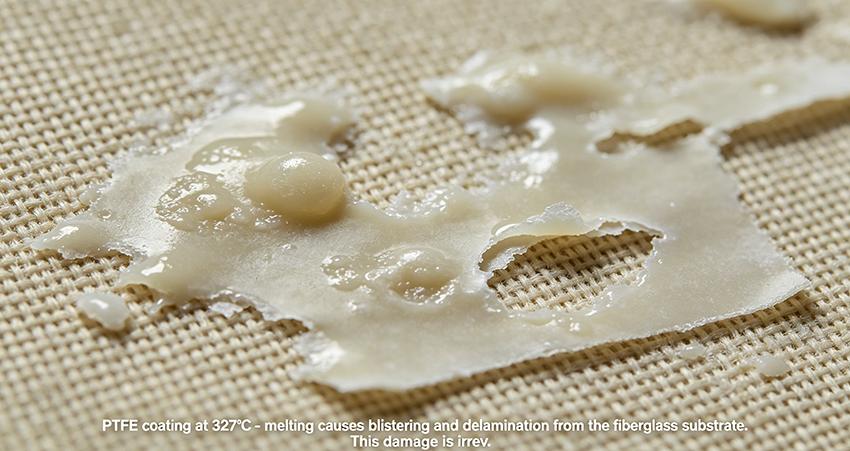

Semi-crystalline opaque milky-white PTFE converts into an amorphous gel-like liquid accompanied by sharp volume expansion. The coating loses all mechanical strength and begins to soften and flow. At this point, the fabric loses its dimensional stability and structural integrity.
2. Delamination between coating and substrate
Reduced cohesive force and thermal-expansion-induced stress cause molten PTFE to blister, peel off, and flow away from the fiberglass fabric, which results in composite delamination and structural failure. The non-stick surface is damaged consequently. Once delamination occurs, it is irreversible.
3. Fiberglass maintains its skeleton structure
The fiberglass fabric remains dimensionally stable at this stage. Without the protective PTFE layer, bare glass filaments become vulnerable to oxidation and chemical erosion.
Aokai PTFE warning: Even brief excursions above 327°C cause irreversible delamination. The fabric may look intact when cool, but the PTFE coating has permanently separated from the fiberglass, losing all mechanical integrity.
Onset of Thermal Decomposition – 400°C to 500°C
PTFE molecular backbones start chemical cleavage, bringing about irreversible structural breakdown.
1. Dominant depolymerization reaction
Under oxygen-free environments, PTFE undergoes a zipper-type degradation. C-C covalent bonds on the main chain break down, releasing gaseous monomers primarily consisting of tetrafluoroethylene (over 95%) and hexafluoropropylene. Molecular weight drops sharply, and the PTFE coating pulverizes and dissipates.
2. Oxidative decomposition under aerobic conditions
Oxygen attacks carbon free radicals and generates toxic gases such as carbonyl fluoride (COF₂) and trifluoromethane, accompanied by a sharp pungent sour odor. Hydrogen fluoride (HF) and perfluoroisobutylene (PFIB) may also be released under certain conditions.
3. Trace carbon residue
Pure PTFE vaporizes nearly completely without carbon leftovers. Black discoloration on the fabric usually stems from carbonization of fiberglass sizing agents, surface contaminants, or minor comonomers in modified-grade PTFE.
4. Burn-off of fiberglass sizing agents
Organic sizing agents coated on fiberglass filaments decompose above 350°C. Glass filaments lose mutual adhesion, which renders the fabric fluffy and prone to fuzzing.
(配图4插入位置：本节末尾，展示PTFE在400°C以上分解后仅剩碳化残留物和裸露玻纤的照片）

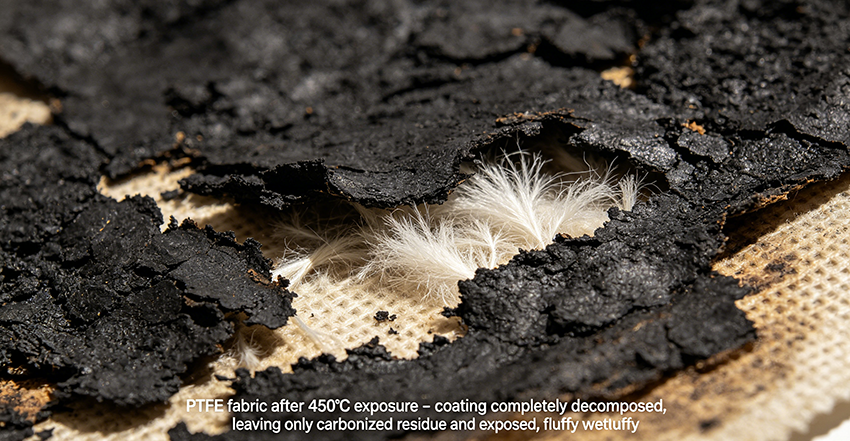

Caption: PTFE fabric after 450°C exposure – coating completely decomposed, leaving only carbonized residue and exposed, fluffy fiberglass.
High-Temperature Destruction Zone – Above 500°C
The PTFE coating has completely vanished, leaving only the bare fiberglass substrate bearing continuous high-temperature load.
1. Softening of E-glass fiber

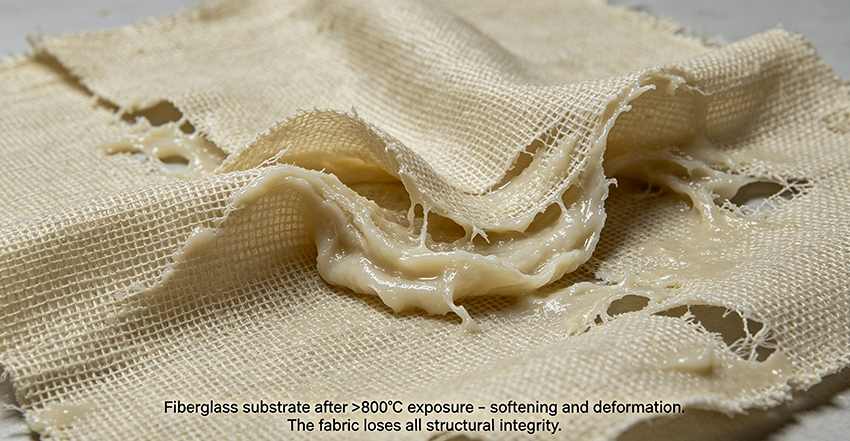

Standard E-glass fiber has a softening point of roughly 840°C. Nevertheless, its tensile strength degrades markedly above 500°C. When heated beyond 800°C, the whole fiberglass cloth softens, deforms, and sags and loses structural support capacity.
2. High-temperature creep and devitrification
Prolonged high-temperature exposure triggers creep-stretching of glass fibers, followed by devitrification and pulverization that fully collapse the fabric structure. At this stage, the fabric is no longer recognizable as a textile – it becomes a loose, fragile mass of glass fibers.

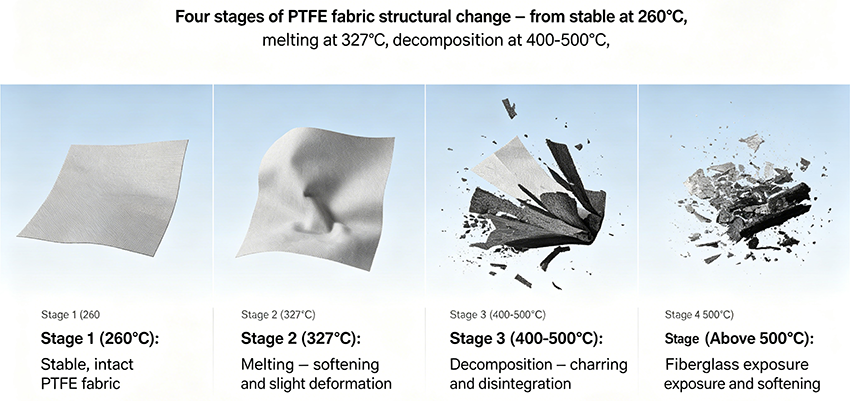

Summary – Temperature Stages and Critical Limits
Temperature Range
PTFE Coating
Fiberglass Substrate
Overall Fabric Status
≤260°C
Slow micro-cracking, additive volatilization
Stable
✅ Functional – long-term use safe
260-327°C
Softening, stress accumulation
Stable
⚠️ Degradation begins – short-term only
~327°C (melting)
Melts, delaminates, loses structure
Stable
❌ Catastrophic – irreversible damage
327-400°C
Molten, flowing, losing coverage
Stable (but unprotected)
❌ Non-functional – coating separates
400-500°C
Decomposes, releases toxic gases
Sizing burns off
❌ Dangerous – toxic fumes, structural loss
>500°C
Completely gone
Softens >500°C, melts >840°C
❌ Complete structural failure
Aokai PTFE recommends strictly controlling the long-term operating temperature below 260°C and limiting short-term peaks to 300°C maximum to avoid performance failure and potential safety risks caused by delamination and thermal decomposition.
