Standard PTFE fabric is an excellent non-stick, heat-resistant material, but it is an electrical insulator. In electronics assembly lines, static-sensitive components can be damaged by a spark. In explosive environments (gas, dust), static discharge can ignite fires.
The solution is anti-static PTFE high-temperature fabric. It retains all the benefits of PTFE – 260°C heat resistance, non-stick, chemical inertness – while adding controlled surface conductivity (typically 10⁶–10⁹ Ω surface resistance).
Aokai PTFE manufactures anti-static PTFE fabric in various grades. This guide covers seven major application fields where static protection is critical.
In electronics production, static discharge is a silent killer. One spark can destroy a microprocessor or memory chip.
1. PCB lamination and high-temperature wrapping
Anti-static PTFE fabric is used as a release layer and insulation sheet during the lamination of printed circuit boards (PCBs). The high heat (up to 260°C) is no issue, and the static-dissipative property prevents charge buildup that could damage delicate circuitry.
2. Anti-static work areas and packaging
Equipment protection in flammable and explosive environments (e.g., solvent-based coating lines)
ESD-safe packaging for static-sensitive components – the fabric can be used as wrap or interleaving material
Workbench mats for electronics assembly (though thicker rubber mats are more common, PTFE fabric is used where heat and non-stick are also needed)
Food & Pharmaceutical Industry – ESD-Safe Processing
Food and pharma processing often involves moving powders, granules, or flammable dusts (sugar, flour, starch). Static charges can cause dust explosions or cause powders to cling to equipment.

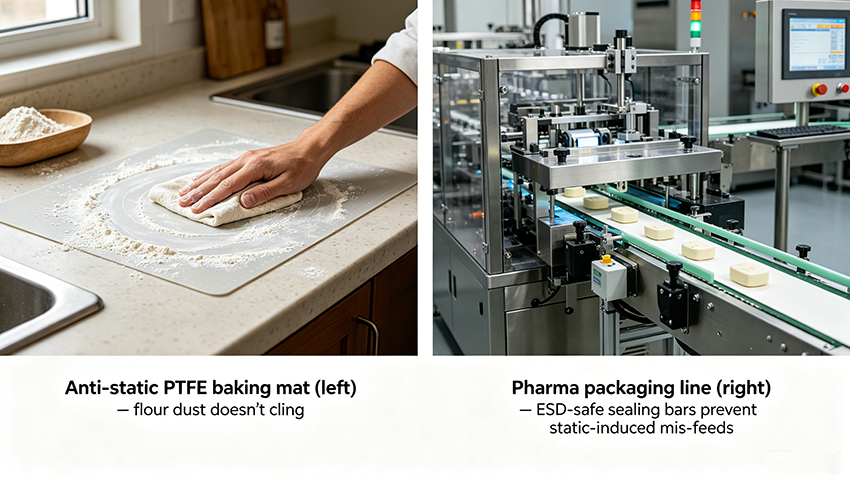

1. Baking and food processing
Anti-static PTFE fabric is made into baking sheet liners, microwave gaskets, and conveyor belts. The non-stick property releases dough and baked goods easily; the anti-static property prevents flour dust from clinging to the belt or liner.
2. Pharmaceutical packaging
In sterile packaging lines, static charge can attract contaminants or cause mis-feeds of blister packs. Anti-static PTFE tape on sealing bars and conveyor guides solves this, while being non-toxic and heat-resistant.
Photovoltaics & New Energy – Protecting Solar Cells
PV module manufacturing is particularly sensitive to static electricity. Solar cells are thin, brittle, and easily damaged by ESD.
1. PV module lamination
During the lamination of solar panels (150°C, high pressure, molten EVA encapsulant), anti-static PTFE fabric serves as:
Separating fabric between the cells and the laminator diaphragm
Conveyor belt for cell handling before lamination
The anti-static property prevents charge buildup that could cause micro-cracks in the silicon cells or attract dust that would create shadowing defects.
Aokai PTFE supplies anti-static PTFE fabric specifically for PV laminators. It has been validated on leading equipment brands and is available in seamless belt form.
Chemical & Environmental Protection – Safe Handling of Flammable Materials
Chemical plants, refineries, and waste treatment facilities often handle flammable gases, vapors, or combustible dusts. Any static spark can be catastrophic.
1. Anti-corrosion pipeline wrapping
PTFE fabric is used as a lining for chemical pipelines, valves, and reaction kettles. The anti-static grade ensures that static charge does not accumulate on the lining surface – critical when pumping non-conductive fluids.
2. Waste gas treatment (e.g., desulfurization)
In power plant desulfurization systems, PTFE fabric serves as corrosion-resistant expansion joints and duct liners. The anti-static version prevents charge buildup from gas flow (triboelectric effect).
Textile & Garment Industry – Reducing Static Cling
Textile processing involves moving fabrics and fibers, which generate static charge. That charge causes fibers to cling to rollers, leads to uneven web formation, and can even create sparks.
1. Production conveyor belts
Anti-static PTFE fabric is used as conveyor belts for high-temperature setting machines and dryers (200-260°C). It releases treated fabrics cleanly and dissipates static to prevent cling.
2. Heat transfer press cloth
For transfer printing machines, anti-static PTFE fabric serves as the press pad. It prevents ink transfer to the press and eliminates static shocks to operators.
Construction & Packaging – Clean Seals, Safe Operations
1. Packaging industry – heat sealing blades
On high-speed bag-making machines, anti-static PTFE tape mounted on sealing blades prevents plastic film from sticking. The anti-static property also prevents charge buildup on the film, which can cause mis-feeds or operator shocks.
2. Printing industry – UV curing and laminating conveyors
Anti-static PTFE fabric belts on UV curing machines and laminators keep printed materials flat and static-free, preventing double-feeds and dust attraction.
3. Architectural membrane materials
For large stadium roofs and tension structures, PTFE architectural membrane is sometimes specified with anti-static properties to prevent lightning attraction (though lightning rods are still used) and reduce dust accumulation on the membrane surface.
Other Industrial Sectors – Specialized Applications
1. Abrasive tools
Anti-static PTFE fabric serves as release fabric during grinding wheel curing. The anti-static property prevents abrasive dust from clinging to the release sheet.
2. Plastic welding
Used as an isolation material to prevent melted plastic from sticking to welding heads. Anti-static prevents dust attraction in clean welding environments.
3. Aerospace and high-frequency insulation
Aerospace components where static dissipation is required for safety
Base material for high-frequency copper clad laminates – PTFE’s low dielectric constant plus anti-static for certain radar applications
Flexible expansion joints in fuel systems where static buildup is a hazard
Summary – When to Choose Anti-Static PTFE Fabric
Application Field
Why Anti-Static Is Needed
Electronics / PCB
Prevent ESD damage to chips and circuits
Food processing
Prevent dust explosion (flour, sugar) and cling
PV lamination
Protect fragile solar cells from micro-cracks
Chemical / flue gas
Prevent ignition of flammable vapors or dusts
Textile
Prevent fabric cling and operator shocks
Packaging
Prevent static mis-feeds and film charge
Aerospace / advanced
Safety-critical static dissipation
Aokai PTFE offers anti-static PTFE fabric in custom widths, thicknesses (0.08mm to 0.40mm), and surface resistance ranges. Standard target is 10⁶–10⁹ Ω; other ranges available on request.
For most ESD-sensitive applications, the anti-static grade is essential. For general use where static is not a concern, standard PTFE fabric is sufficient – but if you are unsure, contact us for guidance.
