Which Chemicals Can Corrode PTFE High-Temperature Fabric?

PTFE is famous for its chemical inertness – often called the “King of Plastics.” It resists almost all acids, alkalis, and solvents at room temperature. However, “almost all” is not “all.” Under extreme conditions – high temperature, high concentration, or in molten state – certain chemicals can attack PTFE. And even when PTFE itself survives, the underlying fiberglass substrate may be vulnerable if the coating has defects.

Understanding these limitations is critical for selecting PTFE fabric in harsh chemical environments.

Aokai PTFE has tested PTFE-coated fabrics against aggressive chemicals. This guide explains what corrodes PTFE directly, what attacks the fiberglass substrate, and how to avoid failures.

How Corrosion Happens – Two Mechanisms

PTFE high-temperature fabric consists of two parts: a PTFE coating (thin, non-stick, chemically inert) and a fiberglass substrate (provides strength but is vulnerable to certain chemicals). Corrosion occurs in two ways:

1. Direct erosion of the PTFE coating

This only happens under extreme conditions – high temperature, high concentration, or in the molten state. At room temperature, PTFE is virtually immune to direct chemical attack.

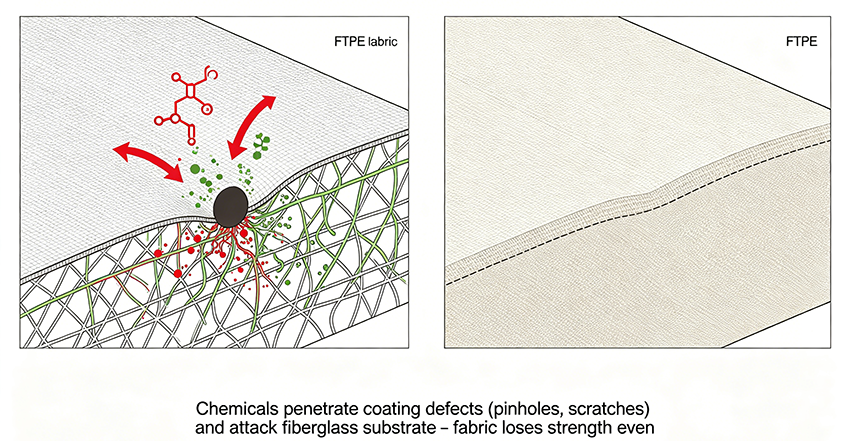

2. Corrosion of the fiberglass substrate through coating defects

Chemicals penetrate pinholes, scratches, or micro-cracks in the PTFE coating and attack the glass fibers. The PTFE itself may still look fine, but the fabric loses mechanical strength and can tear easily. This is a common failure mode when the coating is damaged.

Chemicals That Directly Attack PTFE Coating

These substances react with PTFE itself, but only under extreme conditions.

1. Molten alkali metals – the most typical

Molten sodium (Na), potassium (K), and lithium (Li) strip fluorine atoms from PTFE, causing carbonization, black discoloration, and powdering of the material surface. The sodium-naphthalene solution used for PTFE etching works on this principle.

• Effect: Complete destruction of PTFE structure.

• Conditions: Any exposure to molten alkali metals (above their melting points, e.g., Na at 98°C).

• Recommendation: Avoid completely. Use pure PTFE film only if absolutely necessary, and even then with caution.

2. Strong fluorinating agents at high temperatures

These substances can further decompose PTFE under high heat:

• Fluorine gas (F₂): Causes gradual corrosion at high temperature and pressure.

• Interhalogen fluorides: Extremely reactive chemicals such as chlorine trifluoride (ClF₃) and bromine pentafluoride (BrF₅) may trigger intense reactions or even combustion of PTFE at high temperatures.

• Strong oxidizing fluorides: For example, xenon difluoride (XeF₂).

Recommendation: Keep PTFE fabric away from these chemicals, especially at elevated temperatures.

3. Molten strong alkalis at high temperatures

Molten sodium hydroxide (NaOH) and potassium hydroxide (KOH) slowly corrode the PTFE surface above 300°C, leading to loss of hydrophobicity and surface gloss. Below 300°C, PTFE resists alkalis well. At room temperature, no effect.

4. Reactive metal powders at high temperatures

Magnesium powder (Mg), aluminum powder (Al), and similar materials react violently with PTFE at high temperatures, producing metal fluorides and carbon. This is the basis for some pyrotechnic and incendiary compositions containing PTFE.

Chemicals That Attack the Fiberglass Substrate Through Coating Defects

These chemicals do not react with PTFE, but if the PTFE coating has any pinhole, scratch, or edge exposure, they will penetrate and destroy the fiberglass.

1. Hydrofluoric acid (HF) – the most dangerous

Hydrofluoric acid is highly destructive to fiberglass. It reacts rapidly with silicon dioxide (the main component of glass) to form silicon tetrafluoride gas, dissolving the glass fibers.

• PTFE itself resists HF perfectly – PTFE is often used for HF handling equipment.

• However, PTFE-coated fabric is NOT safe for HF unless the coating is absolutely pinhole-free (which is extremely difficult to guarantee). Any defect will allow HF to wick into the fiberglass, causing rapid fabric failure.

• Recommendation: For HF service, use pure PTFE film (no fiberglass reinforcement) or a fully encapsulated PTFE liner with verified zero pinholes.

2. Concentrated alkalis at high temperatures

Highly concentrated sodium hydroxide (NaOH) solution at high temperature can erode fiberglass through coating imperfections. Room-temperature, dilute alkalis are safe.

3. Concentrated phosphoric acid at high temperatures

Prolonged contact with hot concentrated phosphoric acid will cause corrosion to fiberglass. Again, PTFE itself resists it, but coating defects are the weak point.

Important Reminders for Chemical Service

1. Most failures are from mechanical wear or thermal aging, not chemical attack

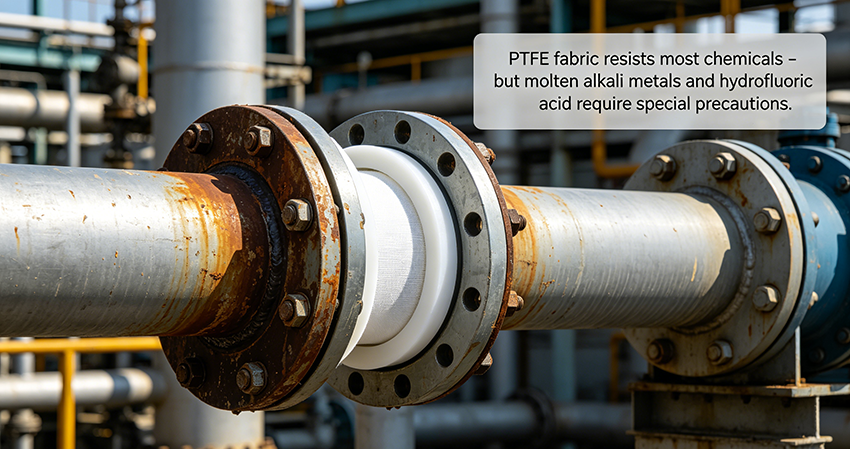

In typical industrial applications (chemical plants, food processing, etc.), PTFE fabric fails due to abrasion, tearing, or heat degradation long before chemical corrosion becomes an issue. The chemical inertness of PTFE is genuine and reliable for almost all common chemicals up to 260°C.

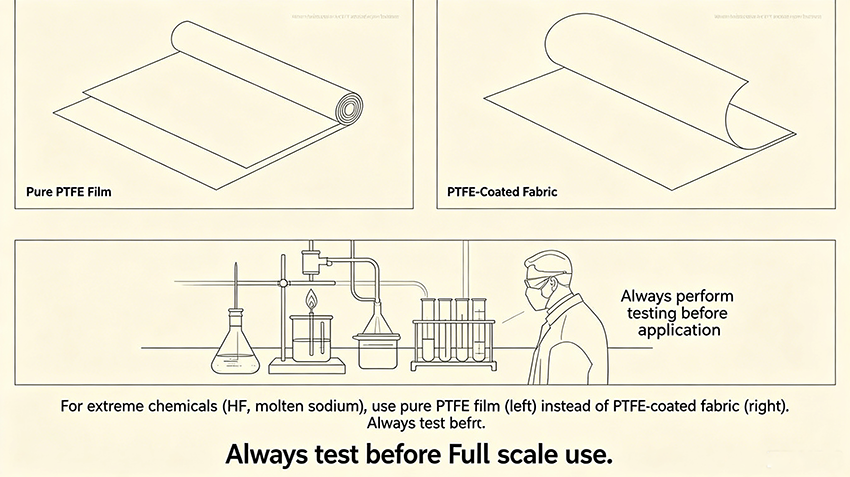

2. If you must handle aggressive chemicals, use pure PTFE film

For applications involving molten alkali metals, hot concentrated HF, or strong fluorinating agents, PTFE-coated fiberglass is not recommended. Instead, use:

• Pure PTFE film (skived or cast) without fiberglass reinforcement

• PTFE-lined metal equipment

• PFA or FEP (other fluoropolymers with similar resistance but different mechanical properties)

3. Always test before full-scale use

If your application involves chemicals not listed as “safe” in standard compatibility charts, conduct a material compatibility test under actual operating conditions (temperature, concentration, duration). Aokai PTFE can provide test samples for validation.

Summary – Chemical Compatibility Quick Reference

Aokai PTFE provides chemical compatibility guidance and can recommend the right product – PTFE-coated fabric for most applications, or pure PTFE film for extreme chemical service. Contact us with your specific chemical, temperature, and exposure time.
